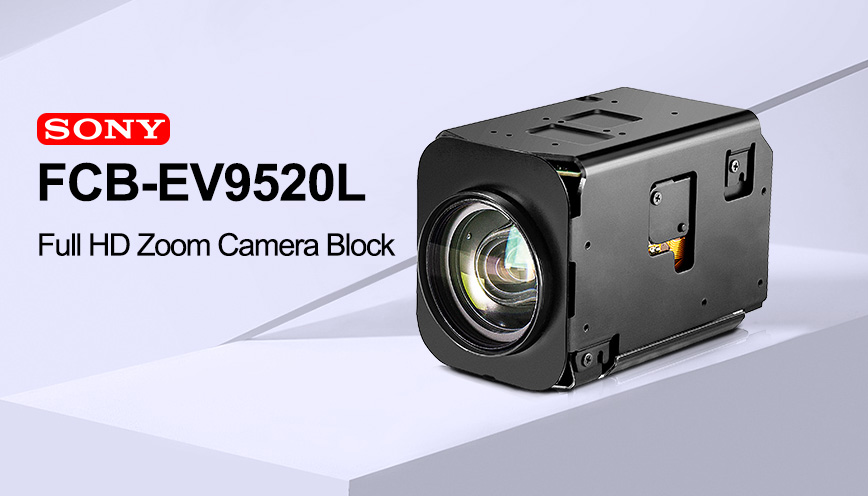

Review of Sony FCB-EV9520L Full HD Zoom Camera Block

Introduction

Sony FCB-EV9520L is a high-performance Full HD zoom camera module that integrates Sony's advanced image processing technology and high-quality optical components, providing users with exceptional image quality and flexible zoom capabilities. This module is widely used in surveillance, drone equipment, industrial inspection, medical imaging, and other fields, meeting the image capture needs of various complex scenarios.

Keywords:

Sony FCB-EV9520L, Sony Full HD Zoom Camera Block

Content

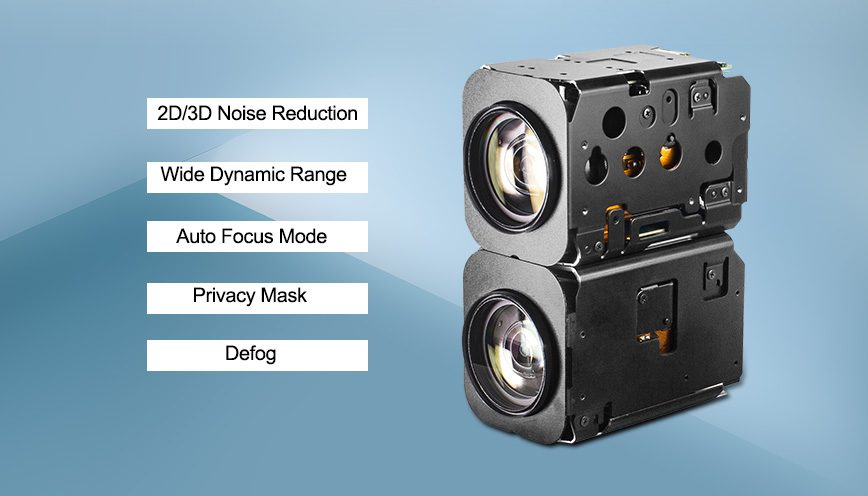

I. Main Features and Characteristics

1.  High Definition Clarity:
Sony FCB-EV9520L supports 1920x1080 Full HD resolution, ensuring that images are delicate and clear. The video output can reach up to 1080P/60fps, guaranteeing smoother and more natural video playback. With an effective pixel count of up to 2.13 mega pixels, it is capable of capturing more detailed information.

2. Zoom Capability:
Sony FCB-EV9520L boasts a 30x optical zoom capability, enabling it to easily capture distant targets. Combining digital zoom with optical zoom, it offers users an even wider zoom range.

3. Image Processing Technology:
Sony FCB-EV9520L employs the latest ISP software and a 1/2.8" STARVIS2 CMOS sensor, significantly enhancing its ability to cope with various complex external environments and outputting more realistic color images.

Sony FCB-EV9520L supports regional automatic exposure, regional automatic focus, and regional automatic white balance functions. It can make individual adjustments according to the needs of different regions within the image, ensuring that the image quality reaches an optimal state.

Adaptability to Low-Light Environments:
Even in low-light conditions of 0.009lx, Sony FCB-EV9520L can still output color images. With a minimum illuminance of 0.00008lx, it means that critical information can be captured in nearly dark environments.

Image Stabilization:
Through the synergistic work of precision algorithms and advanced sensors, Sony FCB-EV9520L can effectively reduce image blur caused by vibrations, torsions, and other factors from horizontal, vertical, or central rotation directions. This ensures the stability and smoothness of the captured footage.

With "S" and "S+" modes, it can cope with different levels of vibration.

Wide Dynamic Range and Fog Penetration:
In extreme environments where extremely bright and dark areas coexist, or in foggy weather, Sony FCB-EV9520L can effectively handle these conditions through its wide dynamic range and fog penetration functions, outputting clear and evenly colored images.

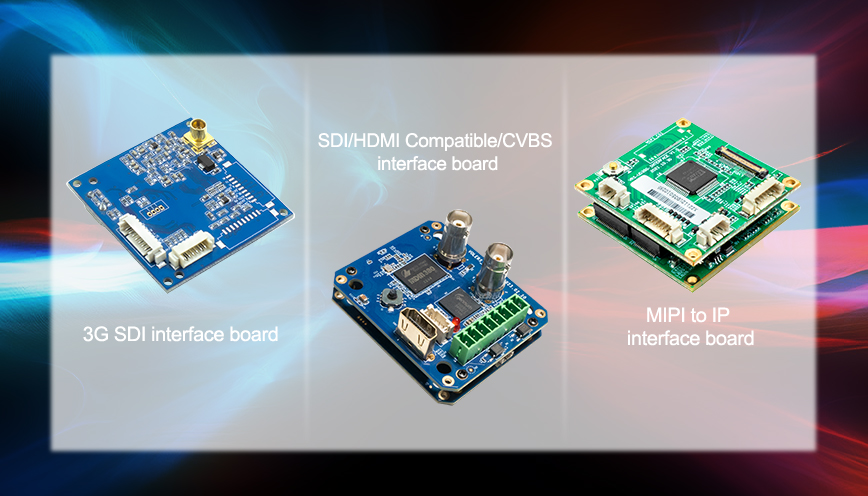

II. Output of Different Signals

Output of 3G-SDI Signal
Sony FCB-EV9520L connects to a 3G-SDI mini interface board through an LVDS cable, automatically recognizing and outputting a 3G-SDI signal. This enables stable output and real-time transmission of the camera's HD signal, making it a popular solution in the drone industry.

Synchronous Output of SDI/HDMI Compatible/CVBS Signals
Equipped with a three-in-one interface board, Sony FCB-EV9520L can synchronously output 3G-SDI, HDMI Compatible, and CVBS video signals, satisfying the needs of different devices for video signals. This is particularly suitable for the security monitoring industry, where it can interface with various equipment.

Output of Network Signal
By connecting to the LVDS interface of a MIPI-to-IP interface board (whose MIPI interface is primarily used to connect with Sony FCB-EV9500M), the video from Sony FCB-EV9520L can be converted into a network video signal. The camera can then be directly controlled through a network serial port transparent transmission channel and a network IE interface. This control method is not only easy to operate but also highly flexible.

This solution also allows video signals to be transmitted remotely and monitored in real-time over a network, making it an ideal solution for traffic monitoring, remote video conferencing, and educational demonstration systems.

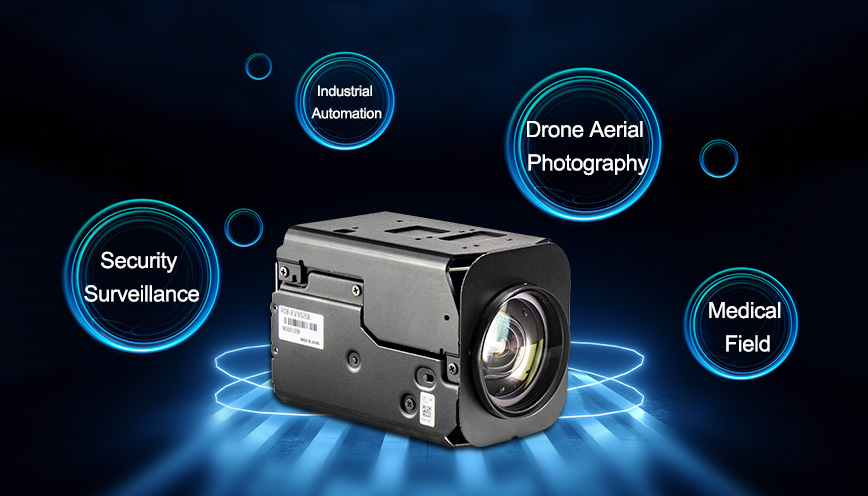

III. Application Scenarios

Thanks to its moderate body size, powerful hardware composition, exceptional performance, and multiple interface output options, Sony FCB-EV9520L is widely used in various industries such as surveillance, unmanned aerial vehicles (drones), video conferencing, industrial inspection, medical care, marine operations, and laser-assisted tree felling.
