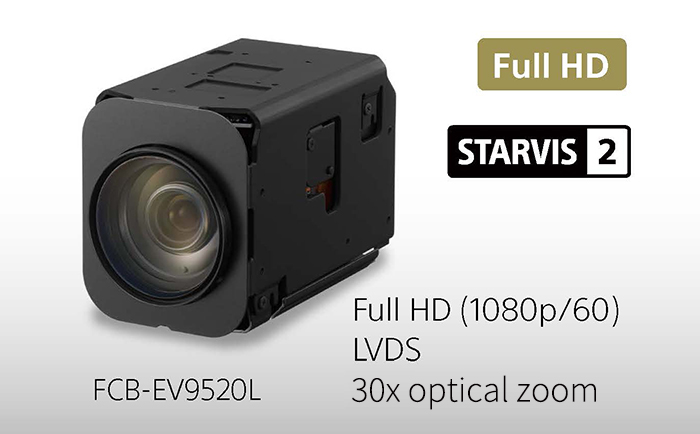

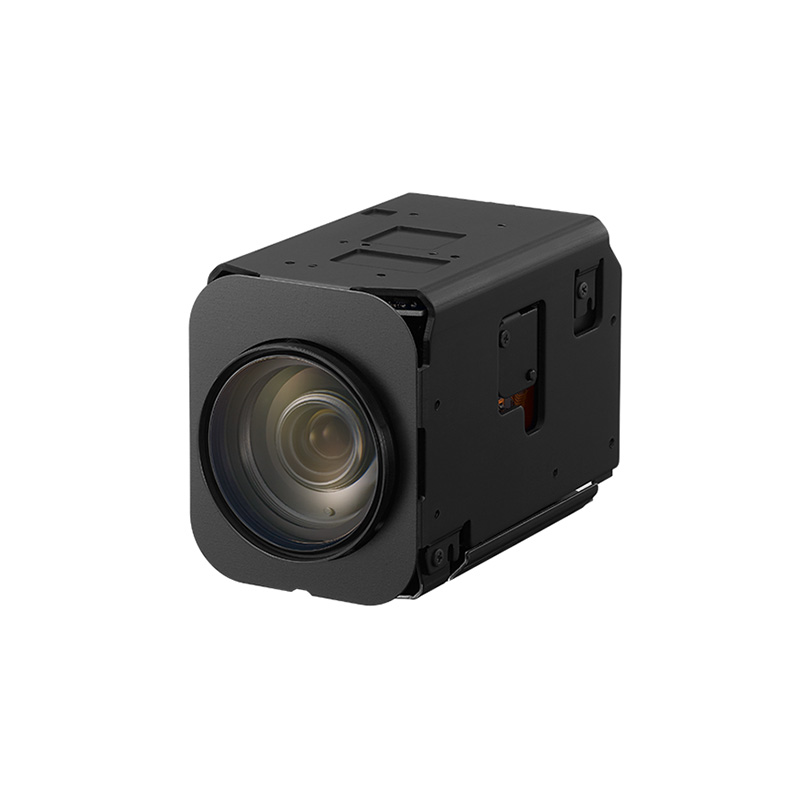

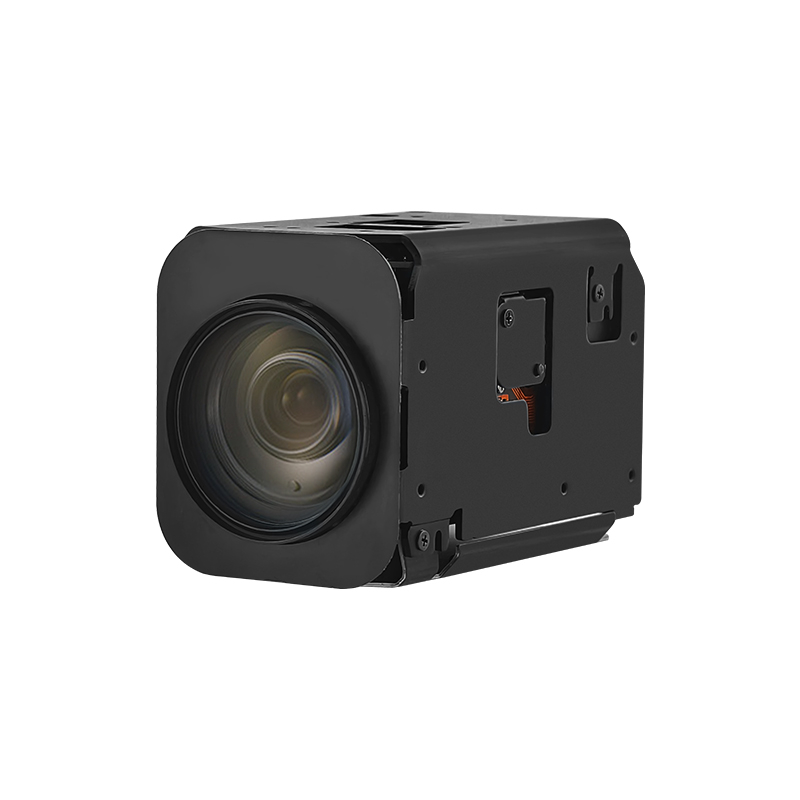

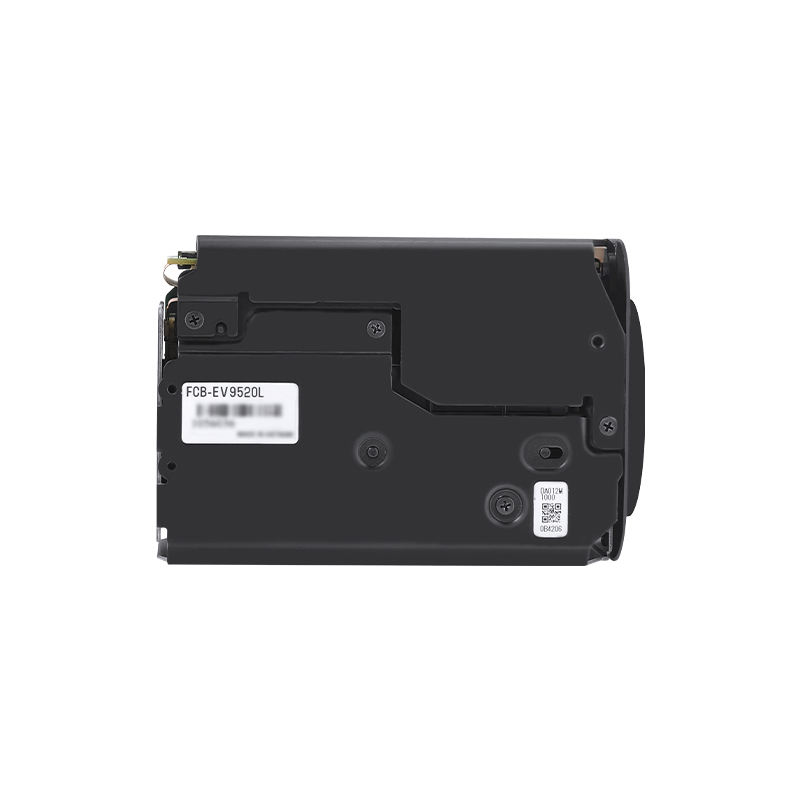

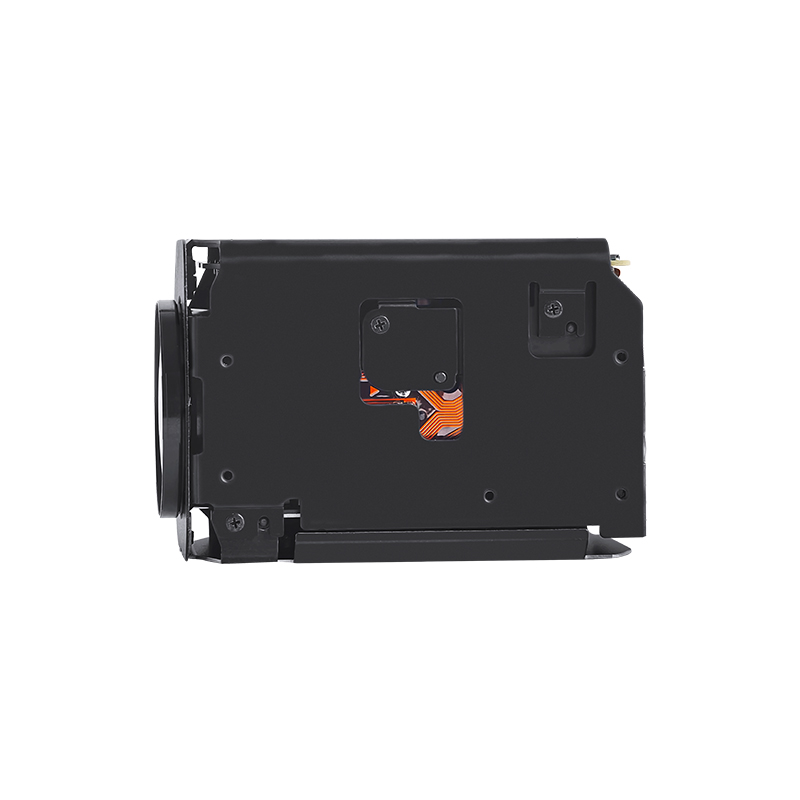

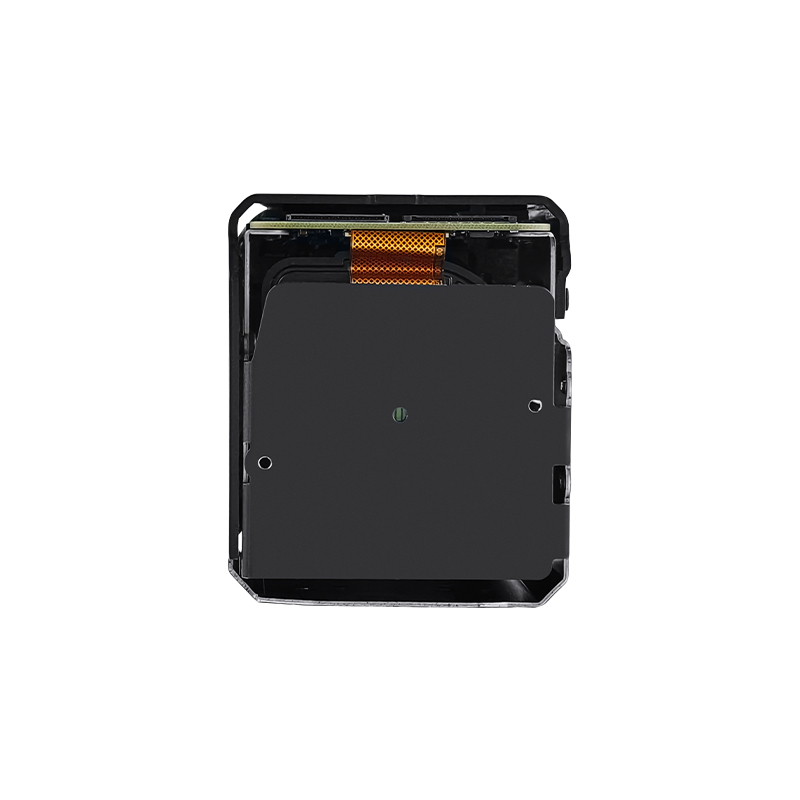

FCB-EV9520L Sony Full HD Lvds 30X Zoom Block Camera

• Sensor(Effective pixels): 1/2.8" STARVIS2 CMOS(approx. 2.13MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: 1080P/60, 1080I/60, 720P/60
• Video output: LVDS
• Lens: f = 4.3 mm - 129.0 mm, F1.6 - 4.7
• Zoom: 30x Optical Zoom, 12x Digital Zoom
• Size: 50.0 x 60.0 x 89.7mm (2 x 2 3/8 x 3 5/8 in.)
• Weight: Approx. 239 g (8.4 oz)，Weight loss version: Approx 165g

Image Sensor:
1/2.8" STARVIS2 CMOS
Output Image Size (H x V):
1920x1080, 1280x720
Signal System:
1/2.3-inch CMOS
Zoom:
30x Optical Zoom, 12x Digital Zoom
Lens:
f= 4.3 mm to 129 mm, F1.6 to F4.7
Minimum Illumination (50%, High Sensitivity MOde ON):
ICR-Off mode: 0.009 lx, ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s)
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
64.0°
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
image stabilizer (S / S+)
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
50.0 x 60.0 x 89.7 mm (2 x 2 3/8 x 3 5/8 in.)
Mass:
Approx. 239 g (8.4 oz)


Availability:



Inquire Add to Basket

FCB-EV9520L Sony FCB-EV9520L Sony FCB Block Camera Full HD Block Camera 1080P Camera Module 30x Zoom Camera Auto Focus Camera LVDS Block Camera Low Latency Camera Sony Camera

Overview

Sony FCB-EV9520L adapts the latest ISP software,features the latest 1/2.8 Starvis sensor,and infrared nightvision. It restores and outputs real-color images to the best extent possible,making it suitable for various applications in different lighting conditions.

Sony FCB-EV9520L provides 30x optical zoom and 12x digital zoom.The inclusion of super image stabilization, excellent optical axis consistency, and the latest three-zone domain function enables ultra-stable shooting, making it ideal for capturing target objects in complex environments, perfect for marine operations, UAV equipment, and also video conferencing.

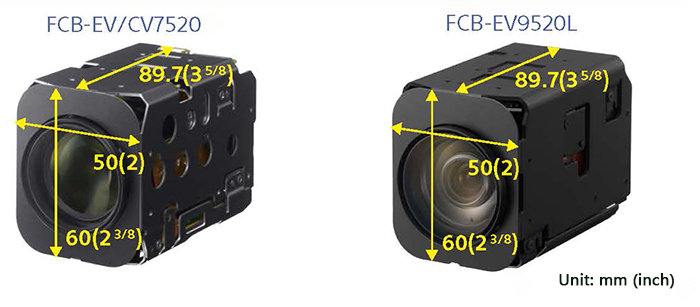

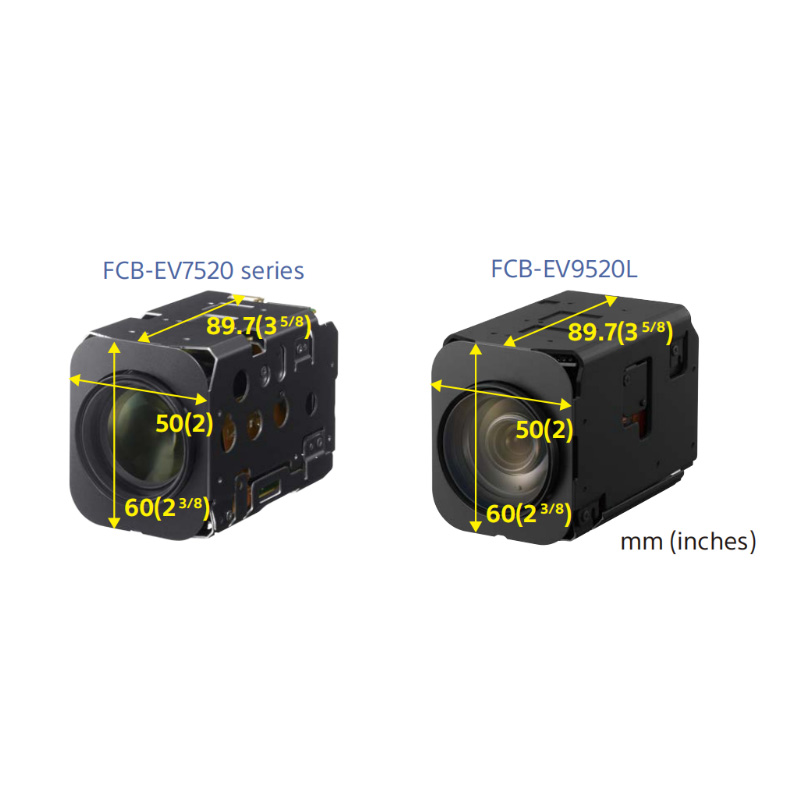

Sony FCB-EV9520L Easy replacement of conventional 1/2.8-type models The same sized housing as for the conventional FCB-EV7520 series makes it easy to replace*. Also, LVDS output pin assiqnments are compatible.

* The lens position is shifted down by approx. 2 mm

Basic Info.

Model NO.	FCB-EV9520L	Brand	Sony
Sensor	1/2.8 inch STARVIS2 CMOS	effective pixels	approx.2.13MP
Output pixels	1920*1080(FHD)	wide dynamic	130dB
Optical zoom	30X	Digital zoom	12x
image stabilization	super image stabilization，"S" and "S+"pattern	Horizontal field Angle	2.4°-64.0°
Image formats	1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50,720p/30, 720p/29.97, 720p/25
Picture effects	(vertical/horizontal)flip,black and white,mirror,color enhancement
Starvis night vision	color image output under 0.009 Lx low illuminations,Minimum illumination up to 0.00008Lx
Area function	Areaindependent 3A function(auto exposure,auto focus,auto white balance)

Application

With its excellent performance, Sony FCB-EV9520L has shown a wide range of application potential in many fields, especially in the following areas are more common, but also not limited to these areas, can be flexibly applied to more scenarios.

Security monitoring and control

Intelligent transportation

Video conferencing

Unmanned aerial vehicle

Uav photoelectric pod

The Medical industry

Robot/underwater vehicle

Police car camera

RVI industrial camera

Offline industrial inspection

Medical imaging

Autonomous driving

Ship borne system

Optimized Video Output Configuration

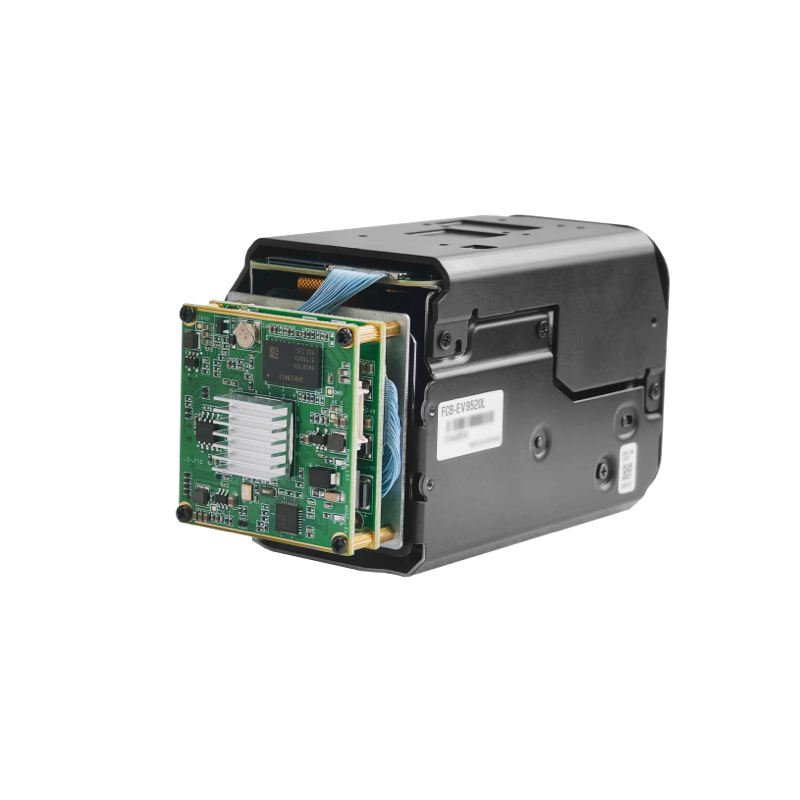

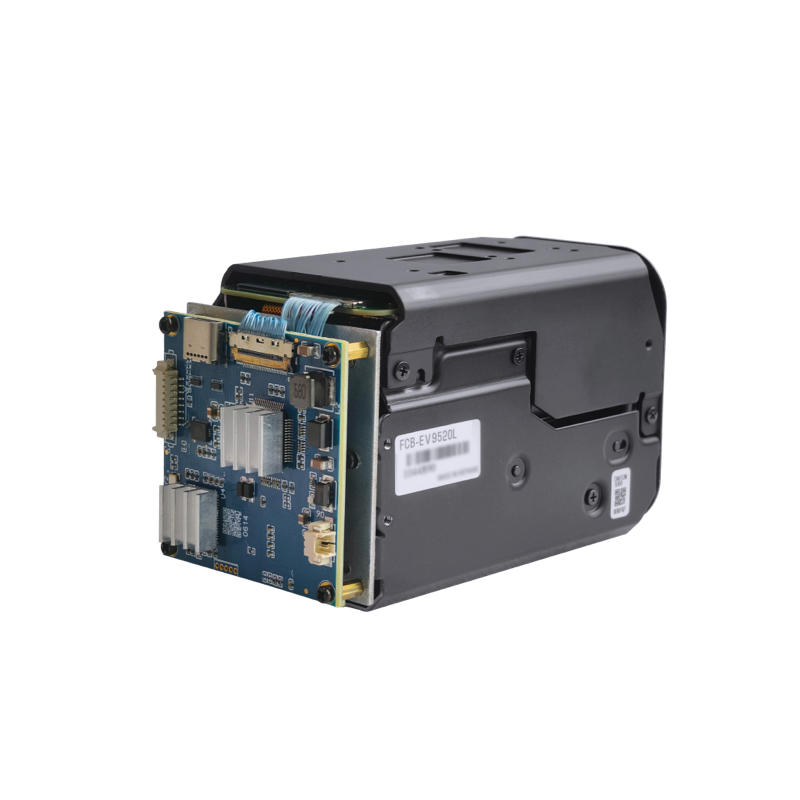

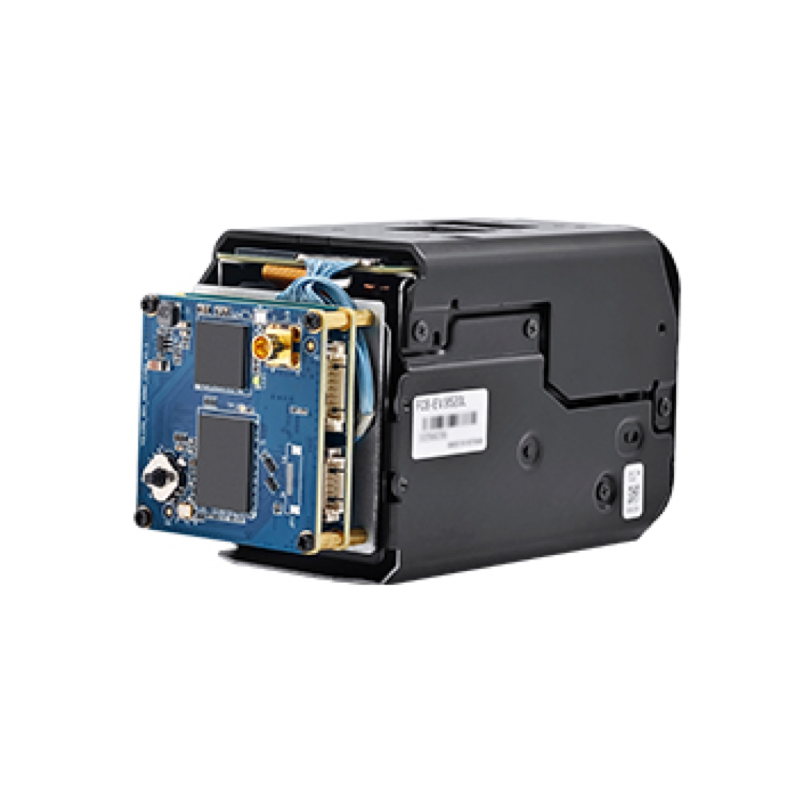

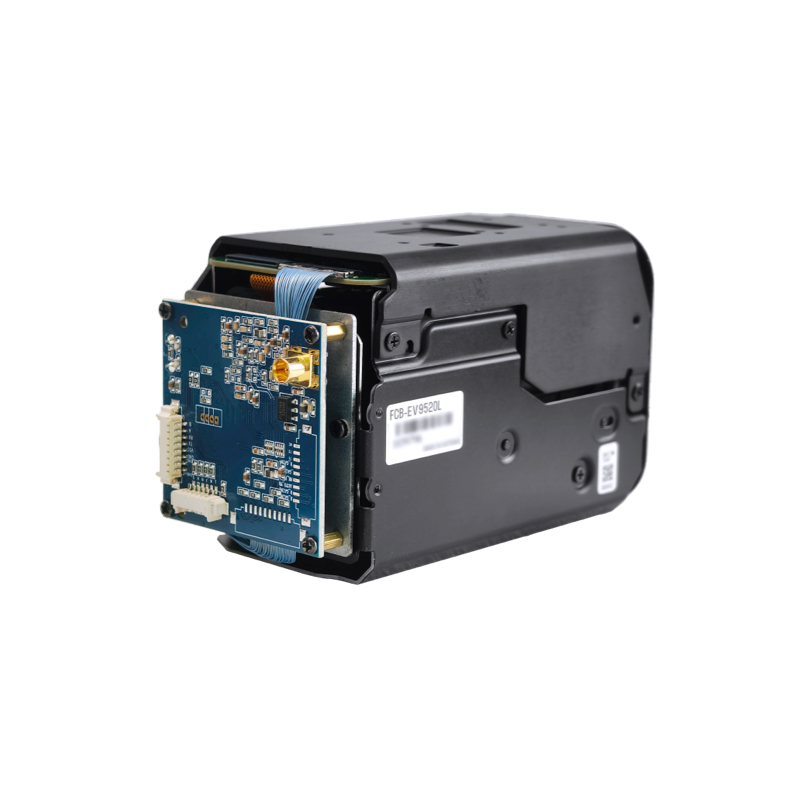

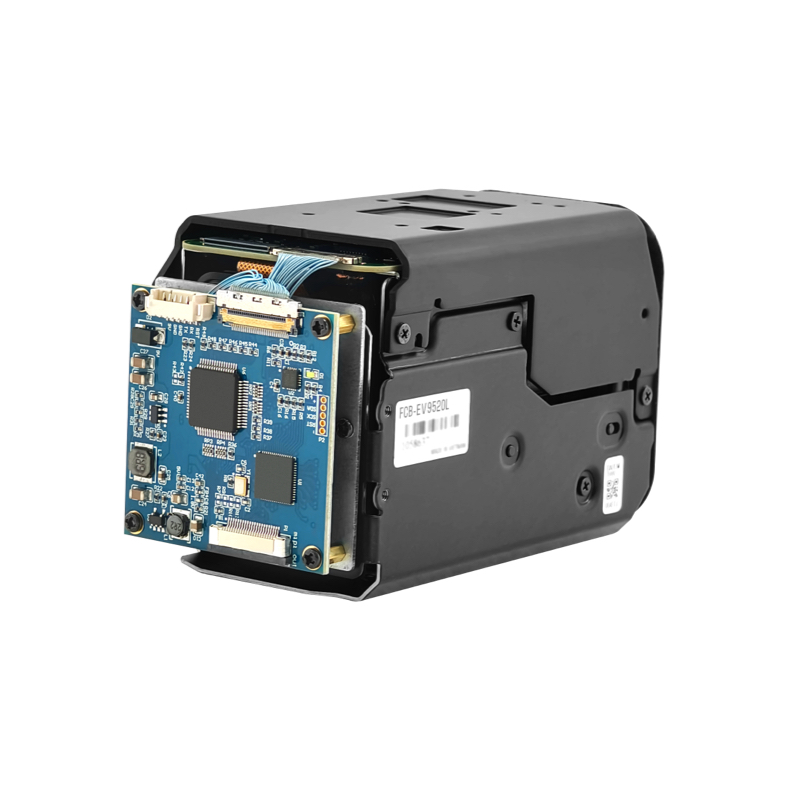

FCB-EV9520L		Compatible Camera Interface Board		Customized Integrated Solutions

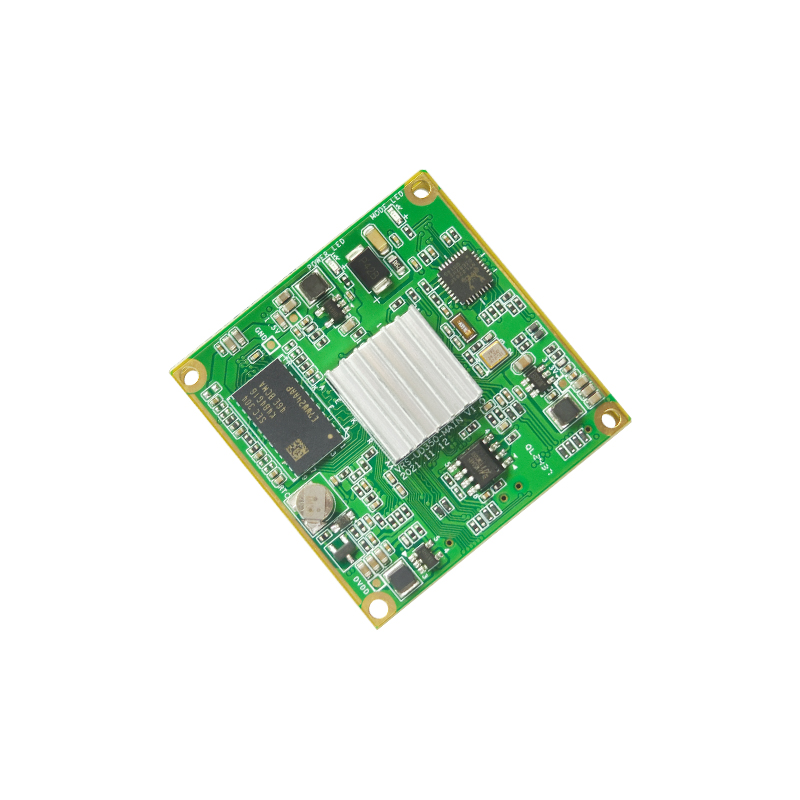

1/2.8inch STARVIS™2 CMOS Sensor Effective pixels: approx. 2.13MP	+	RJ45 Ethernet interface Network Video output	=	Sony FCB-EV9520L + MIPI or LVDS to IP camera Interface Board

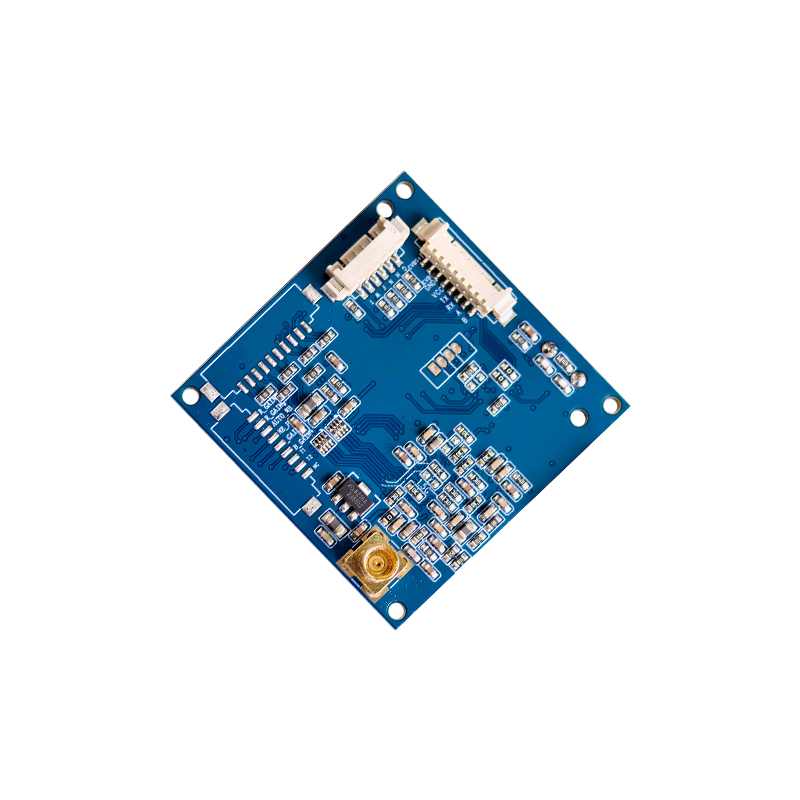

Lens: 30x Optical Zoom 12x Digital Zoom	+	Mini MCX RF Interface Lvds to 3G-SDI Output	=	Sony FCB-EV9520L + 3G-SDII Interface Board

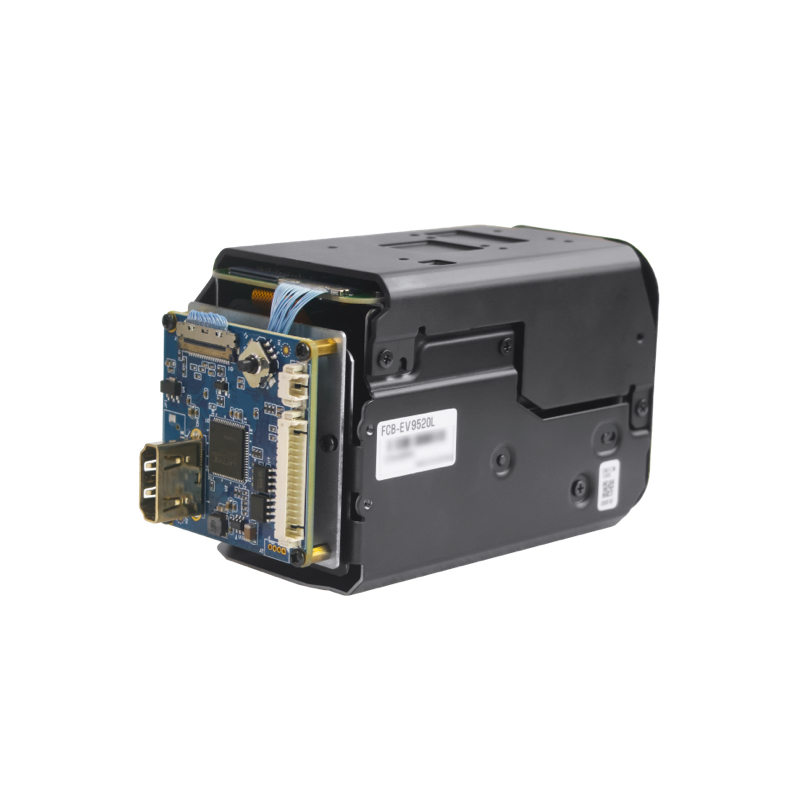

Video Output: LVDS Output pixels: 1920 × 1080, 1280 × 720	+	HDMI-compatible Type A interface HD-HDMI-compatible video output	=	Sony FCB-EV9520L + HD-HDMI Compatible Interface Board

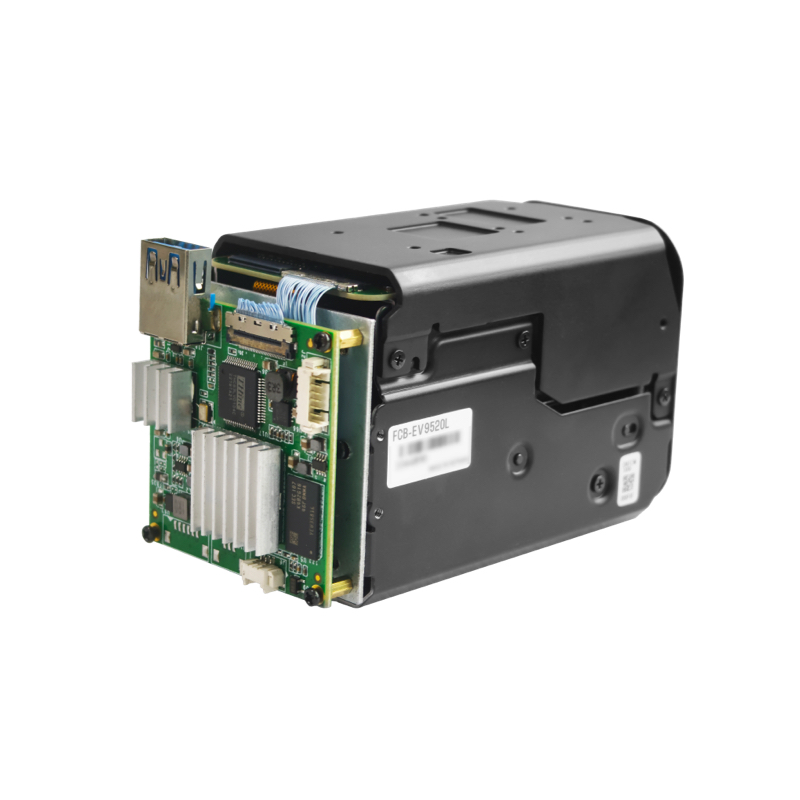

Starvis night vision: color image output under 0.009 Lx low illuminations	+	USB3.0 Interface Lvds to USB3.0 video Output	=	Sony FCB-EV9520L + LVDS to USB3.0 Video Capture Interface Board

120DB wide dynamic Image stabilization(S/S+)	+	USB3.0 Type-C Interface Lvds to Type-C Output	=	Sony FCB-EV9520L + LVDS to USB3.0 Type-C Video Capture Interface Board

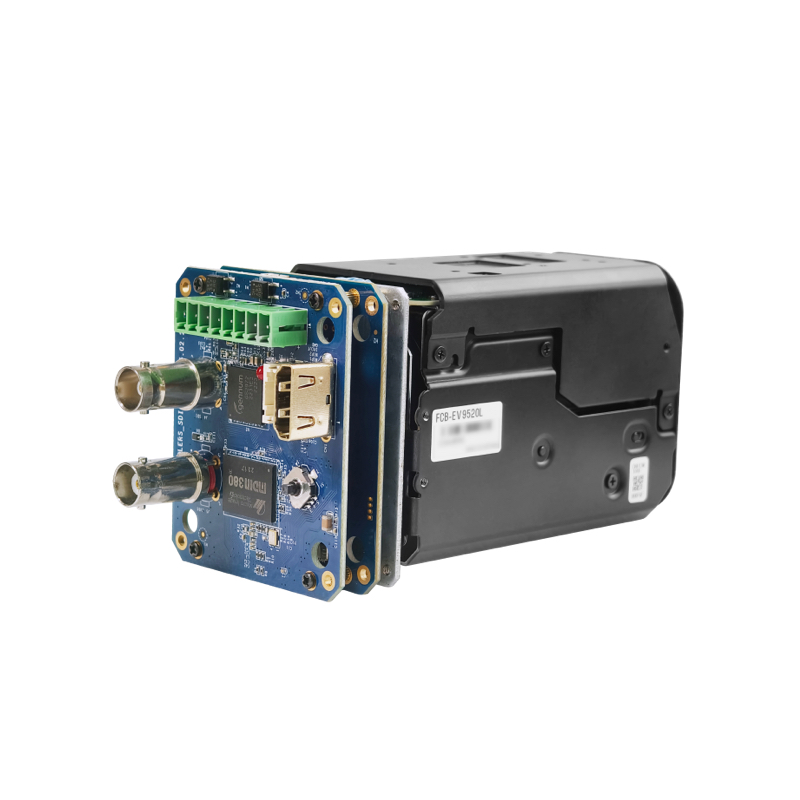

Day and night switch Defog	+	Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Sony FCB-EV9520L + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board

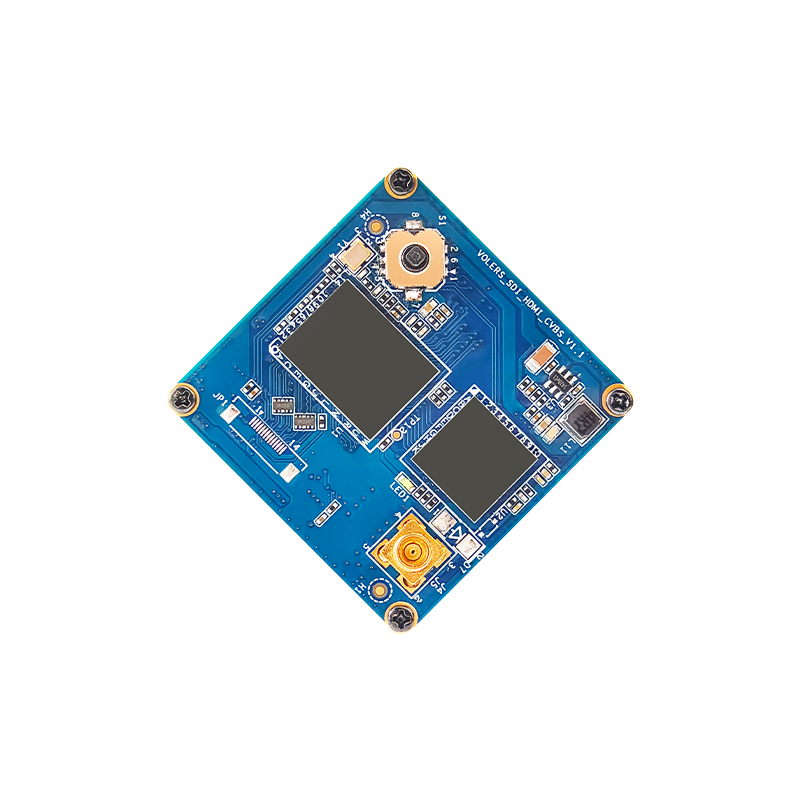

ICR ON COLOR Spot Focus, Spot AE, Spot AWB	+	LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Sony FCB-EV9520L + Mini SDI/CVBS/HDMI-Compatible Interface Board

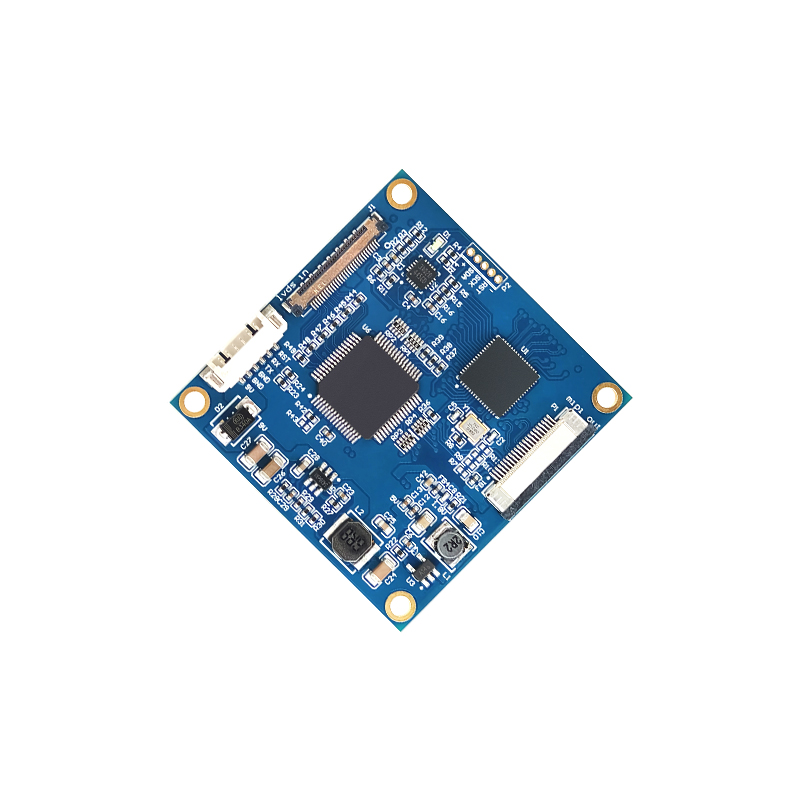

Size: 50.0 x 60.0 x 89.7mm Weight: Approx 239g	+	LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output	=	Sony FCB-EV9520L + LVDS to MIPI Interface Board

FAQ

1. Q: The FCB-EV7520 is discontinued, can the FCB-EV9520L completely replace it?

A: FCB-EV9520L, in terms of hardware composition and performance, are better than FCB-EV7520, the two dimensions are the same, LVDS output pin definition is also compatible, but the FCB-EV9520L lens is moved down 2mm, if this does not affect the use of the case, can be completely replaced.

2. Q：FCB-EV9520L, if applied to drones, then its weight is not too large?

A：If the weight requirements are very strict, you can choose its weight reduction version, which weighs only 165g.

Parameter

Image Sensor	1/2.8-type STARVIS 2 CMOS Sensor (Approx. 2.13M pixels)
Output Image Size (H x V)	1920 x 1080, 1280 x 720
Signal System	1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination (50%, High Sensitivity MOde ON)	ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (1/4 s or 1/3 s, 30%)
Minimum Illumination (50%, High Sensitivity MOde OFF)	ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination	100 lx – 100,000 lx
Gain	Auto/Manual (0 dB – 50.0 dB), 0 – 28 steps
Shutter Speed	1/1 – 1/10000 s, 22 steps
Sync System	Internal
Exposure Control	0 dB – +- 10.5 dB, 15 steps
Backlight Compensation	Yes
Gamma	Standar/Straight Gamma
Aperture Control	16 steps
White Balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
AE (Auto Exposure Mode)	Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE
Image S/N	Image S/N
Lens (wide to tele)	30x optical zoom，12x Digital Zoom f= 4.3 mm to 129 mm, F1.6 to F4.7
Zoom Mode	Standard Mode / Variable Mode / Direct Mode
Zoom Movement Speed	Wide end to Tele end TBD Wide end to Digital 12x tele TBD Digital wide to Digital 12x tele TBD
Focusing System	Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus
Focus Movement Time	TBD
Horizontal Viewing Angle (wide to tele)	Distortion Compensation Off : 64.0° to 2.4° Distortion Compensation On : 61.5° to 2.3°
Minimum Object Distance (wide end to tele end)	100 mm – 1200 mm
Auto ICR	Yes:ON (B&W/Color)
Wide Dynamic Range (Wide-D)	Yes
Visibility Enhancer	Yes
Defog	Yes (low/mid/high)
Noise Reduction	Yes (3D + 2D / Independent setting (3D, 2D)
Progressive Scan Mode	Yes
Image Stabilization	Yes: Super image stabilizer (Super / Super+)
Spot Light Avoidance	Yes
Motion Detection	Yes
Privacy Zone Masking	Yes
Alarm	Yes
Slow AE Response	Yes
Picture Effects	Black White (Monochrome Image)
Picture Freeze	Yes
Electronic-Flip (E-FLIP)	Yes
Mirror Image	Yes
Slow Shutter	Yes
Temperature Readout	Yes
Title Display	Yes (20 characters / line, max. 11 lines)
Camera Mode Display	Yes (English)
Video Output	Digital : Y/Pb/Pr 4:2:2 (LVDS) (Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock) (SMPTE274M/SMPTE296M)
Camera Control Interface	VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit
Power Requirements	7.0 V – 12.0 V DC
Power Consumption	4.4 W (When motor operates: 5.4W)
Operating Temperature	-5 °C – +60 °C (23 °F to +140 °F)
Storage Temperature	-20 °C – +60 °C (–4 °F to +140 °F)
Operating Humidity	20% – 95% (Absolute humidity : 36 g/m3)
Storage Humidity	20% – 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D)	50.0 x 60.0 x 89.7 mm (2 x 2 ^3/8 x 3 ^5/8 in.)
Mass	Approx. 239 g (8.4 oz)，Weight loss version: Approx 165g
