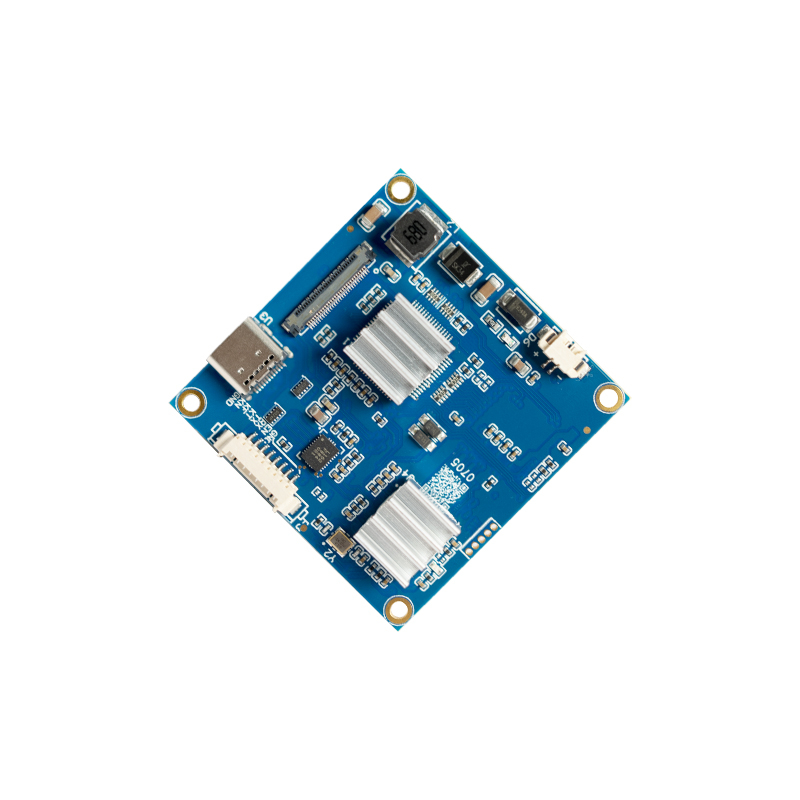

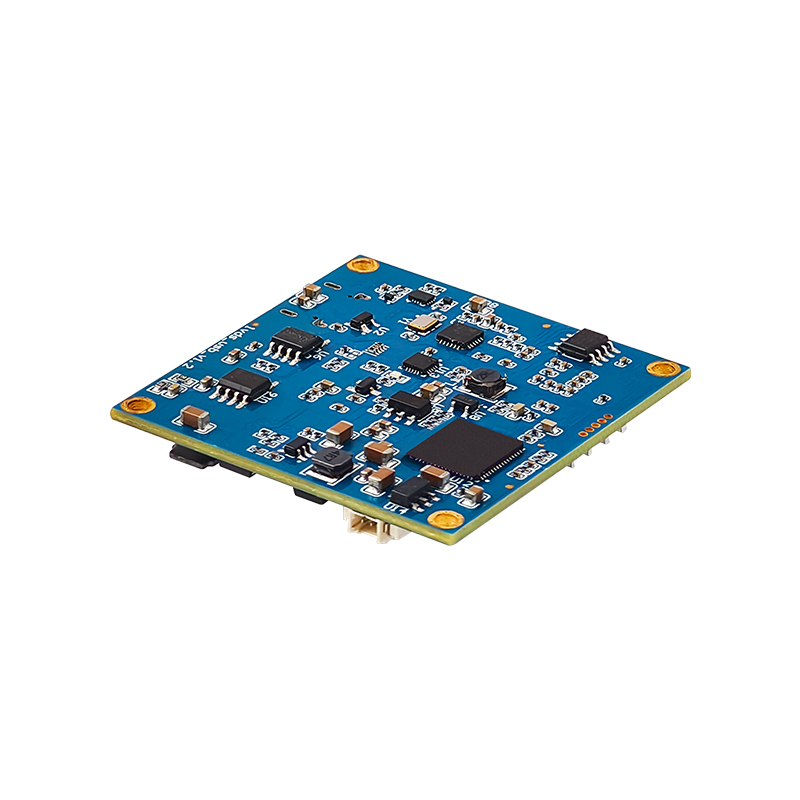

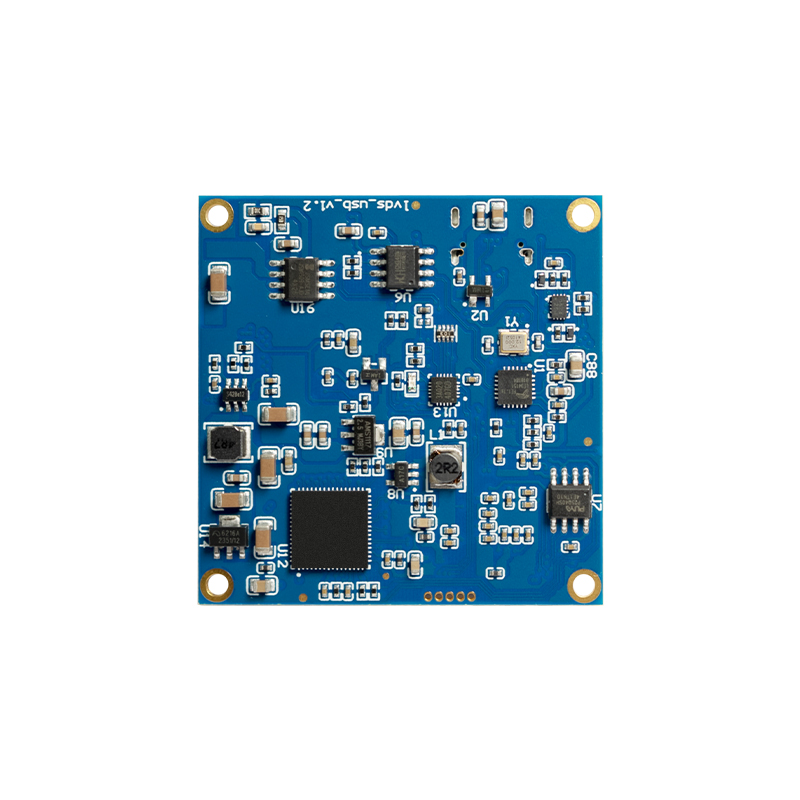

PCB-UD102 LVDS to USB C Video Capture Interface Board

• Compatible Camera: Sony's FCB HD cameras and other compatible camera blocks supporting Sony's Visca-command.
• Video Output Format: 1080P,1200P,1024P,960P,480P
• Video Output Interface: USB Type-C interface
• Communication Interface Control: TTL232 (standard)
• Operating Temperature: -5 to 60℃ (23-140°F)
• Power SupplyL: DC12V 1A
• Product Net Weight: Approx 14.5g
• Product Dimensions: Appox 48*48*8mm

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

PCB-UD102 LVDS to USB C Video Capture Interface Board USB3.0 Video Capture Board USB3.0 Interface Board TYPE-C Video Capture Board Type-c Interface Board USB3.0 Adapter Board Sony FCB Camera Video Capture Board 1080P Block Camera Interface Board Full HD Camera Video Capture Board LVDS to Type-c Interface Board

Overview

This module is specifically designed for Sony FCB series full-HD block cameras. It is also compatible with the majority of digital block cameras with the same interface specifications. Its core highlights lie in adopting and innovating an integrated TYPE-C acquisition architecture, and using USB3.0 high-speed transmission protocol to ensure efficient and stable data transmission.

In terms of hardware design, through in-depth optimization of circuit routing and a compact structure design, the module achieves a significant improvement in both acquisition and transmission performance. It enables high-quality real-time acquisition and stable transmission of video signals, providing reliable technical support for various application scenarios.

This module is suitable for drone mapping, surveillance, video conferencing, medical equipment, and other professional instrument equipment scenarios, contributing to the high-definition transformation of data and offering ideal solutions.

Features

Camera Plug-and-Play & Video capture: Connected to a high-definition zoom camera via LVDS cable, it can automatically identify high-definition video formats.

Power supply: Use an external DC 12V 1A power supply as the power supply for the zoom block camera.

Connection and signal transmission:When the TYPE-C interface is connected to a computer via a USB3.0 cable, it allows high-def video and serial control signals to directly enter the OS.

Video output Protocol:The TYPE-C output complies with the standard UVC protocol for high-definition video, enabling plug-and-play functionality on Windows systems without the need for additional drivers.

Resolution support: It supports multiple resolution formats such as maximum output resolution of 1920x1080, 1080P, 1200P, 1024P, 960P, 768P, 720P, 600P, 576P, 480P, etc.

Serial port features: Hardware serial port is supported. The serial port requires driver adaptation, and the serial port chip model is CH340. Users can download the CH340 driver online by themselves. In addition to being used for camera control, the hardware serial port can also communicate with other external devices through switch control.

Application scenarios: Suitable for various live broadcast programs, as well as instant messaging software such as Microsoft Teams, SKYPE,WeChat, etc.

Supported Camera Modules And Video Formats

Brand	Model	Supported Video Formats	Video formats as following: 1920x1080P60/50/30/29.97/25/20/10; 1600x1200P60/50/30/25/20/10; 1360x768P60/50/30/25/20/10; 1280x1024P60/50/30/25/20/10; 1280x960P60/50/30/25/20/10; 1280x720P60/50/30/25/20/10; 1024x768P60/50/30/25/20/10; 800X600P60/50/30/25/20/10; 720x576P60/50/30/25/20/10; 720x480P60/50/30/25/20/10; 640x480P60/50/30/25/20/10
Sony	FCB-EV9520L	1080P60,1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P20, 720P60, 720P50,720P30,720P25
	FCB-EV9500L
	FCB-EV7520A
	FCB-EV7520
	FCB-EV7100

	FCB-EH6300	1080P29.97,1080P25,720P59.94, 720P50,720P29.97,720P25
Volers	VRS-HD5101	1080P60, 1080P50, 1080P30, 1080P25, 1080P20, 720P60, 720P50,720P30,720P25
	VRS-HD5201
	VRS-HD5301
	VRS-HD5363
	VRS-HD5365
Tamron	MP3010M-EV

*Note: This product works with Sony's FCB HD cameras and other compatible camera blocks supporting Sony's Visca-command.

Specifications

Compatible Camera	Sony's FCB HD cameras and other compatible camera blocks supporting Sony's Visca-command.	Video Output Format	1080P、1200P、1024P、960P、480P
Driver Program	Camera free drive, serial port needs driver	Video Output Interface	Type-C interface
Communication Interface Control	TTL232 (standard)	USB Power Supply to Camera	Not supported
Operating Temperature	-5°C to 60°C (23 to 140°F)	Power Supply	DC12V 1A
Product Net Weight	Approx 14.5g	Product Dimensions	Appox 48488mm

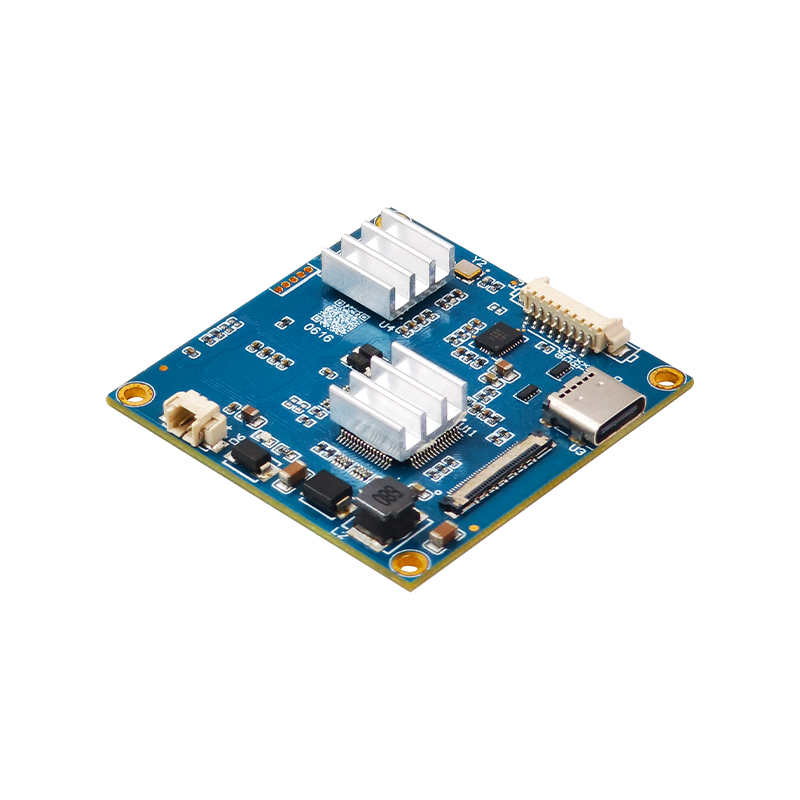

Interface Assignment

Number	Type	Function

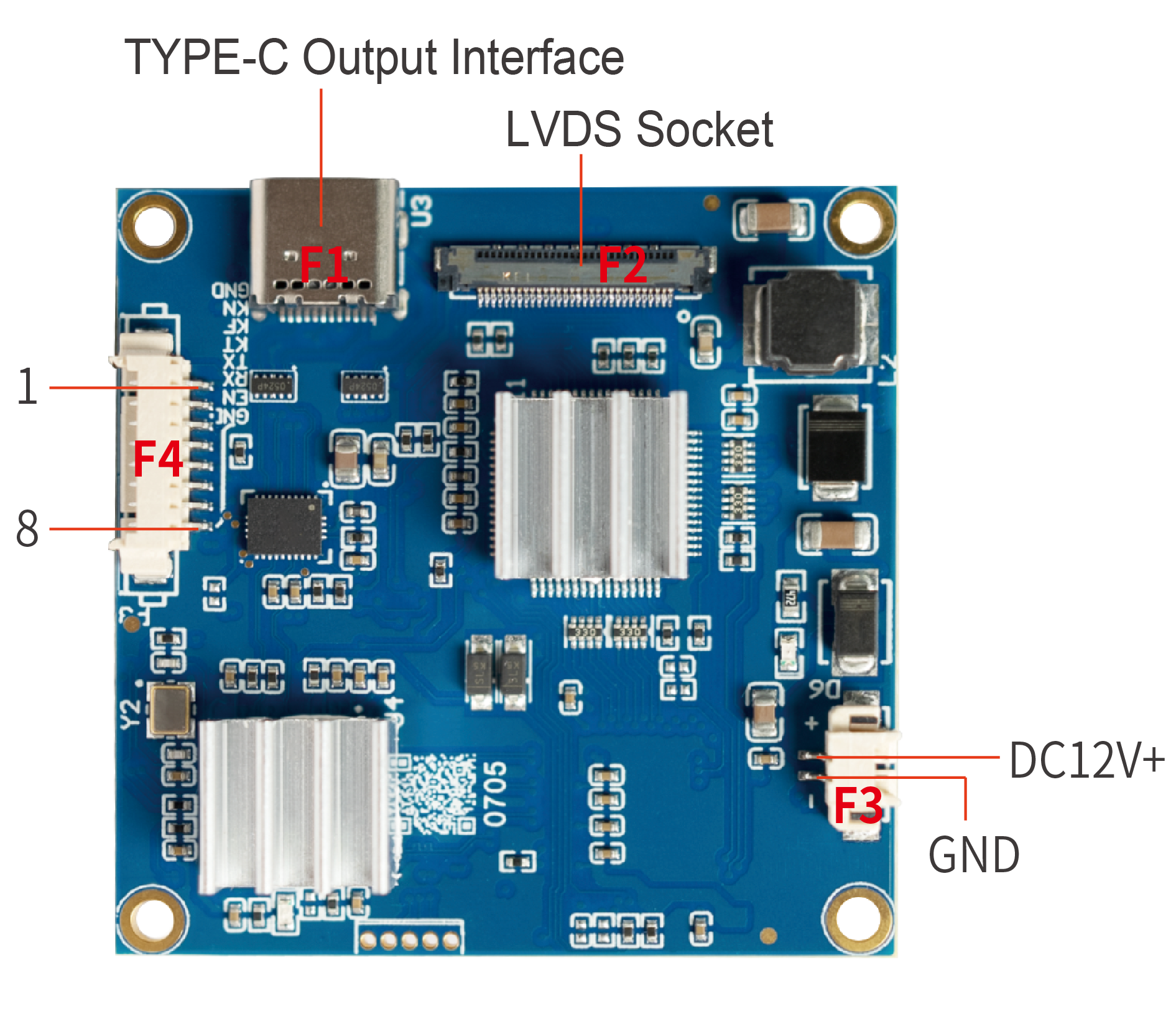

F1	TYPE-C Output Interface	Output data signals
F2	LVDS Socket	Align with the LVDS interface of the block camera for signal transmission
F3	Moles Connector: Model 532610271, 2-pin socket with 1.25MM pitch	DC12V+ is the external power positive interface, GND is the negative pole, with a power supply range of DC9-12V(1.0A)
F4	Moles Connector: Model 532610871, 8-pin socket with 1.25MM pitch	TTL_RXD and TTL_TXD are TTL232 communication interfaces (3.3V) for MCU serial communication. They can control the camera and, by setting the control switching port low, communicate with the USB's internal serial port to send MCU data to the computer.

Table: F4-1				Front Side of the product
1	GND: Ground	5	TX: TTL Transmit
2	KN: Zoom in	6	RX: TTL Receive
3	KF: Zoom out	7	EN: Serial Port Debugging Test
4	KT: Reserved port	8	GND: Ground

Product Accessories


LVDS Coaxial Cable (80mm), Customizable Length (Optional)	2-Pin Terminal Wire (150mcm) (Standard)	8-Pin Terminal Wire (150mm) (Standard)	Screw/Copper pillar: M2*5 (Optional)	Iron Plate(50*50mm) (Optional)

Interface Board on the Cameras

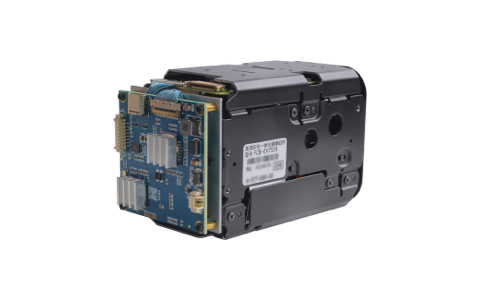

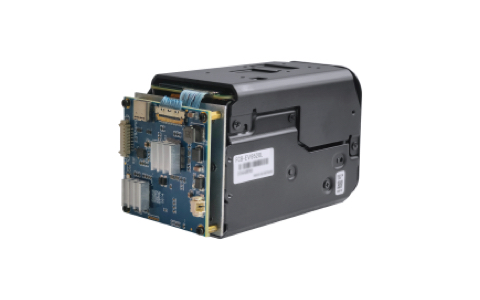

a. Interface board assembled with

Sony Block camera FCB-EV9520L

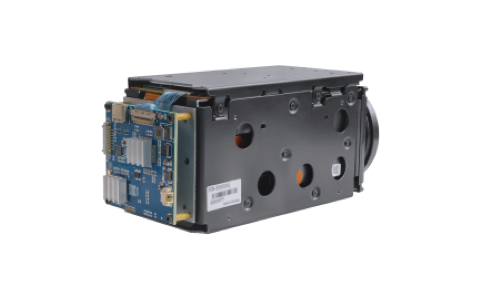

b. Interface board assembled with

Sony Block camera FCB-EV9500L

C. Interface board assembled with

Sony Block camera FCB-EV9500L

*Note: The product supports individual purchase or "block camera+interface board" package purchase. The whole set comes without pre-installation by default. Specify installation needs when ordering.

Installation Steps

Preparation

FCB-EV9520L

30Pin LVDS Coaxial Cable

2Pin Terminal Wire

8Pin Terminal Wire

Screw/Copper pillars

Iron Plate

Connection Steps

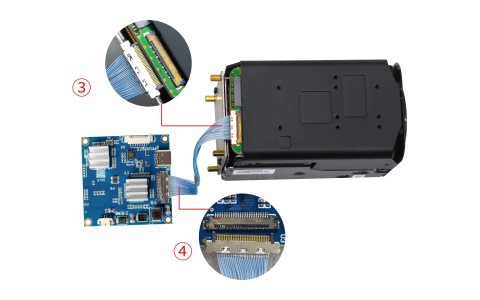

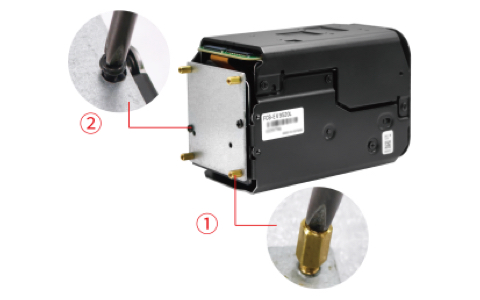

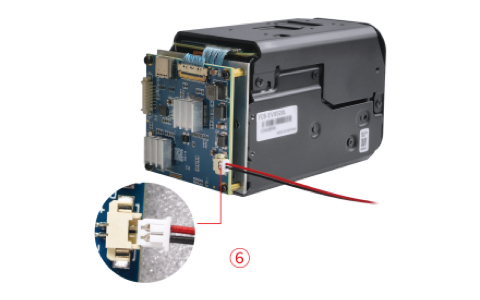

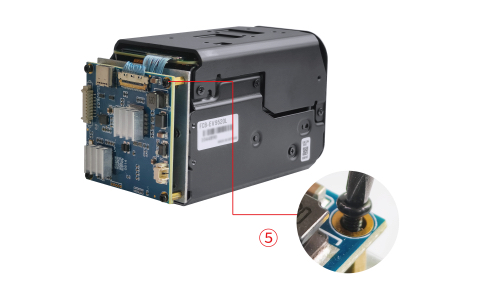

Step Ⅰ: 1. Install four copper pillars onto the iron plate (as shown in Figure ① above). 2. Install the iron plate onto the rear of the camera and tighten the screws (as shown in Figure ② above).	Step Ⅱ: 3. Connect the high-definition block camera to the LVDS coaxial cable (as shown in Figure ③ above). 4. Parallelly connect the USB C interface board to the LVDS coaxial cable (as shown in Figure ④ above). Note: The gold-plated pins on the connector should face upwards. Reverse insertion is strictly prohibited.	Step Ⅲ: 5. Install the USB-C video interface board to the rear of the camera and tighten the screws (as shown in Figure ⑤ above).

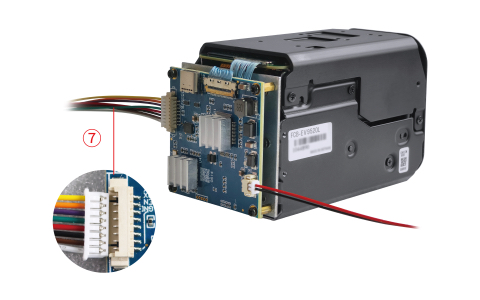

Step Ⅳ: 6. Physically connect the power cable to the USB-C video interface board (as shown in Figure ⑥ above).	Step Ⅴ: 7.Physically connect the 8-pin terminal wire to the USB-C video interface board (as shown in Figure ⑦ above)
