Sony Digital Camera Systems for Professional Imaging
As an authorized Sony China distributor with in-house R&D, we supply genuine FCB zoom block modules, interface boards, complete zoom and drone cameras, and the ILX‑LR1 for mapping. The lineup delivers reliable 4K or Full HD capture, strong low-light performance, and smooth integration across security, UAVs, healthcare, robotics, and machine vision.
Camera Modules and Key Options
- FCB‑ER9500: 1/1.8" STARVIS2 CMOS, 25x optical zoom, 4K/60p. Clean 4K HDMI is available via our boards. Well suited to UAV gimbals, inspection, and long‑range surveillance.
- FCB‑ER9100: Compact 4K/60p module with 10x optical zoom. A good balance of size, weight, and performance for embedded robotics and video conferencing.
- FCB‑EV9520L: 1/2.8" STARVIS2 CMOS, 30x optical zoom, LVDS output for dependable Full HD pipelines. Fits surgical visualization, traffic monitoring, and machine vision.

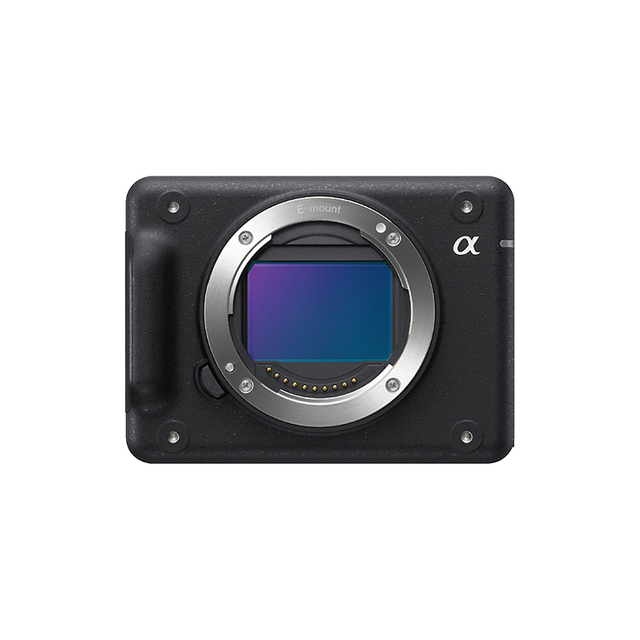

- ILX‑LR1: Full‑frame interchangeable‑lens camera for UAV photogrammetry and inspection when paired with a stabilized gimbal and our connectivity solutions.
Interface and Processing Boards
Our multi‑interface boards add 12G‑SDI, HDMI, IP, USB3.0/Type‑C, MIPI, and CVBS. They enable plug‑and‑play builds with synchronized multi‑stream output and low‑latency encoding.
- VRS‑UD410: Simultaneous HDMI, Network (IP), and USB3.0 up to 4K/60p. Onboard acceleration supports analytics, OSD overlays, and smart encoding for remote monitoring and edge processing.
Connectivity Choices
- 12G‑SDI: Long‑run 4K transport to professional switchers and fiber extenders.
- HDMI and USB: Direct live view, capture, and UVC/UAC conferencing.
- IP streaming: Low‑delay H.264/H.265, remote zoom/focus control, and secure access.
Pre‑Integrated Builds
- Surveillance: Long‑range clarity with optical zoom, WDR, and low‑light tuning. Outputs via SDI, HDMI, or IP for VMS integration.
- Drone gimbals: Lightweight, stabilized payloads with anti‑vibration mounts and remote zoom/focus for mapping, inspection, and search and rescue.
- Surgical video: Color‑accurate imaging, low latency, medical‑grade cabling, and multi‑output recording for OR visualization and teaching.
Engineering, Quality, and Support
Founded in 2010, our team focuses on performance, reliability, and lifecycle continuity. We provide firmware, SDKs, APIs, and integration guides.
Validation includes signal integrity checks plus thermal and vibration tests. Long‑term support helps maintain stable operation as standards evolve.
Selection Guide Highlights
- Sensor and low light: STARVIS2 sensors offer high sensitivity, low noise, and wide dynamic range for dawn, dusk, and indoor scenes.
- Zoom and stabilization: Choose 10x, 25x, or 30x optics to balance reach and size; optional stabilization improves long‑focal results.
- Interfaces and control: Use LVDS natively, then convert to 12G‑SDI/HDMI/IP/USB as needed. Control via VISCA or IP with reliable command handling.
- Power, size, and environment: Plan for heat dissipation, regulated power, and enclosure constraints that meet temperature and vibration needs.
- Accessories: Shielded cables, brackets, power solutions, lenses, filters, and environmental housings validated with our modules and boards.
Applications
Security and machine vision, UAV/ROV/AUV imaging, smart healthcare, conferencing, robotics, and industrial testing benefit from high zoom capability, low‑light clarity, and deterministic outputs.
FAQs
- How should I choose between 4K and Full HD?
- Select 4K for detailed analytics or crop‑in flexibility. Choose Full HD when bandwidth, storage, or cost constraints drive the build.
- What is the difference between LVDS, SDI/HDMI, and IP?
- LVDS preserves the native module output. SDI/HDMI connect to professional displays and recorders. IP enables remote streaming and control with low latency.
- Do you provide firmware and SDK support?
- Yes. We offer firmware updates, SDKs, APIs, and documentation to maintain compatibility throughout the product lifecycle.
Contact Sony Digital Camera Supplier Team
Share your scene, range, latency, and interface requirements. We will recommend modules, boards, and customization options to move from prototype to production with lower integration risk.
