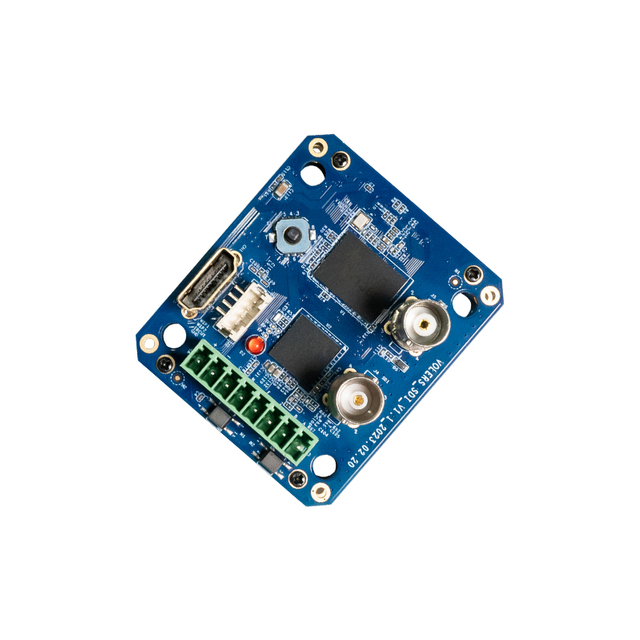

This interface board converts Sony FCB LVDS video to synchronized 3G‑SDI, HDMI, and CVBS outputs. As an official Sony (China) authorized distributor and secondary development partner, we focus on stable performance, low latency, and genuine compatibility. It fits workflows that require Full HD output and down‑conversion from 4K sensors. Typical use includes security, UAV gimbals, medical video, conferencing, robotics, industrial testing, and marine imaging.
Designed to match FCB protocols, power, and timing. We support lifecycle planning and steady supply for long‑term projects.
SDI, HDMI, and CVBS run simultaneously with solid clock recovery. This reduces delay and removes the need for extra external converters.
We tailor OSD, overlays, control logic, and image tuning to device, lens, or mission needs. In‑house engineering shortens integration.
From pre‑sales consultation to after‑sales support, our team provides a single point of contact for camera interface solutions.
3G‑SDI up to 1080p60/1080i and 720p. Cable equalization and reclocking help maintain long‑run stability.
Up to 1080p60 with EDID handling for plug‑and‑play monitors, switchers, and capture devices.
Analog PAL/NTSC for legacy displays, mission previews, or backup feeds.
Works with models such as FCB‑EV9520L (Full HD, 30x, 1/2.8" STARVIS2), FCB‑ER9500 (4K60, 25x, 1/1.8" STARVIS2; down‑converted to 1080p on this board), and FCB‑ER9100 (4K60, 10x). Contact us for the detailed compatibility map.
VISCA over UART/RS‑232/RS‑485; optional Pelco‑D and TTL‑level control. Configurable baud rates and pass‑through simplify gimbal or host integration. Typical input: DC 12 V; customized ranges and regulated rails are available.
Low‑latency processing, noise‑optimized power design, and ESD/EMI protections support continuous operation.
Use HDMI for local preview, SDI for NVRs or matrices, and CVBS for legacy walls—from one camera block.
Compact and stable outputs for airborne imaging, mapping, tracking, and inspection.
Down‑convert 4K sensors to low‑latency 1080p for monitors and recorders, with CVBS as a simple preview.
Ruggedized options support long cable runs, interference control, and redundancy for ROV/AUV tasks.
Adjust board size, mounting, connectors, harness lengths, and input voltage to fit enclosures or embedded controllers.
Options include OSD overlays, crosshairs, scales, privacy masks, mirror/flip, sharpening profiles, and WDR mapping.
Add‑on modules can provide IP streaming, USB3.0/Type‑C, or higher‑rate SDI variants for hybrid pipelines.
Standard FCB harnesses and pinouts simplify mating. We supply wiring references, sample commands, and quick‑start guides.
Support covers SDI eye‑pattern checks, HDMI EDID validation, EMC considerations, and thermal guidance.
Strict component selection, functional testing, and burn‑in underpin reliability. CE/FCC and RoHS options are available with documentation.
These boards convert FCB LVDS to simultaneous 3G‑SDI, HDMI, and CVBS, typically up to 1080p60. With 4K camera blocks, the output is down‑converted to 1080p. Each SKU includes the board, FCB harness, and control cables. Choose by target resolution, control interface, and mechanical constraints.
For 4K60 and AI‑capable processing with HDMI/Network/USB3 simultaneous output, see the VRS‑UD410. Other categories include MIPI, 6G/12G‑SDI, USB3.0/Type‑C boards, and IP encoder modules.
We bring 25+ years with Sony FCB modules and 15+ years in high‑definition video development. With genuine cameras, proprietary boards, fast customization, and one‑stop support, we help shorten development cycles and scale reliably.
Q: Do SDI, HDMI, and CVBS output at the same time?
A: Yes. They are synchronized, with focus on low latency and stable timing.
Q: Which Sony FCB models are supported?
A: EV9520L, ER9500, and ER9100 are supported; contact us for the full model list.
Q: Can 4K sensors output 1080p on this board?
A: Yes. 4K input is down‑converted to Full HD on the 3‑in‑1 variant.
Q: What control protocols are available?
A: VISCA over UART/RS‑232/RS‑485 is standard. Pelco‑D and TTL‑level control are optional.
Q: How far can SDI cables run?
A: Distance depends on cable grade and environment. We provide guidance during integration.
Share your requirements and request a quote. Our team will recommend the right interface board and options for your system.
