USB Interface Board Solutions for Professional Imaging
Our USB interface board range enables high‑bandwidth, low‑latency video for professional imaging workflows with Sony FCB block cameras. As an authorized Sony (China) distributor with long‑term R&D in multi‑interface camera boards, we provide USB3.0/Type‑C output alongside HDMI, IP, SDI, and other options. These solutions streamline acquisition, conversion, transmission, and processing while maintaining image quality.
Key Features and Benefits
- Multi‑interface bridging: A single camera interface board converts camera signals to USB3.0 or Type‑C and can deliver simultaneous outputs such as HDMI and IP. This reduces external converters, lowers points of failure, and helps minimize system latency.
- Optimized for Sony FCB: Designed and validated for modules such as FCB‑ER9500, FCB‑ER9100, and FCB‑EV9520L. Reliable VISCA control, consistent conversion from LVDS/MIPI, and stable synchronization support professional imaging needs.
- Low delay, high throughput: SuperSpeed USB and efficient pipelines enable smooth, high‑bitrate streaming with minimal delay for inspection, teleoperation, and surgical visualization.
- Fast customization and support: We tailor firmware, I/O, control logic, and mechanicals to your workflow. SDKs, reference commands, and engineering support shorten integration.
- Robust design and lifecycle: In‑house hardware, patent‑supported designs, thermal care, and power protection enhance field reliability. Controlled revisions and long‑term availability support product continuity.
Models and Options
- 4K/60 flagship (example: VRS‑UD410): Supports 4Kp60 video, AI‑capable IP processing, and concurrent HDMI/network/USB3.0 outputs. Suited to UAV payloads, surgical video, and remote operations where bandwidth and multi‑view delivery are essential.

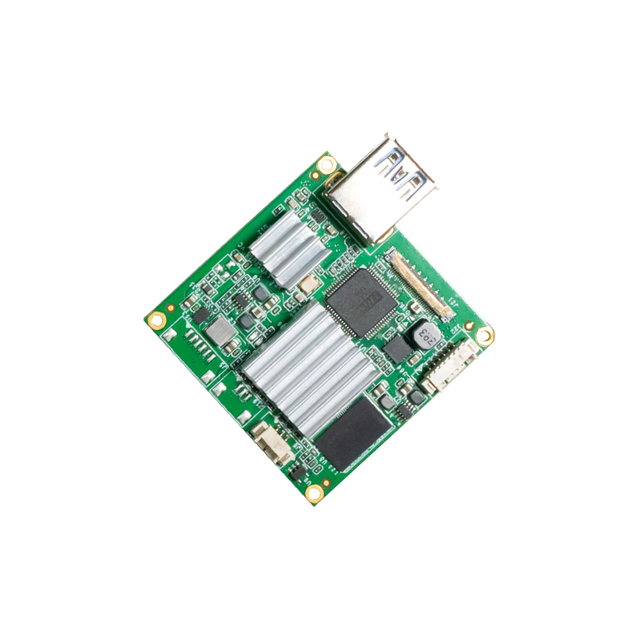

- Full HD options for popular FCB modules: For FCB‑EV9520L and similar, boards convert LVDS to USB and optional HDMI with low noise and stable sync. Well matched to 30× optical zoom workflows.
Connectivity

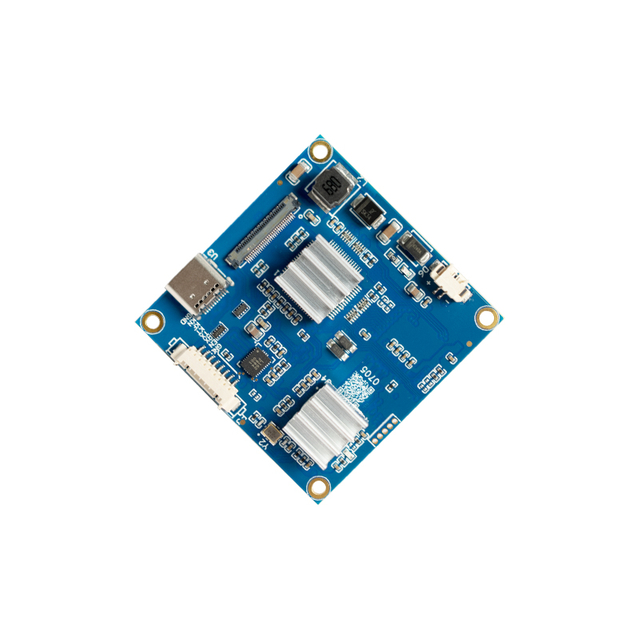

Type‑C and USB3.0 provide high throughput and reliable connectivity in compact builds. Where projects need flexible routing, additional outputs can include HDMI for local display, IP for network streaming and control, SDI for long runs, and CVBS for legacy systems.
Applications
- UAV and drones: Real‑time 4K/60 or Full HD USB streaming from FCB payloads with optional parallel IP to ground stations.
- Healthcare and surgical video: Low‑latency HDMI to monitors and USB to computers for recording or analysis.
- Industrial inspection and machine vision: Precise zoom/focus control with USB streaming to vision software and HDMI for operator feedback.
- Security and robotics: Combine USB to edge compute with IP/HDMI for situational awareness and teleoperation.
Integration and Compatibility
- Plug‑and‑play with FCB modules: Pre‑tested mappings help simplify cabling, initialization, and stream negotiation.
- Control protocols and software: VISCA command support with tools and examples for zoom, focus, exposure, and OSD via USB or network.
- Mechanical and power: Compact PCBs fit gimbals, medical carts, and inspection rigs. Power design and protection help maintain signal integrity under varying loads.
Buying Guide
- Match resolution and frame rate: Select 4K/60 for fast motion or surgical detail; Full HD where bandwidth is constrained. Confirm camera compatibility.
- Pick outputs and connectors: Use USB3.0/Type‑C as primary, then add HDMI, IP, SDI, or CVBS to reduce external adapters.
- Evaluate latency and processing: Check end‑to‑end delay, on‑board IP/AI capability, and control paths (USB vs. network).
- Plan for lifecycle: Prefer owned‑IP designs with documented revisions, stable supply, and access to firmware updates.
FAQ
Q: Which Sony FCB models are supported?
A: Common modules include FCB‑ER9500, FCB‑ER9100, and FCB‑EV9520L. Contact us to confirm compatibility for your camera.
Q: Can HDMI, IP, and USB run at the same time?
A: Selected models support concurrent outputs. For example, the VRS‑UD410 can deliver HDMI, network, and USB3.0 simultaneously.
Q: Do you provide control software or SDKs?
A: Yes. We offer SDKs, reference commands, and documentation to integrate VISCA control and video streaming.
Contact USB Interface Board Manufacturer Team
Discuss your workflow or request a quote. Our engineering team can help select a board and tailor interfaces for your application.
