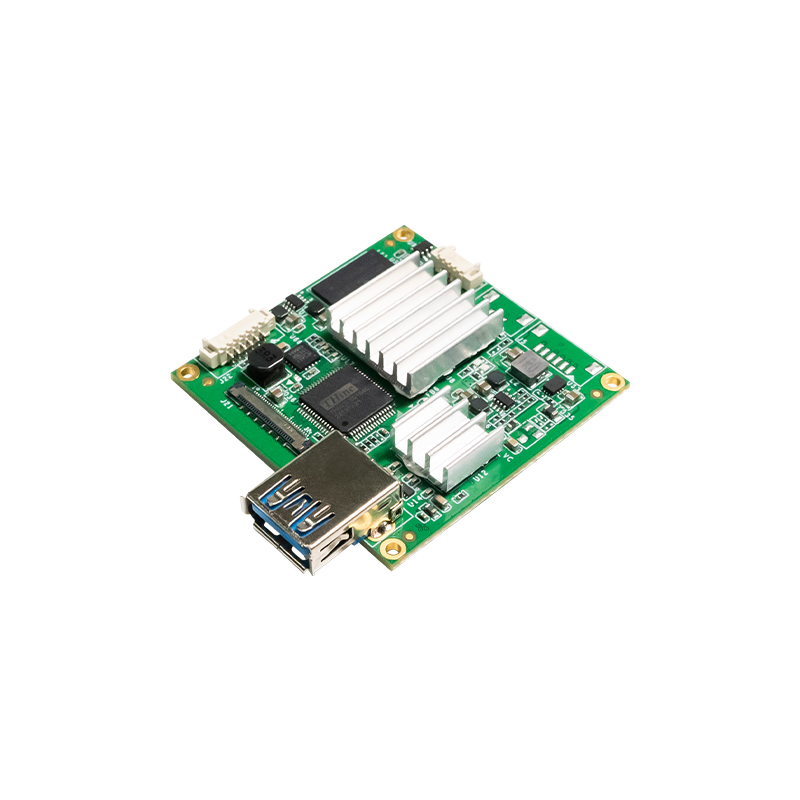

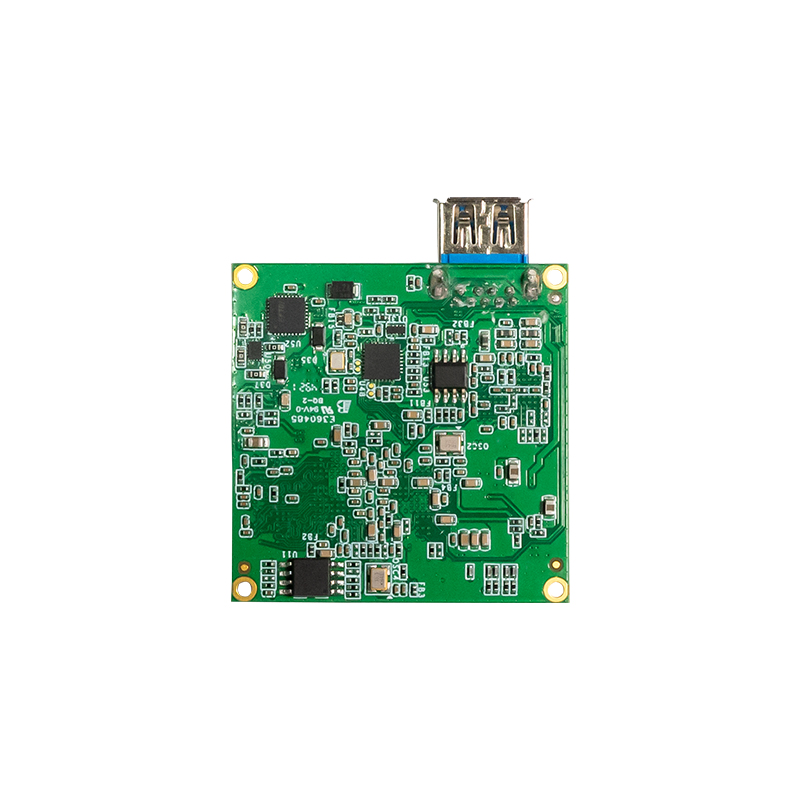

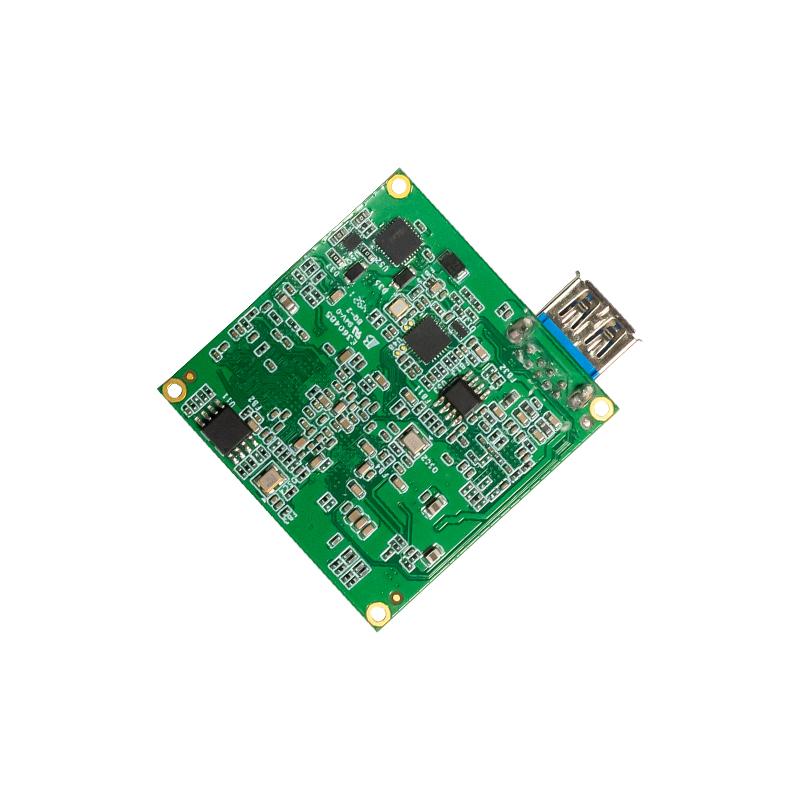

The LVDS To USB3.0 Video Capture Interface Board is compatible with Full HD camera modules that comply with the Sony VISCA protocol, including the Sony FCB HD series and HD camera modules with LVDS interfaces from other brands. When paired with a camera module via the LVDS interface, this board outputs 1080P60 HD video signals through its USB3.0 port, enabling camera-captured images to be displayed quickly on computer screens.
The embedded solution can seamlessly interface with medical imaging systems, industrial vision detection platforms, and broadcast-grade video production environments, meeting the demand for high-precision, low-latency video communication across various professional scenarios.
•Plug-and-Play & Auto-Matching: Once the USB3.0 Video Capture Board is connected to an HD camera module, no additional camera configuration is required. It automatically recognizes multiple video formats including 1080P (supporting a maximum resolution of 1920×1080), 720P, and 480P. Tailored for diverse application scenarios, it achieves full matching instantly upon startup.
•One-Cable Integration for Simplified Deployment: A single USB 3.0 cable integrates three core functions: video transmission, serial port communication, and camera module power supply, significantly reducing wiring complexity. It supports USB bus-powered operation and is also compatible with external DC 12V power input, ensuring stable camera startup in all kinds of environments.
•Cross-Platform Driver-Free Operation: The USB 3.0 port outputs HD video streams compliant with the UVC protocol, enabling plug-and-play functionality on Windows and Linux systems without the need to install extra drivers.
•Professional-Grade Camera Control: It supports direct control of camera functions (e.g., zooming and focusing) via the built-in USB serial port. Featuring simple operation, it serves as an ideal tool for Sony camera developers and system integrators.
•Flexible Hardware Serial Port Configuration: Equipped with a hardware serial port interface, it supports connecting external devices for camera control. Serial port multiplexing can be achieved via switch configuration, meeting diverse communication requirements.
Brand | Model | USB3.0 | Supported video formats are listed below: 1080P60/1080P50/1080P30/1080P29.97/ 1080P25/1080P10 720P60/720P50/720P30/720P25/720P20/720P10 800*600P50/800*600P30/800*600P25 640*480P60/640*480P50 Suitable for various live broadcast programs, as well as instant messaging software such as Microsoft Teams, Zoom,WeChat, etc. |
Sony | FCB-EV9520L | 1080P60, 1080P59.94, 1080P50，1080P30 1080P29.97，1080P25 720P60，720P59.94，720P50，720P30，720P29.97，720P25 | |
FCB-EV9500L | |||
FCB-EV7520A | |||
FCB-EV7520 | |||
FCB-EV7100 | |||
FCB-EH6300 | 1080P29.97,1080P25 720P59.94,720P50,720P30,720P25 | ||
Volers | VRS-HD5101 | 1080P60, 1080P50，1080P30，1080P25 720P60，720P50，720P30，720P25 | |
VRS-HD5201 | |||
VRS-HD5301 | |||
VRS-HD5363 | |||
VRS-HD5365 | |||
Tamron | MP3010M-EV |
*Note: This product works with Sony's FCB HD cameras and other compatible camera blocks supporting Sony's Visca-command.

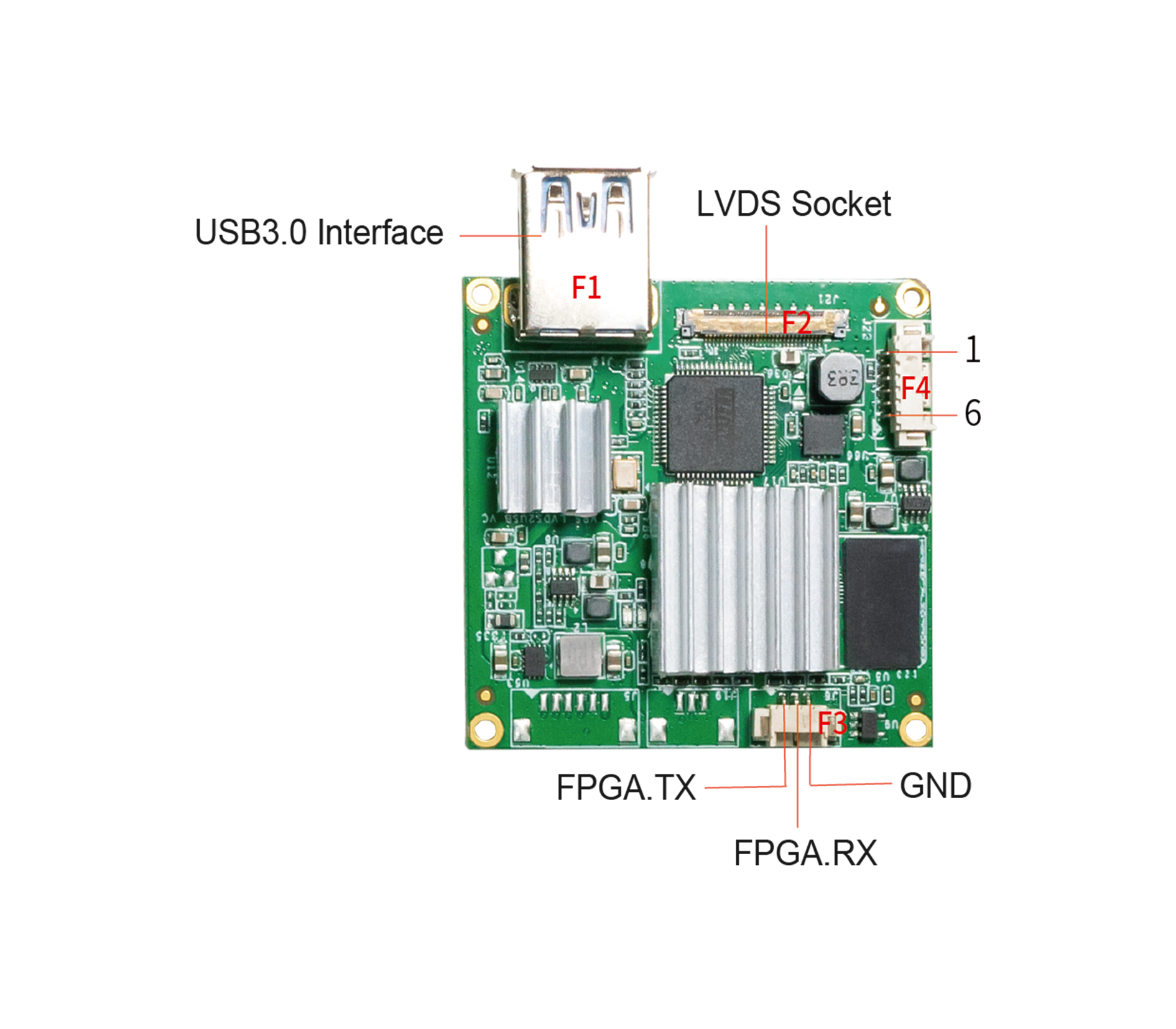

Compatible cameras | Sony's FCB HD cameras and non-Sony cameras supporting Sony's Visca-command. | Video Output Format | 1080P, 1200P, 1024P, 960P, 480P |
Driver Program | Camera: driver-free. Serial port: driver required | Video Output Interface | USB 3.0 interface |
Communication Interface Control | TTL-232 (standard) | USB 3.0 interface | supported |
Operating Temperature | -40°C to 75°C (-40 °F to 167°F) | Power Supply | DC12V 1A |
Product Net Weight | Approx 20g | Product Dimensions | Product Dimensions |
Number | Pin Type | Pin definations |
F1 | USB3.0 Interface | |
F2 | LVDS Socket | Used for interfacing with the LVDS interface of the camera to achieve signal transmission. |
F3 | Moles Connector: Model 532610371, 3-pin socket with 1.25MM spacing | Debugging port |
F4 | Moles Connector: Model 532610671, 6-pin socket with 1.25MM spacing. TTL_RX and TTL_TX are TTL232 communication interfaces with a voltage of 3.3V for MCU serial communication | This communication interface can control the camera and also send various information from the MCU to the computer by switching the port to low and communicating with the USB's internal serial port. DC12V and GND are the external power supply's positive and negative interfaces. Power supply range: DC9~12V(1.0A). Frame synchronization interface: By controlling this interface, frame-synchronized output images are achieved. The interface definition is shown in Table F4-1. |

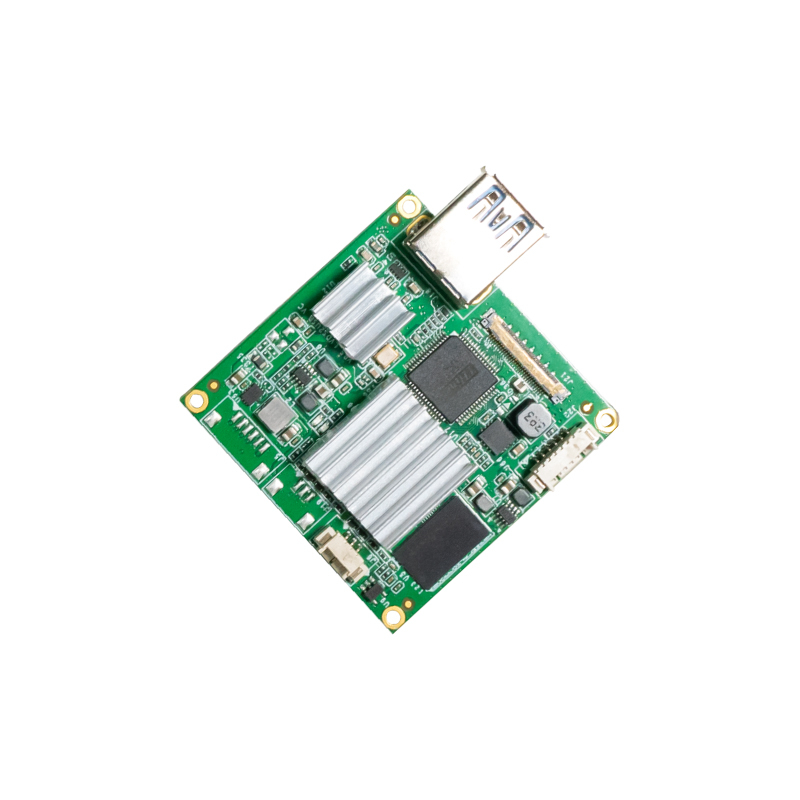

Front Side of the product
Table: F4-1 | |
1 | GND |
2 | Control Switching |
3 | Frame Sync |
4 | RX: TTL Receive |
5 | TX: TTL Transmit |
6 | DC12V+ |
Model No. | Communication Method |
PCB-UD101 | With TTL-232 control |
|
|
|  |

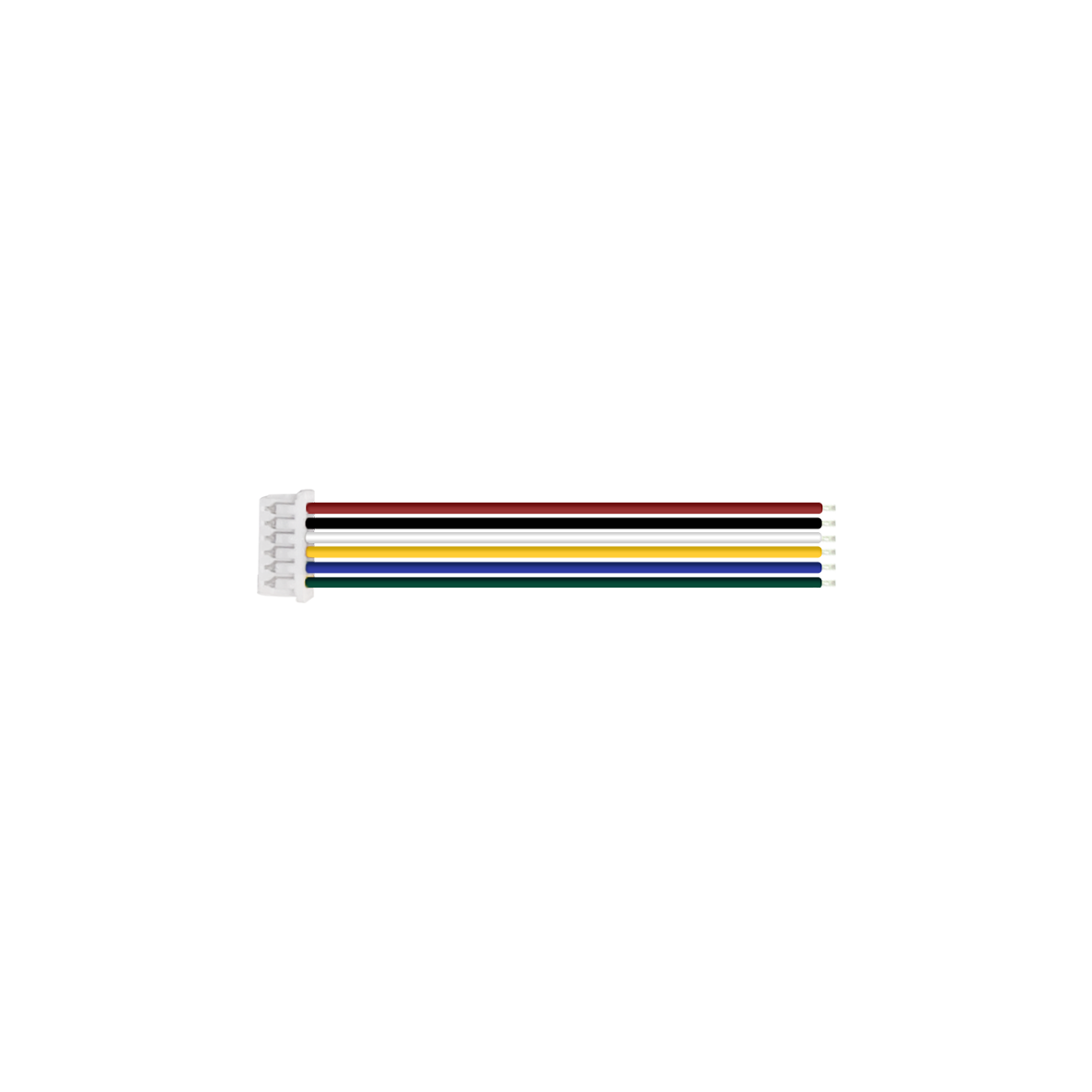

LVDS Coaxial Cable (80MM) Customizable Length（Optional） | 6-Pin Terminal Wire (150MM) (Standard) | Screw/Copper pillar: M2*5 (Optional) | An iron plate (Size:50*50MM) (Optional) |
 |  |  |

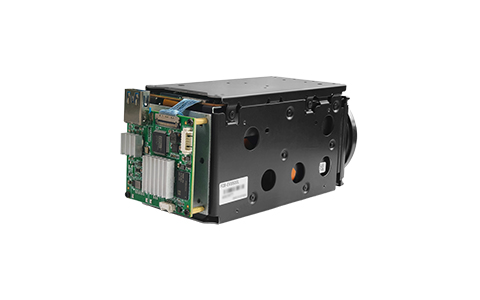

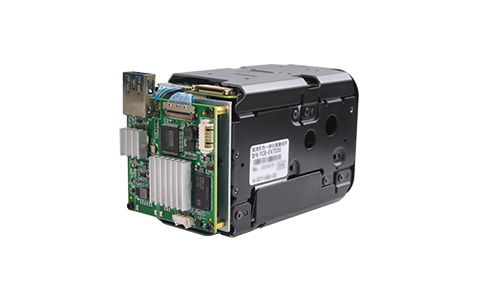

a. USB3.0 interface board assembled with Sony Block camera FCB-EV9520L | b. USB3.0 interface board assembled with Sony Block camera FCB-EV9500L | c. USB3.0 interface board assembled with Sony Block camera FCB-EV7520 |
*Note: The product supports individual purchase or "block camera+interface board" package purchase. The whole set comes without pre-installation by default. Specify installation needs when ordering.
Preparation
|
|
|
|  |
Exemplified by FCB-EV9520L | 30Pin LVDS Coaxial Cable | 6pin terminal wire | Screw/Copper pillars | Iron Plate |
Connection Steps
Physical Assembly Steps Only (No Electrical Work)
Notes: The steps demonstrate physical connection only-electrical connection is excluded. No image output at this stage. For electrical connection assistance, contact technical support.
|
|
|

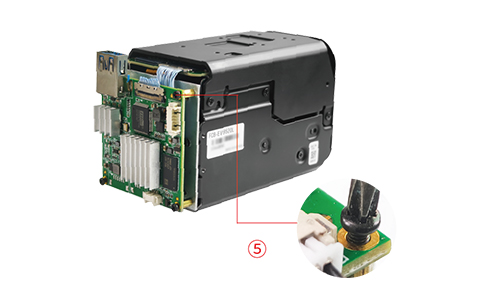

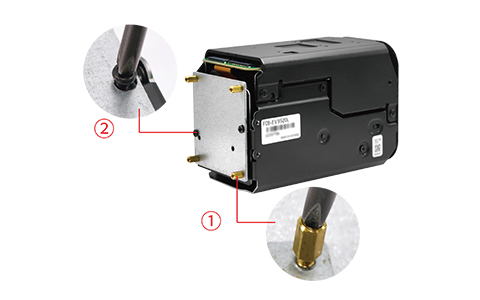

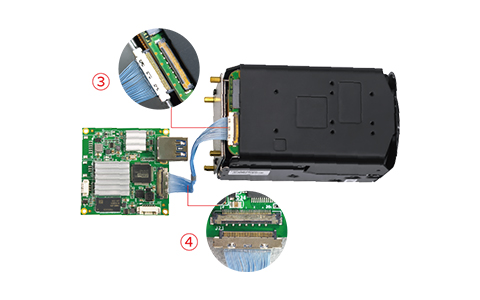

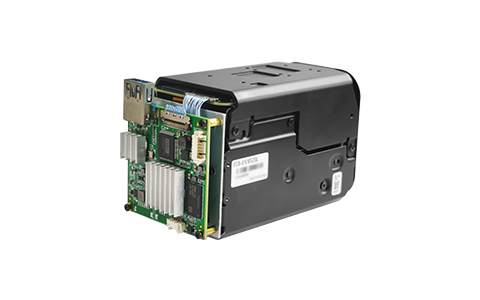

StepⅠ: 1. Install four copper pillars onto the iron plate (as shown in Figure ① above). 2. Install the iron plate onto the rear of the camera and tighten the screws (as shown in Figure ② above) | StepⅡ: 3. Connect one terminal of the LVDS coaxial cable to the HD block camera (as shown in Figure ③ above). 4. Connect the other terminal of the LVDS coaxial cable to the USB3.0 interface board (as shown in Figure ④ above). Note: Plug in the LVDS coaxial cable with gold-plated pins on connectors facing up. Reverse insertion is strictly prohibited. | Step Ⅲ: 5. Install the USB3.0 video interface board to the rear of the camera and tighten the screws (as shown in Figure ⑤ above). |
 | ||

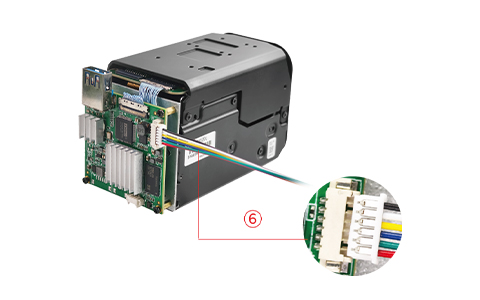

Step Ⅳ: 6. Physically connect the 6-pin cable to the USB3.0 interface board (as shown in Figure ⑥ above). |
Thank you very much for purchasing our company's products. If you have any questions, please feel free to contact us.
The photos and actual objects depicted in this Manual are provided solely for reference and guidance to users.
We do not guarantee that they are completely identical to the actual products. Please refer to the actual products.
Design, features and specifications are subject to change without notice.
