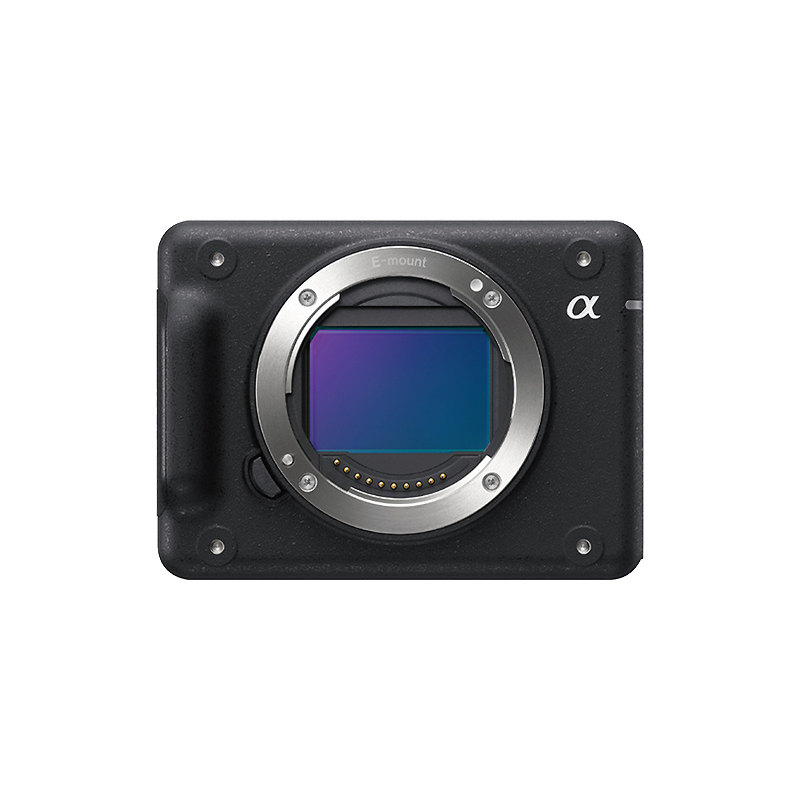

Sony ILX-LR1 is a professional camera equipped with a 61.0 effective megapixel full-frame image sensor and interchangeable E-mount lenses. It supports full remote operation via the Sony Camera Remote SDK (Software Development Kit), and is specifically designed for industrial applications.
Boasting ultra-high resolution and a lightweight, compact form factor, the SONY ILX-LR1 is ideal for drone-based inspection, investigation, and surveying and mapping.
Its high-resolution, low-noise, wide dynamic range images reveal fine details like small scratches and cracks during inspection, investigation, and surveying and mapping. With 3fps continuous shooting, it enables quick high-altitude shooting completion in a short time. Broad E-mount lens compatibility allows selection of the most suitable lens.

The SONY ILX-LR1 features a full-frame back-illuminated image sensor with approximately 61 effective megapixels. Its high-quality, low-noise, and wide dynamic range performance enables clear detection of minute cracks and scratches during inspection, mapping and other operations.
Drone Photography
3D Imaging & Scanning
Industrial Inspection
Medical Examination
Q: What type of drone is the SONY ILX-LR1 suitable for?
A: The Sony ILX-LR1 is suitable for small-to-medium-sized UAVs, professional inspection UAVs, mapping and 3D modeling UAVs, long-endurance UAVs, and remote-controlled UAVs.
Model NO. | ILX-LR1 |
Camera type | Interchangeable-Lens Digital Camera |
Lens mount | E-mount |
Type | 35mm full frame(35.7×23.8mm),Exmor R CMOS sensor |
Number of pixels(effective) | Stil images:Approx.61.0 megapixels max |
Color temperature range | 2500 K-9900 K |
lmage size(pixels)[3:2] | 35mm Full-Frame Resolutions L: 9504×6336 (60MP) | M: 6240×4160 (26MP) | S: 4752×3168 (15MP) |
Memory card slot | Slotfor SD(UHS-l/ll compliant)memory card |
Interface | USB Type-C@Terminal,Wireless LAN (built-in), Bluetooth,HDMI output |
Application | 3D Iimage Scanning,Photogrammetry,Commercial |
Power Requirements | DC10 to 18 V |
Weight | Body only Approx.243g |
Dimensions(WxHxD) | Approx.100.0×74.0×42.5mm |
Operating temperature | 0-40ºC/32-104°F |
