Sony ILX-LR1: Designed for Remote Shooting

Sony ILX-LR1 is a full-frame expandable remote camera exclusively designed for industrial applications and UAV system integration. Featuring low latency, high precision and strong scalability as its core remote shooting performance, it redefines the efficiency and reliability of remote image capture through the deep integration of hardware design and software ecosystem.

I. Millisecond-Level Low-Latency Control: "Real-Time Response" for Remote Operation

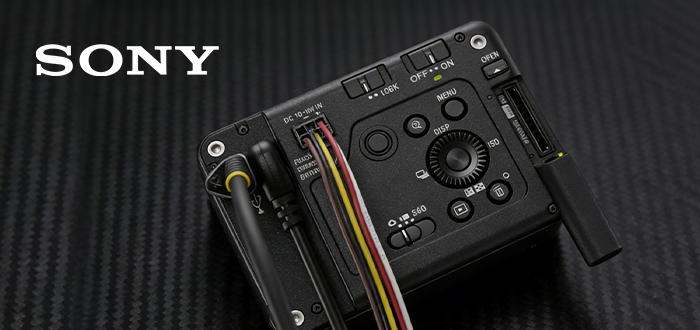

The power and control terminal of the ILX-LR1 adopts a 6-pin interface design, supporting direct DC 10-18V power supply and UAV battery powering, ideal for outdoor aerial operations. It also optimizes the data transmission protocol, delivering ultra-low latency in command sending and execution for real-time UAV operations.

Application Scenarios:

For UAV surveying and mapping projects, ground operators can instantly trigger the shutter once the UAV reaches the target location, effectively avoiding image shift caused by signal latency and ensuring mapping accuracy.

In electrical power line inspection, it captures transient faults (e.g., arc flashes) in milliseconds, greatly boosting the fault detection success rate for power grid maintenance.

Technical Support:Equipped with Sony Camera Remote SDK v1.11, the ILX-LR1 supports analog signal-triggered shooting, which drastically reduces synchronization errors between aerial images and UAV positioning data, ensuring every photo is accurately matched to precise spatial coordinates for 3D mapping and surveying.

II. Flexible Remote Parameter Adjustment: From Manual Operation to Intelligent Presets

Via Sony Camera Remote SDK, users can integrate its API into their own software systems to achieve full remote parameter control of the ILX-LR1, including but not limited to:

Exposure Triad: Real-time adjustment of aperture, shutter speed and ISO to adapt to diverse lighting conditions (e.g., seamless transition from daytime to nighttime).

Focus Modes: Supports switching between manual and auto focus; during manual focus, the SDK enables focus position retrieval and locking to ensure consistent focus across multiple shots (ideal for multi-angle shooting in 3D modeling).

File Format & Quality: Remotely select RAW or JPEG format and adjust compression ratio to balance image quality and storage efficiency.

Trigger Modes: Supports single-shot, continuous shooting (up to approx. 3 fps) and timed shooting, satisfying dual needs of dynamic monitoring (e.g., construction progress tracking) and static data capture (e.g., topographic surveying).

III. Real-Time View Monitoring: Visual Assurance for Remote Shooting

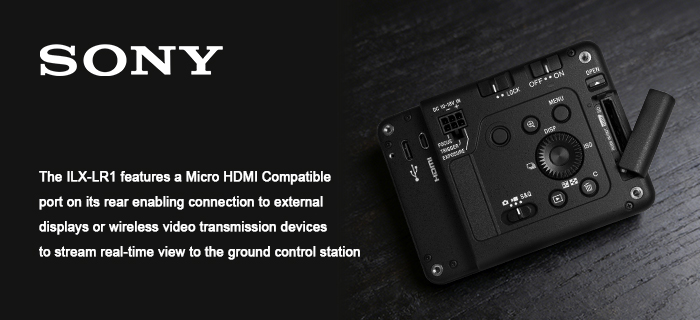

The ILX-LR1 features a Micro HDMI port on its rear, enabling connection to external displays or wireless video transmission devices to stream real-time view to the ground control station. Meanwhile, via the SDK's API interface, users can embed a viewfinder window into their own software to achieve WYSIWYG remote monitoring.

Advantages

1.    Eliminates shooting blind spots caused by camera mounting angles or UAV attitudes, allowing operators to adjust UAV flight paths or camera angles in real time.

2.    In nighttime or low-light environments, optimize fill light strategies via real-time image feedback (e.g., adjusting infrared lamp angles or brightness).

Technical Details

The viewfinder supports full-resolution transmission with ultra-low latency, ensuring the live view for operators is fully synchronized with the camera’s actual shooting frame.

IV. Multi-Device Collaboration & Automated Workflows: From Standalone Operation to System Integration

The remote shooting performance of the ILX-LR1 extends beyond standalone control. With open interfaces and standardized design, it enables deep integration with UAV flight control systems, ground station software, and other industrial equipment for seamless collaboration.

Hardware Collaboration:

Features M3 screw holes on all six sides and a 1/4-20 UNC threaded hole at the bottom, allowing quick mounting on UAVs, robots, submersibles, or other carriers to adapt to diverse industrial shooting scenarios.

USB Type-C interface integrates data transmission and power supply functions, simplifying cable management and enhancing overall system reliability in field operations.

Software Collaboration:

Through SDK integration with UAV flight control systems, it achieves end-to-end automation of "flight path planning - camera parameter presets - automatic shooting - data backhaul". For instance, in bridge inspection projects, UAVs fly along preprogrammed routes while the ILX-LR1 automatically captures high-resolution images of critical components, synchronously recording GPS coordinates and camera attitude data for post-processing and analysis.

Summary

Centered on ultra-low latency control, full remote parameter adjustment, real-time view monitoring, and multi-device collaboration, the Sony ILX-LR1’s remote shooting capabilities deliver efficient, precise remote imaging solutions for industrial inspection, surveying & mapping, 3D modeling, power line inspection, and other professional fields.

More than just a camera, it serves as an open industrial imaging ecosystem. Through deep integration with UAVs, robots, and software platforms, it drives the industry toward intelligence and automation.
