As key equipment for early gynecological screening and accurate diagnosis, an electronic colposcope's core capability lies in whether it can clearly present the microvascular morphology and epithelial color changes in the cervical transformation zone. Slight image blur, color cast, or overexposure may affect the accuracy of acetic acid tests and iodine tests.
Among many integrated camera modules, the Sony FCB-ER8530, with its 4K ultra-high-definition imaging, faithful color reproduction, and compact, easy-to-integrate design, is becoming the Sony medical camera module most frequently chosen by high-end electronic colposcope manufacturers.
Electronic colposcopes equipped with 1080P camera modules have limited pixel density and often struggle with early tiny lesions—CIN I epithelial abnormalities, small acetic acid white epithelium, and atypical vascular branching.

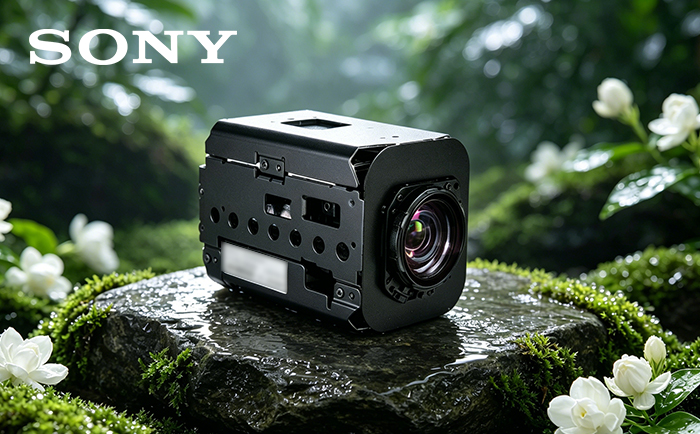

The Sony FCB-ER8530 is equipped with a 1/2.5-inch back-illuminated Exmor R CMOS sensor, with up to 8.51 million effective pixels, and natively outputs 3840×2160 4K ultra-high-definition video. Its detail-capture capability is more than three times that of 1080P.
What does this mean?
Early lesions that previously required repeated focusing and magnification to barely identify now present more details in 4K images. Smaller lesions and earlier abnormalities can no longer escape the doctor's eyes.
Gynecological examination scenarios are complex and varied—sometimes a wide-angle field of view is needed to observe the overall cervical morphology, and sometimes a suspicious area needs to be accurately locked and magnified for observation.
The FCB-ER8530 is equipped with a 20x optical zoom lens (focal length 4.4 mm–88 mm). Combined with 12x digital zoom and super-resolution zoom technology, it can achieve up to 30x super-resolution zoom. From panoramic view to close-up, switching is smooth, and doctors do not need to change lenses, greatly improving operational efficiency.
One of the biggest headaches for doctors with traditional colposcopes is slow manual focusing and intermittent blur during zooming.
Minor adjustments in patient position, breathing movements, or even slight hand tremors can cause image blur and cause key observation windows to be missed.
Volers Technology, a Sony (China) authorized distributors, specifically points out that the FCB-ER8530's fast autofocus technology locks focus in real time. Whether near or far, whether the target is stationary or slightly moving, the image remains clear and sharp.
Combined with the auto exposure function, in a rapidly changing examination environment, doctors can devote all their attention to diagnosis itself instead of struggling with the lens.
This is what "intelligent healthcare" should look like.
Doctors who have performed colposcopy know that the intense light from surgical lights is the biggest "enemy."
Direct strong light causes local overexposure and glaring light spots, while all dark-area details are lost—a persistent problem that has troubled the industry for years.
The Sony FCB-ER8530 provides a solid answer:
| Technology | Capability | Clinical Value |
|---|---|---|
| 130 dB ultra-wide dynamic range | Simultaneously captures highlight and dark-area details | At the boundary between bright and dark areas on the cervical surface and vaginal wall, all details are preserved |
| Highlight suppression | Effectively suppresses overexposed areas | Under direct surgical light, the lesion area remains clearly distinguishable |

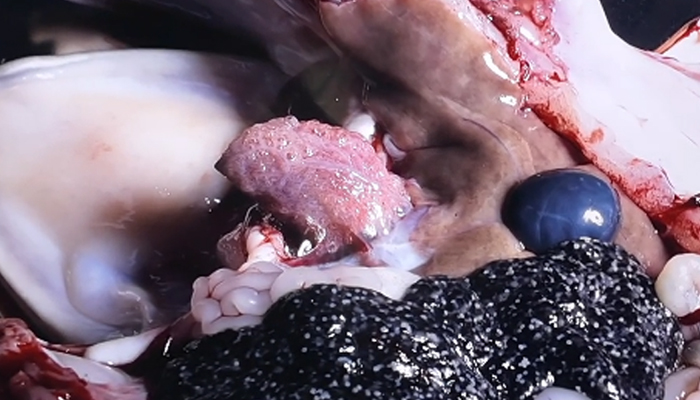

| Auto-tracking white balance (ATW) | Color temperature coverage of 2000K–10000K | Faithfully reproduces tissue color and eliminates color cast interference |
The Sony FCB-ER8530 is only responsible for front-end image capture. How are back-end video conversion, capture, transmission, and control handled? Volers Technology, with 17 years of practical experience in the HD video secondary development field, has independently developed a variety of mature supporting solutions:
1. 4K HDMI-Compatible Interface Board
By connecting the Sony FCB-ER8530 to Volers Technology's self-developed 4K HDMI-Compatible Interface board via an LVDS cable, the camera automatically recognizes 4K video signals and supports output at multiple resolutions and frame rates including 720P/1080P/2160P. Zoom, focus, gain, and white balance can be controlled via a five-way button or RS-485. An external remote control and foot switch can also be connected to implement the freeze function.

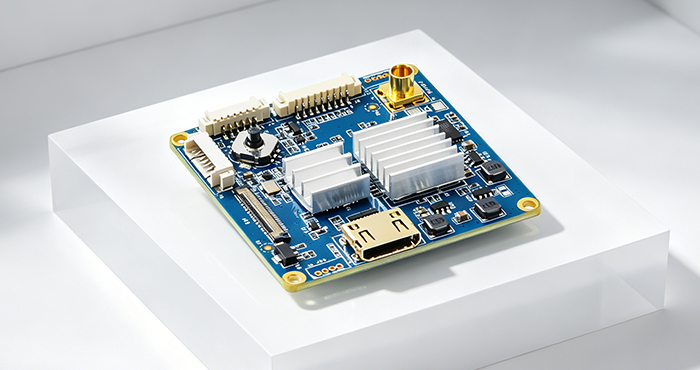

2. 12G-SDI Interface Board
The 12G-SDI Interface board can provide 3G/6G/12G real-time, uncompressed, zero-delay broadcast-grade lossless signal transmission. After docking with the Sony FCB-ER8530 integrated camera module, it can output high-fidelity, real-time images for critical imaging, making it particularly suitable for operating rooms, teaching and research, and other scenarios.
The future of medical imaging is certainly a 4K future.
The FCB-ER8530, with its 8.51-million-pixel 4K ultra-high-definition image quality, 20x optical zoom, fast autofocus, wide dynamic range, highlight suppression, and mature supporting solutions, has already proven itself to be the video solution for high-end electronic colposcopes.
This is the reason to choose the FCB-ER8530.
Danny Wong, Co-founder & Chief Technology Officer of Ruilong Electronic, compiled in September 2026.
Shenzhen Ruilong Electronic Information Technology Co.,Ltd., an officially authorized distributor of Sony (China), has 17 years of experience in HD video secondary development and implementation. It has independently developed IP / SDI / HDMI-Compatible / USB / MIPI multi-type interface encoding control boards, and also provides a DSLR camera network control board compatible with the ILX-LR1. It can provide pre-sales solution consulting, on-site debugging, and after-sales technical support, support connection with Sony's original factory technical resources, and solve project problems on site.
