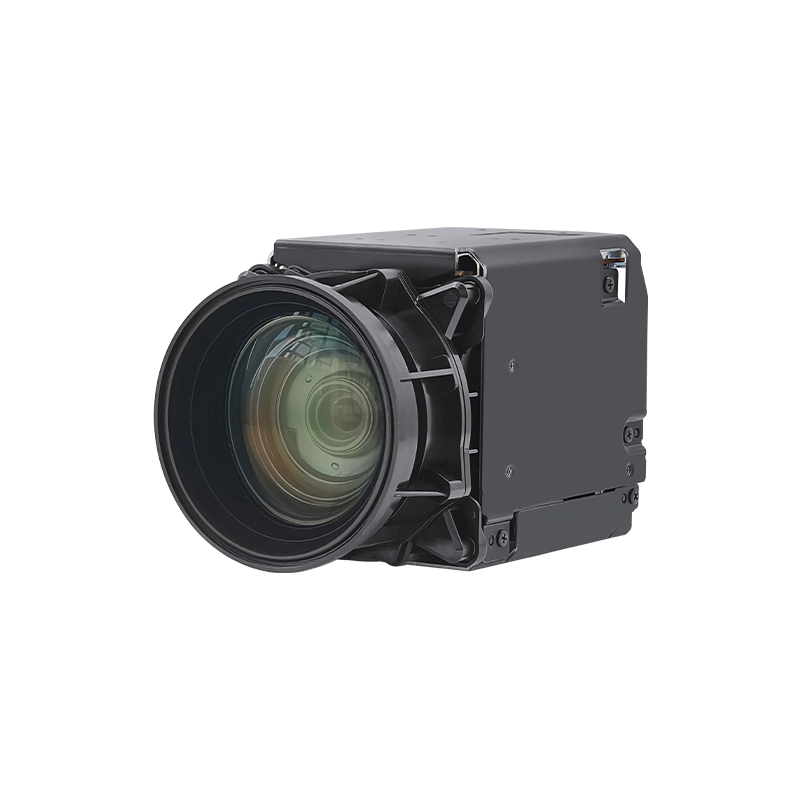

FCB-ER8300 Sony 4K Ultra HD Zoom Block Camera

• Sensor(Effective pixels): 1/2.38'' Exmor CMOS(approx. 2.13MP)
• Output pixel(HxV): 3840*2160, 1920x1080, 1280x720
• Video format: 2160P/29.97/25, 1080P/59.94/50, 1080I/59.94/50, 720P/59.94/50
• Video output: 4K Output Compliant with HDMI-Compatible Protocol
• Lens: f = 3.9mm - 46.8mm, F1.8 - 2.0
• Zoom: 12x Optical Zoom, 12x Digital Zoom
• Other functions: Day/night switching, defog, motion detection, Spherical Privacy Zone Masking
• Size: 60.0 x 64.0 x 125.0mm
• Weight: approx. 385g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

FCB-ER8300 SONY FCB-ER8300 Sony FCB Block Camera 4K Ultra HD Block Camera Security Monitoring 4K HDMI Camera 20x Zoom Camera Fast Auto Focus Camera HDMI CMOS Camera Block 2160P Block Camera Sony Camera

Overview

The Sony FCB-ER8300 is a high-performance 4K UHD block camera, integrated with a 1/2.3-inch Exmor R CMOS sensor that boasts approximately 8.93 mega effective pixels. It delivers crisp, detailed images at a resolution of 3840×2160 (QFHD). Featuring a 12x optical zoom lens and supporting super-resolution zoom technology, it enables long-distance shooting and detailed close-ups.

The Sony FCB-ER8300 is equipped with an Auto ICR (Infrared Cut Filter Removal) function, which automatically switches to night mode in low-light environments to enhance shooting sensitivity. Its de-fog function improves image clarity in foggy conditions, while the pixel super-resolution technology further optimizes image quality. The camera supports versatile adjustments including white balance and image effects, catering to diverse shooting requirements.

Basic Info.

Model NO.	FCB-ER8300	Brand	Sony
Sensor	1/2.3" Exmor CMOS Sensor	Output pixels	8.93M pixels
Focal Length	12x Optical Zoom, 12x Digital Zoom	Focal Length	f= 3.9 mm - 46.8 mm, F1.8 - 2.0
Image formats	2160P/29.97,2160P/25 1080P59.54,1080P50 1080I59.54,1080I50 720P59.54,720P50
Minimum illumination	Color: 0.75 lx (F1.8, AGC on, 1/30 s) High Sensitivity Mode Color: 3 lx (F1.8, AGC on, 1/30 s) Normal Mode
Video Output	HDMI
Other functions	Day/night switching, defog, motion detection, Spherical Privacy Zone Masking
Dimensions	60.0(W) x 64.0(H) x 105.0(D)mm
Weight	Approx 385g

Application

Security & Surveillance, Intelligent Transportation Systems (ITS), UAV Aerial Photography, Medical Testing

Optimized Video Output Configuration

FCB-ER8300		Compatible Camera Interface Board		Customized Integrated Solutions

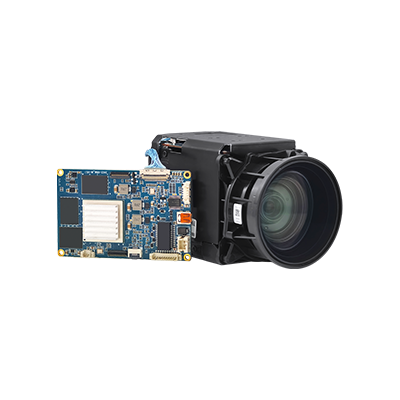

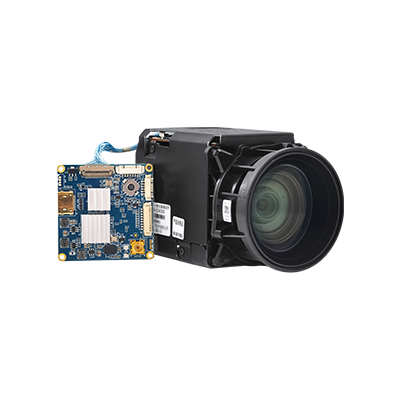

Size: 60.0 x 64.0 x 105.0mm Net Weight: Approx 385 g	+	HDMI Type-D, IP and USB3.0 Interface HDMI, IP and USB3.0 Sync-output	=	Sony FCB- ER8300 + 4KP60 AI Network Interface Board

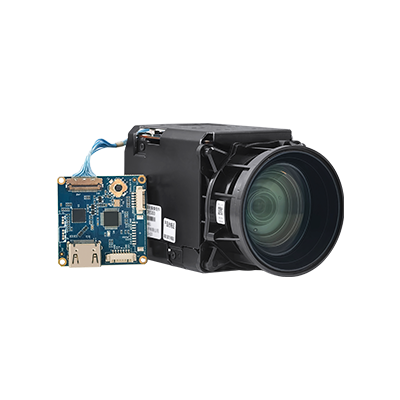

Day/night switching motion detection	+	HDMI Type-A Interface Lvds to 4K HDMI Output	=	Sony FCB- ER8300 + 4KP60 HDMI Interface Board

1/2.3-type Exmor R CMOS Sensor Effective pixels: approx. 8.93MP	+	Mini MCX RF and HDMI Type-C Interface 6G-SDI and 4K HDMI Sync-output	=	Sony FCB-FCB-ER8300 + 12G-SDI Interface Board

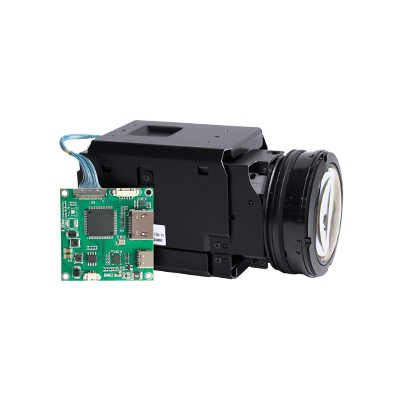

Support 4KP30 Video Output 12x Optical Zoom	+	USB3.0 TYPE-C and HDMI Interface USB3.0 TYPE-C and 4K HDMI loop Output	=	Sony FCB-ER8300 + 4K USB3.0 TYPE-C Interface Board

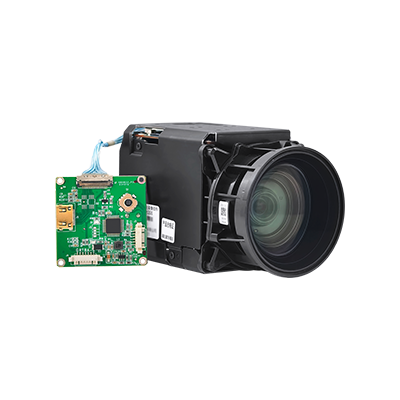

High Sensitivity Privacy Zone Masking	+	HDMI Type-C Interface Lvds to 4K HDMI Output	=	Sony FCB-ER8300 + 4K-HDMI Interface Board

FAQ

Q: After the discontinuation of the SONY FCB-ER8300, which zoom camera module can be used as a replacement?

A: Upon the discontinuation of the Sony FCB-ER8300, we recommend the FCB-ER8530 or FCB-ER9500 as alternative models.

The FCB-ER8530 (dimensions: 50×60×93.3 mm, weight: 275 g) supports 4K@30fps resolution and 20x optical zoom. It inherits the VISCA protocol and super-resolution zoom technology, with a smaller size and lighter weight than the FCB-ER8300. This model is ideal for compact installation scenarios such as UAVs, medical equipment, and underwater robots.

The FCB-ER9500 is equipped with a 1/1.8” large-format sensor, upgraded to 25x optical zoom and 4K/60fps output. It features the STARVIS2 CMOS sensor and Super Image Stabilization technology, boasting an ultra-low-light performance of 0.00008 lux. It is well-suited for high-precision industrial inspection and extreme environment surveillance.

Both models deliver seamless compatibility and industrial-grade reliability, catering to the requirements of lightweight design and high-performance operation.

Parameter

Image Sensor	1/2.3 inch Exmor R CMOS Sensor
Effective Pixels	Approx. 8.93 Mega Pixels
Digital Zoom	12x (144x with optical zoom)
Horizontal Viewing Angle	70.7° (wide end) to 6.4° (tele end)
Minimum Object Distance	10 mm (wide end) to 1,500 mm (tele end) (Default: 300 mm)
Sync System	Internal
Electronic Shutter	1/1 s to 1/10,000 s, 22 steps
White Balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor/Auto)
Gain	Auto/Manual (0dB to 33dB) Max. Gain Limit (9dB to 33dB)
Wide Dynamic Range	No
Backlight Compensation	Yes
Privacy Zone Masking	Yes
Character Generator	20 characters/line, max. 11 lines
Focus System	Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF,Focus compensation in ICR on
Camera Operation / Zoom Switch	12x (144x with optical zoom)
Picture Effects	E-Flip, Black & White, Mirror image, Color enhancement
Exposure Control	Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation
Lens Value	12x optical zoom, f = 3.9 mm (wide) to 46.8 mm (tele), F1.8 to F2.0
Minimum Illumination	Color: 0.75 lx (F1.8, AGC on, 1/30 s) High Sensitivity Mode - Color: 3 lx (F1.8, AGC on, 1/30 s) Normal Mode
Camera Control Interface	VISCA (CMOS 3.1 V level) Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 57.6 Kbps, 115.2 Kbps, Stop bit: 1 bit
Dimensions (W x H x D)	60mm x 64mm x 105mm
Weight	385 grams
Operating Temperature	-5 to +60 (°C) / 20 (%) to 80 (%) Absolute Humidity: 36 (g/m3)
Storage Temperature	-20 to +60 (°C) / 20 (%) to 95 (%) Absolute Humidity: 36 (g/m3)
Operating Humidity	20% to 80% Absolute humidity : 36[g/m3]
Storage Humidity	20% to 95% Absolute humidity : 36[g/m3]
Power Consumption	2.8W (Typ. DC IN 6 - 12V, steady state)
Power Requirements	6.0V ~ 12.0V DC
