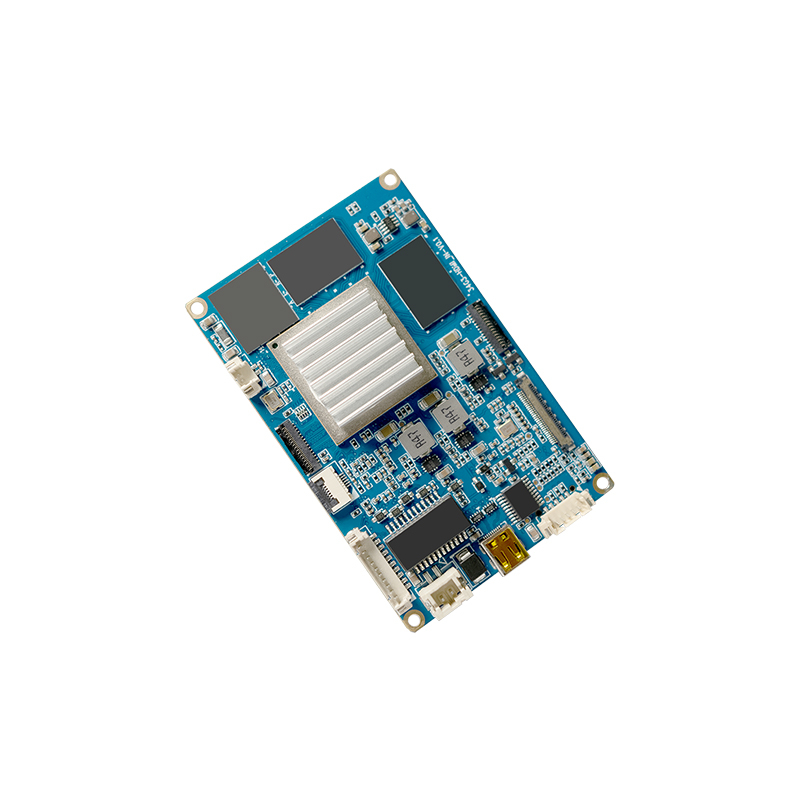

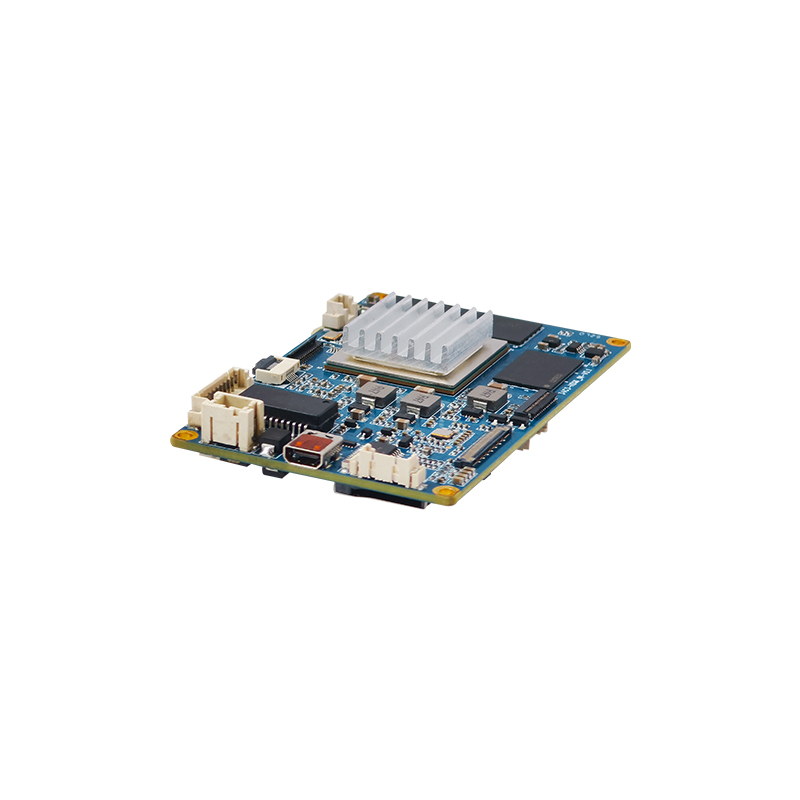

4KP60 AI Capable & Addable IP Interface Board is specifically engineered for seamless integration with Sony FCB 4K ultra-high-definition block cameras, while also ensuring compatibility with a wide range of third-party 4K UHD block cameras that adhere to standardized interface specifications. It achieves stable connection with the camera module via an ultra-thin coaxial cable,ensuring efficient and reliable data transmission.
4KP60 AI Capable & Addable IP Interface Board features powerful multi-interface video output capabilities: after users configure the camera's video format, it can simultaneously output 4K UHD video formats via HDMI Compatible, network interface, and USB 3.0 interface, meeting transmission needs across diverse scenarios.
4KP60 AI Capable & Addable IP Interface Board fully supports OSD functions. Leveraging efficient real-time video transmission technology, it enables fast and accurate real-time video transmission, ensuring that video data can be quickly and precisely delivered to the target device.
This 4K P60 IP interface board comes standard with built-in basic AI functions and supports in-depth expansion of AI capabilities: After authorization by our company, users can flexibly integrate their self-developed AI algorithms to quickly extend customized functions such as intelligent analysis and intelligent tracking.
4KP60 AI Capable & Addable IP Interface Board is precisely tailored to professional scenarios like security monitoring and industrial inspection,and can fully meet the core needs of industry-level intelligent applications.
In addition, it comes with a comprehensive SDK (Software Development Kit), which facilitates secondary development and function expansion by users, catering to diverse application requirements.
1. Rich Interface Configuration
• Offers diverse application interfaces including two-way audio, USB, TF card, and alarm input/output.
• Supports MIPI or BT656 thermal imaging camera access, transmitting infrared video signals to the backend via sub-stream.
• Audio interfaces: 1 input (level 2Vp-p, impedance 1kΩ, supports microphone connection); 1 output (impedance 16Ω, 30mW output power, compatible
with headphones or amplifiers).
• Equipped with 1 TTL serial port for direct control of theca mera and encoding board; the IE interface supports serial potr transparent transmission,
allowing command input to control the camera directly on the interface.
2. Encoding & Resolution
• Supports switching between H.264 and H.265 encoding formats.
• Supports up to 2160P60 resolution for display, storage, and transmission, with full OSD function enabled.
• HDMI Compatible video output format can be freely configured via commands, up to 4KP60.
3. Protocol & Network Functions
• Supports Web28181 (optional), ONVIF protocols, compatiblew ith multiple client software and NVRs (Network Video Recorders).
• Supports national standard OTA online upgrade.
• Can output broadcast-grade network video streams with a maximum bitrate of 100Mbps, and features a center crosshair command call function.
4. Intelligent Alarm & Storage
• Supports motion detection alarm function, enabling alarm linkage with frontend storage, frontend storage playback/download.
• After a motion detection alarm is triggered, it supports center alerts and screen pop-up linkage, while also supporting image capture.
Brand | Model | IP 4K | IP 1080P | IP 720P | HDMI Compatible, USB, and Network Video Simultaneous Output Resolution: Main stream: 3840x2160, 1920x1080, 1280x720 Sub stream: 704x576, 640x480, 640x360, 480x36,0352x288, 320x240 |
Sony | FCB-ER9500 | 2160P60 2160P50 2160P30 2160P25
| 1080P60 1080P50 1080P30 1080P25 | 720P60 720P50 | |
FCB-EW9500H | |||||
FCB-CR8530 | 2160P30 2160P25 | ||||
FCB-ER8530 | |||||
FCB-CR8550 | |||||
| FCB-ER8550 | |||||
| FCB-CS8230 | |||||
| FCB-ES8230 | |||||
| FCB-CR8300 | |||||
| FCB-ER8300 |
Note: Compatible with 4K block cameras of other brands that share Sony Visca command.

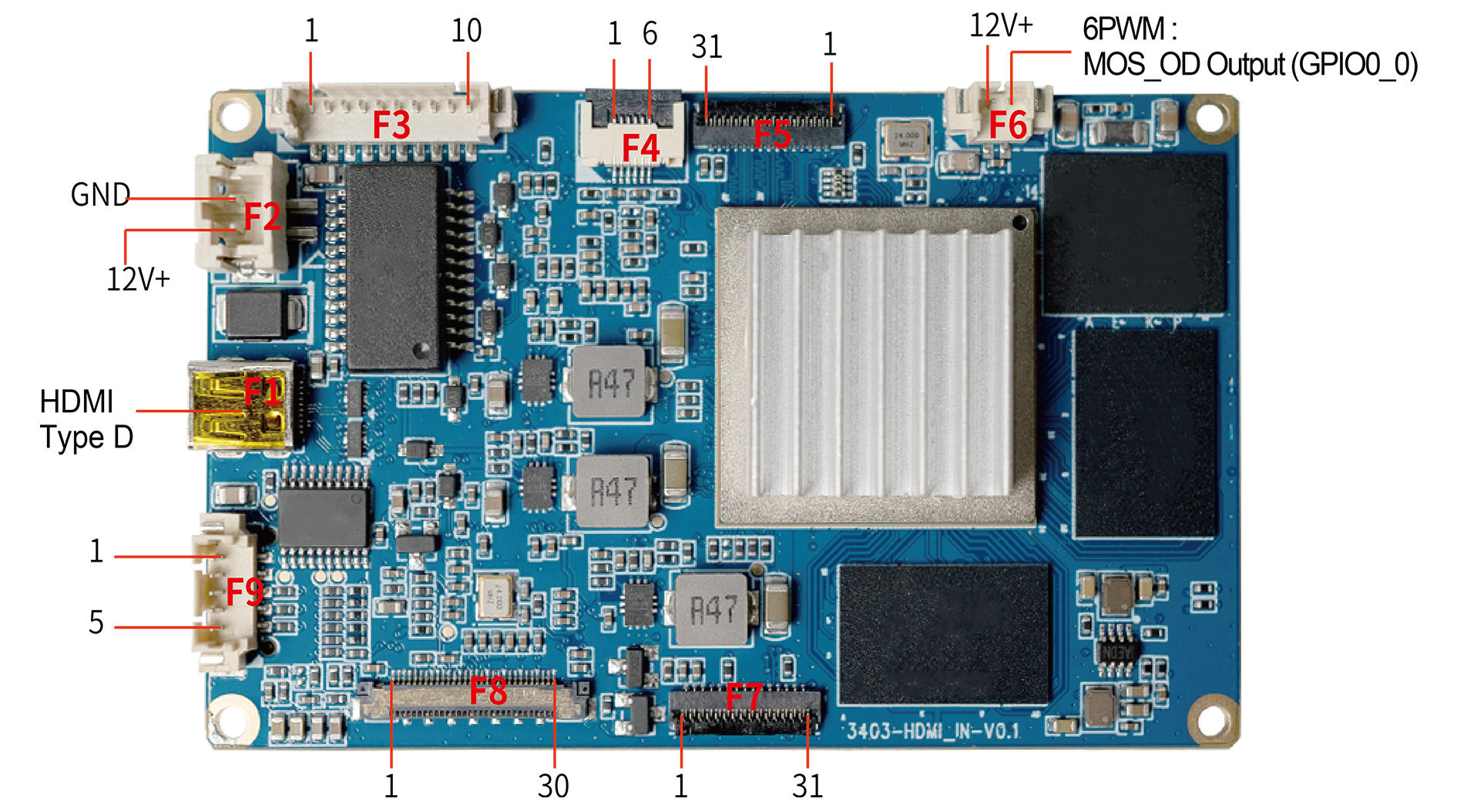

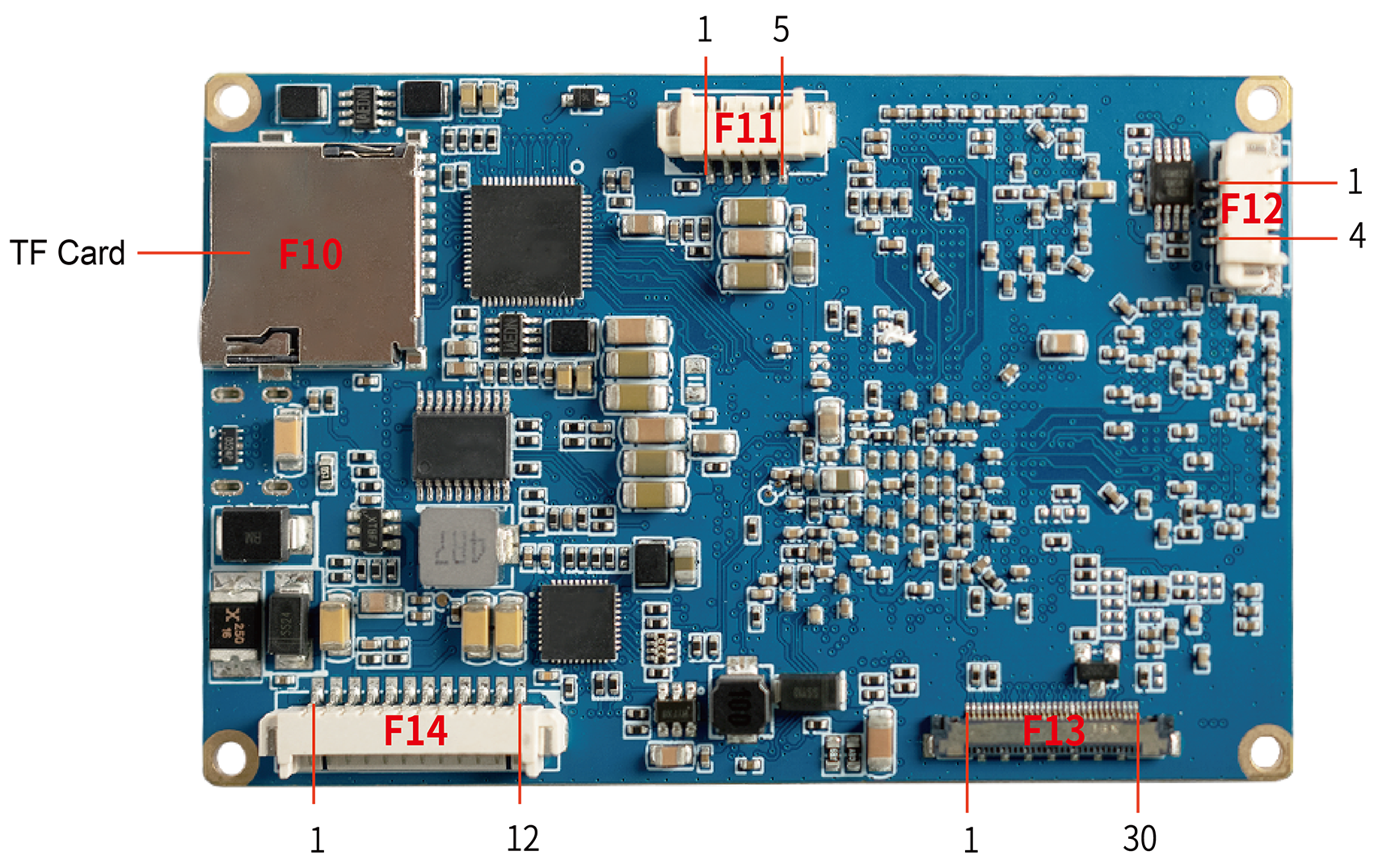

Video Output Interface | HDMI Compatible D-type, Network, and USB 3.0 interfaces (three signals output simultaneously) | AI Programs | Face Recognition, Vehicle Recognition, License Plate Recognition, Area Intrusion Detection, etc. (Optional Configuration) |
Video Input Format | Supports 4K@60/50/30/25, 1080P@60/50/30/25, 720P@60/50 input | System Architecture | Adopts embedded RTOS design, featuring a dual-core 32-bit DSP,pure hardware compression, and a watchdog function |
UART Interface | One TTL UART interface, supporting VISCA command control for the block camera | Video Processing | Supports H.264/H.265 video encoding, with three streams available; the bitrate is adjustable from 500k to 100Mbps |
USB | 1 USB HOST/DEVICE interface, expandable to USB storage/WiFi/4G interfaces | Audio Processing | Supports G711/AAC encoding, along with two-way audio, noise reduction, and echo cancellation |
| TF Card Slot | One TF card slot, supports up to 512G TF card storage | Alarm Interface | Supports 2 channels of input/output for alarm linkage |
| Power Supply Voltage | DC12V 1A power input interface, 2W power consumption | Product Dimensions | Approx 48×75×5mm (excluding heat sink), with a weight of about 32.7g |
| Network Interface | One RJ45 Ethernet port (10/100/1000M auto-adaptive) with 8KV ESD protection; supports network protocols including RTMP/RSTP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P,optional GB28181; one Ethernet communication indicator interface | ||
Number | Type | Function |
F1 | HDMI Compatible Type D Interface | Output Interface |
F2 | 12V Power Input, using 2.0MM pitch 2Pin Socket Interface | Interface definition as shown in the following figure |
F3 | Gigabit Ethernet Connector, using 1.25MM pitch 10Pin Socket | Interface definition as shown in the following figure, Table: F3-1 |
F4 | Touch Screen Interface, FPC 6pin/0.5MM | Interface definition as shown in the following figure, Table: F4-1 |
| F5 | DSI Output Connected to LCD Screen, socket model: AFE03-S31FMA-1H | Interface definition as shown in the following figure, Table: F5-1 |
| F6 | 12V Fan Socket, 1.25MM pitch 2Pin Socket | Interface definition as shown in the following figure |
| F7 | MIPI or BT656 Video Input Interface (Optional) BT656 Digital Video Input Interface uses 16Pin FPC Cable Socket 0.5MM pitch, socket model: AFE03-S31FMA-1 | Interface definition as shown in the following figure |
| F8 | HDMI-compatible block camera Input, socket model: USL0030L | Interface definition as shown in the following figure, Table: F8-1 |
| F9 | MCU Interface, using 1.25MM pitch 5Pin Socket | Interface definition as shown in the following figure, Table: F9-1 |
| F10 | TF Card Slot | —— |
| F11 | AF Interface, using 532610571 model 1.25MM pitch 5Pin Socket | Interface definition as shown in the following figure, Table: F11-1 |
| F12 | Debug Serial Port, using 532610471 model 1.25MM pitch 4Pin Socket | Interface definition as shown in the following figure, Table: F12-1 |
| F13 | USB/PCLE Socket, model: USL0030L | Interface definition as shown in the following figure, Table: F13-1 |
| F14 | Alarm & LED Interface, using 532611271 model 1.25MM pitch 12Pin Socket | Interface definition as shown in the following figure, Table: F14-1 |

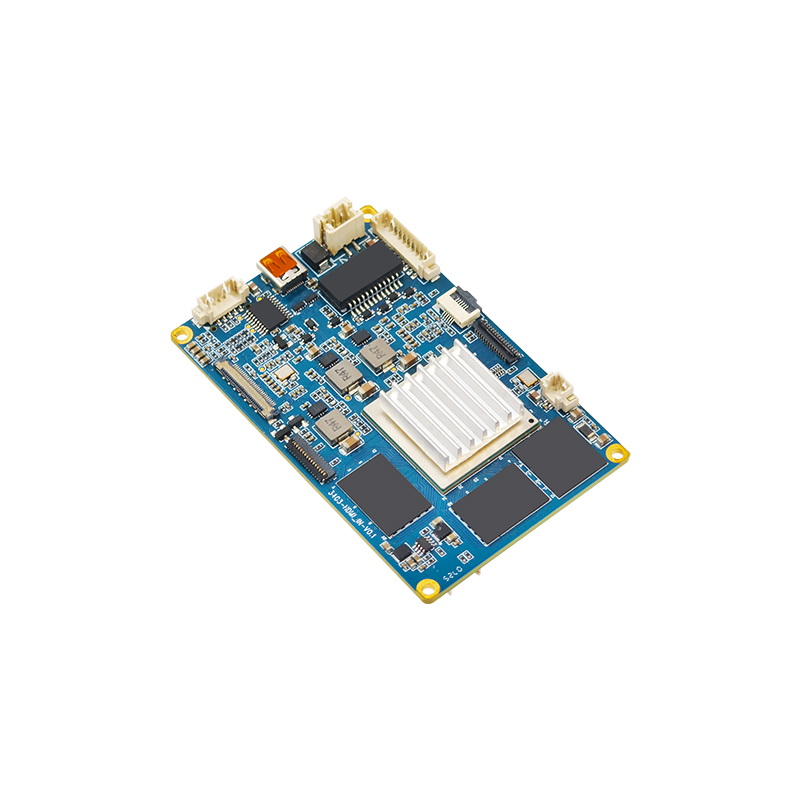

Front Side of the product |
Back Side of the product |
Model No. | Communication Method |
VRS-UD410 | With TTL-232 control |
|
| — — | — — | — — |

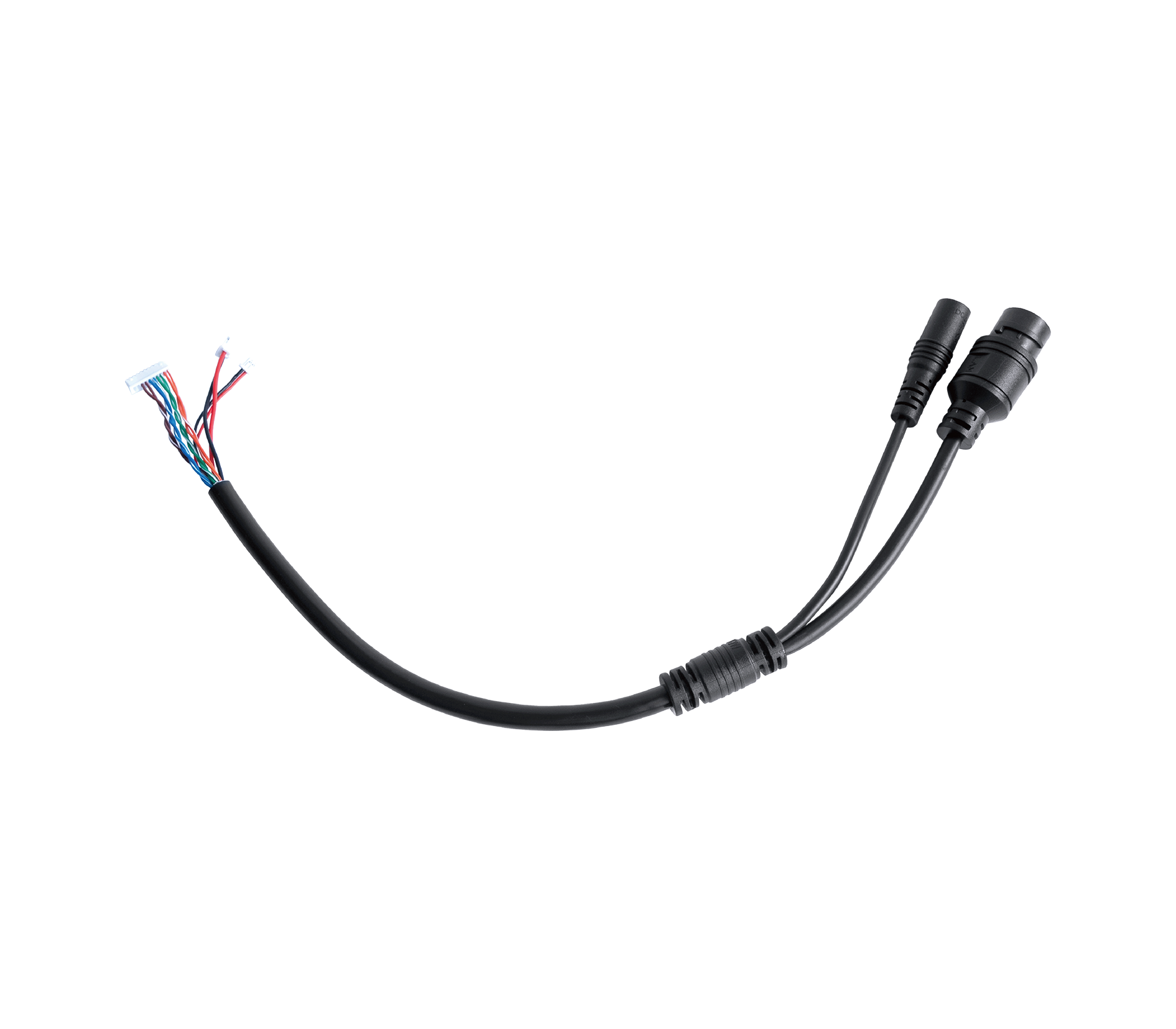

LVDS Coaxial Cable (80mm), Customizable Length (Optional) | Network Cable (360mm) (Standard) | — — | — — | — — |
![]() | ![]() | ![]() |

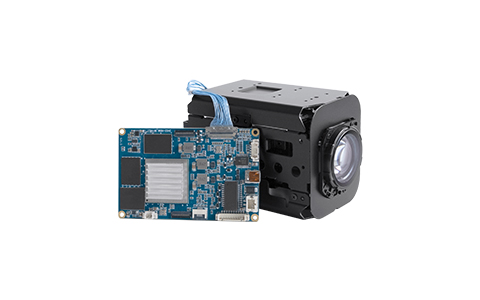

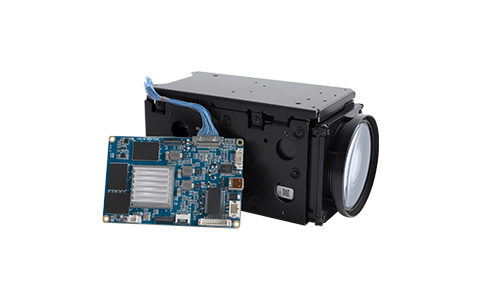

a. Interface board assembled with Sony Block camera FCB-ER9500 | b. Interface board assembled with Sony Block camera FCB-EW9500H | C. Interface board assembled with Sony Block camera FCB-ER8530 |
*Note: The product supports individual purchase or "block camera+interface board" package purchase. The whole set comes without pre-installation by default. Specify installation needs when ordering.
Preparation
|
|
| —— | —— |
Feference model:FCB-ER9500 | 30Pin LVDS Coaxial Cable | Network Cable | —— | —— |
Connection Steps
Physical Assembly Steps Only (No Electrical Work)
Notes: The steps demonstrate physical connection only-electrical connection is excluded. No image output at this stage. For electrical connection assistance, contact technical support.
|
|
|

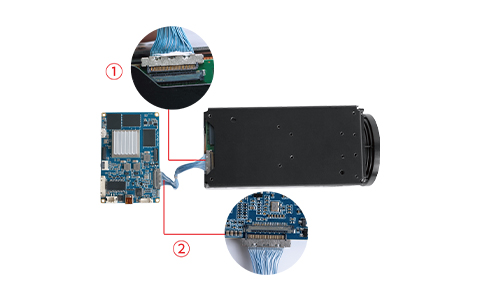

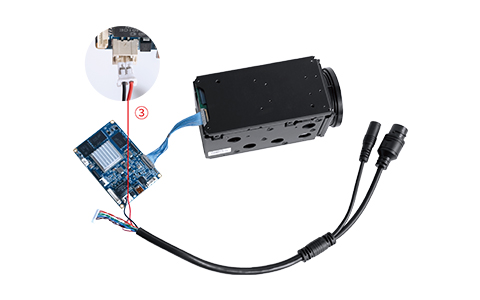

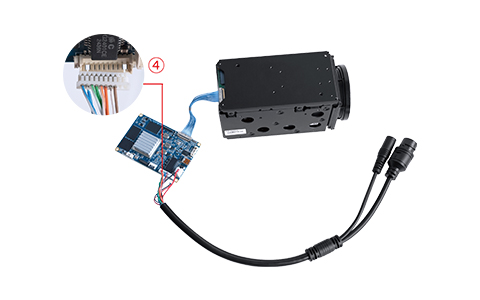

Step Ⅰ: 1.Connect one terminal of the 30-pin micro coaxial cable to the UHD block camera (as shown in Figure ① above). 2. Connect the other terminal of the 30-pin micro coaxial cable to the 4KP60 IP board (as shown in Figure ② above). Warning: Gold pins facing up | No reverse insertion (risk of device damage) | Step Ⅱ: 3. Insert the power cable into the corresponding connector socket on the interface board.(as shown in Figure ③ above). | Step Ⅲ: 4. Insert the network cable into the corresponding connector socket on the interface board.(as shown in Figure ④ above). |
Thank you very much for purchasing our company's products. If you have any questions, please feel free to contact us.
The photos and actual objects depicted in this Manual are provided solely for reference and guidance to users.
We do not guarantee that they are completely identical to the actual products. Please refer to the actual products.
Design, features and specifications are subject to change without notice.
