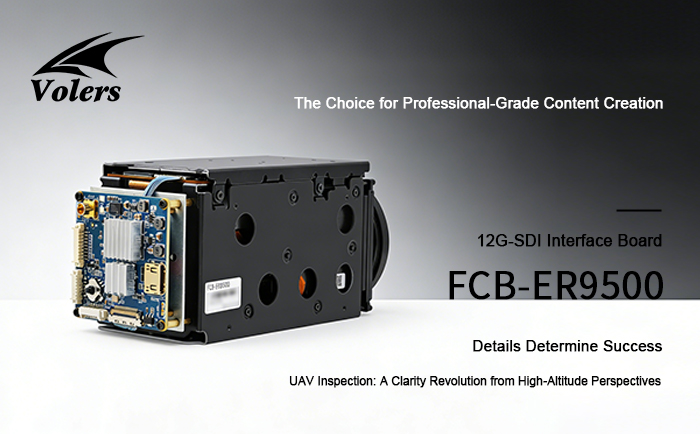

When to Choose the Sony FCB-ER9500 with 12G-SDI Interface Board Combination?

In the rapidly evolving field of vision technology, 4K ultra-high-definition (UHD) image quality and lossless transmission have become new industry standards. The combination of Sony FCB-ER9500 camera module and 12G-SDI interface board is delivering high-performance video solutions across diverse sectors with its outstanding performance.

I. Core Technical Advantages: Why Choose This Combination?

As Sony’s first all-in-one camera module supporting 4K/60fps, the FCB-ER9500 is equipped with a 1/1.8-inch STARVIS 2 CMOS sensor boasting 8.4 megapixels of effective resolution. It features 25x optical zoom and is paired with Sony’s advanced fast autofocus technology, ensuring that even fast-moving subjects remain sharply locked in and high-clarity images are consistently delivered.

The Sony FCB-ER9500 is equipped with Super and Super+ modes for its advanced image stabilization function, which effectively counteracts intense vibrations in high-shake environments.

Boasting a low-light performance of 0.028 Lux, it delivers vivid color imaging even in ultra-dark conditions, with a minimum illuminance capability of 0.00016 Lux. These outstanding features are the key reasons why our company, an officially authorized distributor of Sony China, highly recommends the FCB-ER9500 to clients across diverse industries.

The 12G-SDI Interface Board is custom-designed by our company-a leading provider of HD video secondary development solutions-specifically for 4K UHD camera modules. It delivers a transmission bandwidth of up to 12 Gbps, and when paired with the Sony FCB-ER9500, ensures lossless, zero-latency transmission of 4K/60fps video streams.

Featuring backward compatibility with 6G-SDI and 3G-SDI, this board not only protects existing equipment investments but also reserves room for future system upgrades.

This combination achieves seamless, high-efficiency synergy via the VISCA protocol. As a broadcast-grade video device control standard, this protocol enables users to manage multiple cameras through a single control terminal, supporting advanced operations such as zooming, focusing, and preset position recall.

II. Five Key Application Scenarios: How Technology Empowers Industries

1. UAV Inspection: A Clarity Revolution from High-Altitude Perspectives

In fields such as power line inspection, traffic surveillance, and emergency rescue, UAVs integrated with the FCB-ER9500 and 12G-SDI Interface Board enable real-time transmission of 4K/60fps ultra-high-definition video. The 25x optical zoom function allows ground operators to clearly identify details from distances of up to 500 meters.

The SDI interface’s locking design and hot-swappable capability ensure uninterrupted signal transmission even when the UAV is operating in high-vibration environments. Additionally, the two-way communication feature enables real-time feedback of camera status data. When the device activates its automatic protection mechanism in response to environmental changes, the system can adjust parameters instantly to maintain stable operation.

2. Security & Surveillance: Full-Coverage HD Protection

In security scenarios such as smart cities and critical infrastructure, this camera-module and 12G-SDI interface board combination delivers distinct value. The Sony FCB-ER9500’s Wide Dynamic Range (WDR) captures details in both highlight and shadow areas simultaneously under high-contrast lighting conditions. Its regional auto-focus, auto-exposure, and auto-white balance functions optimize specific areas without being affected by changes outside the target zones.

Supported by the VISCA protocol, the security system enables preset position recall and cruise path programming. For large-scale surveillance networks, thousands of cameras can be integrated into the monitoring center via a hierarchical control architecture, creating a collaborative model that combines precision operation with macro-level management.

3. Industrial Inspection: A Tool for Pinpoint Accuracy

On industrial production lines, the FCB-ER9500’s 4K resolution, combined with the frame-by-frame control function enabled by the VISCA protocol, allows for precise detection of micro-defects on products. The uncompressed transmission capability of the 12G-SDI Interface Board ensures the authenticity and integrity of image details, providing a reliable basis for quality inspection.

The power-off memory function of the 12G-SDI Interface Board is particularly critical in industrial environments. In the event of an unexpected power outage, the camera parameters are automatically restored upon restart, eliminating the need for manual reconfiguration and significantly improving operation and maintenance efficiency.

4. Medical Imaging: Details Determine Success

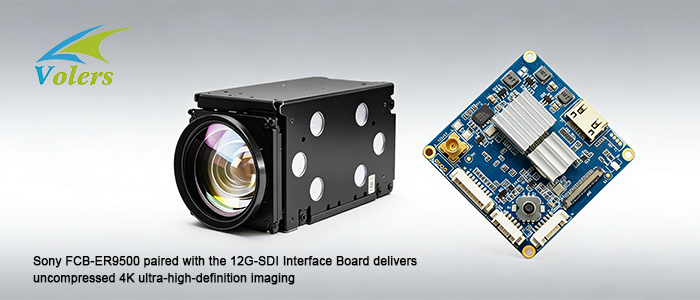

In medical scenarios such as surgical navigation and endoscopic examinations, the FCB-ER9500 paired with the 12G-SDI Interface Board delivers uncompressed 4K ultra-high-definition imaging, providing clinicians with true-to-life details of tissue textures and vascular distributions.

With its smooth dynamic capture capability of 60 frames per second, motion blur and frame freezes are completely eliminated even when medical instruments are moved rapidly. The combination’s high color fidelity and excellent optical axis consistency ensure automatic maintenance of focus and exposure stability during zooming-guaranteeing consistently sharp, clear visuals for clinicians when magnifying tiny anatomical structures for observation.

5. Broadcast & Film Production: The Choice for Professional-Grade Content Creation

For the broadcast industry and professional video production, the FCB-ER9500’s 4K/60fps capture capability meets the rigorous demands of high-end video content creation.

As a de facto industry standard, the 12G-SDI interface enables seamless integration with existing production systems, delivering broadcast-grade quality video feeds for professional workflows.

Future Outlook: Boundless Possibilities of Technology Integration

With the rapid advancement of 5G transmission, AI analytics, and IoT technologies, the combination of Sony FCB-ER9500 and 12G-SDI Interface Board demonstrates enhanced adaptability. Its standardized interfaces and open protocols reserve room for future technology integration, promising to unlock value across more sectors.

This technology combination not only addresses the compatibility and stability challenges in current ultra-high-definition video surveillance but also, through its outstanding performance, serves as critical infrastructure to drive the intelligent and integrated development of various industries.
