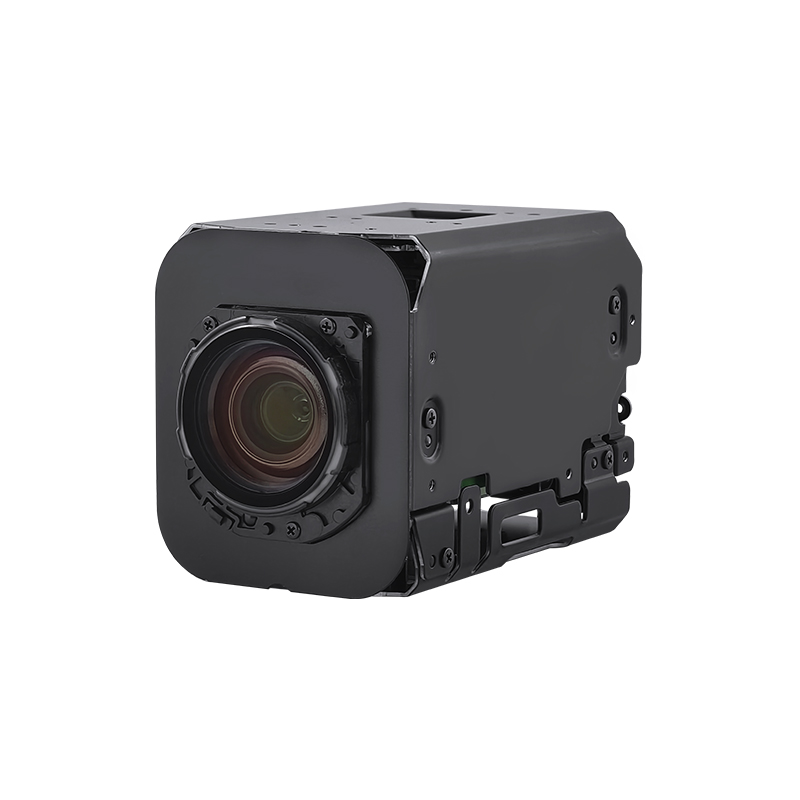

FCB-ER8530 Sony 20X Zoom Block Camera 4K HDMI Output

FCB-ER8530 Sony 20X Zoom Block Camera 4K HDMI Compatible Output

• Sensor(Effective pixels): 1/2.5'' Exmor R CMOS(approx. 8.51MP)
• Output pixel(HxV): 3840x2160, 1920x1080, 1280x720
• Video format: 2160P/60, 1080P/60, 720P/60
• Video output: 4K HDMI Compatible
• Lens: f = 4.8mm - 88.4 mm, F2.0 - 3.8
• Zoom: 20x Optical Zoom
• Size: 50.0 x 60.0 x 93.3mm
• Weight: approx. 275g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

FCB-ER8530 SONY FCB-ER8530 Sony FCB Block Camera Drone 4K Ultra HD Camera Block Medical Device 4K HDMI Compatible output Camera Module 20x Zoom Camera Speed Dome Auto Focus Camera HDMI Compatible CMOS Camera Block 2160P30 Block Camera Sony 800MP 30fps block Camera

Overview

The FCB-ER8530 is equipped with an advanced electronic defog function and high dynamic range (HDR) performance, enabling it to adapt seamlessly to complex external environments. It also features a strong highlight suppression function that effectively eliminates overexposure caused by bright vehicle headlights at night.

The FCB-ER8530 comes with a 20x optical zoom lens boasting a maximum focal length of 88.4 cm. Combined with Sony’s newly released super-resolution lens technology, these models can clearly capture and recognize license plates from a distance of approximately 200 meters.

Ideal for integration into high-speed dome cameras, conference cameras, drones, medical equipment and other devices, the FCB-ER8530 stands out as a premium choice for 4K ultra-high-definition camera systems.

Basic Info.

Model NO.	FCB-ER8530	Brand	Sony
Image sensor (Effective pixels)	1/2.5-type Exmor R CMOS Sensor (Approx 8.51MP)	Lens	20x Optical Zoom，12x Digital Zoom
Output pixels (H × V)	3840x2160 (QFHD), 1920x1080 (Full HD), 1280x720 (HD), 720x480/576 (SD)	Video Output	HDMI
Super-Resolution Zoom	4K 1.5 X 1080P 2.0 X	Focal Length	f=4.4mm-88.4mm, F2.0-F3.8
image formats	2160P/29.97,2160P/25,2160P/23.98 1080P59.54,1080P50,1080P29.97,1080P25,1080P23.98 1080I59.54,1080I50 720p/59.94, 720p/50, 480p/59.94, 576p/50
Main Features	Day-night switching, super stabilization, defog, wide dynamic range, high-light suppression and other functions
Size	50.0 x 60.0 x 93.3mm
Weight	Approx 275 g

Application

Boasting 4K ultra-high definition resolution, 20x optical zoom, fast autofocus, and a compact form factor, Sony’s FCB-ER8530 delivers extensive application potential across diverse sectors. It is particularly well-suited for the following use cases, with flexible scalability to accommodate more scenarios beyond this scope.

Drone, Security Monitoring, Robot, Smart Healthcare, Video Conference, Industrial Testing, Underwater Robot.

Optimized Video Output Configuration

FCB-ER8530		Compatible Camera Interface Board		Customized Integrated Solutions

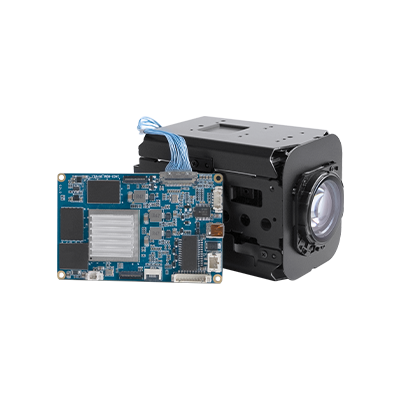

Size: 50.0 x 60.0 x 93.3mm Net Weight: Approx 275 g	+	HDMI Type-D, IP and USB3.0 Interface HDMI, IP and USB3.0 Sync-output	=	Sony FCB- ER8530 + 4KP60 AI Network Interface Board

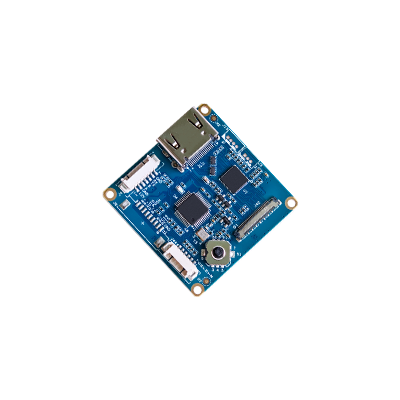

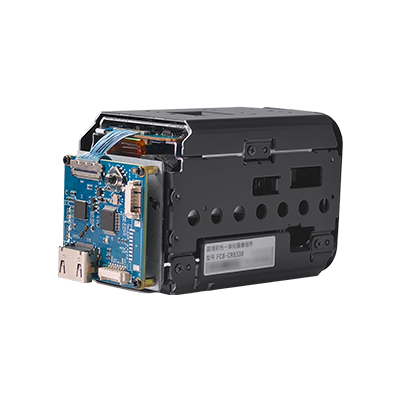

Auto ICR Spot Focus, Spot AE	+	HDMI Type-A Interface Lvds to 4K HDMI Output	=	Sony FCB- ER8530 + 4KP60 HDMI Interface Board

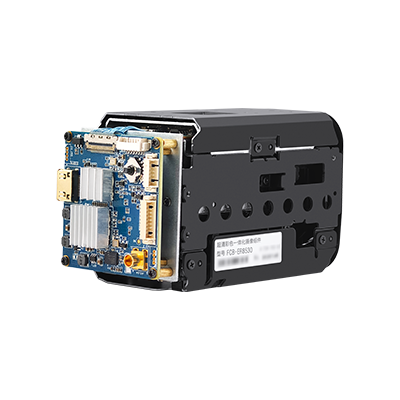

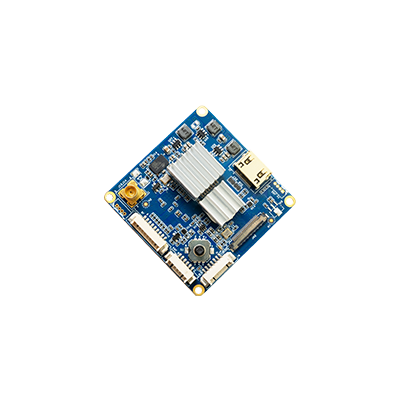

1/2.5-type Exmor R CMOS Sensor Effective pixels: approx. 8.51MP	+	Mini MCX RF and HDMI Type-C Interface 6G-SDI and 4K HDMI Sync-output	=	Sony FCB-FCB-ER8530 + 12G-SDI Interface Board

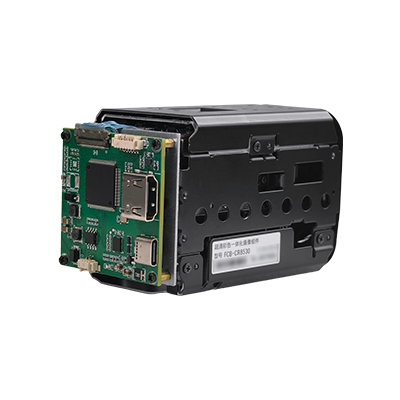

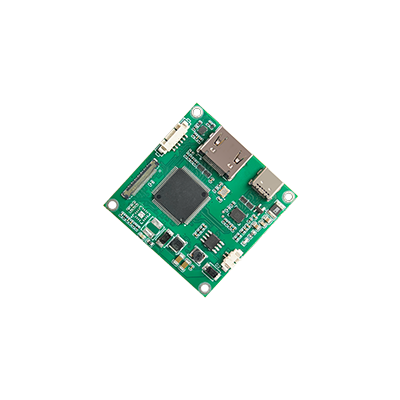

Support 4KP30 Video Output 20x Optical Zoom	+	USB3.0 TYPE-C and HDMI Interface USB3.0 TYPE-C and 4K HDMI loop Output	=	Sony FCB-ER8530 + 4K USB3.0 TYPE-C Interface Board

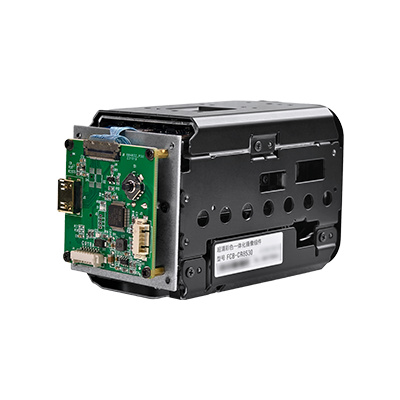

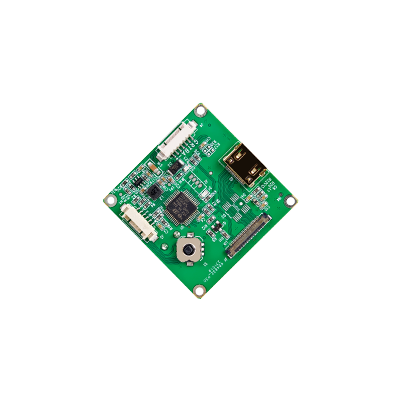

High Sensitivity Super-Resolution Zoom	+	HDMI Type-C Interface Lvds to 4K HDMI Output	=	Sony FCB-ER8530 + 4K-HDMI Interface Board

FAQ

Q1: Can a Chinese menu be enabled on the FCB-ER8530?

A1: The FCB-ER8530 4K UHD camera module does not have a built-in menu. However, a menu can be activated by pairing the module with our self-developed 4K interface board. Note that the menu is available only in English, and this menu function is designed for our control board, not a native feature of the camera module itself.

Q2: According to the product specifications of the FCB-ER8530, its operating voltage range is 6-12V DC. A 12V DC power adapter has an output range of 10-14V DC – can the module operate stably within this range?

A2: We recommend using a power adapter with a nominal output of 9V DC for the FCB-ER8530, with a maximum voltage deviation of ±3V DC. This means the maximum input voltage must not exceed 12V DC; voltages above this threshold may risk damaging the camera module.

Q3: For the HDMI interface of the FCB-ER8530, only HPD, +5V Power and TMDS differential signals are required – is I2C communication and CEC functionality unnecessary?

A3: The FCB-ER8530 only outputs +5V Power and TMDS differential signals via its HDMI interface. This is not a matter of the functions being unnecessary, but rather that the module does not support I2C communication or CEC functionality on this interface.

Q4: What are the differences between the SONY FCB-ER9500 and FCB-ER8530?

A4: The SONY FCB-ER9500 and FCB-ER8530 adopt different sensors and lenses, resulting in significant differences in their functional features and form factors. Key parameter comparisons are as follows:

Key Functional Features Comparison

Model NO.	FCB-ER8530	FCB-ER9500
Sensor	1/2.5” Exmor R CMOS	1/1.8” STARVIS2 CMOS
Max Image Format	2160P/30FPS	2160P/60FPS
Wide Dynamic	Yes	Yes
Optical Zoom	20X	25X
Horizontal Viewing Angle	4.1°-70.2°	2.3°-58.1°
Image Stabilization	EIS	Super/Super+
optical axis consistency	NO	Yes
Area function	Spot Focus, Spot AE	Spot Focus, Spot AE，Spot AWB
ICR ON Color	NO	Yes
Minimum Illumination(ICR OFF)	0.4Lx	0.028Lx
I/F	4K HDMI	4K HDMI
Dimensions	50.0x60.0x89.7mm	56.0x64.0x125.0mm
Weight	Approx 275g	Approx 464g

Parameter

Model NO.	SONY FCB-ER8530
Image Sensor (Effective Pixels)	1/2.5-type Exmor R CMOS Sensor (approx. 8.51mega)
Output Pixels (H × V)	3840x2160 (QFHD), 1920x1080 (Full HD), 1280x720 (HD), 720x480/576 (SD)
Signal System	2160p/29.97, 2160p/25, 2160p/23.98, 1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080p/23.98, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 480p/59.94, 576p/50
Minimum Illumination (50%, High Sensitivity Mode)	0.4 lx (Shutter Speed : 1/30 s) 0.06 lx (Shutter Speed : 1/4 s or 1/3 s)
Recommended Illumination	100 lx to 100,000 lx
SNR	50 dB
Gain	Auto / Manual (0 dB to 48.0 dB), 0 to 16 steps
Shutter Speed	1 / 1 to 1 / 10000 s, 22 steps
Sync System	Internal
Exposure Control	0 dB to ± 10.5 dB, 15 steps
Backlight Compensation	Yes
Gamma	Standard / Straight gamma
Aperture Control	16 steps
White Balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
AE (Auto Exposure Mode)	Full Auto, Manual, Priority mode (shutter/iris), Bright, EV Compensation
Lens (wide to tele)	20x optical zoom, f = 4.4 mm to 88.4 mm, F2.0 to F3.8
Zoom Mode	Standard Mode / Variable Mode / Direct Mode
Super Resolution Zoom	QFHD : 1.5x (max. 30x with optical zoom) Full HD/HD : 2.0x (max. 40x with optical zoom)
Digital Zoom	12x (240x with optical zoom)
Optical wide to Optical tele	3.0 s (Focus Tracking ON)
Optical wide to Super resolution zoom tele	3.4 s
Optical wide to Digital zoom tele	5.0 s
Focusing System	Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity : normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Near Limit, Spot Focus, IR Correction
Focus Movement time	∞ to Near : 0.1 s
Horizontal Viewing Angle (QFHD/Full HD/HD) (wide end to tele end)	Approx. 70.2° to 4.1° (Image stabilizer OFF) Approx. 60.0° to 3.5° (Image stabilizer ON)
Minimum Object Distance (wide end to tele end)	80 mm to 800 mm
Auto ICR	Yes
Wide Dinamic Range (Wide-D)	-
(Auto mode)	-
Visibility Enhancer	Yes
Defog	Yes (low / mid / high)
Noise Reduction	Yes (3D+2D, Independent setting (3D, 2D))
Image Stabilization	Yes
StableZoom	Yes
Digital Output	Yes
Spherical Privacy Zone Masking	Yes
Motion Detection	-
Alarm (Auto ICR)	Yes
Slow AE Response	Yes
Picture Effects	Black & White (Monochrome Image)
Picture Freeze	Yes
Electronic-Flip (E-FLIP)	Yes
Mirror Image	Yes
Slow Shutter	Yes
Temperature Readout	Yes
Title Display	Yes
Date/Time Display	-
Camera Mode Display	Yes (English)
Key Switch Control	-
Camera Operation Switch	-
Video Output (QFHD/Full HD/SD)	Digital : Y/Cb/Cr 4:2:2 8 bits component, R/G/B 4:4:4 8 bits component, Comparable to CEA-861-F *2
Camera Control Interface	VISCA protocol (CMOS 3.1V) PTP USB 9.6 kbps, 19.2 kbps,38.4 kbps, 115.2 kbps, Stop bit : 1 bit
Power Requirements	6.0 V to 12.0 V DC
Power Consumption	3.0 W (When the motor operates : 4.0 W)
Operating Temperature	-5 °C to +60 °C (23 °F to 140 °F)
Storage Temperature	-20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	20% to 80% (Absolute humidity : 36 g/m3)
Storage Humidity	20% to 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D)	50.0 × 60.0 × 93.3 mm (2 × 2 3/8 × 3 3/4 in.)
Mass	Approx. 275 g (10 oz.)

Video

Download

RELATED ACCESSORIES

Image	Product Name
	FCB-ER9100 Sony 10X Zoom 4K60P HDMI-Compatible Block Camera

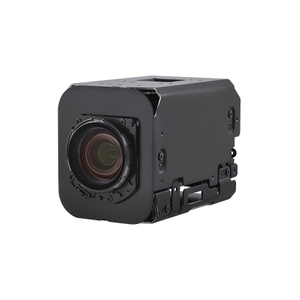

	FCB-ER8550 Sony 4K HDMI Compatible 20X Zoom Block Camera
	FCB-ES8230 Sony 4K HDMI Ultra HD 12X Zoom Block Camera

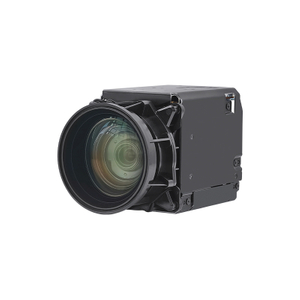

	FCB-ER8300 Sony 4K Ultra HD Zoom Block Camera
