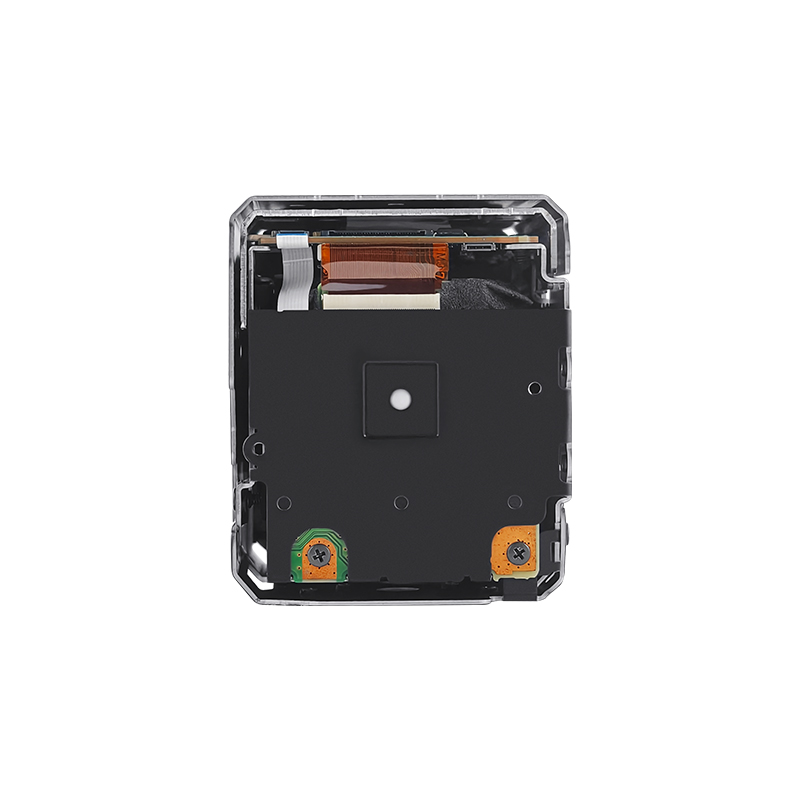

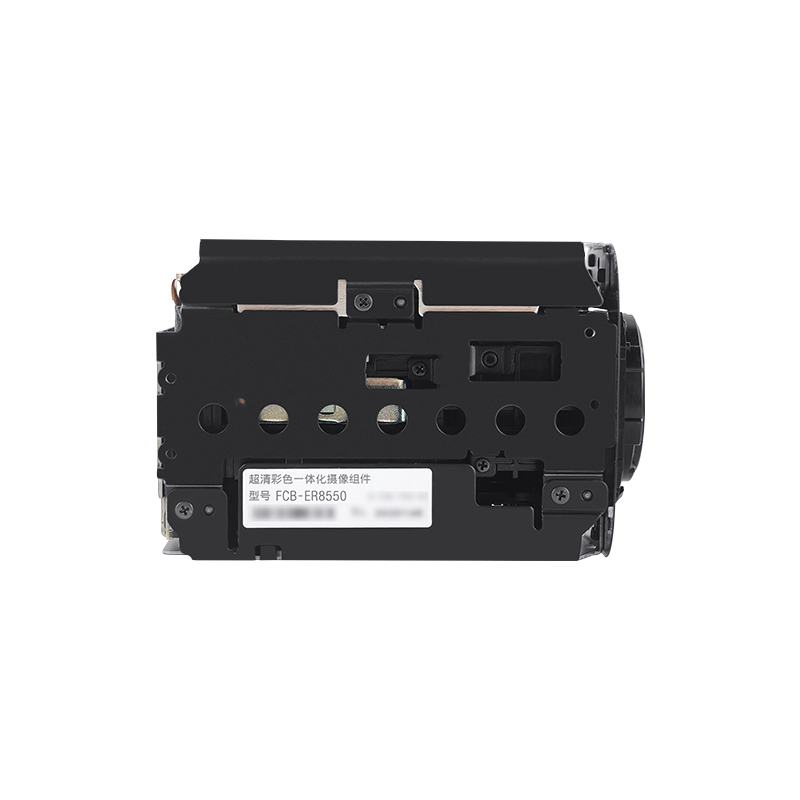

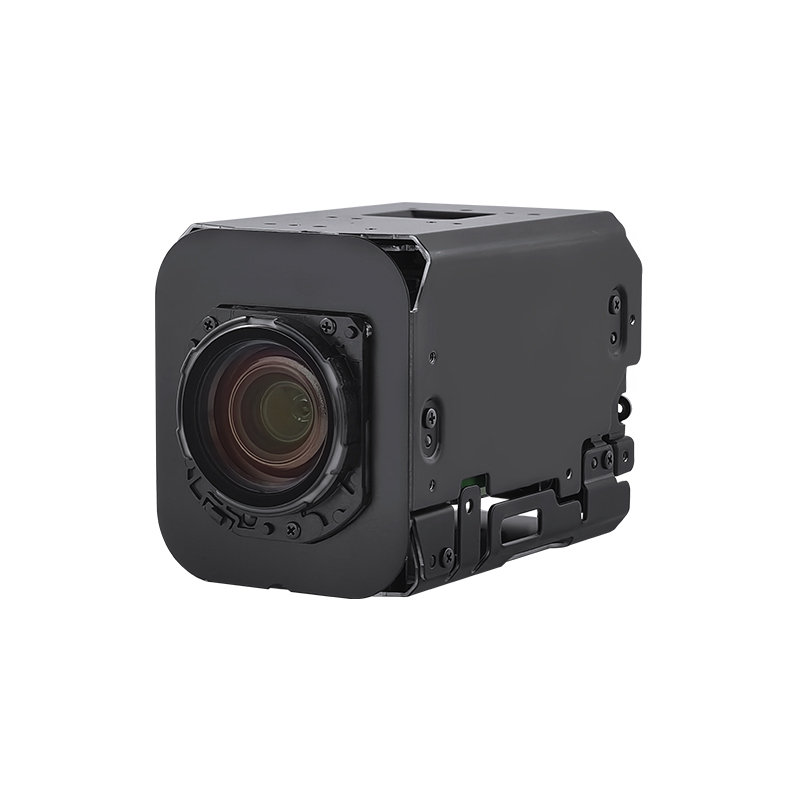

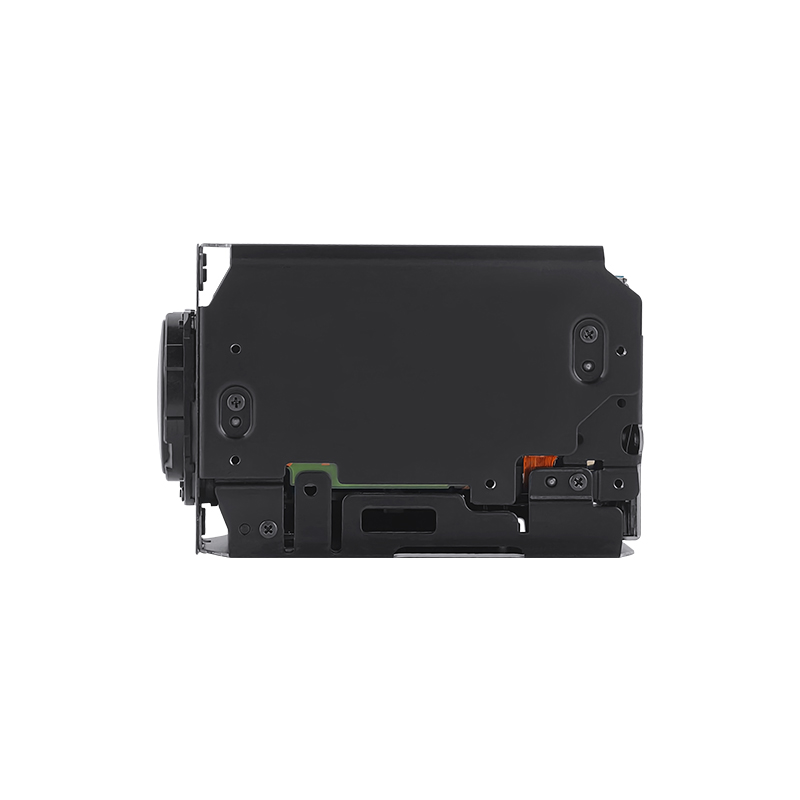

FCB-ER8550 Sony 4K HDMI Compatible 20X Zoom Block Camera

The SONY FCB-ER8550 is equipped with a 1/2.5-inch Exmor R CMOS sensor boasting an effective pixel count of approximately 8.51 megapixels, enabling it to output ultra-high-definition (UHD) images at a resolution of 3840×2160 (QFHD). This high-performance image sensor ensures the camera captures sharp, detailed footage across a wide range of lighting conditions, meeting users' demands for premium image quality.

In terms of optical zoom capability, the FCB-ER8550 features a 20x optical zoom lens with a focal length range spanning wide-angle to telephoto, delivering smooth and rapid zoom transitions. It effortlessly handles both wide-area coverage and detailed close-up shots with equal proficiency.

To address the varied demands of customers, the SONY FCB-ER8550 offers a comprehensive suite of functions and adjustable settings. These include white balance modes, picture effects (electronic flip, black-and-white, mirroring,color enhancement, Gamma correction), privacy masking, picture freeze, shutter priority, and aperture priority. These versatile features allow the camera to adapt flexibly to different application scenarios and deliver customized imaging solutions.

Basic Info.

Application

By pairing with a full range of high-performance accessory interface boards independently developed by our team — including the 4K HDMI Interface Board, 4K P60 HDMI Interface Board, 4K P60 AI Network Interface Board, 12G-SDI Interface Board, and 4K USB Type-C Video Capture Board — the application boundaries of the Sony FCB-ER8550 Ultra HD Camera Module have been greatly expanded.

Boasting core advantages of 4K ultra-high-definition image quality, low latency, and long-distance transmission, this integrated solution delivers powerful support across diverse professional scenarios, such as high-end security surveillance, unmanned stations, smart transportation, broadcast auxiliary shooting, UAV-mounted vision systems, and special operation robots. It has firmly established itself as the top choice for professional-grade visual solutions.

Optimized Video Output Configuration

FCB-ER8550		Compatible Camera Interface Board		Customized Integrated Solutions

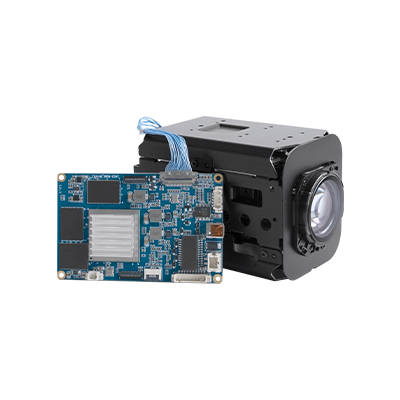

Size: 50.0 x 60.0 x 93.3mm Net Weight: Approx 275 g	+	HDMI Type-D, IP and USB3.0 Interface HDMI, IP and USB3.0 Sync-output	=	Sony FCB-ER8550 + 4KP60 AI Network Interface Board

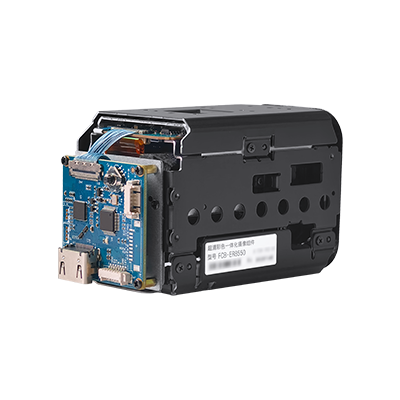

Auto ICR Spot Focus, Spot AE	+	HDMI Type-A Interface Lvds to 4K HDMI Output	=	Sony FCB-ER8550 + 4KP60 HDMI Interface Board

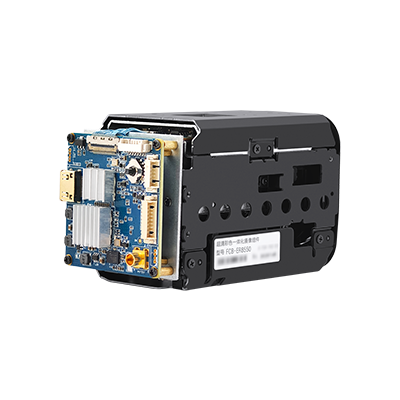

1/2.5-type Exmor R CMOS Sensor Effective pixels: approx. 8.51MP	+	Mini MCX RF and HDMI Type-C Interface 6G-SDI and 4K HDMI Sync-output	=	Sony FCB-FCB-ER8550 + 12G-SDI Interface Board

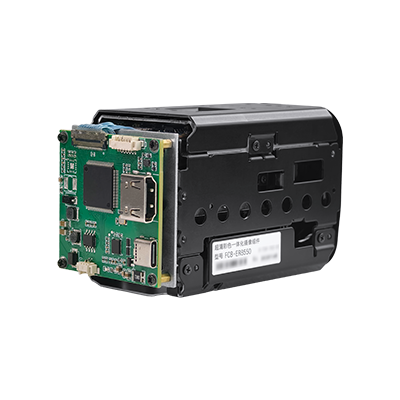

Support 4KP30 Video Output 20x Optical Zoom	+	USB3.0 TYPE-C and HDMI Interface USB3.0 TYPE-C and 4K HDMI loop Output	=	Sony FCB-ER8550 + 4K USB TYPE-C Interface Board

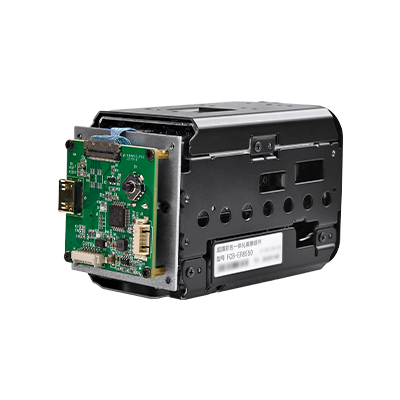

High Sensitivity Super-Resolution Zoom	+	HDMI Type-C Interface Lvds to 4K HDMI Output	=	Sony FCB-ER8550 + 4K-HDMI Interface Board

FAQ

Q1: What are the differences between the SONY FCB-ER8530 and FCB-ER8550?

A1: The SONY FCB-ER8530 and FCB-ER8550 are nearly identical 4K UHD zoom camera blocks—they differ in just one aspect: regarding system synchronization, the FCB-ER8550 supports both internal and external synchronization, while the FCB-ER8530 only supports internal synchronization. For industrial applications, the two are fully interchangeable, and many users now use the FCB-ER8530 as a replacement for the FCB-ER8550.

Q2: How to Quickly Output Video Signals from the FCB-ER8550 to a Computer? What Are the Reasons?

A2:

The FCB-ER8550 can quickly output video signals to a computer by using a 4K USB Type-C Video Capture Board.

Reasons:

1. Effortless Connection

The 4K USB Type-C Video Capture Board connects to the FCB-ER8550 via an LVDS cable and to the computer via a standard USB cable. No additional configuration for the camera module is required, and no extra adapter devices are needed. This setup instantly outputs clear video images to the computer, streamlining the entire installation process.

The capture board also features dual 4K output interfaces (Type-C and HDMI), greatly expanding device compatibility. Users can select the most suitable interface based on their specific application scenarios, ensuring flexible and versatile connectivity.

2. Cross-Platform Compatibility

The 4K USB Type-C Video Capture Board supports major operating systems and platforms, including Windows, macOS, and Linux. Compliant with the standard UVC/UAC protocol, it enables real-time data transmission and control of the FCB-ER8550 without additional drivers or complex configurations (a dedicated driver is only required for serial port control). This cross-platform compatibility significantly boosts development efficiency while reducing development complexity and costs.

3. Simplified System Cabling

The USB Type-C interface of the 4K USB Type-C Video Capture Board supports simultaneous transmission of video, audio, and data. This unified connectivity eliminates the need for multiple separate cables, simplifying system cabling and enhancing the neatness and integration of mobile devices or embedded systems.

4. Flexible Control Capabilities

The 4K USB Type-C Video Capture Board comes with a built-in serial port control function. Users can directly adjust key parameters of the FCB-ER8550—such as focus, exposure, and white balance—without adding extra serial port devices. Remote control of the camera is also available via a TTL232 serial port, delivering enhanced convenience and flexibility.

Furthermore, the capture board supports communication with external Microcontroller Units (MCUs), enabling multi-device linkage. This adds powerful functional support and expandability for video capture and processing applications.
