Views: 0 Author: Site Editor Publish Time: 2026-03-05 Origin: Site
Amid the boom of high-definition video applications, precise capture in security surveillance, smooth interaction in video conferencing, high-clarity transmission in medical imaging, and detailed inspection in industrial scenarios all demand more from video encoding and control equipment. These solutions must deliver 4K ultra-HD resolution at 60fps, while resolving the critical challenge of synchronized transmission across multiple terminals.

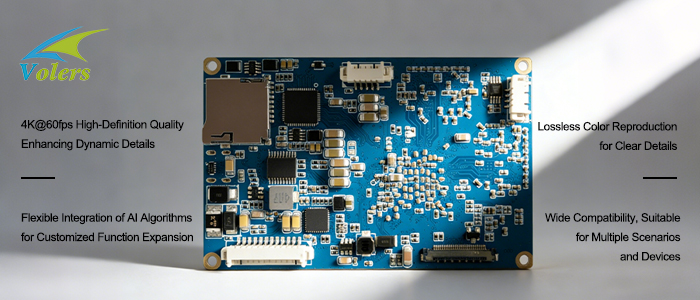

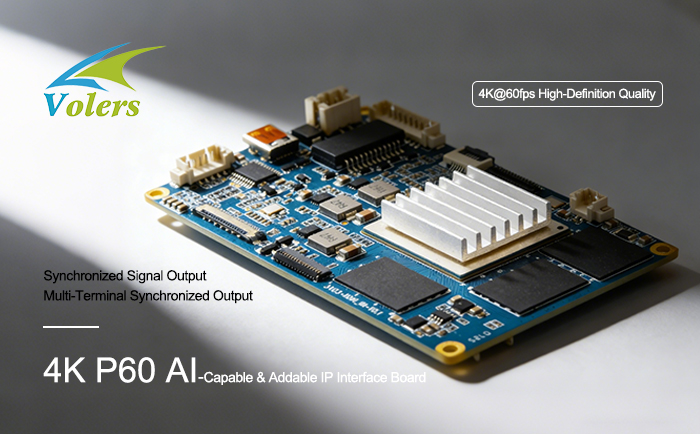

Today, Shenzhen Ruilong Electronic Information Technology Co., Ltd , a provider of high-definition video secondary development solutions, officially launches its 4KP60 AI Network Interface Board. Centered on synchronous output for both network and HDMI video signals, the board comes pre-integrated with fundamental AI functions and supports advanced AI scalability. It redefines the efficiency and stability of high-definition video transmission, offering a one-stop solution for HD video applications across diverse industries.
Product Specifications
Video Output Interface | Network & HDMI Type D | AI Functions (Optional) | Face detection, vehicle detection, license plate recognition, area intrusion detection, etc. |
Video Input Format | Supports 4K60/50/30/25, 1080P60/50/30/25, 720P60/50 input | System Architecture | Embedded RTOS, dual-core 32-bit DSP, full hardware compression, watchdog timer |
UART Interface | 1x TTL UART interface for camera module control | Video Processing | H.264/H.265 video encoding, triple-stream support, bitrate adjustable from 500 kbps to 100 Mbps |
USB | USB: 1x USB HOST/DEVICE interface, expandable for USB storage/WIFI/4G | Audio Processing | G711/AAC encoding, two-way audio, noise reduction, echo cancellation |
TF Card Slot | 1x TF card slot, supports up to 512GB TF card storage | Alarm Interface | 2-channel alarm input & output with alarm linkage |
Power Supply | DC 12V 1A input, power consumption approx. 2W | Product Dimensions | Approx. 48×75×5 mm (excluding heatsink), weight approx. 32.7 g |
Ethernet Interface | 1x RJ45 Ethernet port, 10/100/1000M auto-negotiation, 8KV ESD protection;Supports RTSP/RTMP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P; GB28181 optional; Ethernet Status Indicator: 1x Ethernet communication indicator | ||
I. Core Breakthrough: Synchronous Dual-Signal Output for Multi-Terminal Consistency
The 4KP60 AI Network Interface Board addresses critical industry challenges by delivering synchronous network and HDMI video output. Each signal path reliably carries 4K@60fps ultra-HD video streams, eliminating inconsistencies in multi-terminal collaboration.
HDMI OutputSupports direct 4KP60 ultra-HD connection to large displays with lossless color reproduction. Ideal for professional monitoring centers, surgical teaching displays, conference presentation terminals and other scenarios where clear detail is essential.
Network Output: Compatible with mainstream protocols including RTSP and ONVIF. The 4KP60 AI Network Interface Board supports switchable H.264/H.265 AI encoding, with dynamic bitrate adjustment based on bandwidth. This maintains high video quality while reducing transmission costs, enabling remote monitoring, cloud storage and multi-terminal sharing.
II. Superior Performance: AI-Powered & High-Definition Imaging, Balanced Performance and Efficiency
Beyond its core dual-signal synchronous output, the 4KP60 AI Network Interface Board delivers outstanding performance in imaging, encoding, and compatibility to fully meet high-end industry requirements.
1. 4K@60fps High-Definition Imaging for Crisp Dynamic Details
The 4KP60 AI Network Interface Board supports 2160P ultra-high resolution and 60fps high frame rate, transmitting 60 clear frames per second. Compared with 30fps, it greatly reduces motion blur and smearing in dynamic scenes. It accurately captures every detail in fast-moving vehicle capture, gesture tracking in video conferences, and precise operation recording in medical procedures, providing clear image foundations for intelligent analysis and accurate diagnostics.
2. Flexible AI Algorithm Integration for Customized Functions
The 4KP60 AI Network Interface Board comes with built-in basic AI functions. Users can co-develop AI algorithms with our team or use self-developed algorithms with our authorization. It intelligently analyzes image complexity and supports rapid expansion of intelligent analysis, smart tracking, and other customized functions.
It also supports flexible switching between H.264 and H.265 encoding formats. Compared with H.264, H.265 encoding can save up to 50% bandwidth, significantly reducing cloud storage and network transmission costs.
3. Wide Compatibility for Multi-Scene and Multi-Device Adaptation
With an open protocol architecture, the board is deeply compatible with mainstream 4K camera modules such as the Sony FCB series and supports the VISCA control protocol. It can seamlessly connect with other brands of 4K ultra-HD camera modules, reducing system integration complexity and costs.
It works smoothly with Windows, Linux, macOS, and Android systems without additional driver development, greatly improving deployment efficiency.
III. Full-Scenario Application: Empowering Digital Upgrade Across Industries
With its core advantage of synchronous network & HDMI video output and comprehensive performance, the 4KP60 AI Network Interface Board is widely applied across industries, serving as a key component for professional high-definition video solutions.
Security & Surveillance: Suitable for highway toll stations, urban security nodes and similar scenarios. Supports real-time monitoring via local HDMI displays and remote management over the network. 4K@60fps high-definition imaging greatly improves the accuracy of license plate recognition and face detection.
Medical Imaging: Ideal for surgical teaching and telemedicine. Enables simultaneous HDMI display of surgical procedures and real-time remote consultation with medical experts. Precise synchronization ensures seamless coordination between expert guidance and on-site operations.
Smart Conferencing: Perfect for large conferences and remote training. Supports both HDMI large-screen presentation and multi-terminal network access. 60fps high-frame-rate video delivers smooth, natural visuals and enhances communication efficiency.
Industrial Inspection: Applied in production line testing and precision manufacturing. HDMI local output allows clear on-site observation, while network transmission sends data to cloud-based AI platforms for automatic defect identification.
Drone Aerial Imaging: When paired with high-definition camera modules, it supports real-time HDMI display on ground stations and reliable long-distance network transmission. High-frame-rate video captures dynamic targets during high-speed flight without motion blur or smearing.
IV. Why Choose Our 4K P60 AI Capable & Addable IP Interface Board?
In a highly competitive market with homogeneous products, our solution stands out with three core strengths:
Technical Support: Shenzhen Ruilong Electronic Information Technology Co., Ltd has 17 years of practical experience in high-definition video secondary development. We provide professional consulting and technical support for customers across all industries, from pre-sales to after-sales service.
Compatibility: Supports synchronous network and HDMI video output, with wide compatibility across multiple systems and devices. Simple deployment and controllable integration costs.
Scalability: Built-in basic AI functions as standard, with support for in-depth expansion of AI capabilities.
Summary
From professional security surveillance to intelligent healthcare, from industrial inspection to smart conferencing, the 4KP60 AI Network Interface Board empowers high-definition video applications in various industries with strong performance and flexible adaptability, helping to drive digital transformation and upgrade.
