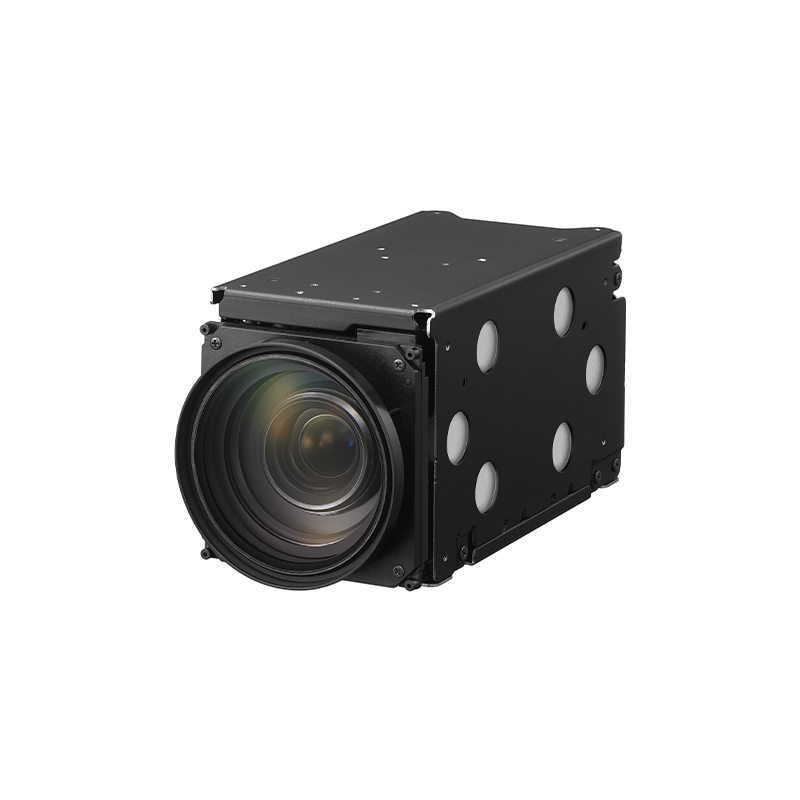

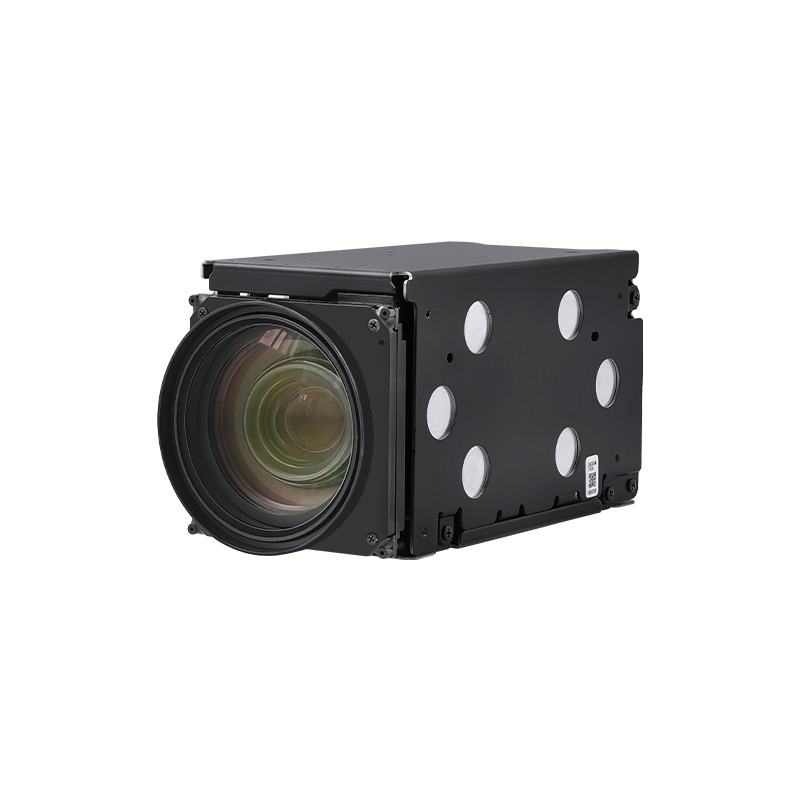

FCB-ER9500 Sony 4K60P HDMI Output 25X Zoom Block Camera

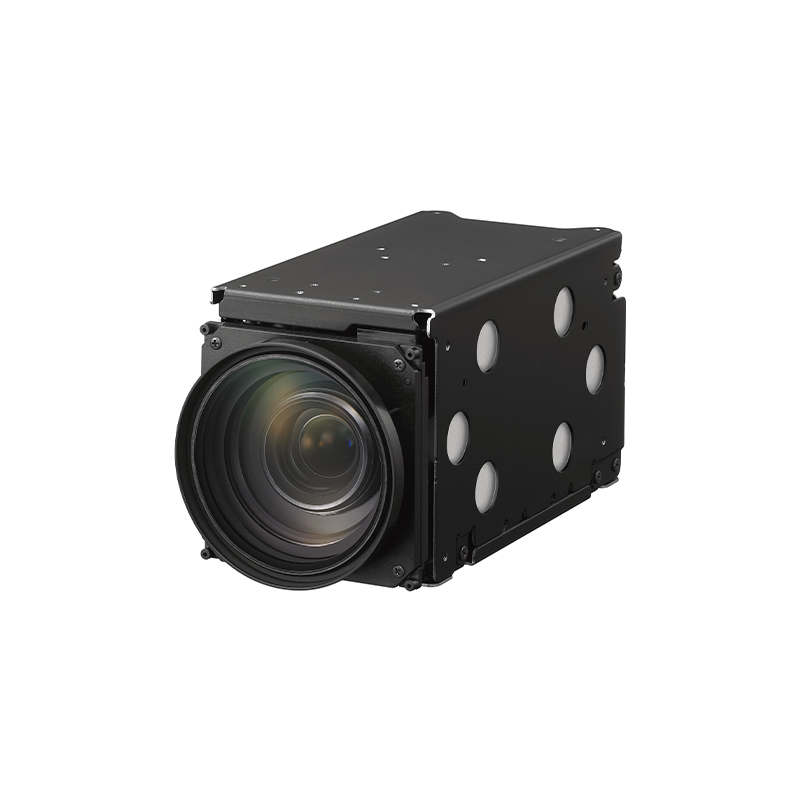

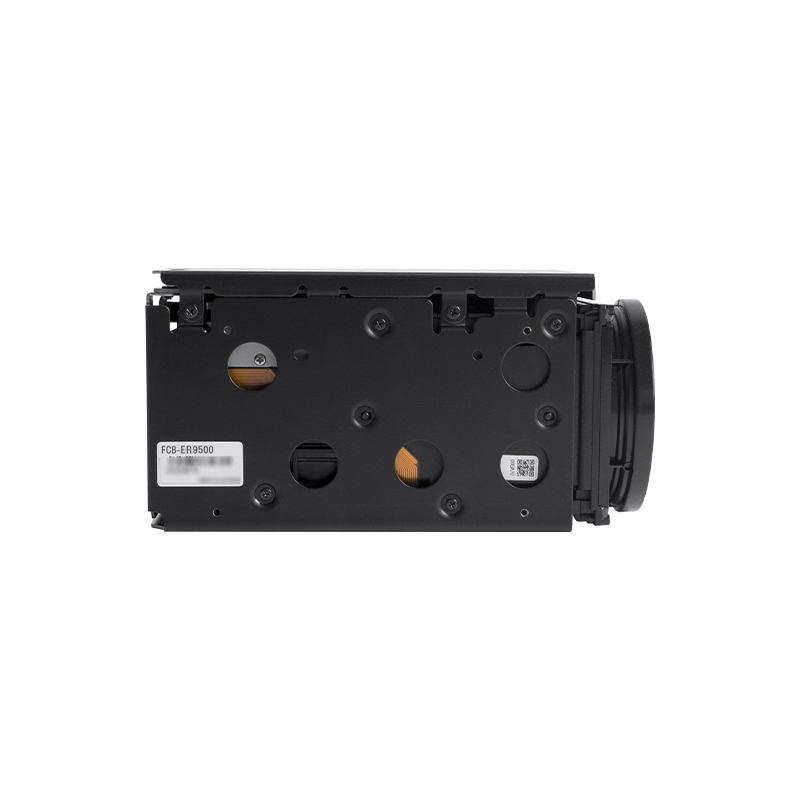

FCB-ER9500 Sony 4K60P HDMI-Compatible Output 25X Zoom Block Camera

• Sensor(Effective pixels): 1/1.8'' STARVIS2 CMOS(approx. 8.4MP)
• Output pixel(HxV): 3840x2160, 1920x1080, 1280x720
• Video format: 2160P/60, 1080P/60, 720P/60
• Video output: 4K Output Compliant with HDMI-Compatible Protocol
• Lens: f = 6.5 mm - 162.5 mm, F1.6 - 4.8
• Zoom: 25x Optical Zoom
• Size: 56.0 x 64.0 x 125.0mm
• Weight: approx. 464g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

FCB-ER9500 SONY FCB-ER9500 Sony FCB Block Camera Intelligent Transportation 4K Block Camera video conference 4KP60 Camera Module 25x Zoom Camera Auto Focus Camera 4KP60 HDMI-Compatible CMOS Camera Block 2160P60 Block Camera Sony Camera

Overview

The Sony FCB-ER9500 is a high-performance 4K/60FPS camera module designed to meet high-quality and high-frame rate image capture needs. It uses a 1/1.8-inch STARVIS2 CMOS sensor, with 8.4 megapixels, supports 4K ultra-high-definition resolution and high-frame-rate video output of 60 frames per second. The FCB-ER9500 has 25x optical zoom capability, combined with advanced image anti-shake technology, can provide stable and clear pictures under various lighting conditions. In addition, it also supports infrared night vision, which is suitable for low-light ambient image capture.

Basic Info.

Model NO.	FCB-ER9500	Brand	Sony
Sensor	1/1.8 inch STARVIS2 CMOS	effective pixels	approx.8.40MP
Output pixels	3840*2160(QFHD)	wide dynamic	support
Optical zoom	25X	Digital zoom	12x
image stabilization	super image stabilization, "S" and "S+"pattern	Horizontal field Angle	2.3°-58.1°
Image formats	2160P/60, 2160P/50, 2160P/29.97, 2160P/25 1080P59.54, 1080P50, 1080P29.97, 1080P25, 1080I59.54, 1080I50 720P59.54, 720P50, 720P29.97, 720P25
Picture effects	(vertical/horizontal)flip, black and white, mirror, color enhancement
Starvis night vision	color image output under 0.01 Lx low illuminations, Minimum illumination up to 0.00008Lx
Area function	Areaindependent 3A function(auto exposure, auto focus, auto white balance)

Application

With its 4K/60FPS image format and its excellent performance, Sony FCB-ER9500 has shown wide application potential in many fields, especially the following fields are used more, but it is not limited to these fields and can be flexibly applied to more scenarios. Radio and television, security monitoring, intelligent transportation, video conferencing, medical equipment, industrial testing, etc.

Optimized Video Output Configuration

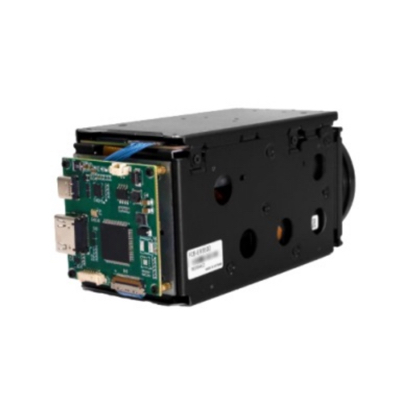

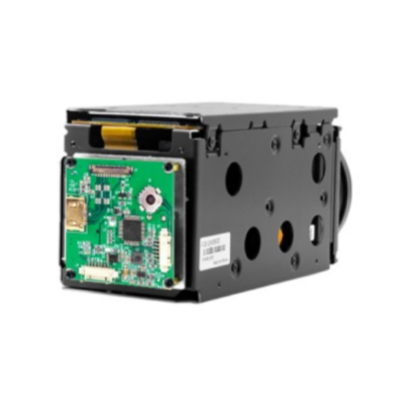

FCB-ER9500		Compatible Camera Interface Board		Customized Integrated Solutions

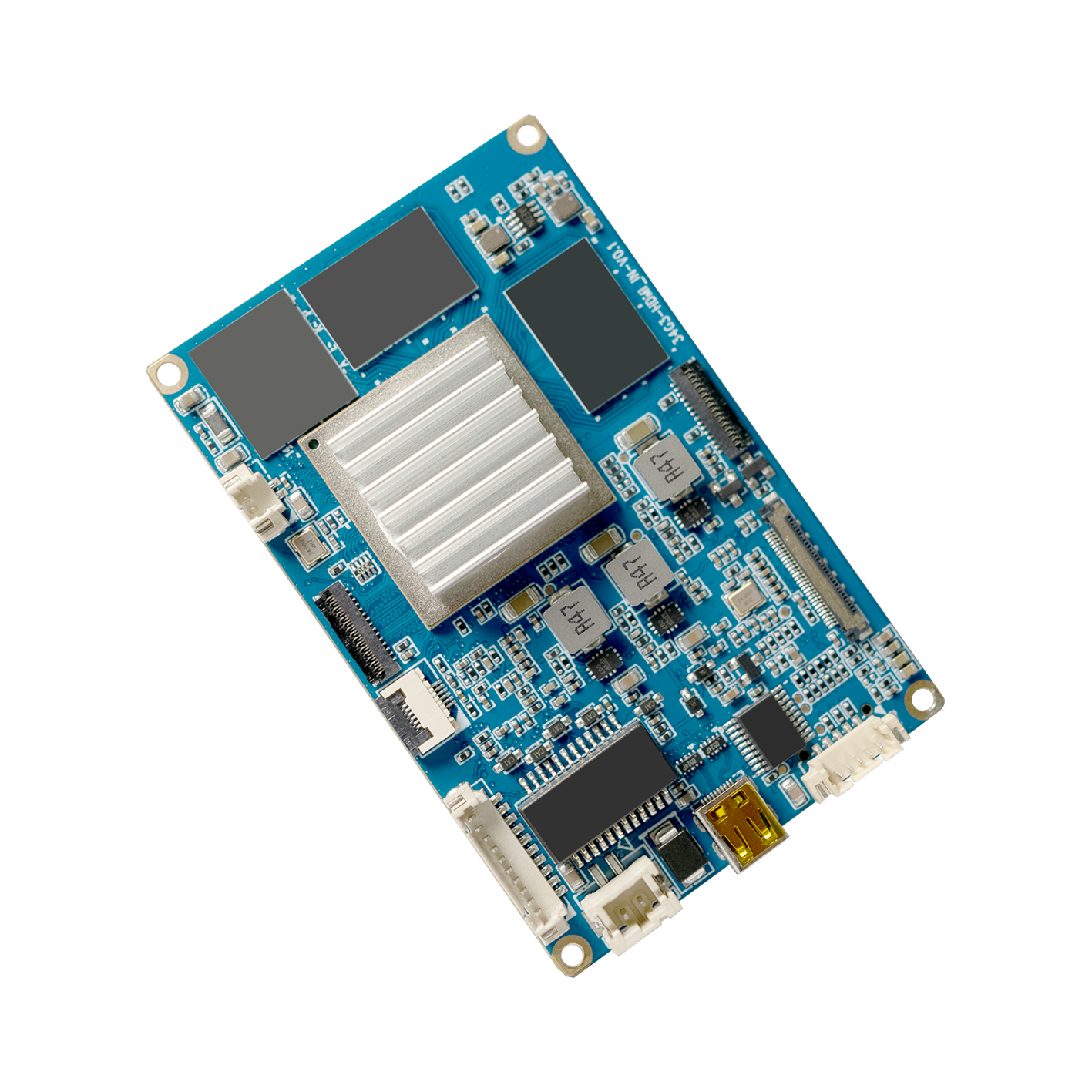

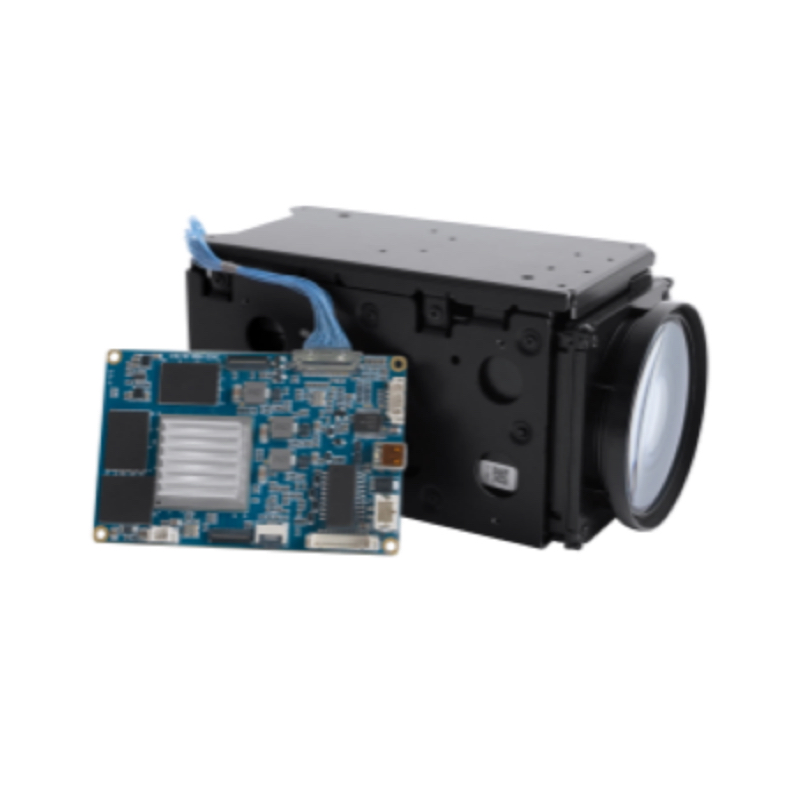

Size: 56 x 64 x 125mm Net Weight: appr. 464g	+	HDMI-Compatible Type-D, IP and USB3.0 Interface HDMI-Compatible, IP and USB3.0 Sync-output	=	Sony FCB- ER9500 + 4KP60 AI Network Interface Board

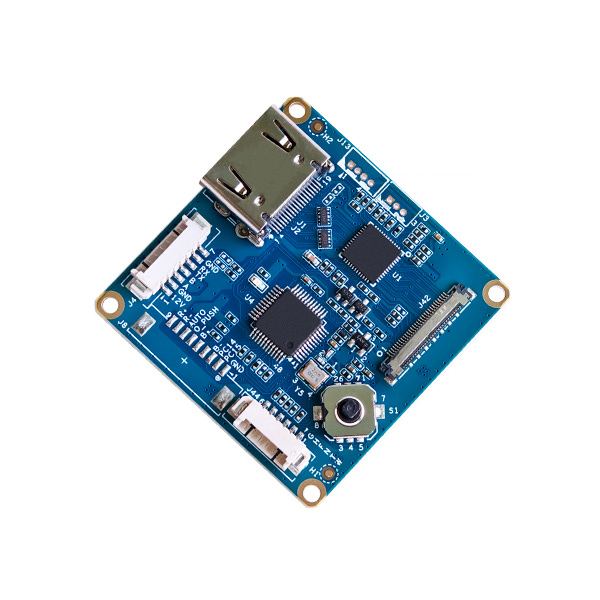

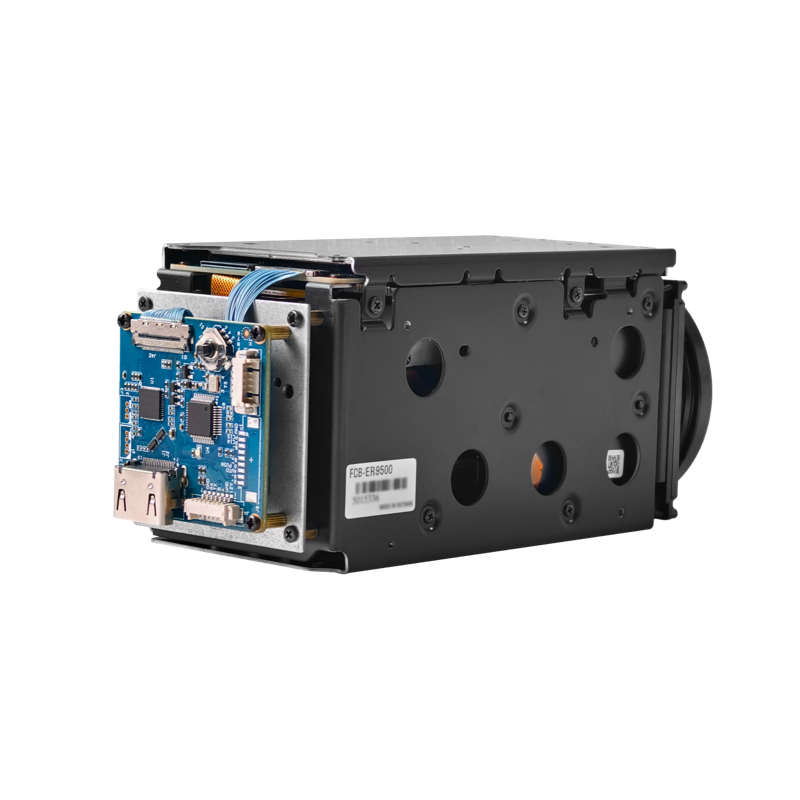

ICR On Color Spot Focus, Spot AE, Spot AWB	+	HDMI-Compatible Type-A Interface Lvds to 4K HDMI-Compatible Output	=	Sony FCB- ER9500 + 4KP60 HDMI-Compatible Interface Board

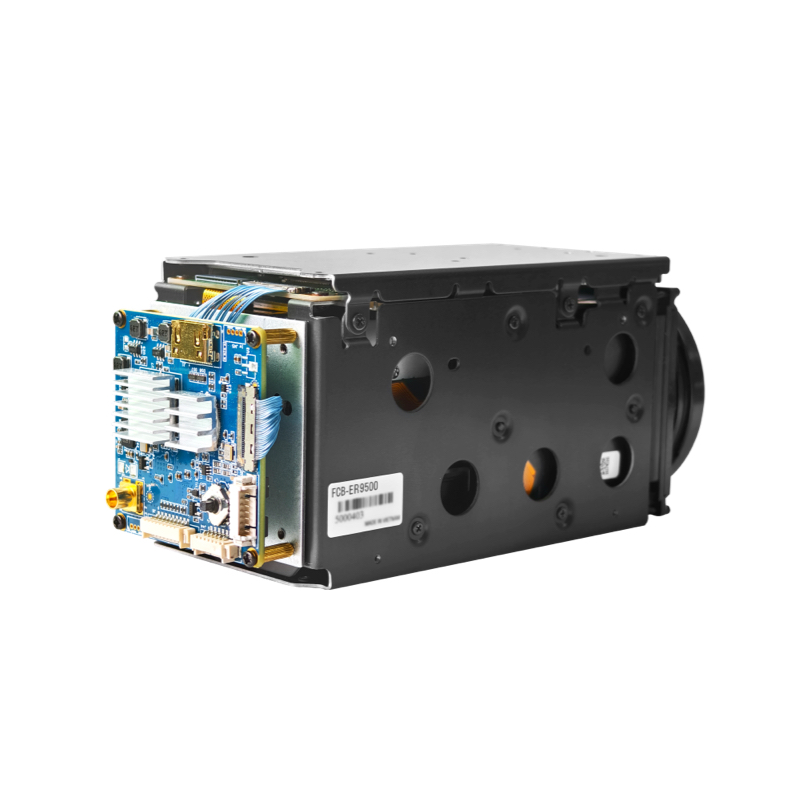

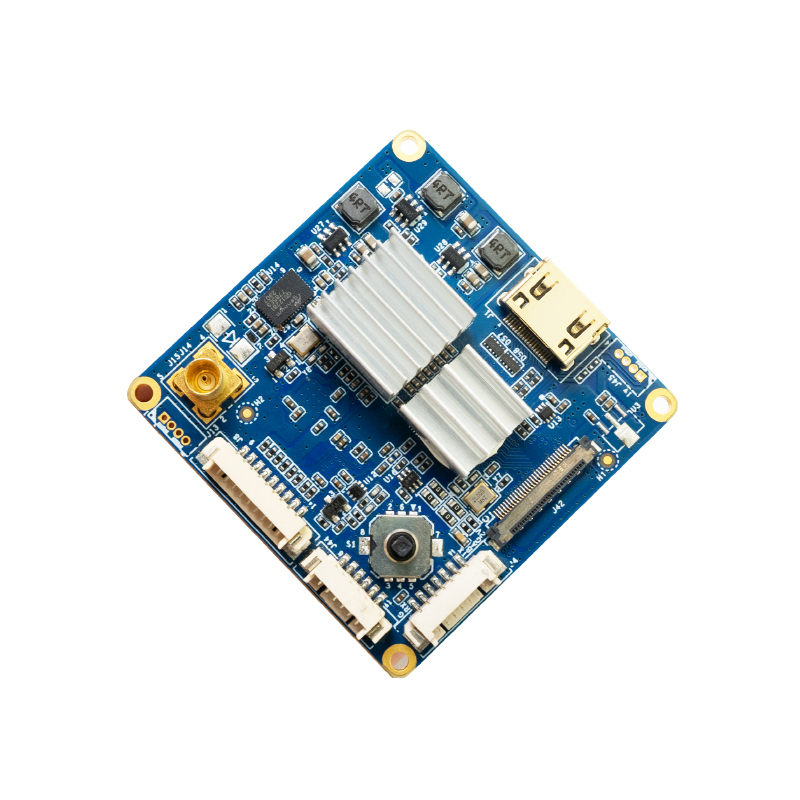

1/1.8'' STARVIS2 CMOS Effective pixels: approx. 8.4MP	+	Mini MCX RF and mini HDMI-Compatible Interface 6G-SDI and 4K HDMI-Compatible Sync-output	=	Sony FCB-FCB-ER9500 + 12G-SDI Interface Board

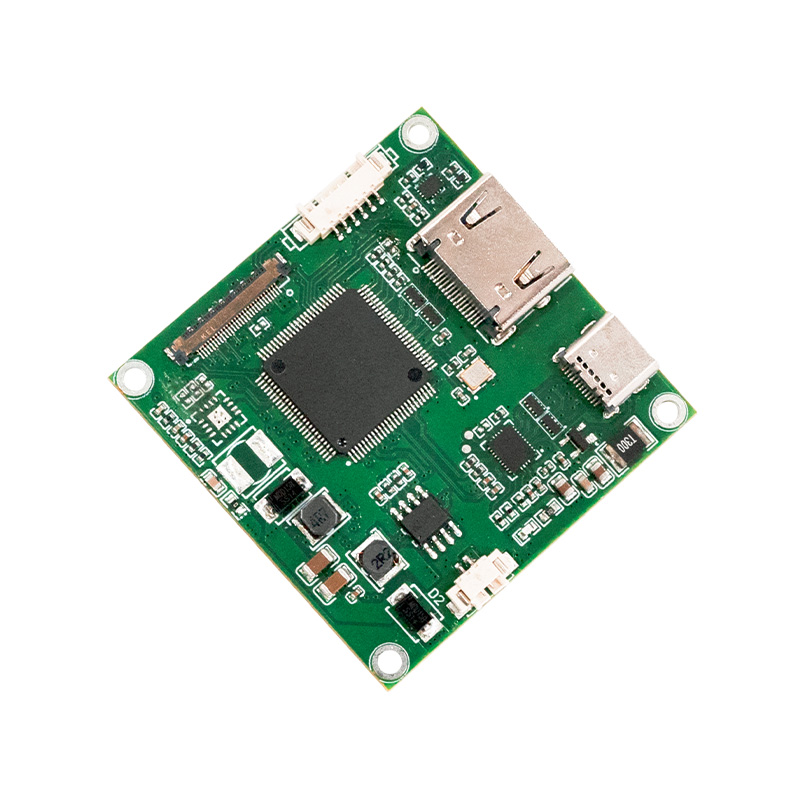

Support 4KP60 Video Output 25x Optical Zoom	+	USB3.0 TYPE-C and HDMI-Compatible Interface USB3.0 TYPE-C and 4K HDMI-Compatible loop Output	=	Sony FCB-ER9500 + 4K USB3.0 TYPE-C Interface Board

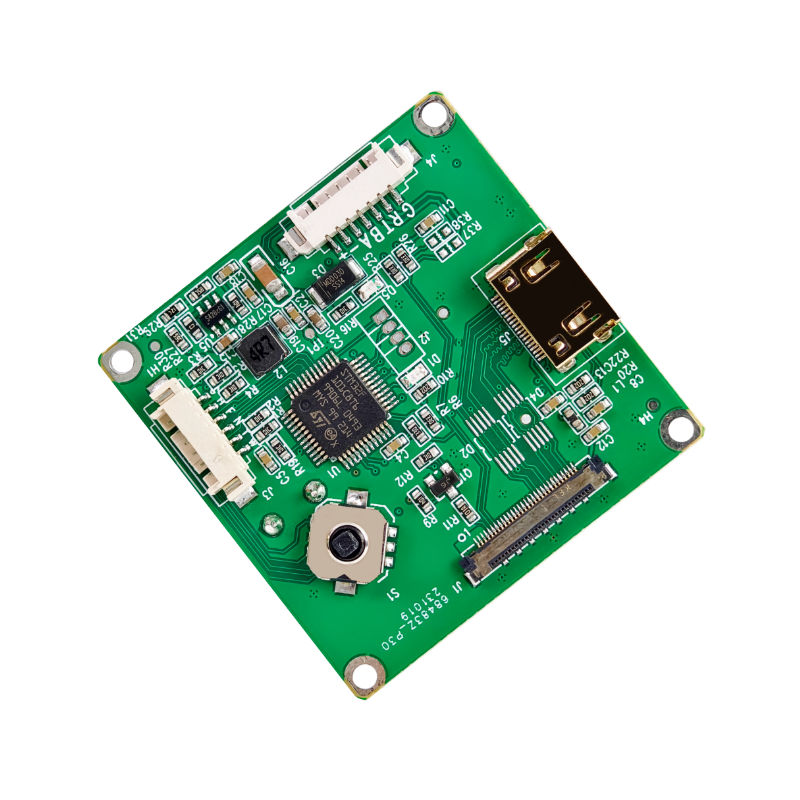

High Sensitivity Super lmage Stabilizer	+	HDMI-Compatible Type-C Interface Lvds to 4K HDMI-Compatible Output	=	Sony FCB-ER9500 + 4K-HDMI-Compatible Interface Board

FAQ

Q: What is the difference between Sony FCB-ER9500 and FCB-EW9500H?

A: The two are the same in body size, and they are both HDMI outputs. The main reason is that the output image format is different. Sony FCB-ER9500 can output an image format of 4K/60 frames, while FCB-EW9500H can only output 4M/60 frames, and optical zoom is also different. Sony FCB-ER9500 is 25x, and FCB-EW9500H is enhanced by 30x.

Parameter

Image Sensor	1/1.8-type STARVIS2 CMOS Sensor (approx. 8.40M pixels)
Output Image Size (H x V)	3856 x 2200 3856 x 2180 3840 x 2160
Signal System	2160p/60, 2160p/59.94, 2160p/50, 2160p/30, 2160p/29.97, 2160p/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination (50%, High Sensitivity MOde ON)	ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%)
Minimum Illumination (50%, High Sensitivity MOde OFF)	ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination	100 lx - 100,000 lx
Gain	Auto/Manual (0 dB - 50.0 dB), 0 - 28 steps
Shutter Speed	1/1 - 1/10000 s, 22 steps
Sync System	Internal
Exposure Control	0 dB - +- 10.5 dB, 15 steps
Backlight Compensation	Yes
Gamma	Standar/Straight Gamma
Aperture Control	16 steps
White Balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
AE (Auto Exposure Mode)	Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE
Zoom	25x Optical Zoom 12x Digital Zoom
Lens	f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 - 4.8
Zoom Mode	Standard Mode / Variable Mode / Direct Mode
Focusing System	Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus
Focus Movement Time	∞-Near: 1.4 sec.
Horizontal Viewing Angle	58.1°-2.3°
Minimum Object Distance (wide end to tele end)	100 mm - 1200 mm
Auto ICR	Yes
Wide Dynamic Range (Wide-D)	Yes
Visibility Enhancer	Yes
Defog	Yes (low/mid/high)
Noise Reduction	Yes (3D + 2D / Independent setting (3D, 2D)
Progressive Scan Mode	Yes
Image Stabilization	Yes
Spot Light Avoidance	Yes
Motion Detection	Yes
Privacy Zone Masking	Yes
Alarm	Yes
Slow AE Response	Yes
Picture Effects	Black White (Monochrome Image)
Picture Freeze	Yes
Electronic-Flip (E-FLIP)	Yes
Mirror Image	Yes
Slow Shutter	Yes
Temperature Readout	Yes
Title Display	Yes (20 characters / line, max. 11 lines)
Camera Mode Display	Yes (English)
Video Output	Digital: Y/Pb/Pr 4:2:(HDMI-Compatible) Y:8bit. C:8bit RGB 4:4:4(HDMI-Compatible) R:8bit G:8bit B:8bit
Camera Control Interface	VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit
Power Requirements	7.0 V - 12.0 V DC
Power Consumption	5.8 W (When motor operates: 7.0W)
Operating Temperature	-5 °C - +60 °C
Storage Temperature	-20 °C - +60 °C
Operating Humidity	20% - 80% (Absolute humidity : 36 g/m3)
Storage Humidity	20% - 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D)	56.0 x 64.0 x 125 mm
Mass	Approx. 464 g
