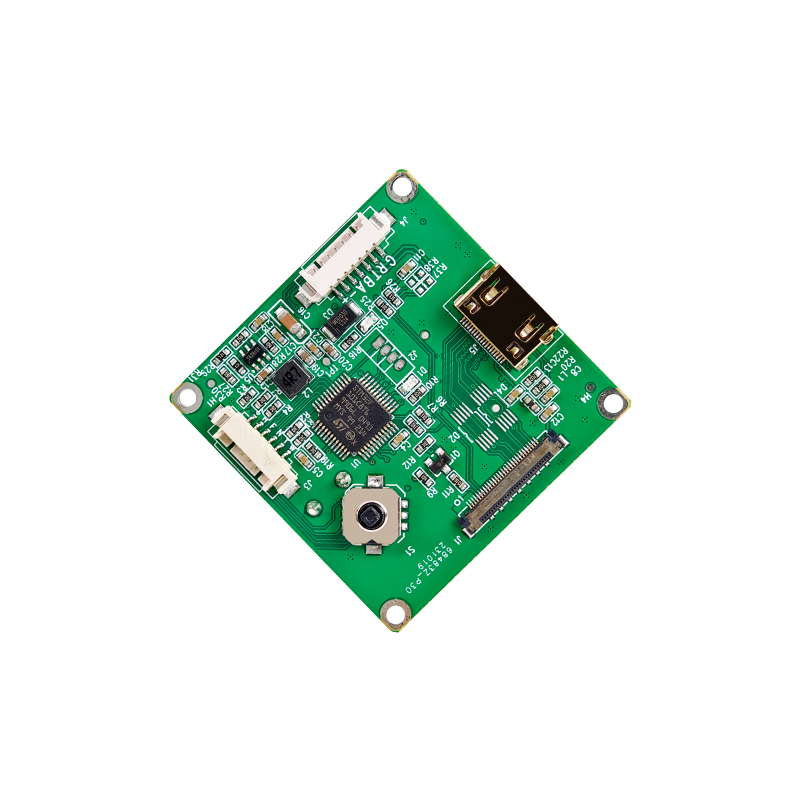

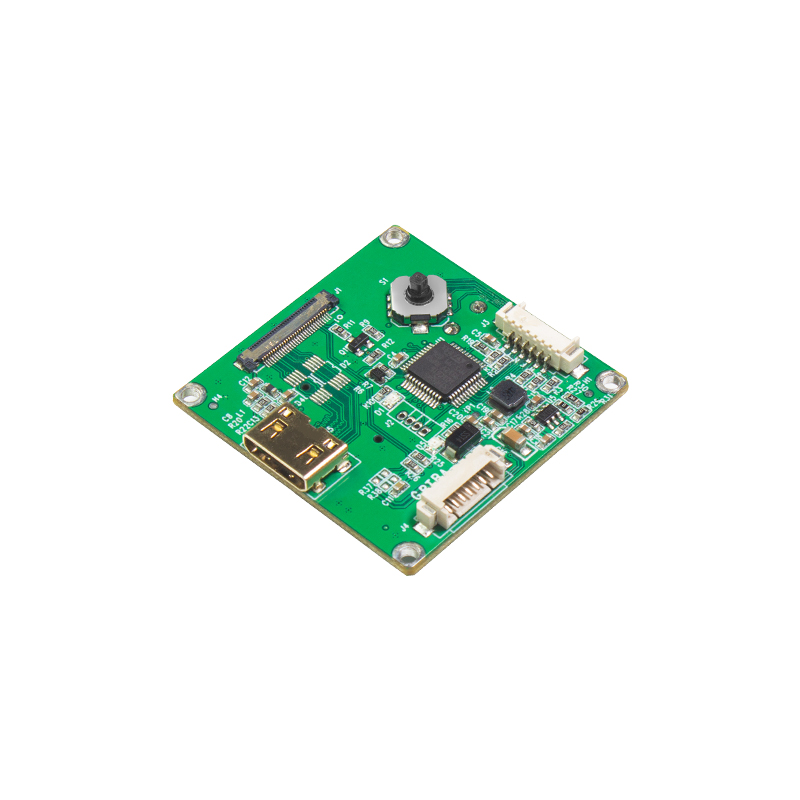

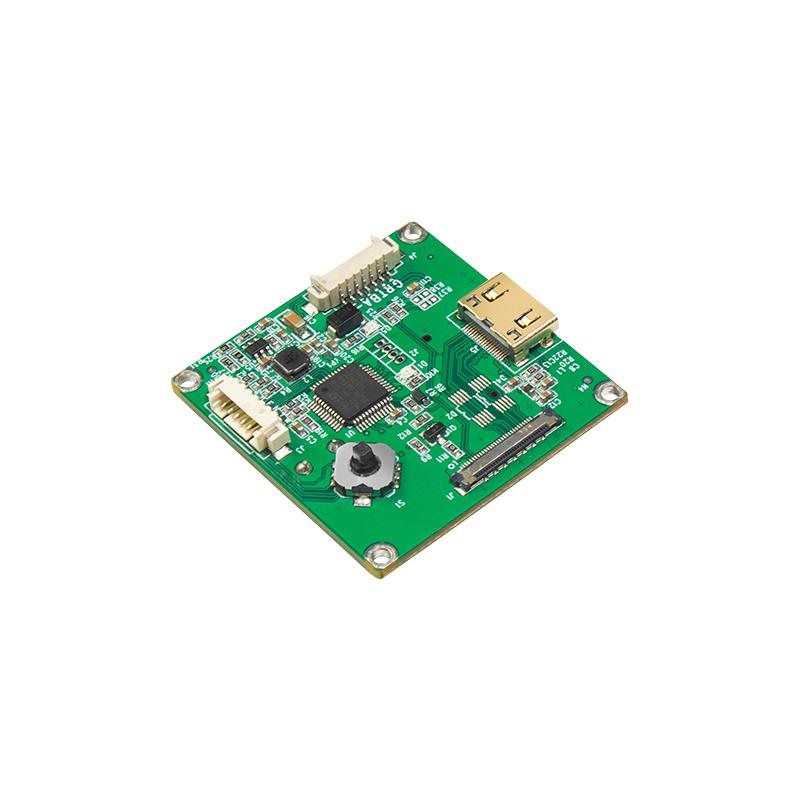

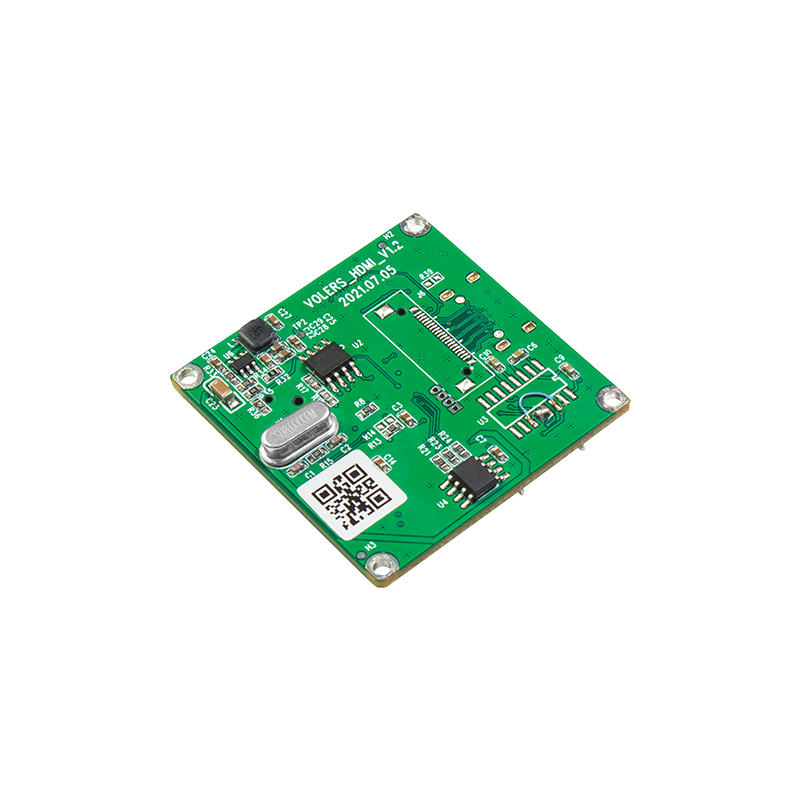

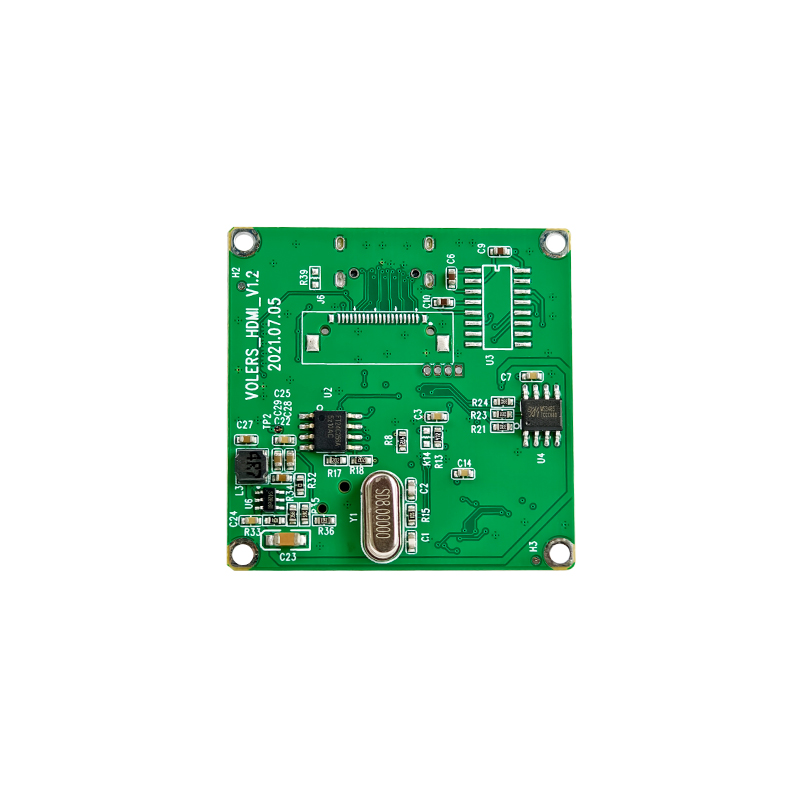

4KP30 HDMI-CompatibleUltra HD Interface Board Specifically designed for the entire series of Sony FCB 4K ultra HD block cameras. It is also compatible with the majority of block cameras with the same interface specifications.
It can stably output 4K HDMI-Compatible ultra-HD video signals, enabling the images captured by Sony 4K ultra-HD block cameras to be perfectly displayed on 4K ultra-HD monitors.
With excellent performance, this interface board is widely used in fields such as UAV aerial photography, weak vision detection, video conferences, medical equipment, and various professional instrument equipment, providing a solid guarantee for ultra-HD imaging application scenarios.
• Ultra-High Definition Resolution Support: Supports various resolutions including 2160P, 1080P, and 720P, with a maximum output resolution of 3840×2160P30, meeting diverse high-definition display requirements.
• Convenient Connection: Connects to the block cameras through an extremely fine coaxial cable without requiring additional settings for the camera. It can automatically recognize the camera's ultra-high-definition video format and stably output 4K HDMI-Compatible ultra-high-definition video ignals.
• Abundant Control Functions: Supports RS-485 control and comes equipped with an English OSD menu,allowing users to zoom and focus using the key buttons. It also automatically recognizes PELCO-D/P protocols, providing flexible and highly compatible operation.
• Special Optional Functions: Features special functions such as power-off memory, preset positions, and auto-touring(optional). Additionally, it supports RS-232 or TTL-232 functions (optional), catering to more customized application scenarios.
Brand | Model | 4KP30 HDMI-Compatible |
Sony | FCB-ER9500 | 2160P30, 2160P25, 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P25 720P60, 720P50, 720P30, 720P25 |
FCB-EW9500H | ||
FCB-CR8530 | ||
FCB-ER8530 | ||
FCB-CR8550 | ||
| FCB-ER8550 | ||
| FCB-CS8230 | ||
| FCB-ES8230 | ||
| FCB-CR8300 | ||
| FCB-ER8300 |
Note: Compatible with 4K block cameras of other brands that share Sony Visca command.
Video Output Interface | HDMI-Compatible Type C | Video Output Format | 2160P, 1080P, 720P |
Communication Control Protocol | Auto-detects PELCO-D/P protocols | Communication Interface Control | RS-485 (standard), RS-232 or TTL232(optional) |
Menu | Supports OSD adjustment mode | External Key/Power-off Memory | Supported |
Operating Temperature | -5~65℃ (23~149℉) | Power Supply | DC12V 1A |
Product Net Weight | Approx 9.8g | Product Dimensions | Approx 42*42*9mm |
Number | Type | Function |
F1 | Five-way Switch | Focus, zoom & menu controls |
F2 | LVDS Socket | LVDS camera port |
F3 | HDMI-Compatible Type C Output Interface | Transmits UHD video |
F4 | Moles Connector : Model 532610771,Using 7Pin connector with 1.25MM pitch | External key interface Interface definition is shown in the table: F4-1 |
| F5 | Moles Connector : Model 532610671,Using 6Pin connector with 1.25MM pitch | External key interface Interface definition is shown in the table: F5-1 |
Table: F4-1 | Table: F5-1 |
Front Side of the product | ||||||
1 | GND | 5 | 485+ | 1 | GND | 5 | Zoom in | |
2 | RX | 6 | 12V- | 2 | Menu | 6 | Zoom out | |
3 | TX | 7 | 12V+ | 3 | Downward to focus close | |||
4 | 485- | 4 | Upward to Focus Far | |||||
Model No. | Communication Method |
PCB-UD001 | With RS-485 control |
| PCB-UD002 | Dedicated Program with Remote Control for Medical Surgical Video Camera |
| PCB-UD003 | Without Control |
| PCB-UD004 | With RS-485 and RS-232 control |
| PCB-UD005 | With RS-485 and TTL-232 control |
|
|
|
|
|
LVDS Coaxial Cable (80mm), Customizable Length (Optional) | 6-Pin Terminal Wire (150mm) (Standard) | 7-Pin Terminal Wire (150mm) (Standard) | Screw/Copper pillar: M2*5 (Optional) | Iron Plate(50*50mm) (Optional) |
 |  |  |
a. Interface board assembled with Sony Block camera FCB-ER9500 | b. Interface board assembled with Sony Block camera FCB-EW9500H | C. Interface board assembled with Sony Block camera FCB-ER8530 |
*Note: The product supports individual purchase or "block camera+interface board" package purchase. The whole set comes without pre-installation by default. Specify installation needs when ordering.
Preparation
|
|
|
|
|
|
Feference model：FCB-ER9500 | 30Pin LVDS Coaxial Cable | 6Pin Terminal Wire | 7Pin Terminal Wire | Screw/Copper pillars | Iron Plate |
Connection Steps
Physical Assembly Steps Only (No Electrical Work)
Notes: The steps demonstrate physical connection only-electrical connection is excluded. No image output at this stage. For electrical connection assistance, contact technical support.
|
|
|

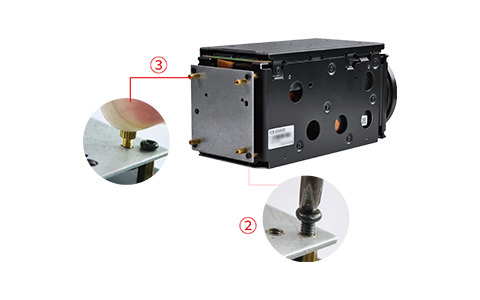

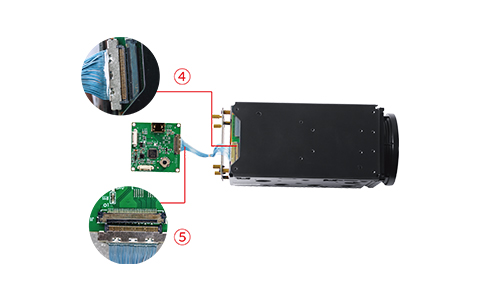

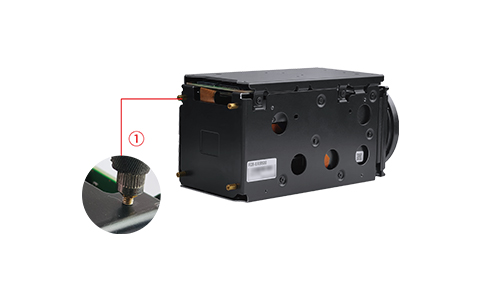

Step Ⅰ: 1. Install four copper pillars at the rear of the camera (as shown in Figure ① above). | Step Ⅱ: 2. Install the iron plate at the rear of the camera and tighten the screws (as shown in Figure ② above). 3. Install the iron plate on the copper pillars (as shown in Figure ③ | Step Ⅲ: 4. Connect one terminal of the 30-pin micro coaxial cable to the Ultra HD block camera (as shown in Figure ④ above). 5. Connect the other terminal of the 30-pin micro coaxial cable to the interface board (as shown in Figure ⑤ above). Warning: Gold pins facing up | No reverse insertion (risk of device damage) |
 |  |  |

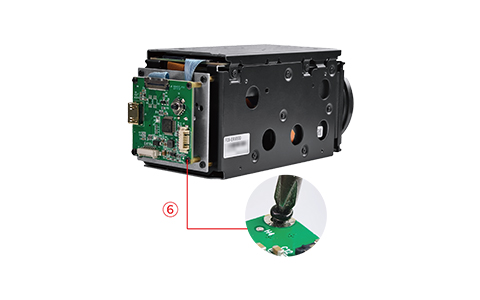

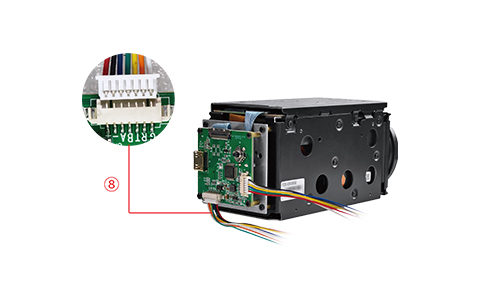

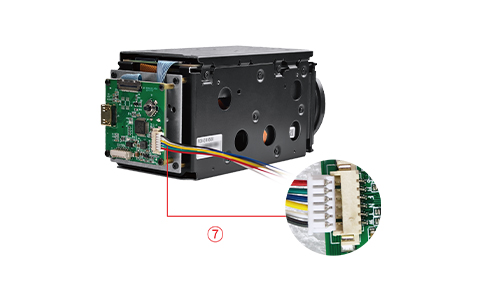

Step Ⅳ: | Step Ⅴ: | Step VI: 8. Physically connect the interface board with the power cable (as shown in Figure ⑧ above). |
Thank you very much for purchasing our company's products. If you have any questions, please feel free to contact us.
The photos and actual objects depicted in this Manual are provided solely for reference and guidance to users.
We do not guarantee that they are completely identical to the actual products. Please refer to the actual products.
Design, features and specifications are subject to change without notice.
