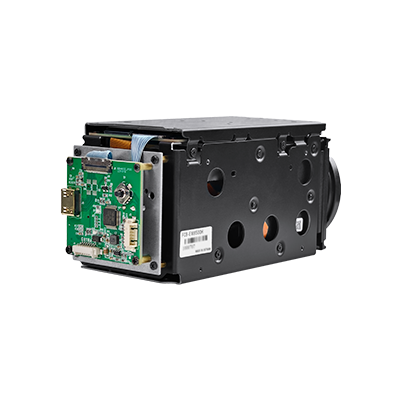

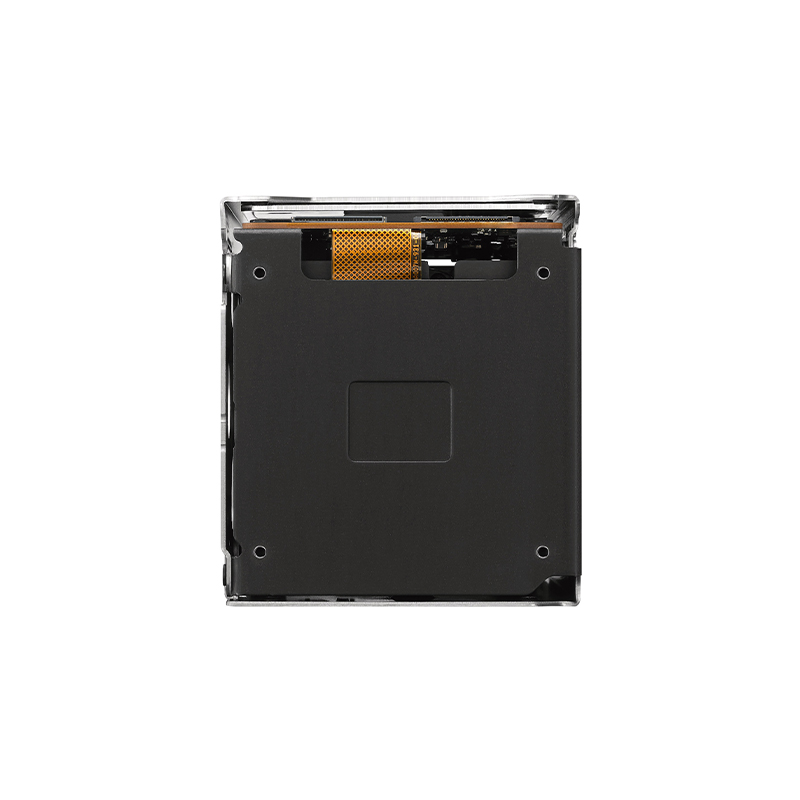

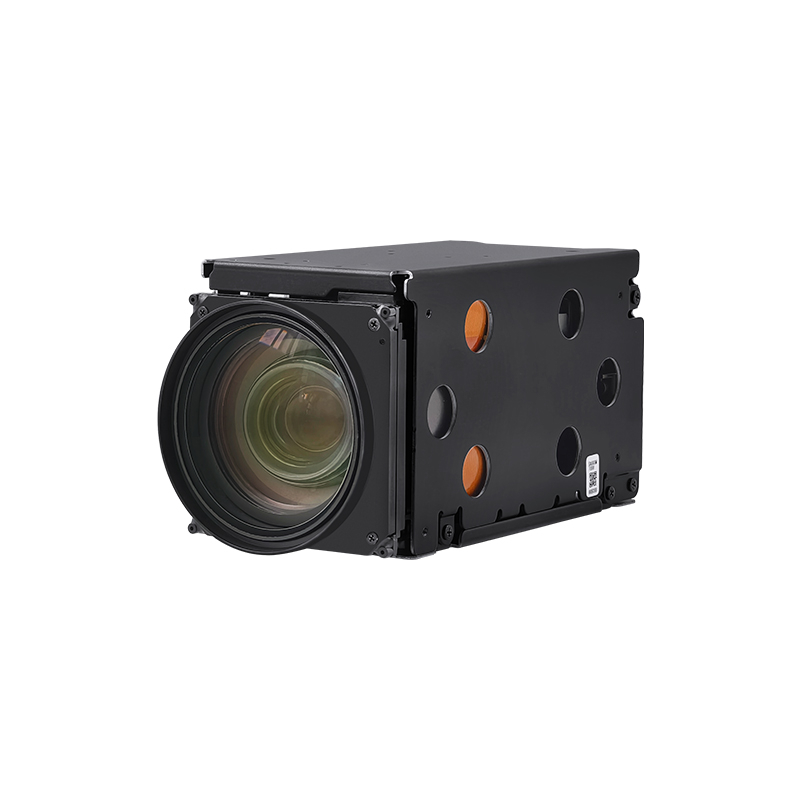

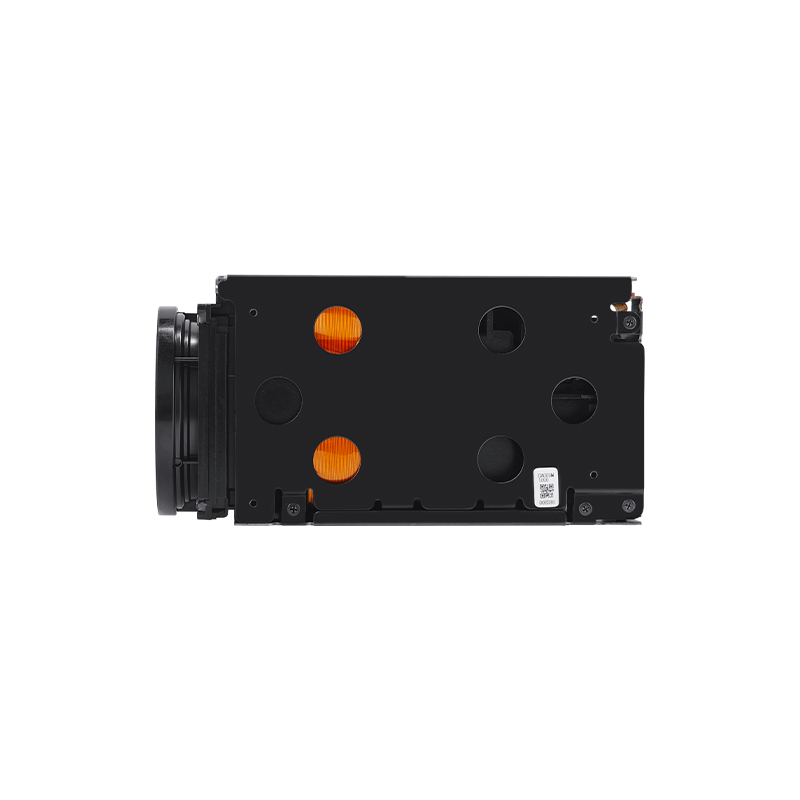

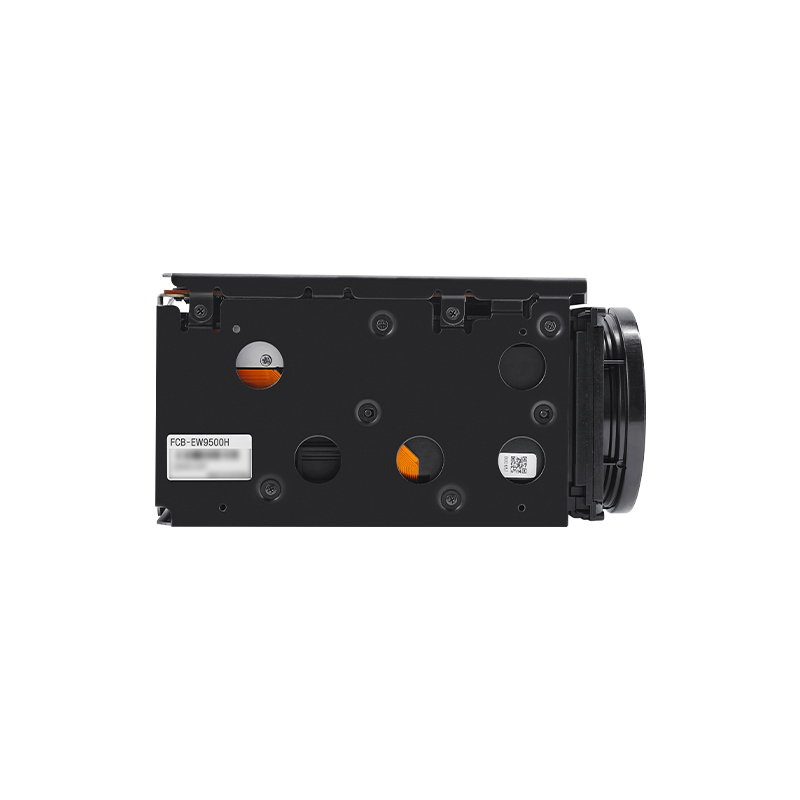

FCB-EW9500H Sony HDMI-Compatible CMOS 30x Zoom Block Camera

• Sensor(Effective pixels): 1/1.8'' RSTARVIS CMOS(approx. 4.17MP)
• Output pixel(HxV): 2688x1512, 2560x1440, 1920x1080, 1280x720
• Video format: up to 2160p/60
• Video output: HDMI-Compatible
• Lens: f = 6.5mm - 162.5mm, F1.6 - 4.8
• Zoom: 30x Enhanced Optical Zoom, 12x Digital Zoom
• Other functions: Spot Focus/AE/AWB, Wide Dynamic Range, Image Stabilization (Super/Super+) etc.
• Size: 56.0 x 64.0 x 125.0mm
• Weight: approx. 439g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

FCB-EW9500H SONY FCB-EW9500H Sony 4MP 60FPS Block Camera HDMI Output Block Camera 2160P/60 Zoom Camera Module 30x Zoom Block Camera A-f Zoom Camera Block Image Stabilization Block Camera HDMI CMOS Camera Sony 30X HDMI Camera

Overview

FCB-EW9500H is Sony's new-generation 4-megapixel high-definition block camera module. It adopts a new focal length, image sensor and ISP (Image Signal Processor). On the 1/1.8-inch image sensor, it achieves 30x enhanced optical lens with a focal length of up to 162.5 mm. With Sony's latest technology, license plates at a distance of about 350 meters can also be clearly captured, breaking the viewing angle limitation of traditional models.

The unique seven-blade iris can effectively suppress halos under strong light. Whether it is outdoors exposed to intense sunlight or medical scenarios under the strong light of surgical lamps, it can ensure pure and clear images, accurate restoration of colors and details, and stable output of high-quality images. In fields such as precise monitoring of intelligent high-speed domes, high-definition mapping of drone pods, and detailed diagnosis of medical equipment, FCB-EW9500H has become a preferred product for equipping high-definition cameras with its outstanding performance. It equips equipment with reliable visual "smart eyes" to meet the strict requirements of diverse scenarios.

Sony FCB-9500 series has 3 models available in the same form factor:

FCB-EW9500H,400MP(2160p/60), (HDMI output)

FCB-EV9500M, Full HD(1080p/60), (MIPI output)

FCB-EV9500L, Full HD(1080p/60), (LVDS output)

Basic Info.

Model NO.	FCB-EW9500H	Brand	Sony
Image sensor (Effective pixels)	1/1.8 inch STARVIS™ CMOS Sensor (Approx 4.17MP)	Lens	30x Enhanced Optical Zoom，12x Digital Zoom
Output pixels (H × V)	2688x1512,2560x1440, 1920x1080,1280x720	Focal Length	f=6.5mm-162.5mm,F1.6 - 4.8
Synchronization mode	Inner synchronization	Video Output	HDMI
image formats	2160p/60, 2160p/59.94, 2160p/50, 2160p/30, 2160p/29.97, 2160p/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Main Features	Super Image Stabilization (Super / Super+), Auto Day-Night Switching, Wide Dynamic Range, Point Light Source Avoidance, etc.
Size	56.0 x 64.0 x 125mm
Weight	Approx 439 g

Application

Security Monitoring
Video Conference
Medical device
Intelligent high-speed dome

Optimized Video Output Configuration

FCB-EW9500H		Compatible Camera Interface Board		Customized Integrated Solutions

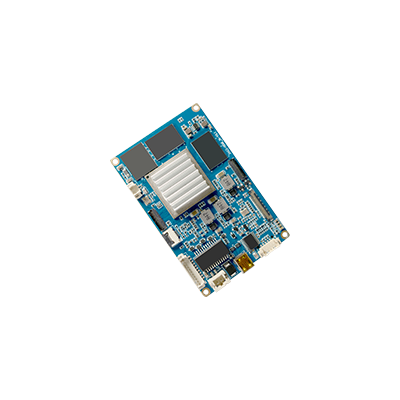

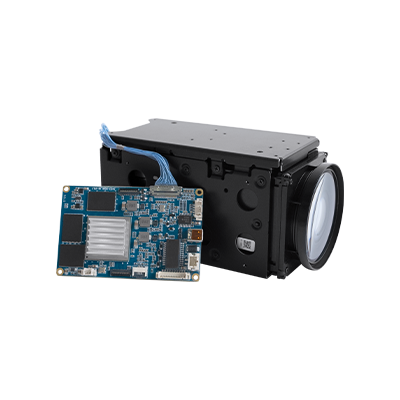

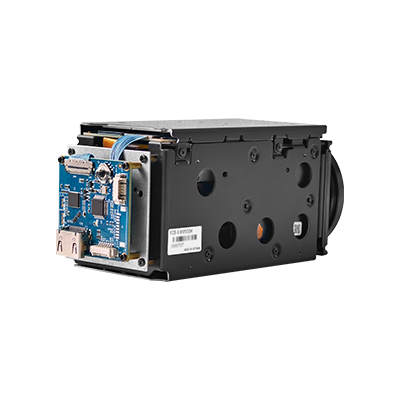

Size: 50.0 x 60.0 x 93.3mm Net Weight: Approx 275 g	+	HDMI Type-D, IP and USB3.0 Interface HDMI, IP and USB3.0 Sync-output	=	Sony FCB-EW9500H + 4KP60 AI Network Interface Board

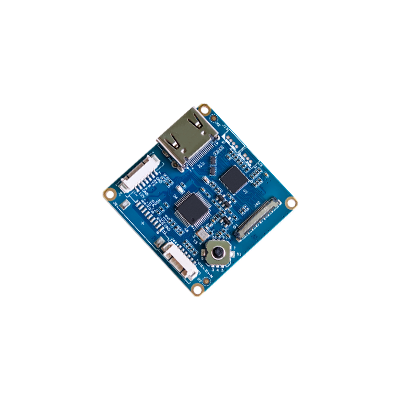

Auto ICR Spot Focus, Spot AE	+	HDMI Type-A Interface Lvds to 4K HDMI Output	=	Sony FCB-EW9500H + 4KP60 HDMI-Compatible Interface Board

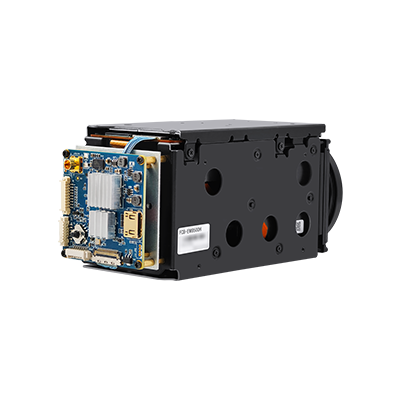

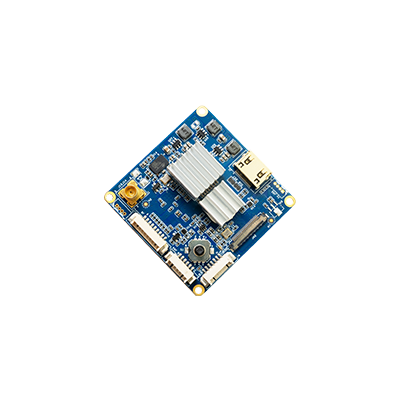

1/2.5-type Exmor R CMOS Sensor Effective pixels: approx. 8.51MP	+	Mini MCX RF and HDMI Type-C Interface 6G-SDI and 4K HDMI Sync-output	=	Sony FCB-FCB-EW9500H + 12G-SDI Interface Board

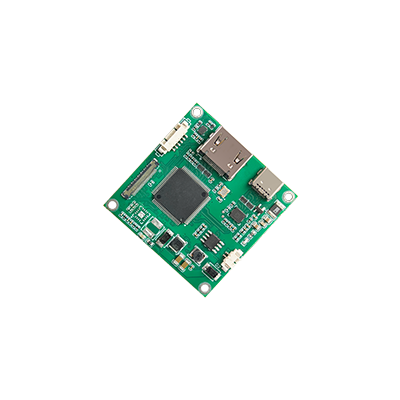

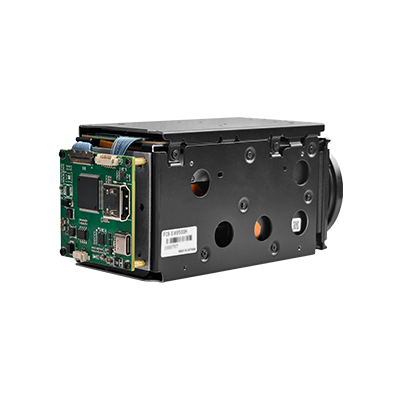

Support 4KP30 Video Output 20x Optical Zoom	+	USB3.0 TYPE-C and HDMI Interface USB3.0 TYPE-C and 4K HDMI loop Output	=	Sony FCB-EW9500H + 4K USB TYPE-C Interface Board

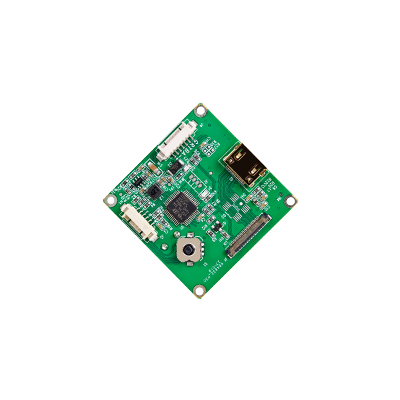

High Sensitivity Super-Resolution Zoom	+	HDMI Type-C Interface Lvds to 4K HDMI Output	=	Sony FCB-EW9500H + 4K HDMI-Compatible Interface Board

FAQ

Q1: What is the difference between Sony FCB-EW9500H,FCB-EV9500M and FCB-EV9500L?

A1: The Sony FCB-EW9500H, FCB-EV9500M and FCB-EV9500L are three high-performance integrated camera modules in the FCB-9500 series, featuring identical dimensions and form factor. Their core differences lie in video output interfaces and supported maximum resolution. The table below helps you quickly grasp their key distinctions.

Features	FCB-EW9500H	FCB-EV9500M	FCB-EV9500L
Video Output Interface	HDMI	MIPI	LVDS
Maximum Output Resolution	4 Megapixels (2688×1512)	Full HD (1920×1080)	Full HD (1920×1080)
Key Application Scenarios	Medical Imaging, Industrial Inspection, Broadcast-grade Video Capture	Embedded System,Mobile Devices	Industrial Automation, Security Surveillance, Long-distance Transmission

Q2: Why are there black bars around the image when the Sony FCB-EW9500H outputs footage in 2160P signal format?

A2: When the Sony FCB-EW9500H works with a 4K-HDMI encoder interface board to output content in 2160P, the signal is configured for 4K resolution with 8 mega pixels. However, the FCB-EW9500H itself only delivers approximately 4 mega pixels. To fulfill the 2160P output standard, the insufficient pixel area is compensated by black bars around the core image. This approach effectively maintains image quality and integrity when resolution mismatches occur, ensuring the content displays with proper aspect ratio and sharpness on the screen while preventing distortion or stretching.

Q3: For users requiring full-screen display, how can the surrounding black bars of the FCB-EW9500H be eliminated?

A3: Two feasible solutions are available to achieve full-screen display:

Use a cropping tool to remove the black bars around the image, retaining only the central valid content.

Switch the output signal format to 1080P, which enables native full-screen display without black bars.

Parameter

Image Sensor	1/1.8-type STARVIS CMOS Sensor (4.17M pixels)
Output Image Size (H x V)	2688x1512,2560x1440, 1920x1080,1280x720
Signal System	2160p/60, 2160p/59.94, 2160p/50, 2160p/30, 2160p/29.97, 2160p/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination (50%, High Sensitivity MOde ON)	ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%)
Minimum Illumination (50%, High Sensitivity MOde OFF)	ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination	100 lx - 100,000 lx
Gain	Auto/Manual (0 dB - 50.0 dB), 0 - 28 steps
Shutter Speed	1/1 - 1/10000 s, 22 steps
Sync System	Internal
Exposure Control	0 dB - +- 10.5 dB, 15 steps
Backlight Compensation	Yes
Gamma	Standar/Straight Gamma
Aperture Control	16 steps
White Balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
AE (Auto Exposure Mode)	Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE
Zoom	30x Enhanced Optical Zoom 36x Stable Zoom 12x Digital Zoom
Lens	f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 - 4.8
Zoom Mode	Standard Mode / Variable Mode / Direct Mode
Zoom Movement Speed	Wide end - Tele end - 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF) Wide end - Digital 12x tele - 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p) Digital wide - Digital 12x tele - 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p)
Focusing System	Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus
Focus Movement Time	∞-Near: 1.4 sec.
Horizontal Viewing Angle	58.1°-2.3°
Minimum Object Distance (wide end to tele end)	100 mm - 1200 mm
Auto ICR	Yes
Wide Dynamic Range (Wide-D)	Yes
Visibility Enhancer	Yes
Defog	Yes (low/mid/high)
Noise Reduction	Yes (3D + 2D / Independent setting (3D, 2D)
Progressive Scan Mode	Yes
Image Stabilization	Yes
Spot Light Avoidance	Yes
Motion Detection	Yes
Privacy Zone Masking	Yes
Alarm	Yes
Slow AE Response	Yes
Picture Effects	Black White (Monochrome Image)
Picture Freeze	Yes
Electronic-Flip (E-FLIP)	Yes
Mirror Image	Yes
Slow Shutter	Yes
Temperature Readout	Yes
Title Display	Yes (20 characters / line, max. 11 lines)
Camera Mode Display	Yes (English)
Video Output	Digital : Y/Pb/Pr 4:2:2 (hdmi) Y: 8 bit, C: 8 bit, RGB 4:4:4(hdmi) R:8bit G:8bit B:8bit
Camera Control Interface	VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit
Power Requirements	7.0 V - 12.0 V DC
Power Consumption	4.6 W (When motor operates: 6.3W)
Operating Temperature	-5 °C - +60 °C
Storage Temperature	-20 °C - +60 °C
Operating Humidity	20% - 95% (Absolute humidity : 36 g/m3)
Storage Humidity	20% - 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D)	56.0 x 64.0 x 125 mm
Weight	Approx. 439 g
