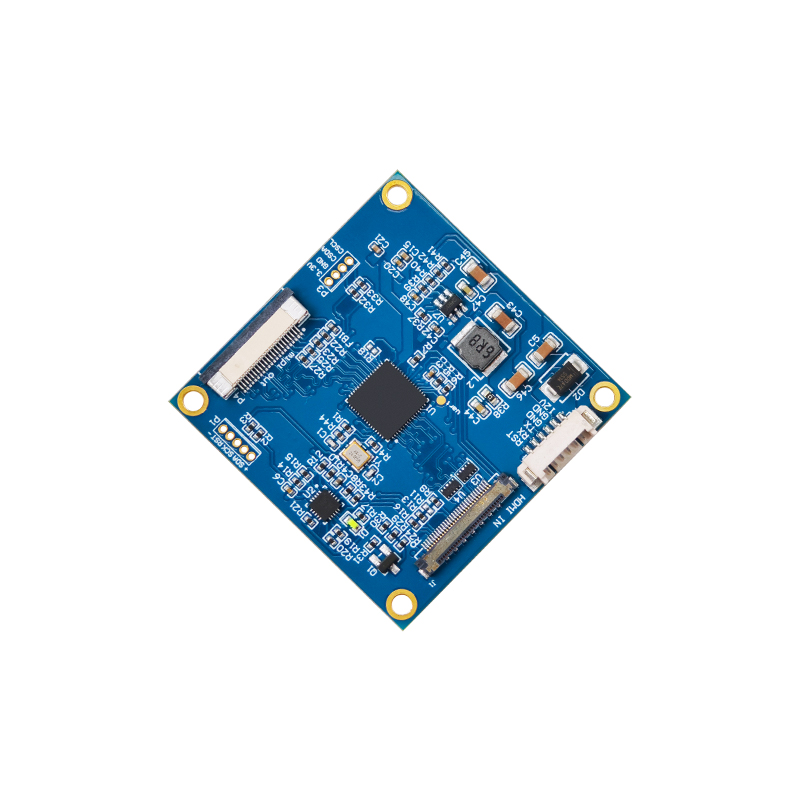

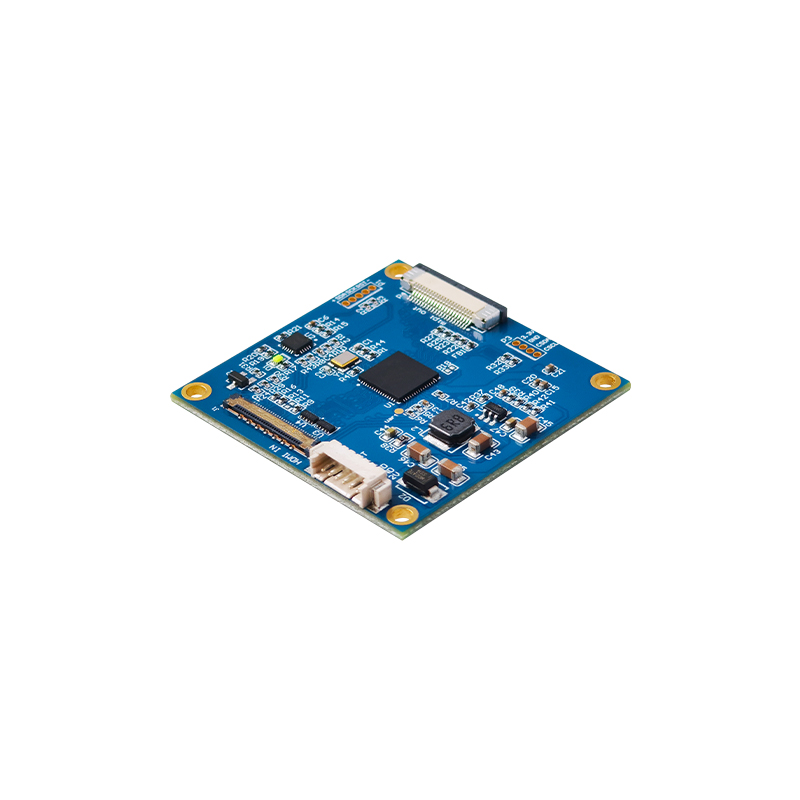

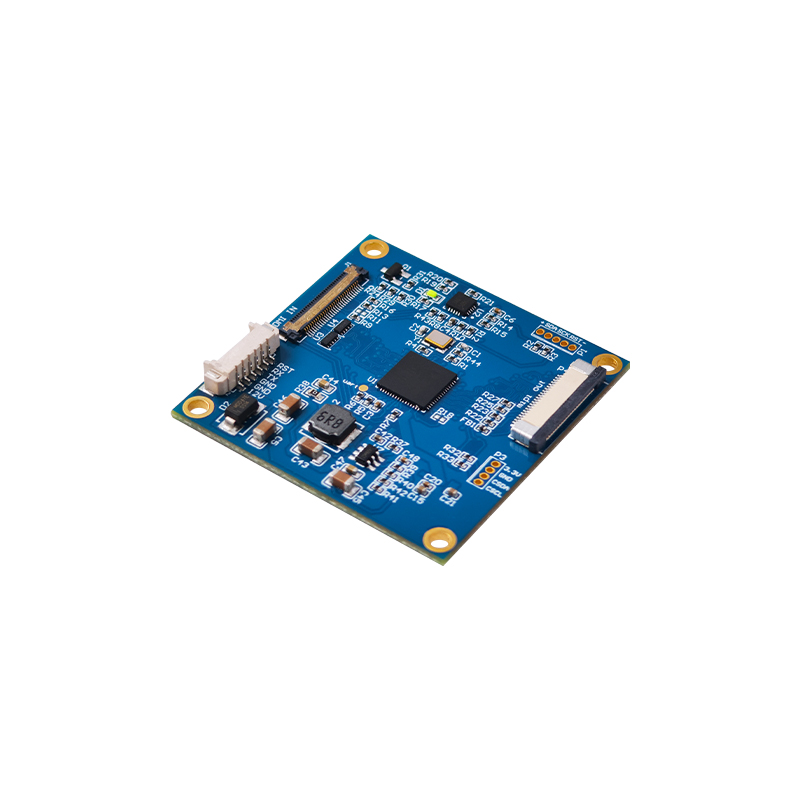

Custom-engineered exclusively for the full lineup of Sony FCB 4K UHD color camera modules. The 4K HDMI-Compatible to MIPI Interface Board converts the 4K HDMI-Compatible output from Sony FCB UHD cameras into MIPI signals with high precision and efficiency, via ultra-thin coaxial cabling between the camera and adapter board.
It enables seamless signal transmission and inter-device communication.
• MIPI signal format: CSI-2, supporting standardized signaling
• Accurately converts 4K HDMI-Compatible to MIPI signals for efficient interface adaptation
This 4K HDMI-Compatible to MIPI converter board creates an efficient, stable signal bridge between Sony FCB full-series 4K ultra-HD digital camera modules and CSI-2-compatible devices. It solves signal format incompatibility issues and satisfies high-definition video capture & transmission requirements across diverse application scenarios.
• Hardware board only. No driver software included.
• Drivers available for separate purchase or self-development & optimization.
Brand | Model | MIPI |
Sony | ||

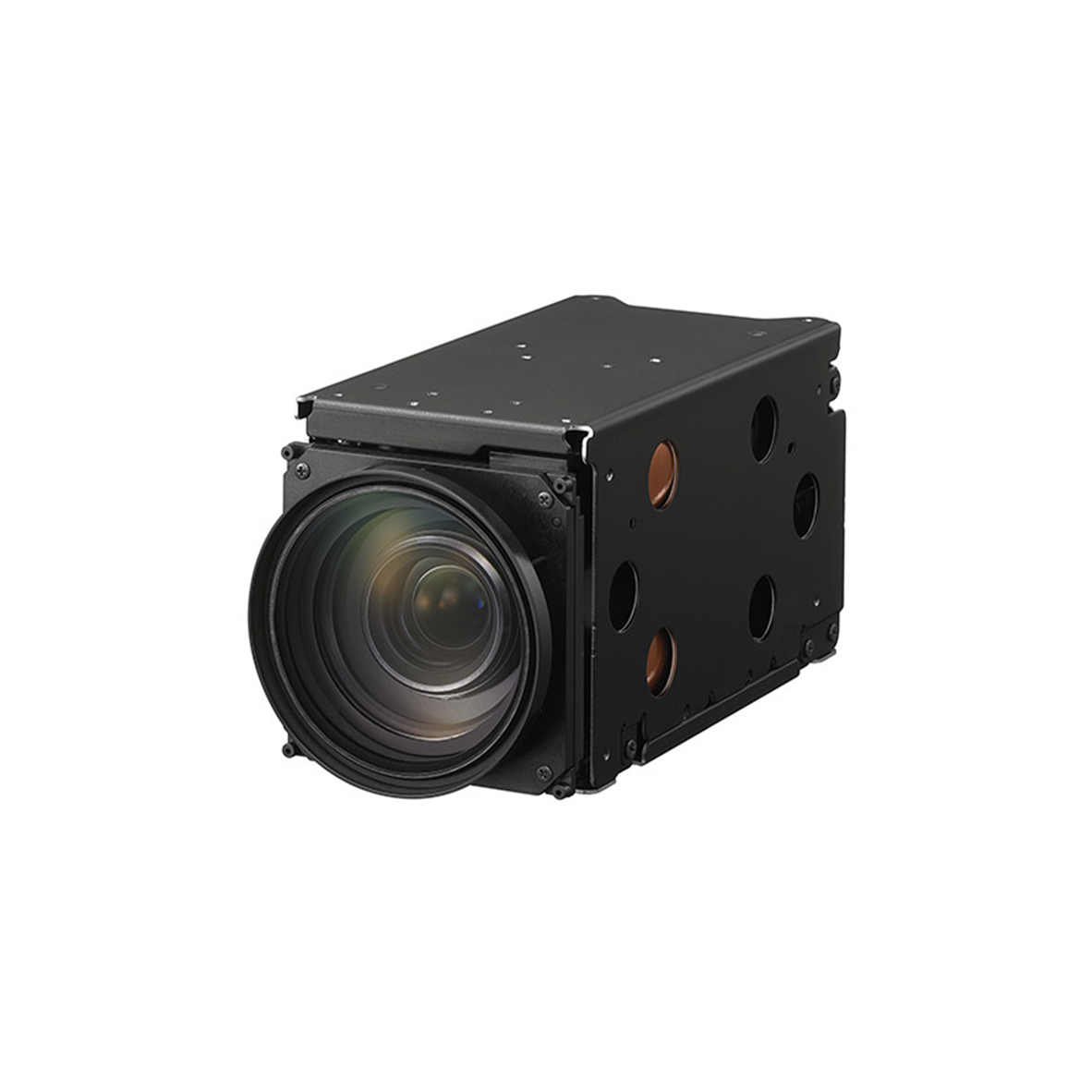

FCB-ER9500 | 2160P60,2160P50,2160P30,2160P25 1080P60, 1080P59.94,1080P50,1080P30,1080P25 720P60,720P50,720P30,720P2 | |
FCB-EW9500H | ||
FCB-ER8530/FCB-CR8530 | 2160P30,2160P25 1080P60, 1080P59.94,1080P50,1080P30,1080P25 720P60,720P50,720P30,720P25 | |
FCB-ES8230/FCB-CS8230 | ||
| FCB-ER8550/FCB-CR8550 | ||
| FCB-ER8300/FCB-CR8300 |
Note: Compatible with most third-party 4K camera modules supporting the Sony VISCA protocol.
Compatible cameras | Sony FCB 4K Ultra HD Series | Video Output Format | 2160P, 1080P, 720P |
Connector | FPC 22Pin, 0.5MM Pitch | Video Output Interface | MIPI CSI-2 Version 1.00 |
Operating Temperature | -5~60℃ (23~140℉) | Power Specification | DC12V 1A |
Net Weight | Approx 8.5g | Product Dimensions | Approx 43*43*5.3mm |

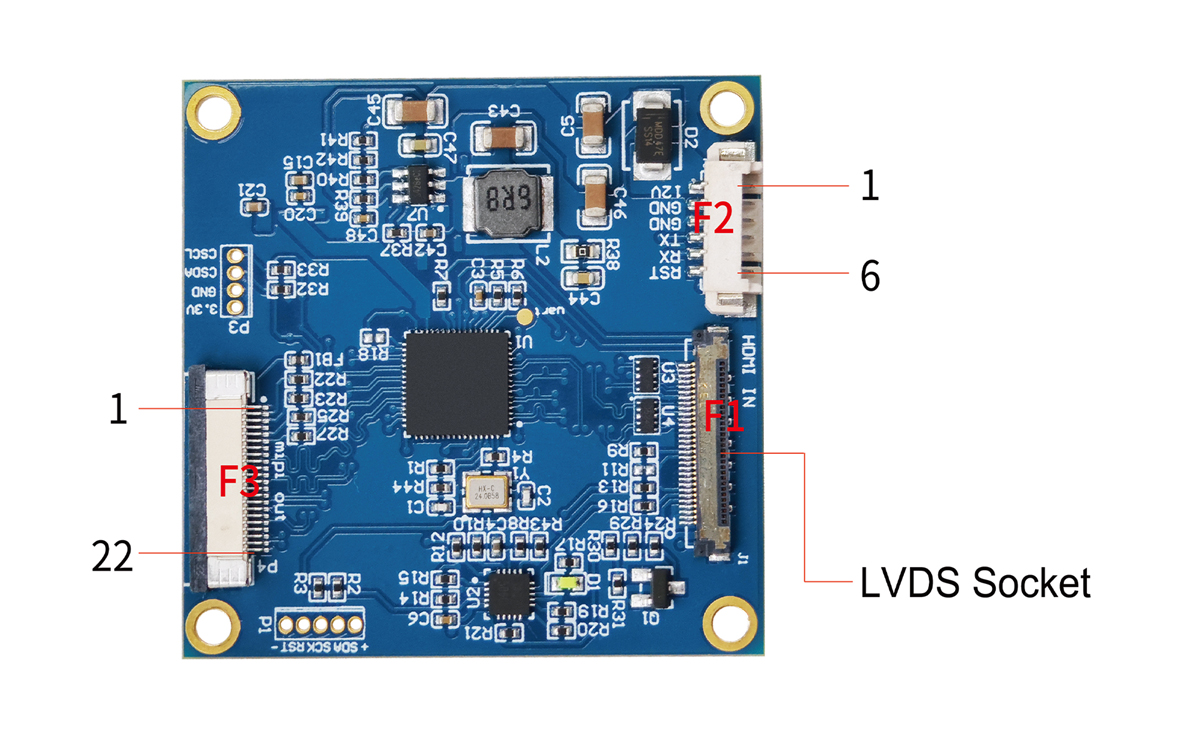

Number | Type | Function |
F1 | LVDS Socket | Connect a 4K HDMI-Compatible signal |
F2 | Molex Connector: Model 532610671, 6-pin socket with 1.25MM pitch | Interface definition see Table F2-1 |
F3 | FPC Interface: 22-pin specification, 0.5MM pitch | Interface definition see Table F3-1 |

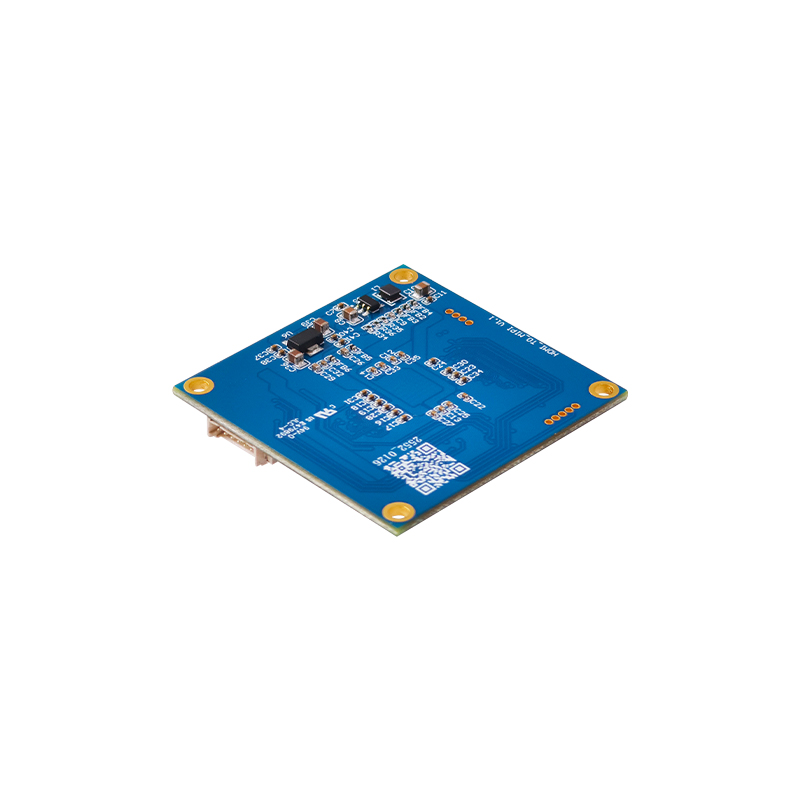

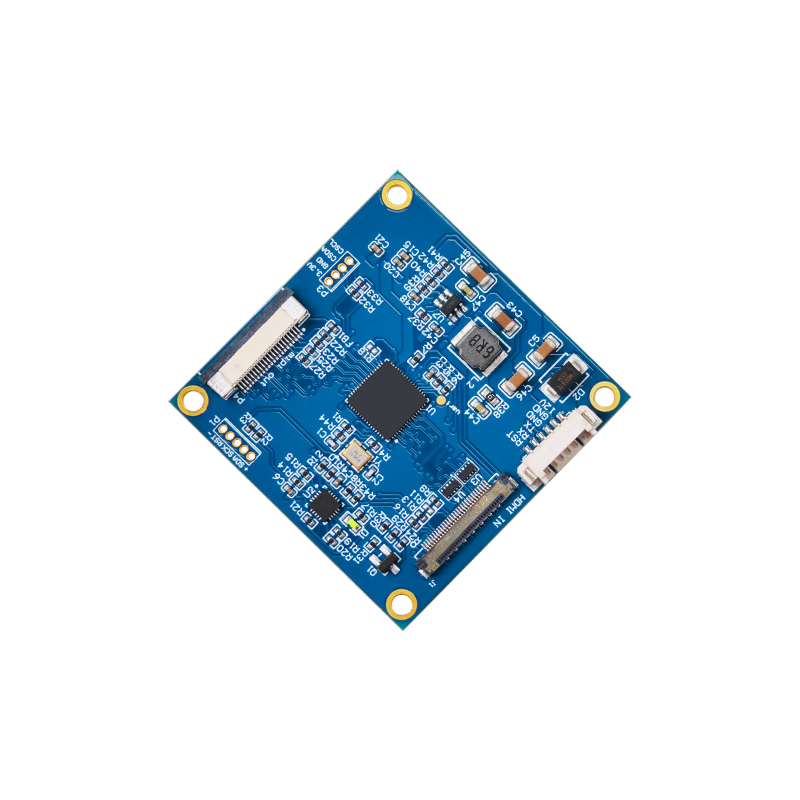

Front Side of the product
| Table: F2-1 | |||
1 | 9V-12V | 4 | TTL_TX |
2 | GND(9v-12v) | 5 | TTL_RX |
3 | GND | 6 | CAM_RST |
Table: F3-1 | |||
1 | 3.3V | 12 | MIPI_TX2_N |
2 | I2C_SDA | 13 | GND |
3 | I2C_SCL | 14 | MIPI_CLK_P |
4 | GND | 15 | MIPI_CLK_N |
5 | NC | 16 | GND |
6 | NC | 17 | MIPI_TX1_P |
7 | GND | 18 | MIPI_TX1_N |
8 | MIPI_TX3_P | 19 | GND |
9 | MIPI_TX3_N | 20 | MIPI_TX0_P |
10 | GND | 21 | MIPI_TX0_N |
11 | MIPI_TX2_P | 22 | GND |
Model No. | Communication Method |
PCB-HD306 | 4K HDMI-Compatible to MIPI conversion |
|
|
| ![]() |
LVDS Coaxial Cable (80mm) Customizable Lengt(Optional) | 6-Pin Terminal Wire (150MM)(Standard) | Screw/Copper pillar: M2*5 (Optional) | An iron plate (Size:50*50MM) (Optional) |
![]() | ![]() | ![]() |

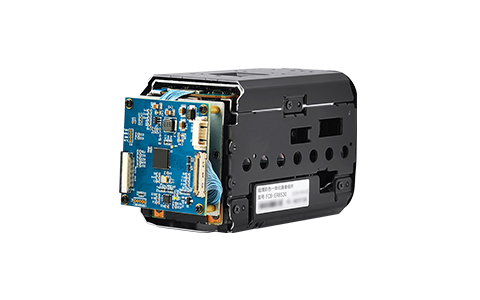

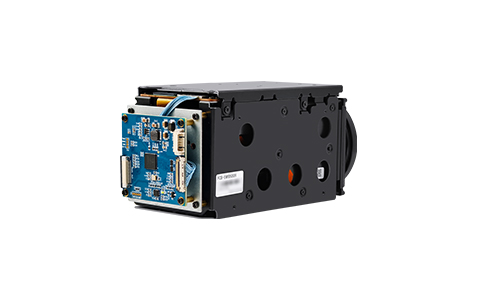

a. Interface board assembled with Sony Block camera FCB-ER9500 | b. Interface board assembled with Sony Block camera FCB-EW9500H | c. Interface board assembled with Sony Block camera FCB-ER8530 |
*Note: The product supports individual purchase or "block camera+interface board" package purchase. The whole set comes without pre-installation by default. Specify installation needs when ordering.
Preparation
|
|
|
| ![]() |
Exemplified by FCB-EV9520L | 30Pin micro Coaxial Cable | 6Pin Terminal Wire | Screw/Copper pillars | Iron Plate |
Connection Steps
Physical Assembly Steps Only (No Electrical Work)
Notes: The steps demonstrate physical connection only-electrical connection is excluded. No image output at this stage. For electrical connection assistance, contact technical support.
|
|
|

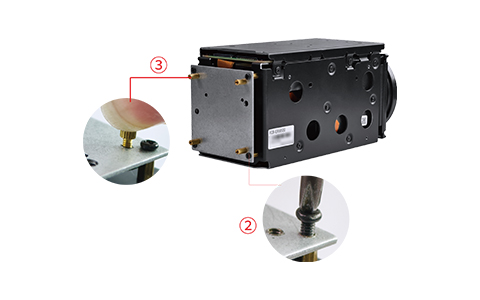

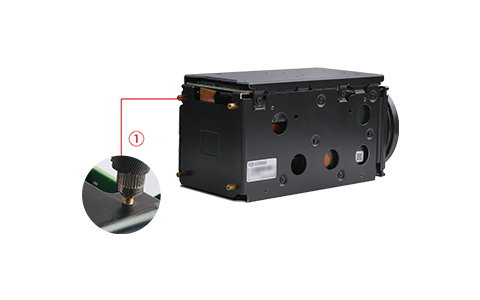

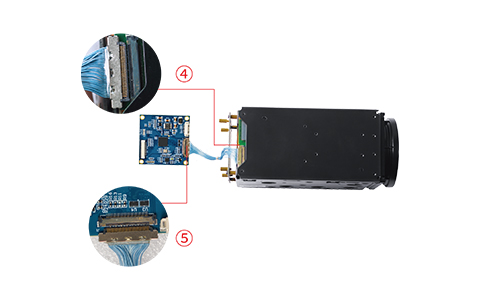

StepⅠ 1. Install four standoffs at the rear of the camera (as shown in Figure ① above). | StepⅡ 2. Install the iron plate at the rear of the camera and tighten the screws (as shown in Figure ② above). 3. Install the iron plate on the brass standoffs (as shown in Figure ③). | Step Ⅲ 4. Connect one end of the LVDS coaxial cable to the UHD camera module(as shown in Figure ④ above). 5. Connect the other end of the LVDS coaxial cable to the 4K HDMI-Compatible to MIPI interface board (as shown in Figure ⑤ above). Notes: Insert LVDS cable with gold-plated contacts up. Reversed insertion may damage the device. |
![]() | ![]() | |

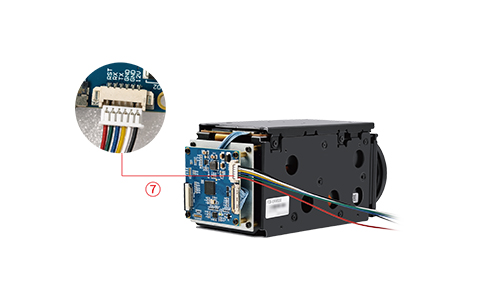

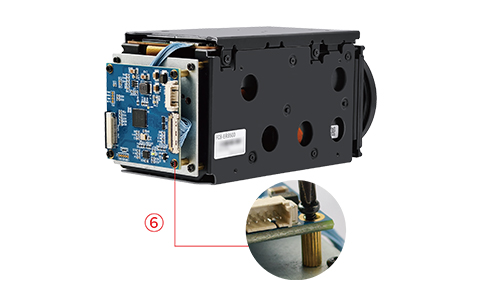

Step Ⅳ 6. Mount the 4K HDMI-Compatibleto MIPI interface board on to the rear side of the camera and fasten the screws. (as shown in Figure ⑥ above). | Step V 7. Plug the 6-pin power cable into the 4K to MIPI interface board (as shown in Figure ⑦ above). |
Thank you very much for purchasing our company's products. If you have any questions, please feel free to contact us.
The photos and actual objects depicted in this Manual are provided solely for reference and guidance to users.
We do not guarantee that they are completely identical to the actual products. Please refer to the actual products.
Design, features and specifications are subject to change without notice.
FCB-ER9500
