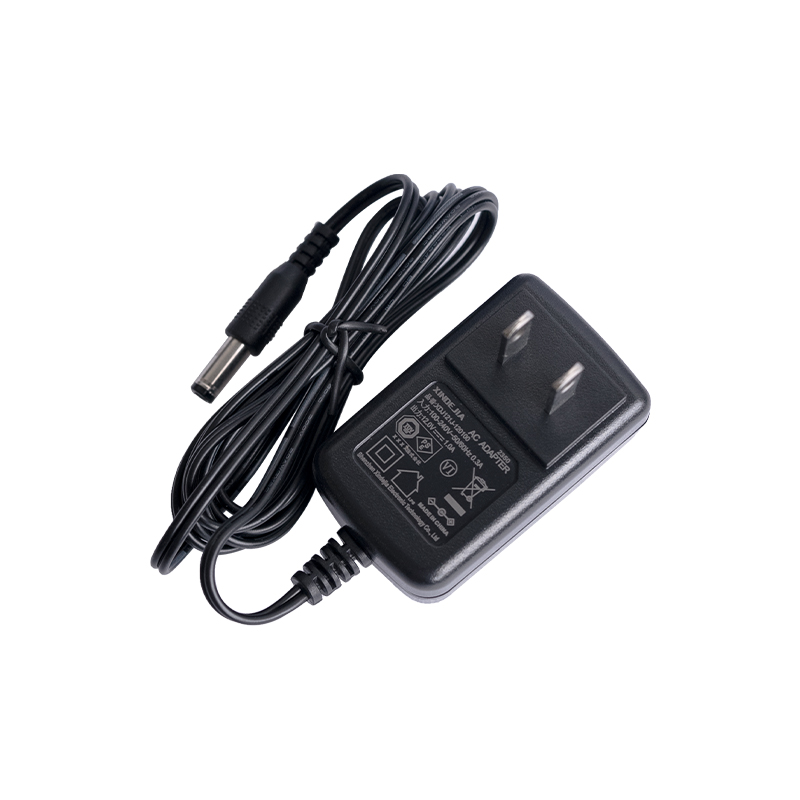

12V 1A DC Power Adapter employs advanced power conversion technology to convert alternating current (AC) into stable direct current (DC) with an output voltage of 12 volts and an output current of 1 ampere. It is widely applicable to routers, surveillance cameras, LED strips, small speakers, game consoles, e-readers, and many other devices that require DC power supply.
• Energy Efficiency Compliance: Meets ERP/CEC-VI energy efficiency standards
• Environmental Compliance: Conforms to RoHS and REACH environmental standards
• Global Safety Certifications:
China: GB-4943, GB-9254, GB-17625, GB-4706, GB-8898, GB19510
Australia/New Zealand: EN61558/EN61347/EN60950/EN60347/EN62368/EN60065
UK/EU: EN61558/EN61347/EN60950/EN60347/EN62368/EN60065
North America: ETL/UL1310, ETL/UL60950, ETL/UL60065, ETL/UL62368
• Comprehensive global certifications: ETL, UL, FCC (North America); CE, GS, CB, BS, ERP (Europe); PSE, KC, KCC (Asia-Pacific); SAA, C-TICK, RCM (Oceania); CCC, CQC (China); DOE (Energy Efficiency); VDE (Germany) + 28 other international authority certifications, covering entry standards for all major global markets
• Compact & Portable: Small size, lightweight, modern appearance, and easy to carry with a fully sealed design
• High Cost Performance & Reliability: Stable performance, low failure rate
• Precision Constant Voltage Output: High accuracy, low noise, and excellent output stability
• Multiple Safety Protections: Built-in over-voltage, over-current, and short-circuit protection
For Routers, Surveillance Cameras, LED Strips, Small Speakers, Game Consoles, E-Readers, and More
|
|
|
|
|

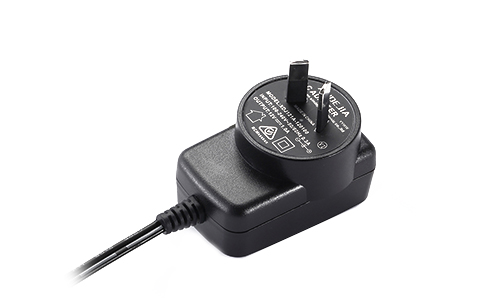

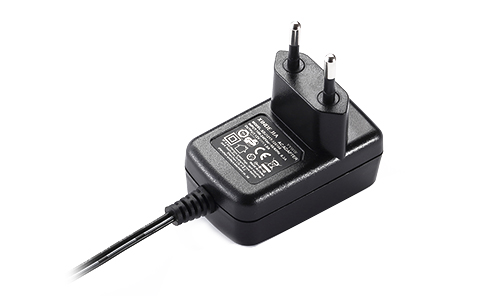

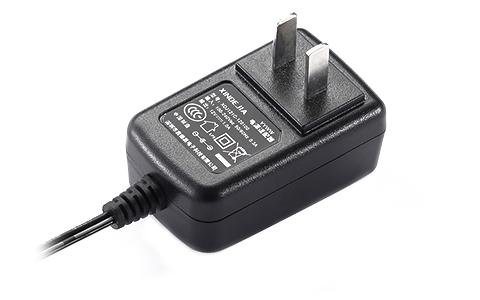

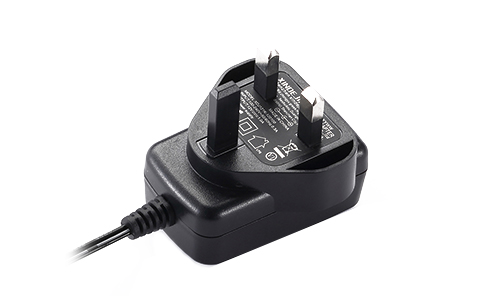

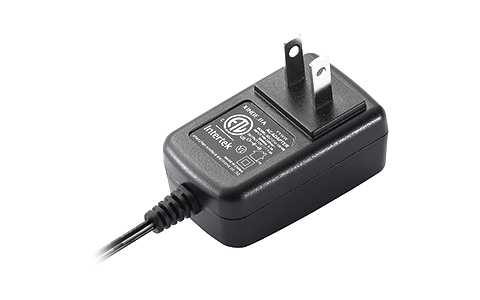

Chinese Plug | Australian Plug | British Plug | American Plug | European Plug |
Q1: How to Use the 12V 1A DC Power Adapter
A1:
1. Connect the power adapter to a power outlet.
2. Connect the DC output end of the adapter to the DC input interface of the device that needs power.
3. After confirming the correct connection, turn on the power switch, and the device will work normally.
Q2: What are the precautions when using a power adapter?
A2:
1. Please confirm whether the voltage and current required by the device match this power adapter before use.
2. Avoid using the power adapter in damp, high-temperature, or flammable and explosive environments.
3. If the power adapter is found to be damaged or abnormal, please stop using it immediately and contact customer service.
Type | CN/AU/UK/US/EU plug standards | Input | 100-240V--50/60Hz 0.3A |
Voltage (Input) | 100-240VAC±10% | Output (Voltage) | 12.0V DC ±1% |
Frequency | 50/60Hz | Output (Current) | 1.0A Max |
MTBF | 50,000 hours | Start-up Time | 3sMax |
| Storage Temperature | -20℃-85℃，5%-95%RH (non-condensing) | Operating Temperature | 0℃-40℃，5%-90%RH (non-condensing) |
| Inrush Current | 20A/240VAC Max | Hold-up Time | 20mS Min |
| Cooling Method | Natural cooling | Product Weight | Approx. 65 g |
Model No. | Communication Method |

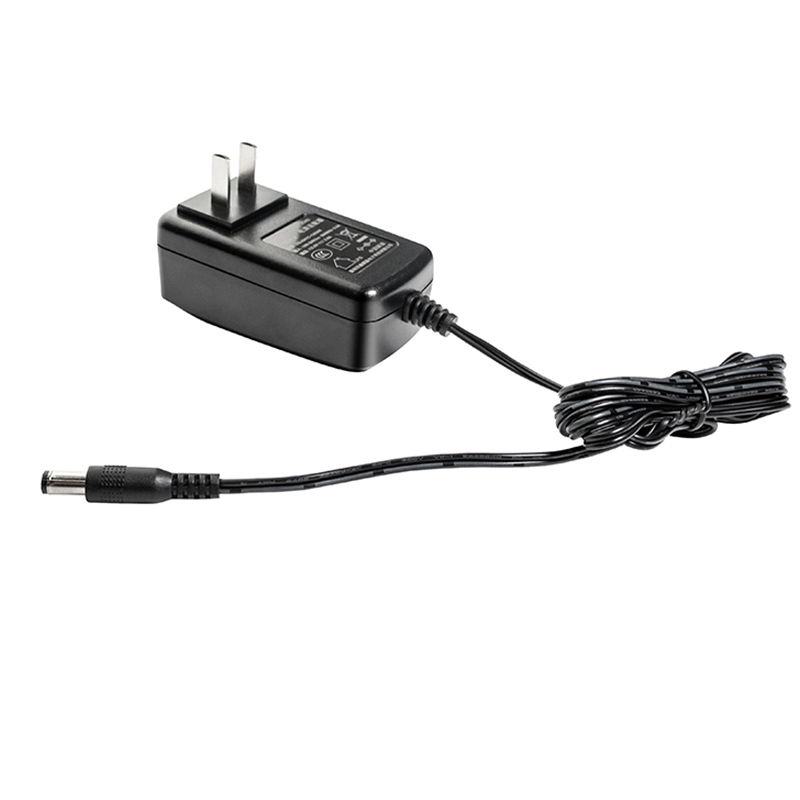

Chinese Plug Model | XDJ121C-120100 |

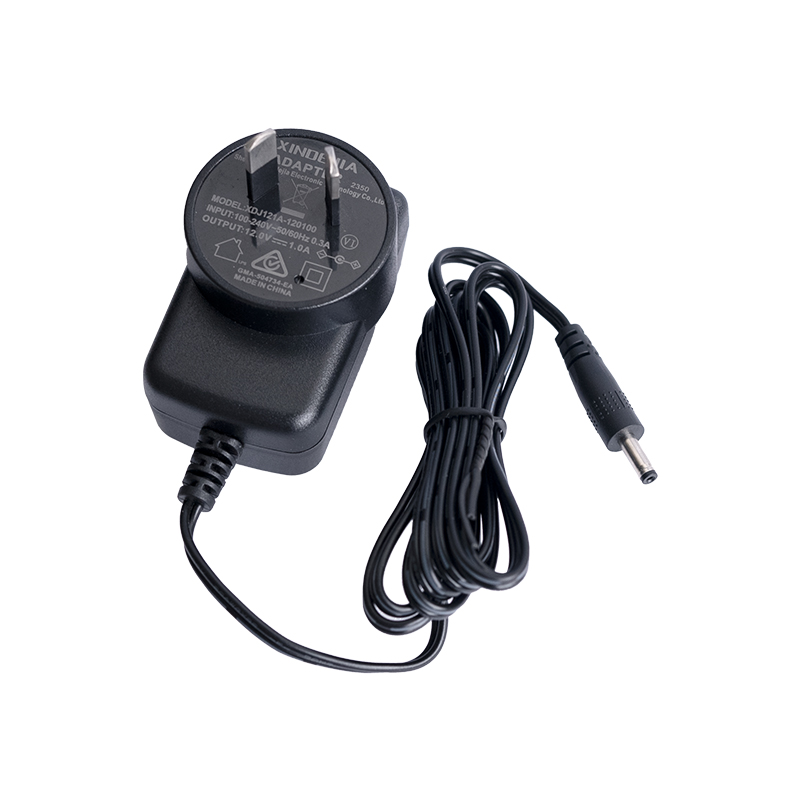

| Australian Plug Model | XDJ121A-120100 |

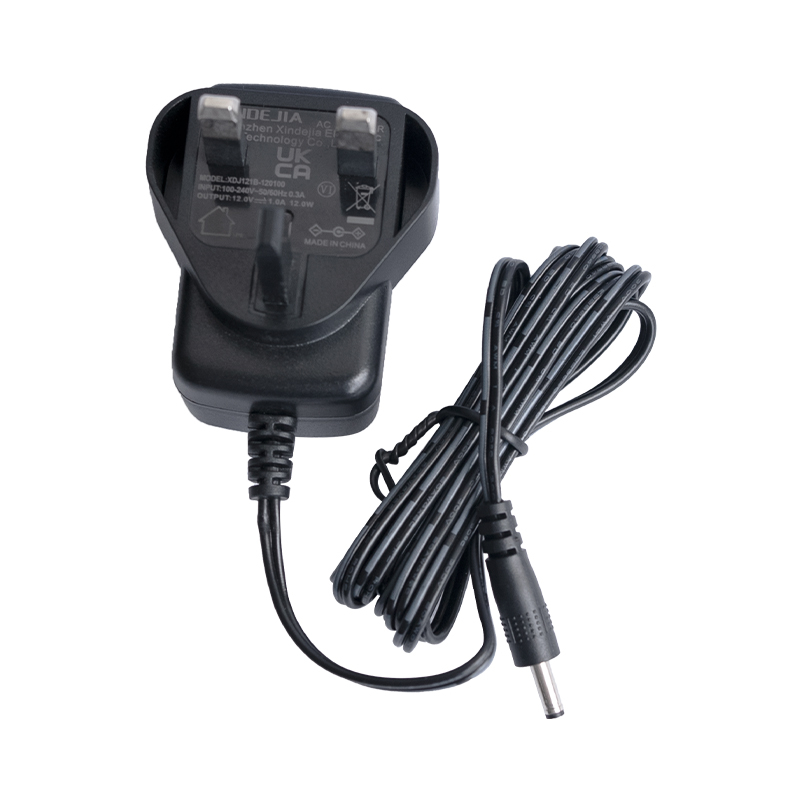

| British Plug Model | XDJ121B-120100 |
| American Plug Model | XDJ121J-120100 |

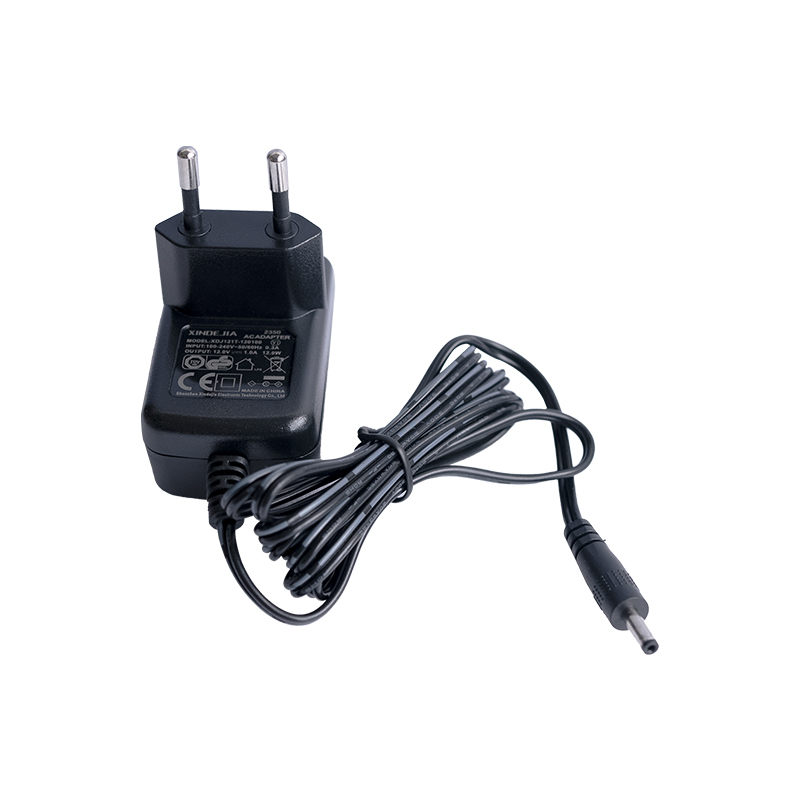

| European Plug Model | XDJ121T-120100 |
