For engineers working on embedded AI vision development, the goal is often to connect the Sony FCB-ER9500—a zoom camera module supporting 4K60P ultra-high-definition imaging—to mainstream SoC development boards such as Rockchip RK3588, NVIDIA Jetson Orin, Raspberry Pi, HiSilicon, and Allwinner, in order to run AI algorithms. However, the FCB-ER9500 outputs 4K HDMI-Compatible signals, while the video input interface on SoC platforms is MIPI CSI-2. The two interfaces are completely incompatible.
To bridge this link, many teams have had to invest significant manpower and resources in hardware design for adapter boards, ISP processing, and other work, with adaptation cycles ranging from several weeks to several months.
Sony (China) Official Authorized Distributor and HD video secondary development solution provider—Our company—brings a mature solution to all AI vision algorithm development engineers: a self-developed 4K HDMI-Compatible to MIPI Interface Board that enables the FCB-ER9500 and mainstream SoC chips to connect quickly.
The hardware reality of embedded AI vision development is as follows:
Camera side: 4K zoom camera modules output HDMI-Compatible to remain compatible with display and recording devices.
SoC side: To connect directly to image sensors, only MIPI CSI-2 is retained.
There are multiple differences between the two in the physical layer, protocol layer, and timing.
For AI algorithm development engineers, this means the entire project R&D chain is forced to be extended: hardware engineers must redesign interface adapter circuits from scratch, repeatedly debug high-speed signal timing, and build ISP image processing from zero.
Interface adaptation itself is not an insurmountable hurdle for most senior hardware engineers. The real difficulty lies precisely in ISP processing. This not only requires R&D personnel to have extensive hands-on experience in image signal tuning, but is also an extremely patience-testing, fine-grained task—even senior engineers with many years of experience may not be able to quickly tune the ideal imaging effect truly suitable for the algorithm model.
As a 4K ultra-high-definition imaging input for AI vision algorithms, the Sony FCB-ER9500 is a benchmark zoom camera for high-end vision projects, providing high-quality raw image data for AI algorithms.
1. Ultra-high-definition image quality: Supports 4K@60FPS UHD output, with rich picture details and accurate texture restoration, suitable for high-precision AI vision algorithms.
2. High dynamic range / wide dynamic range: The Sony FCB-ER9500 has a high dynamic range, fearlessly handling complex environments with strong light and dark light. It effectively suppresses overexposure and noise in dark areas, improving AI recognition accuracy in complex scenes.
3. True color reproduction: The Sony FCB-ER9500 delivers highly realistic color reproduction, better suited to scenarios with extremely high color precision requirements, such as medical imaging AI analysis and industrial defect detection.
4. Zoom capability: The Sony FCB-ER9500 features 25x optical zoom, balancing panoramic monitoring and microscopic detail capture, adapting to multi-scenario AI vision analysis needs. [1]

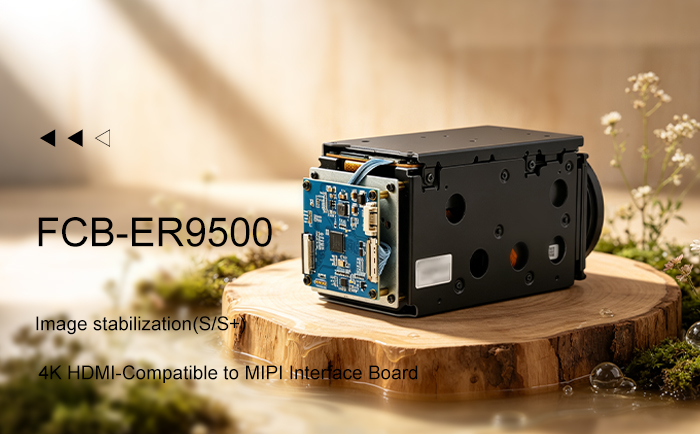

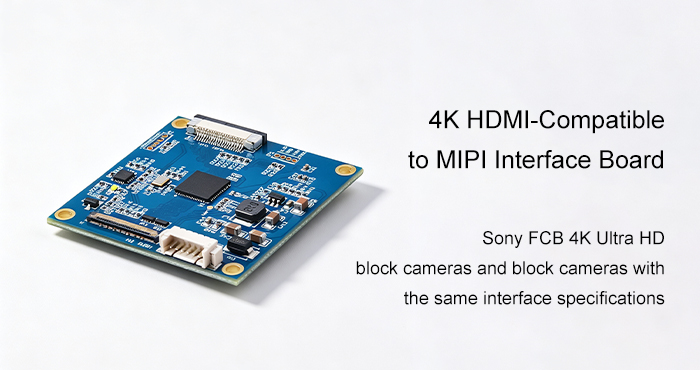

The 4K HDMI-Compatible to MIPI Interface Board is the core bridge connecting the Sony FCB-ER9500 with SoC chips.
1. Multi-spec compatibility: The 4K HDMI-Compatible to MIPI Interface Board supports HDMI-Compatible 2.0 input and losslessly converts it to standard MIPI CSI-2 signals, perfectly compatible with mainstream AI SoCs such as Rockchip, NVIDIA Jetson, Allwinner, Amlogic, and others.
2. 4K lossless conversion: The 4K HDMI-Compatible to MIPI Interface Board supports full frame rate transmission at 4K@60Hz, with no compression, no frame drops, and no image quality degradation, preserving all original image characteristics.
3. Multi-camera-module compatibility: Traditional adapter boards have a common adaptation pain point: when connecting to the same SoC chip, every change to a different camera module model requires developing a new dedicated driver. Even a slight change in camera module selection means the entire driver adaptation work must be redone from scratch.
Our 4K HDMI-Compatible to MIPI Interface Board directly breaks this adaptation barrier: it can uniformly convert video signals output by different camera module models (such as Sony FCB-ER9500, FCB-EW9500H, FCB-CR8530, etc.) into standard MIPI CSI-2 protocol signals. When connecting to the same SoC chip, only one set of general drivers is needed throughout to complete the adaptation. This solution not only greatly saves repetitive driver development costs for AI vision development teams, but also directly shortens the overall project implementation cycle, allowing algorithm teams to devote more energy to iterative optimization of core models.
Note: The 4K HDMI-Compatible to MIPI Interface Board only includes the hardware board and does not include driver software.
What the 4K HDMI-Compatible to MIPI Interface Board solves is not a profound technical challenge, but a real and urgent productization bottleneck. It enables the FCB-ER9500 integrated camera module to connect to mainstream SoC platforms at a lower hardware adaptation cost, allowing AI algorithm developers to focus their energy on areas that truly create value—algorithm accuracy, system stability, and product experience.
Q: Will using the 4K HDMI-Compatible to MIPI Interface Board introduce additional image latency?
A: The latency of the 4K HDMI-Compatible to MIPI Interface Board is controlled within an acceptable range and is almost negligible.
Q: Does the 4K HDMI-Compatible to MIPI Interface Board require additional drivers to adapt to mainstream AI SoC chips?
A: Yes. For different SoC chips, additional drivers need to be developed. Our company only provides the 4K HDMI-Compatible to MIPI Interface Board hardware board and does not include driver software.
[1] FCB-ER9500 Ultra HD Color Camera Component
https://www.sonystyle.com.cn/professional/products/industrial-camera-module/color-camera-module/4k/fcb-er9500.html
Danny Wang, Co-founder and CTO of Our company, compiled in September 2026.
