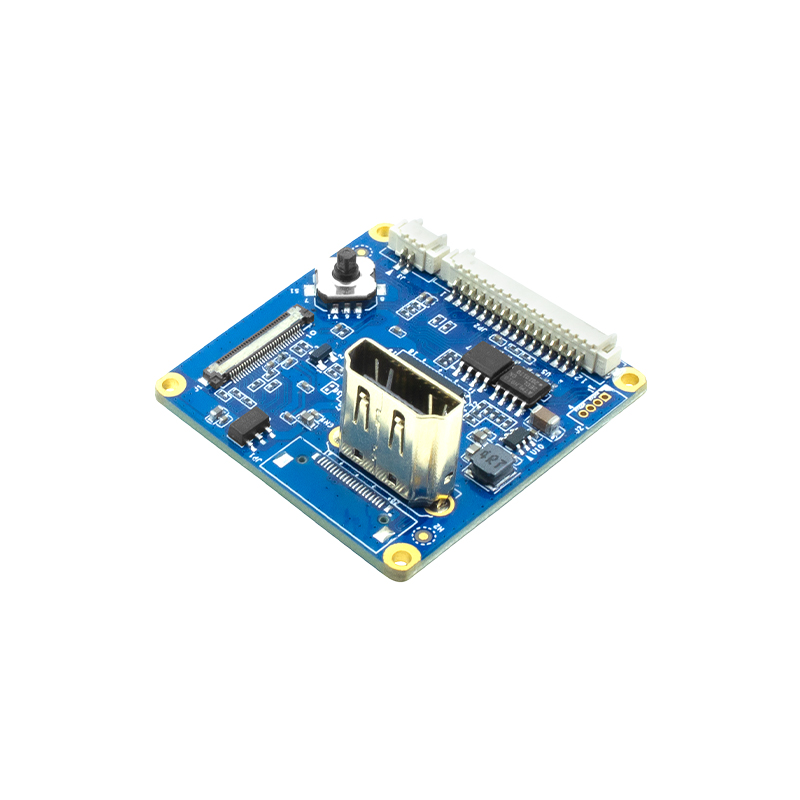

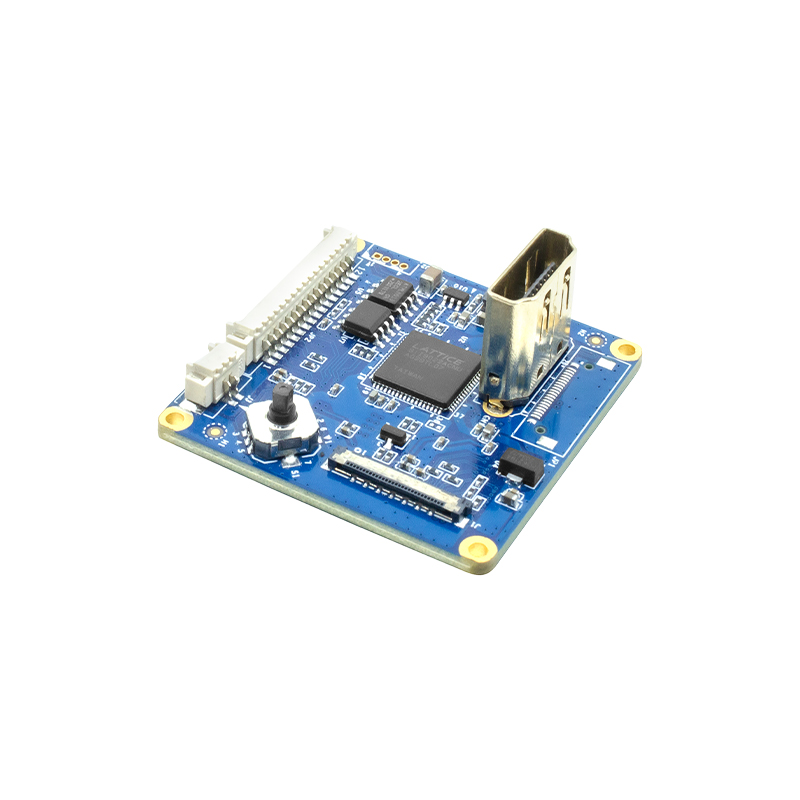

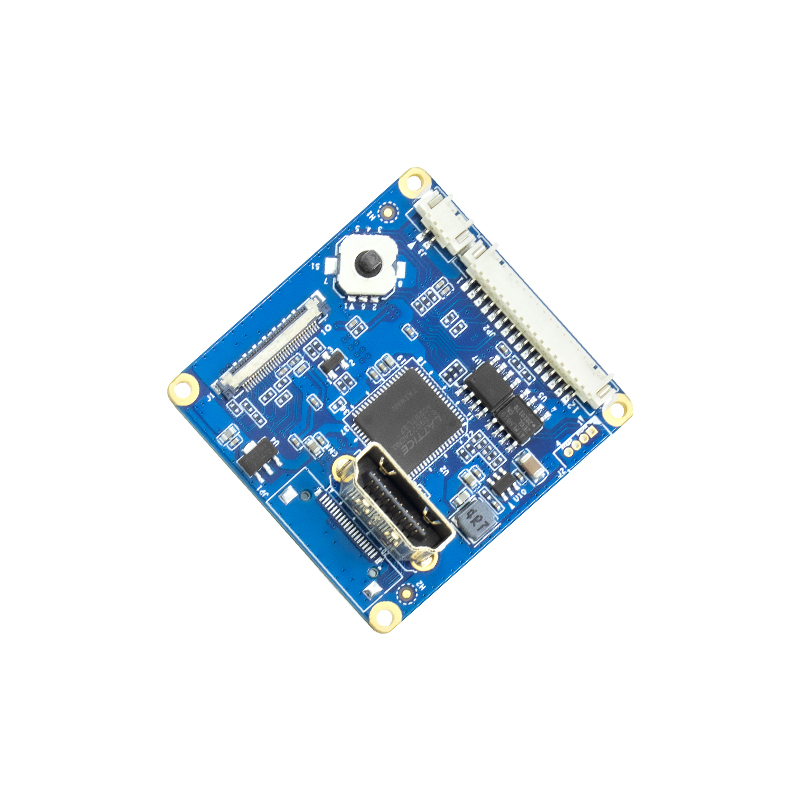

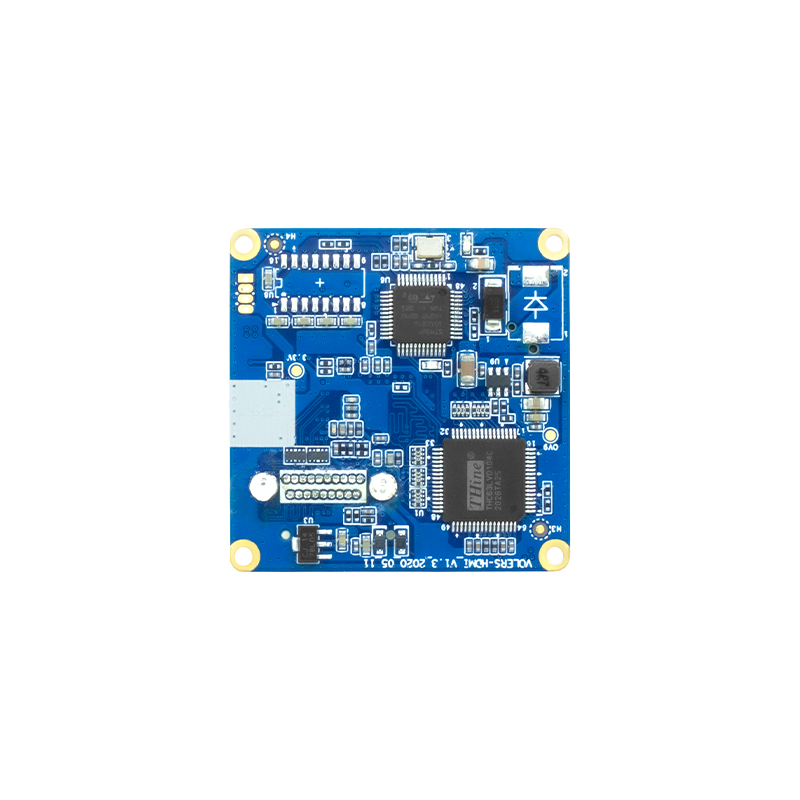

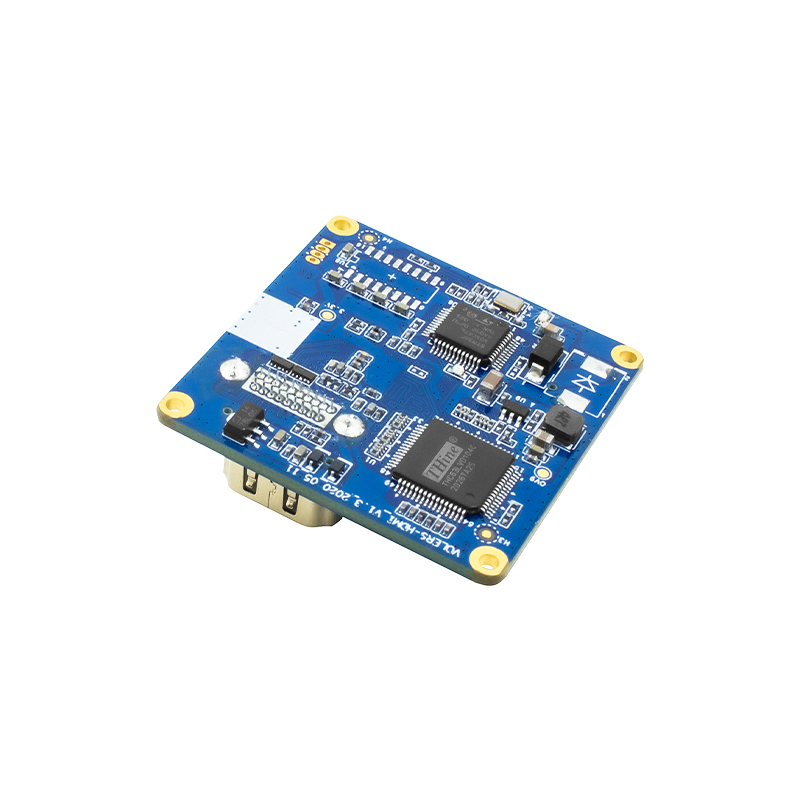

HD-HDMI Compatible Interface Board is specifically designed and tailored for Sony's FCB series cameras, aiming to provide outstanding solutions for the high-definition video field.
It adopts a single 4-layer military-grade PCB board, with its surface treated through gold plating to enhance solderability and effectively prevent virtual soldering issues.
High-quality electronic components are selected, including a HDMI-compatible interface, ARM processor, imported original chips from abroad, and capacitors and resistors from reputable brands. From component selection to process, every aspect ensures product performance and quality, providing stable and reliable control support for high-definition block cameras.
1. Connection and Signal Recognition: By connecting to the Sony FCB HD series cameras via an LVDS cable, various formats of high-definition signals can be automatically recognized and displayed without any setup required for the camera.
2. Parameter Setup and Control:
•OSD menus can be accessed through a five-way button or RS485 control keyboard, facilitating the setup and saving of various technical parameters for the block cameras.
•Supports RS485 control and can automatically recognize PELCO-D and PELCO-P protocols. The baud rate can be set to 2400bps, 4800bps, or 9600bps,
with an address configuration range of 1-255.
3. Functional Characteristics:
•Equipped with power-off memory function. After saving the camera core parameter settings, there is no need to reset the parameters when the camera is
powered on again after a power outage.
•Features a unique video format modification function. When the image cannot be displayed, the video format can be adjusted to 720P50 or 1080I50, and
the video format can be remotely changed via a 485 control keyboard.
•Offers 10 preset positions and an automatic touring function (optional), with cruising time configurable between 5-999 seconds.
•Compatible with various domestically produced camera cores supporting the Sony VISCA protocol.
4. Application Fields: The HD-HDMI compatible interface board is widely used in fields such as aerial photography, weak-light imaging, video conferencing, medical equipment, and other professional instrumentation equipment.
Brand | Model | HDMI | The HD-HDMI compatible interface board connects to the block camera via a LVDS cable. It can output HDMI-compatible video signals and automatically identify high-definition signals. Supported Video Formats: 1080P Format： Supports 1920x1080P60/1920x108059.94/ 1920x1080P50/1920x1080P30/ 1920x1080P29.97/1920x1080P25 1080I Format： Supports 1920x1080I60/1920x1080I59.94 (However, Volers and Tamron cameras are not supported.) 720P Format： Supports 1280x720P60/1280x720P59.94/ 1280x720P50/1280x720P30/ 1280x720P29.97/1280x720P25 |
Sony | FCB-EV9520L | 1080P60，1080P59.94 ，080P50，1080P30， 1080P29.97，1080P25 1080I60，1080I59.94 720P60，720P59.94，720P50，720P30， 720P29.97，720P25 | |
FCB-EV9500L | |||
FCB-EV7520A | |||
FCB-EV7520 | |||
FCB-EV7100 | |||
FCB-EH6300 | 1080P29.97,1080P25,720P59.94,720P50 | ||
Volers | VRS-HD5101 | 1080P60, 1080P50，1080P30，1080P25 720P60，720P50，720P30，720P25 | |
VRS-HD5201 | |||
VRS-HD5301 | |||
VRS-HD5363 | |||
VRS-HD5365 | |||
Tamron | MP3010M-EV |
*Note: This product works with Sony's FCB HD cameras and other compatible camera blocks supporting Sony's Visca-command.
Compatible cameras | Sony FCB high-definition series camera, and most non-Sony camera blocks supporting Sony Visca command. | Video Output Format | 1080P、1080I、720P |
Pelco Protocol | Automatically recognizes PELCO-D/P protocols | Video Output Interface | HDMI-compatible Type A |
Communication Protocol | RS-485 (standard), RS-232 or TTL232(optional) | Baud Rate | 9500dps、4800dps、9600dps |
Operating Temperature | -5 ~ 60°C(23°F ~ 140°F) | Power Supply | DC12V 1A |
Product Net Weight | Appox 11.5g | Product Dimensions | Appox 42*42*15mm |
Number | Pin Type | Pin definations |
F1 | Five-way switch | Supports focus adjustment, zoom control, and menu calling functions. |
F2 | HDMI-compatible Type-A plug | Used for transmitting high-definition video signals. |
F3 | LVDS socket | Connects to the LVDS interface of the block camera. |
F4 | Moles connector: Model 532610271, using a 2-pin socket with a 1.25MM pitch | 12V DC power input terminal |
F5 | Moles connector: Model 532611671, using a 16-pin socket with a 1.25MM pitch | External button interface, the interface definition as shown in table: F5-1 |
Table: F5-1 | |||||||
1 | Zoom out | 5 | Menu key | 9 | Red gain decrease (optional) | 13 | RX data interface (optional) |
2 | Zoom in | 6 | Auto white balance (optional) | 10 | Blue gain increase (optional) | 14 | 485 input A |
3 | Focus near | 7 | One-key white balance (optional) | 11 | Blue gain decrease (optional) | 15 | 485 input B |
4 | Focus far | 8 | Red gain increase (optional) | 12 | TX data interface (optional) | 16 | GND |
Model No. | Communication Method |
PCB-HD111 | With RS-485 control |
PCB-HD115 | With RS-485 & RS-232 control |
|
|
|
|  |

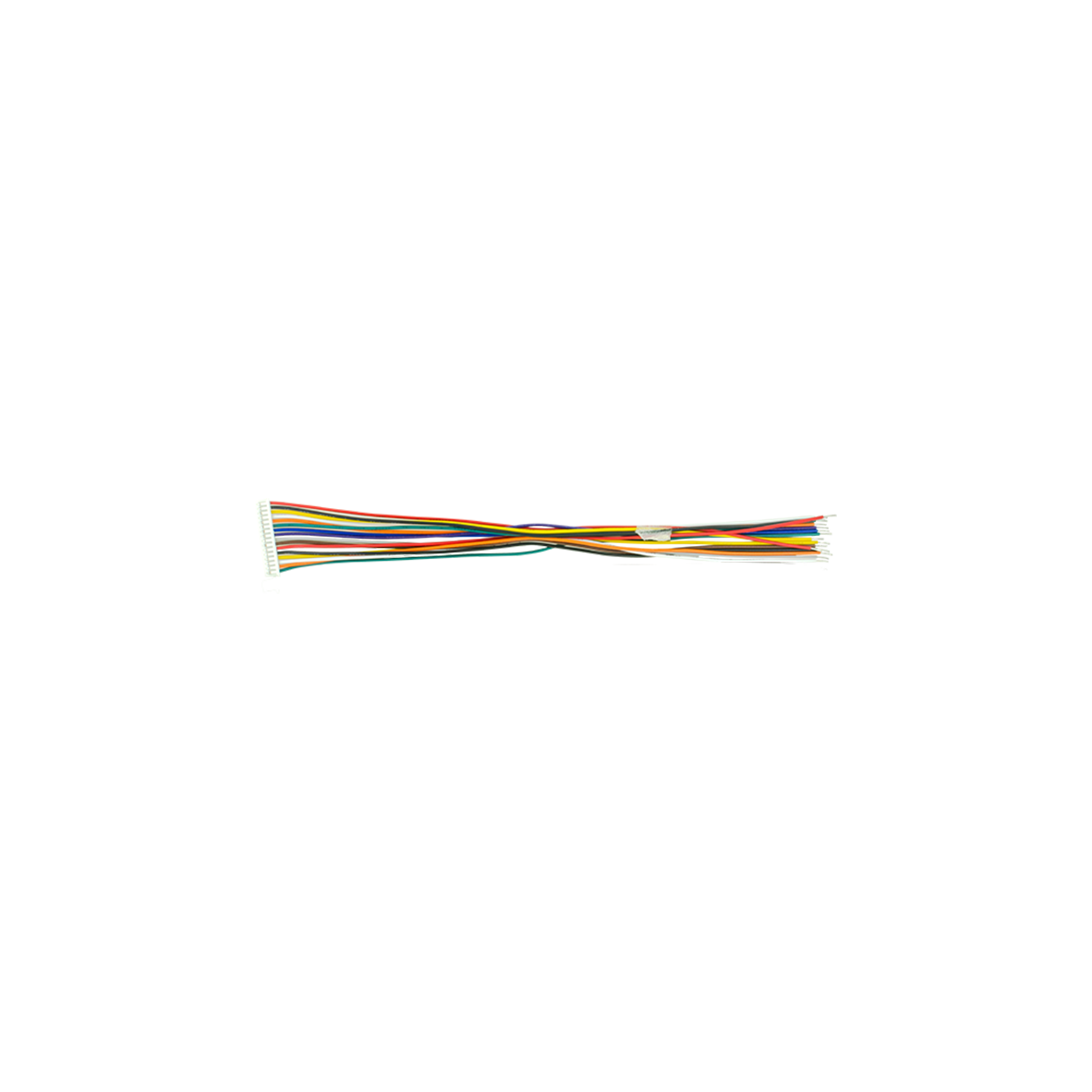

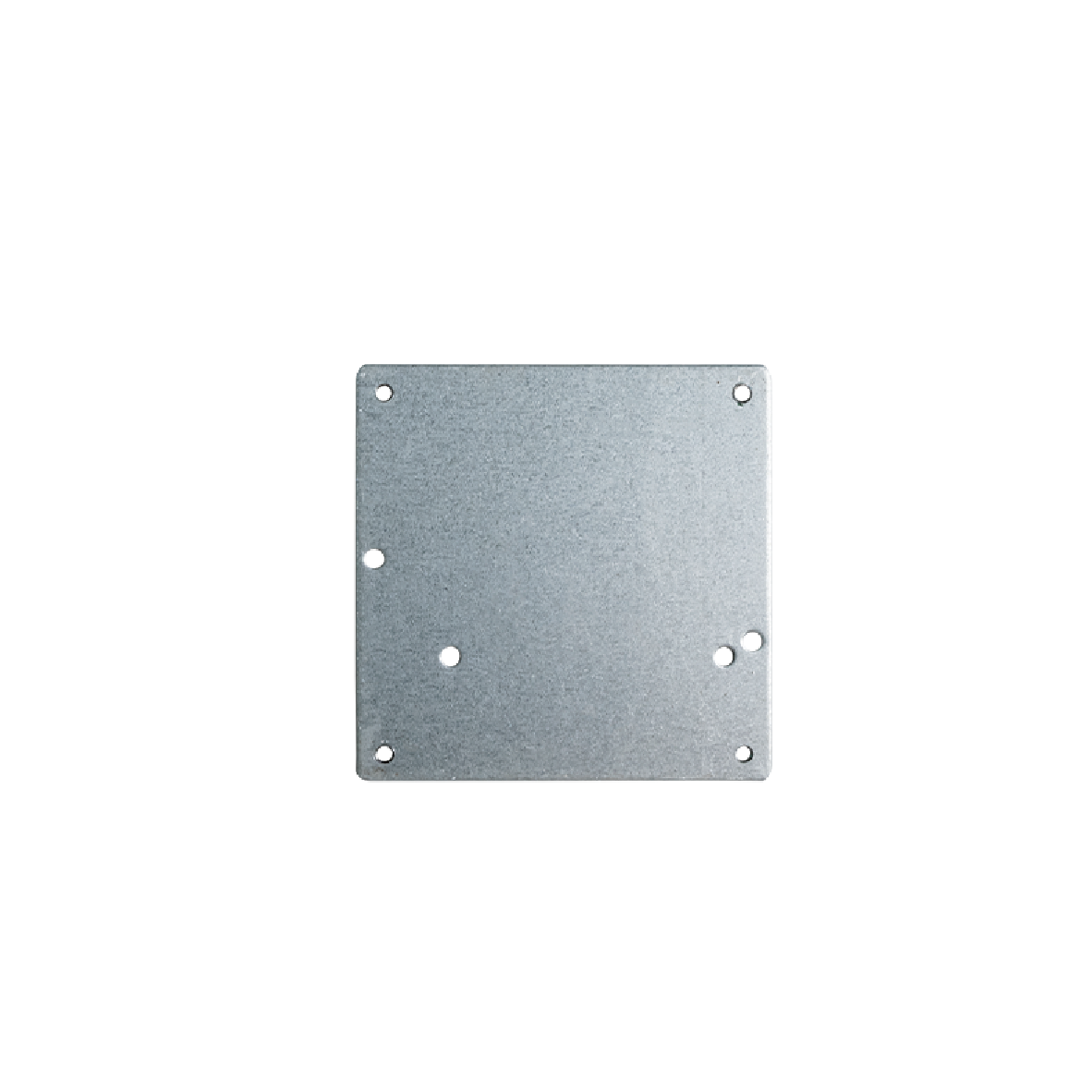

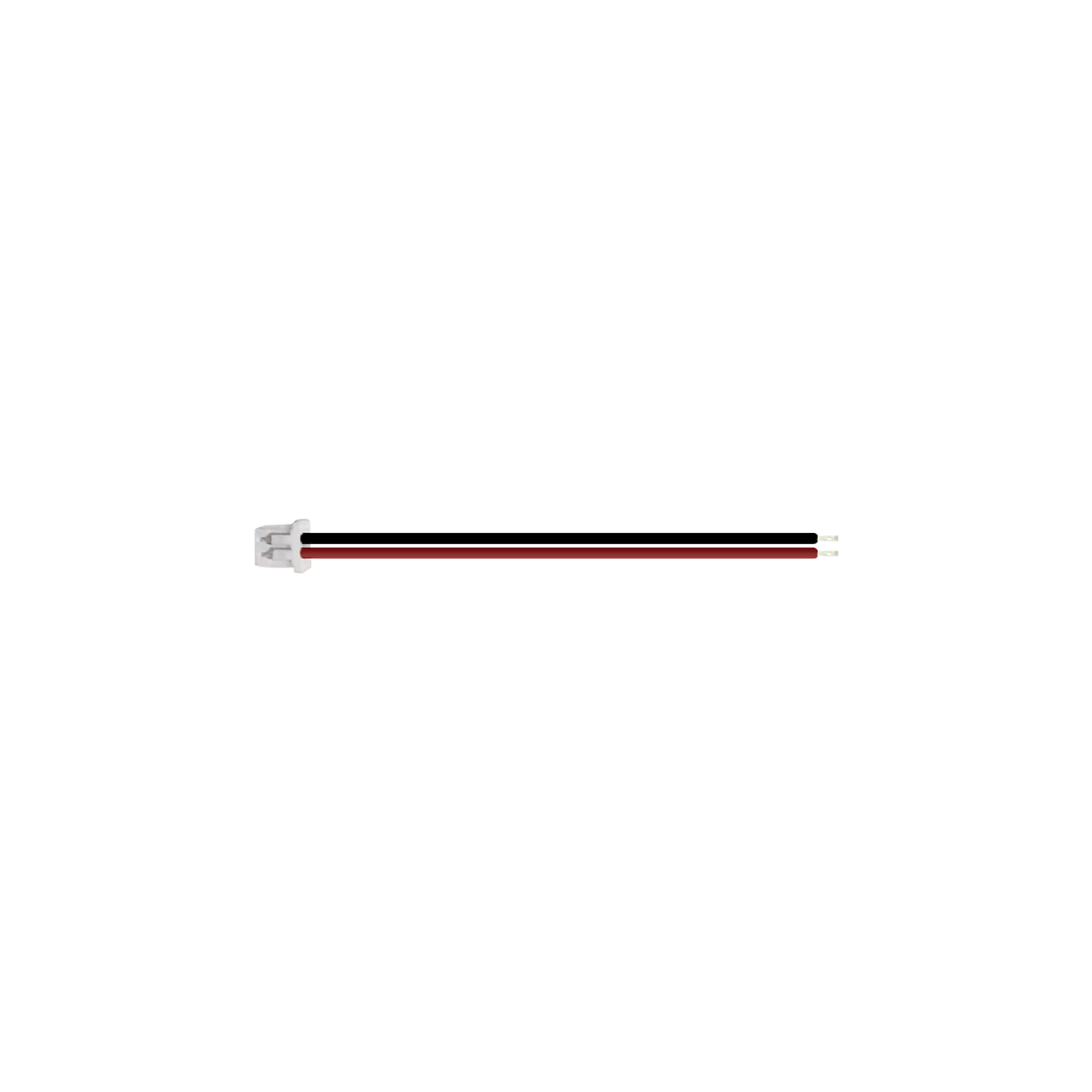

LVDS Coaxial Cable (80MM) Customizable Length（Optional） | 2-Pin Terminal Wire (150MM)(Standard) | 16-Pin Terminal Wire (150MM) (Standard) | Screw/Copper pillar: M2*5 (Optional) | An iron plate (Size:50*50MM) (Optional) |
 |  |  |

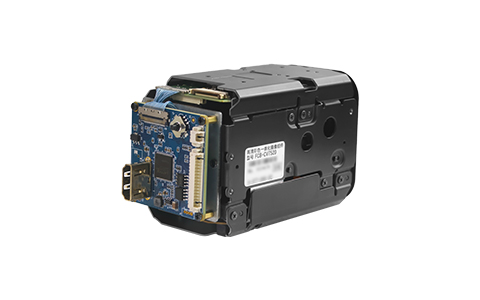

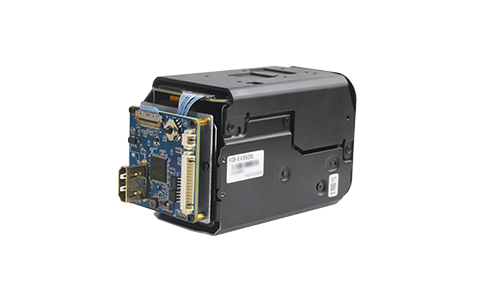

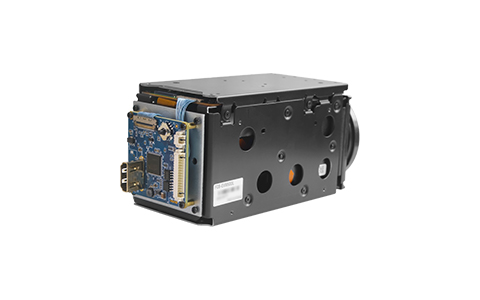

a. Interface board assembled with Sony Block camera FCB-EV9520L | b. Interface board assembled with Sony Block camera FCB-EV9500L | c. Interface board assembled with Sony Block camera FCB-EV7520 |
*Note: The product supports individual purchase or "block camera+interface board" package purchase. The whole set comes without pre-installation by default. Specify installation needs when ordering.
Preparation
|
|
|
|
|  |

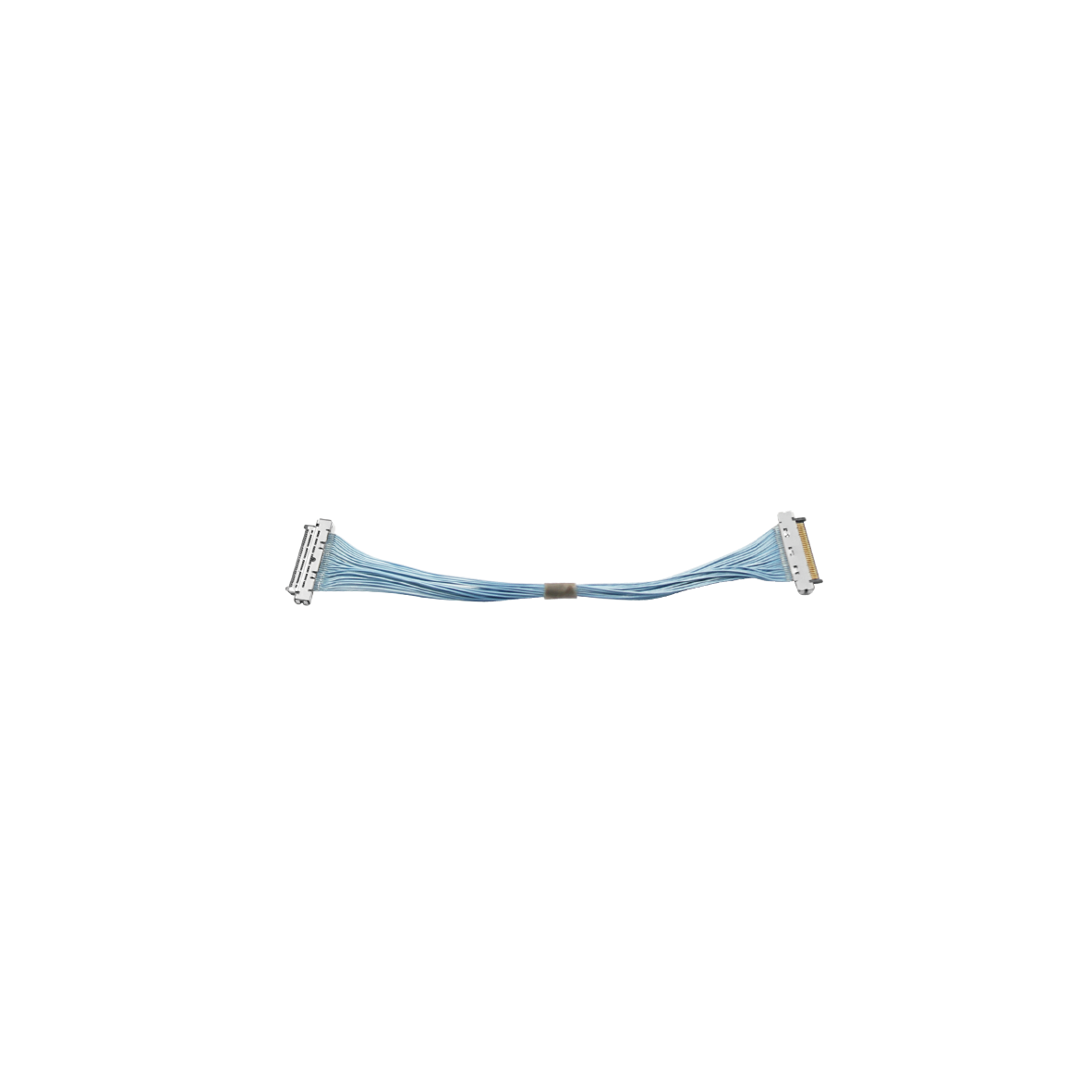

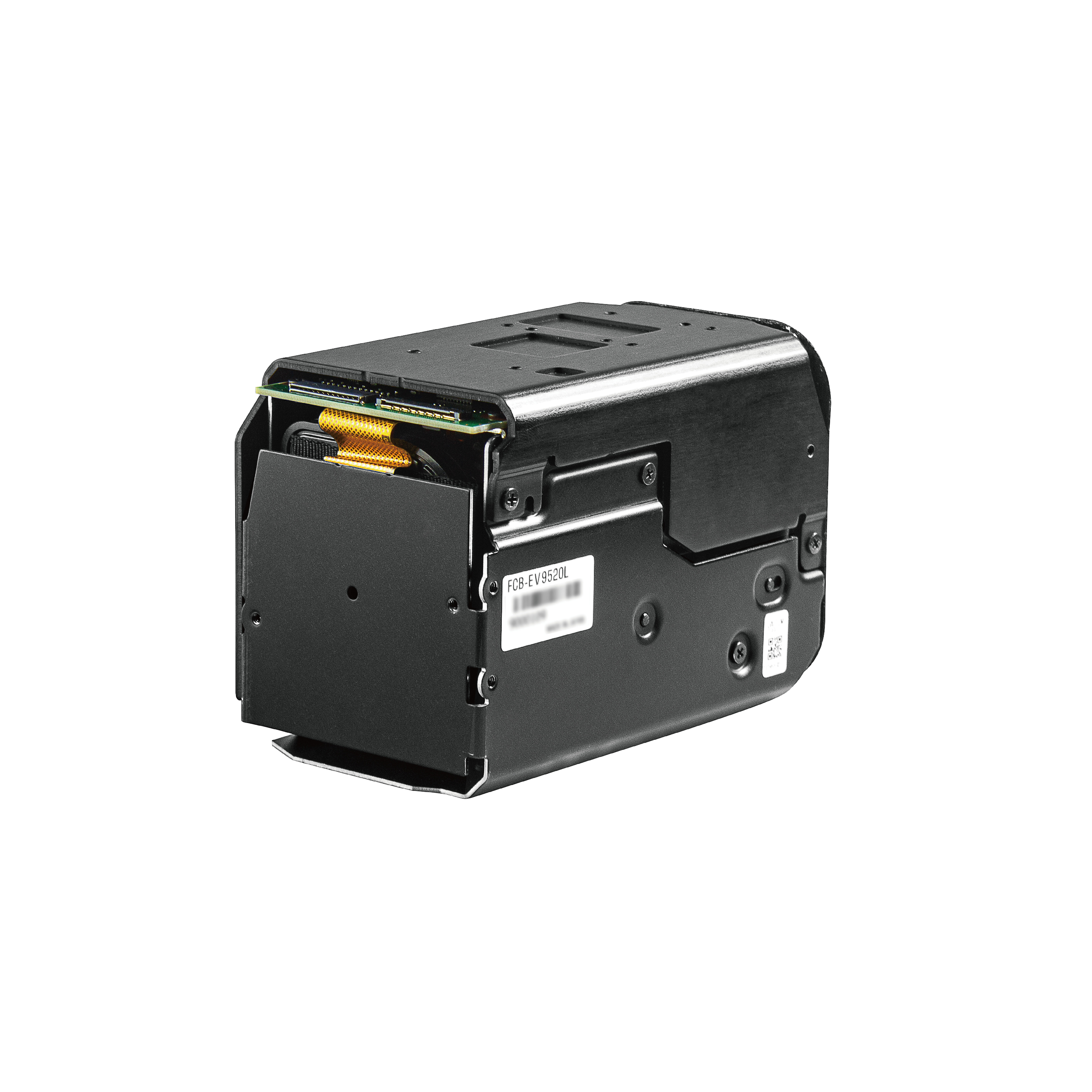

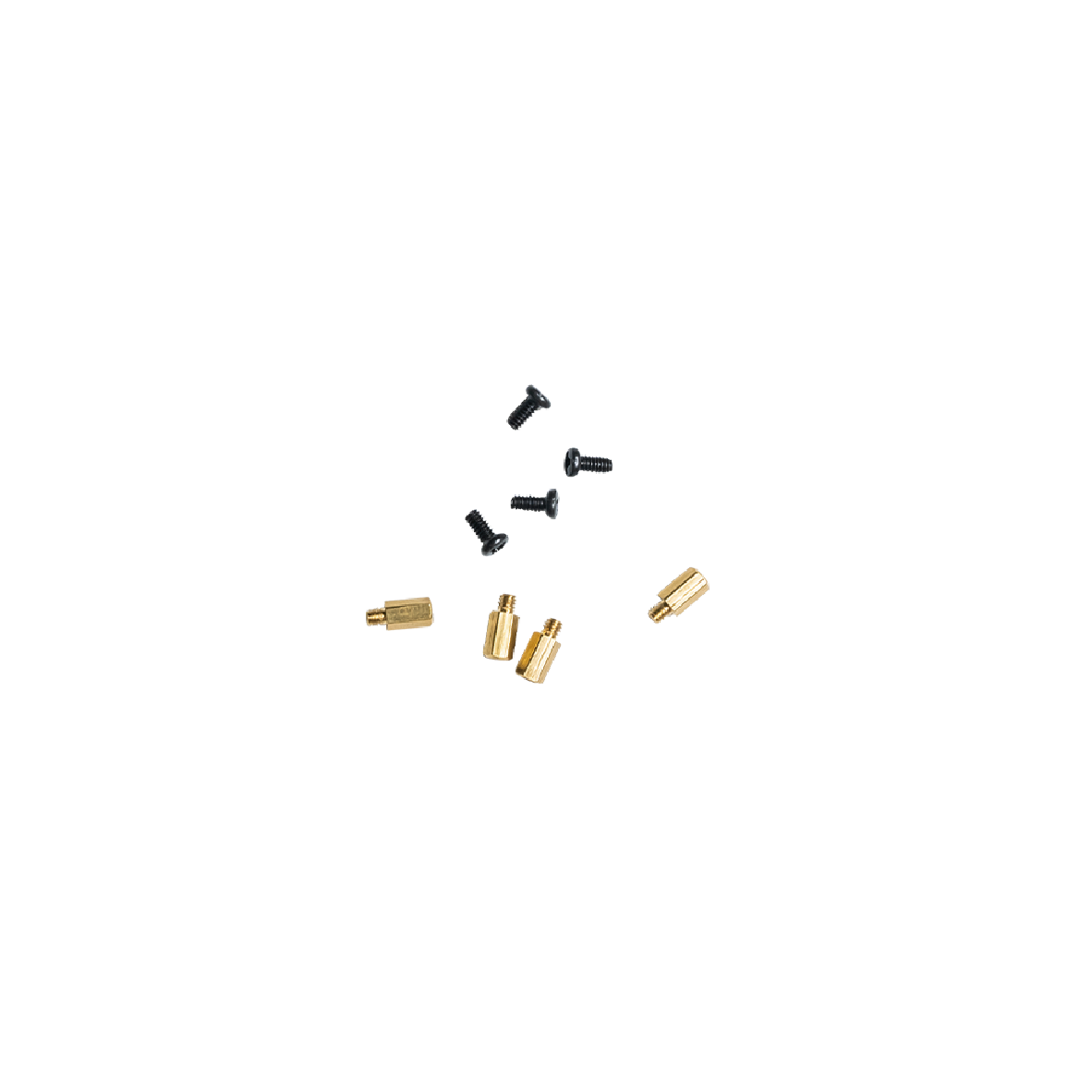

Exemplified by FCB-EV9520L | 30Pin LVDS Coaxial Cable | 2pin terminal wire | 16pin terminal wire | Screw/Copper pillars | Iron Plate |
Connection Steps
Physical Assembly Steps Only (No Electrical Work)
Notes: The steps demonstrate physical connection only-electrical connection is excluded. No image output at this stage. For electrical connection assistance, contact technical support.
|
|
|

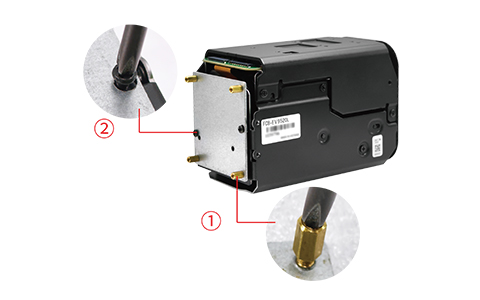

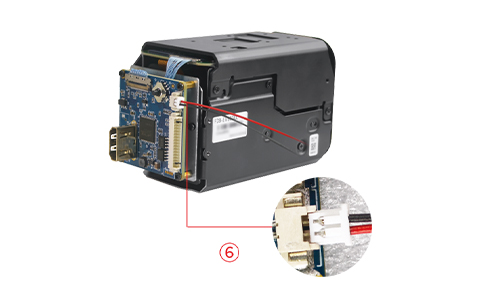

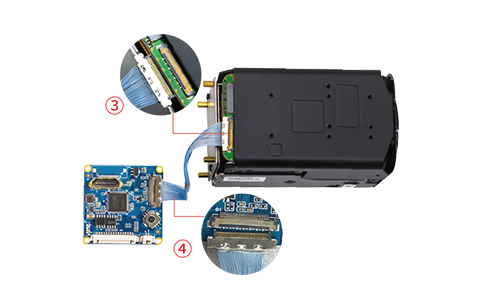

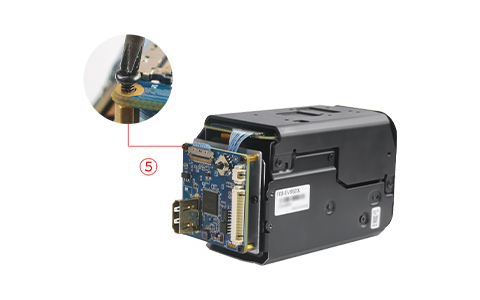

StepⅠ: 1. Install four copper pillars onto the iron plate (as shown in Figure ① above). 2.Install the iron plate onto the rear of the camera and tighten the screws (as shown in Figure ② above). (as shown in Figure ① above). Note: Align with the holes during separation. | StepⅡ: 4. Connect the other terminal of the 30-pin micro coaxial cable to the interface board (as shown in Figure ④ above). Caution: Plug in the micro coaxial cable with gold-plated pins on camera facing up. Reverse insertion is strictly prohibited. | Step Ⅲ: |
 |  | |

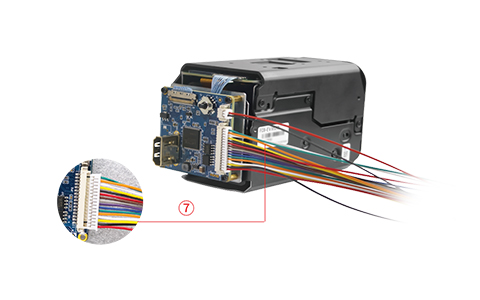

Step Ⅳ: | Step Ⅴ: |
Thank you very much for purchasing our company's products. If you have any questions, please feel free to contact us.
The photos and actual objects depicted in this Manual are provided solely for reference and guidance to users.
We do not guarantee that they are completely identical to the actual products. Please refer to the actual products.
Design, features and specifications are subject to change without notice.
