Views: 0 Author: Site Editor Publish Time: 2026-10-23 Origin: Site

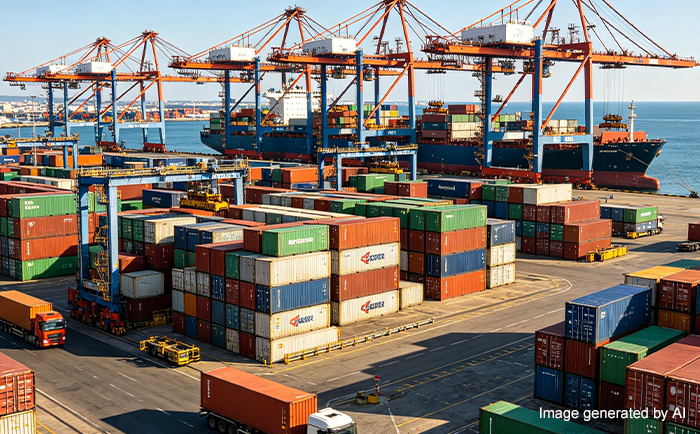

As a core hub for land and water logistics, ports have complex and ever-changing operating environments: strong reflections from the sea surface, fog and rainy weather, large light contrast between day and night, strong vibration from gantry cranes and ship equipment, fast movement of containers and vessels, and many blind spots in distant port areas.
To address these complex port scenarios, Ruiloog Electronic [1], a Sony (China) authorized distributors, recommends the Sony FCB-EW9500H + 4KP60 AI Capable & Addable IP Interface Board 4-megapixel video solution. It delivers 4K60 high-resolution, high-frame-rate imaging and long-distance transmission capability, fully adapting to full-area port surveillance scenarios.
The difficulty of port surveillance lies in image stability and monitoring practicality under complex environments:
1. Complex lighting: Strong sea-surface reflections, day-night brightness transitions, and severe backlight from dock lights cause overexposure and detail loss in ordinary surveillance images;
2. Harsh environment: Equipment vibration causes image blur and smearing;
3. High-speed dynamics: Container trucks and operating vessels move quickly; low-frame-rate recording stutters and smears, making accurate evidence collection impossible;
4. Difficult nighttime guarding: Traditional equipment produces black-and-white images in low light, unable to distinguish hull markings or cargo features, resulting in low evidentiary value.
As a 4-megapixel autofocus camera module in Sony's 9500 series, the FCB-EW9500H is purpose-built for high-end industrial security scenarios. It features a 1/1.8-inch STARVIS large-format CMOS sensor, 4-megapixel 2160P@60fps output, and RGB 4:4:4 full-color sampling, delivering rich detail and accurate color reproduction—perfectly suited to the port's high-precision evidence collection requirements.
The Sony FCB-EW9500H's 30x enhanced optical zoom is a core advantage for wide-area port monitoring. With a 6.5–162.5 mm zoom range, it can cover the full dock panorama and quickly focus on distant container numbers, vessel markings, and quay crane equipment details, greatly reducing the number of surveillance points required and lowering construction and O&M costs.
To address the day-night guarding challenge in ports, the Sony FCB-EW9500H is equipped with 0.00008 lx starlight-level color night vision and an ICR ON COLOR infrared-sensitive color imaging solution, maintaining color images even in low light. Nighttime vessel berthing, dock operations, and perimeter security details remain clearly discernible. It also features new super image stabilization technology, effectively counteracting vibration from gantry cranes, vessels, and vehicle-mounted PTZs, keeping dynamic scenes stable and smear-free throughout.
The Sony FCB-EW9500H includes built-in wide dynamic range, defog (low/medium/high), 3D+2D noise reduction, and area auto focus/exposure/white balance algorithms [2], accurately handling complex scenarios such as sea-surface backlight and sudden light changes in ports, ensuring clean and transparent images around the clock.

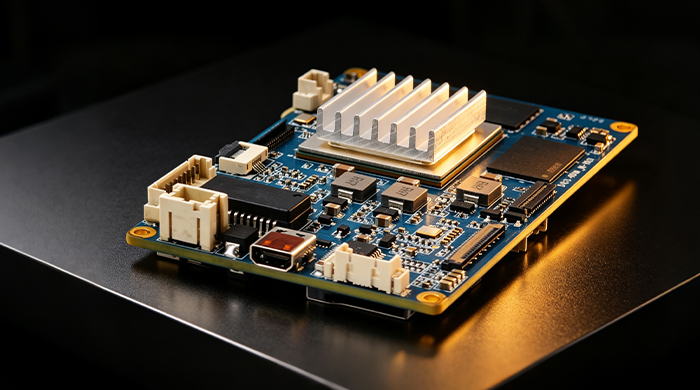

The 4KP60 AI Capable & Addable IP Interface Board is independently developed by Volers Technology, an HD video secondary development solution provider. It is compatible with the FCB-EW9500H's 4K HDMI high-speed interface and supports lossless real-time transmission of 2160P60 HDMI video signals as well as long-distance network transmission. It thoroughly solves the problems of stuttering, smearing, and distortion in recording fast-moving objects in ports, as well as long-distance transmission issues.
The 4KP60 AI Capable & Addable IP Interface Board integrates basic AI computing power. Through subsequent development, it can implement intelligent functions such as area intrusion, line-crossing detection, loitering warning, and moving target counting, adapting to port perimeter security, restricted-area control, and operational-area compliance monitoring scenarios. It truly enables pre-event warning, in-event capture, and post-event traceability.
The 4KP60 AI Capable & Addable IP Interface Board is also compatible with standard ONVIF/RTSP protocols and can directly connect to port NVRs, security management platforms, and large-screen command systems. It is plug-and-play with simple deployment and requires no complex secondary development, greatly shortening the project implementation cycle.
1. Image quality upgrade, compliant evidence collection: 4-megapixel 2160P/60 image quality, color imaging in low light, complete details, and compliant images meet the high standards of port safety monitoring and traceable evidence collection;
2. Environmental adaptability, all-weather stability: With image stabilization, wide dynamic range, and super starlight night vision, it withstands complex port conditions such as low light, strong backlight, and equipment vibration;
3. Dual-interface output, cost reduction and efficiency improvement: HDMI and network dual-interface output balances lossless and long-distance transmission, reducing manual inspection costs and improving security control efficiency;
4. Simple integration, rapid deployment: The Sony original camera module + control board quick matching solution offers strong compatibility and requires no complex development, adapting to upgrades and renovations of both new and old port systems.
The Sony FCB-EW9500H with 4KP60 AI Capable & Addable IP Interface Board 4-megapixel video solution combines high-definition imaging hardware with an independently developed control module to perfectly solve the imaging and monitoring pain points of complex port scenarios. It provides professional video visualization support that is high-definition, stable, intelligent, and low-cost for smart port construction, helping ports upgrade security control toward digitalization and intelligence.
1. The Sony FCB-9500 series has three models with the same appearance. Why is the FCB-EW9500H more suitable for port surveillance?
A: The FCB-EW9500H offers 4-megapixel imaging and 2160p/60 video output capability, providing higher image quality than the FCB-EV9500M and FCB-EV9500L.
2. The Sony FCB-EW9500H outputs 4 megapixels. Is it an HD or a 4K camera module?
A: In terms of output pixels, full HD is 2 megapixels and 4K is 4 megapixels. Therefore, it is neither an HD camera module nor a 4K camera module. We can call it a 4M or 4-megapixel camera module.
