Anyone who has installed surveillance equipment has likely experienced a double frustration: either the nighttime image is so blurry it looks like a mosaic, or after connecting to the network it lags, drops offline, and cannot be viewed remotely—money spent, but no real peace of mind.

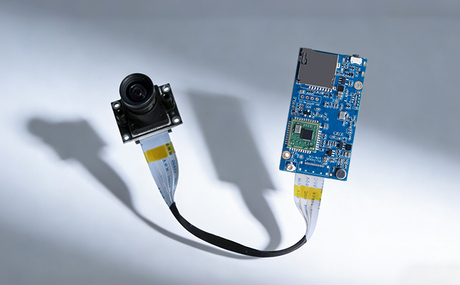

The full-color night-vision network camera is not only small (it uses a split-type structure, with the mainboard and sensor board separated) and capable of color imaging in near-darkness, but it also has a very important function: network output. Today, , an HD video secondary development solution provider, will give you a comprehensive breakdown of its network black technology. What benefits will “full-color night vision + networking” bring to industry applications?
The full-color night-vision network camera can produce full-color images at night in near-darkness. Its 1/1.8” low-light CMOS sensor, combined with an F1.2 large-aperture lens, can deliver clear full-color images in light as low as 0.0001 lux—equivalent to a dim environment with only starlight and moonlight—without the need for supplementary lighting. At night, license plates and facial details can be seen clearly, saying goodbye to the black-and-white silhouettes and noise problems of traditional infrared cameras.
But what truly makes it superior to traditional cameras are its network functions. Just imagine: no matter how clear the nighttime footage is, if it cannot be viewed remotely, cannot trigger timely alarms, and cannot be stored, it is just “useless footage.” A full-color night-vision camera with network functions can not only achieve 24-hour HD imaging, but also break through spatial barriers through networking, making protection ubiquitous.
Function 1: Multi-Network Adaptation, Wired + Wireless Dual Assurance
Whether for drones, robots, or industrial inspection, ease of networking is a hard requirement. The full-color night-vision network camera adapts to multiple network scenarios, balancing stability and convenience:
Wired network: Supports direct RJ45 Ethernet cable connection. It is convenient, fast, stable in transmission, and resistant to interference. It is suitable for shops, warehouses, industrial inspection, and other scenarios requiring long-term stable monitoring. It supports mainstream network protocols such as TCP/IP, UDP, RTSP, HTTP, DNS, DHCP, FTP, NTP, RTMP, ONVIF, GB28181, JT1078, and JT808, and can seamlessly connect to mainstream NVRs and surveillance platforms on the market.
Wireless network (Wi-Fi, optional): Supports 2.4 GHz Wi-Fi and the common 802.11b/g/n transmission protocol, and supports WEP, WPA, and WPA2 encryption protocols. It is suitable for small stores, robots, and other scenarios where cabling is inconvenient.
4G full-network compatibility (optional): For outdoor scenarios without broadband (such as drones, rural courtyards, orchards and fish ponds, and remote base stations), it supports 4G full-network compatibility with China Mobile, China Unicom, and China Telecom. No broadband is required; simply insert a data SIM card and it can work normally, ensuring remote monitoring is never absent.
Even more thoughtfully, it supports automatic networking and reconnection after disconnection. Even if the network is occasionally interrupted, once the network is restored, recordings can be automatically synchronized, so no critical footage is missed.
Function 2: Dual-Stream Resolution, Remote Viewing and Local Storage Without Compromise
Many people worry: HD images may lag when viewed remotely, while standard-definition images may not show details clearly. The “dual-stream technology” of the full-color night-vision network camera solves this problem.
Dual-stream means the camera can output two video signals and adapt them to different scenarios as needed:
Main stream (HD): Resolution up to 5MP/8MP. The image is clear and detailed, suitable for local storage and PC viewing. Even when the image is enlarged, key details such as faces and license plates can be seen clearly, meeting evidence collection needs.
Sub-stream (HD): Resolution up to 1MP/2MP. It is specially adapted for remote viewing on mobile phones. It uses less bandwidth and loads quickly. Even with mobile data, you can smoothly view real-time images without lag or buffering, and stay informed of activity in the monitored area anytime and anywhere.
Function 3: Remote Viewing + Intelligent Alarms, Enabling Proactive Defense
True intelligence is not “passive recording,” but “proactive alerts and remote controllability.” The network functions of the full-color night-vision network camera enable proactive defense:
Remote real-time viewing: Supports remote real-time viewing on mobile phones and PCs, supports image zoom and rotation, and has cloud storage. It has already integrated with the Sanyi Platform and Tongtianxing Platform. Other cloud platforms can be integrated on demand.
Intelligent alarm push: Supports intelligent alarm functions such as human detection, motion detection alarm, video loss alarm, network fault alarm, linkage alarm, linkage recording, and linkage snapshot. When a suspicious person intrudes into the monitored area or a moving object crosses a specified line, the camera will immediately trigger an alarm, promptly reminding you to pay attention to the abnormality and prevent problems before they occur.
With “0.0001 lux low-light full-color night vision” at its core and comprehensive network functions, the full-color night-vision network camera solves the three major pain points of traditional cameras: “black-and-white at night, unable to store recordings, and only capable of passive recording.”
Multi-network adaptation solves networking challenges; dual-stream transmission balances clarity and smoothness; remote viewing + intelligent alarms enable proactive protection; broad protocol compatibility adapts to multi-scenario networking—whether for surveillance, robotics, drones, or underwater equipment, it can rely on its network functions to make video capture more efficient and worry-free.
