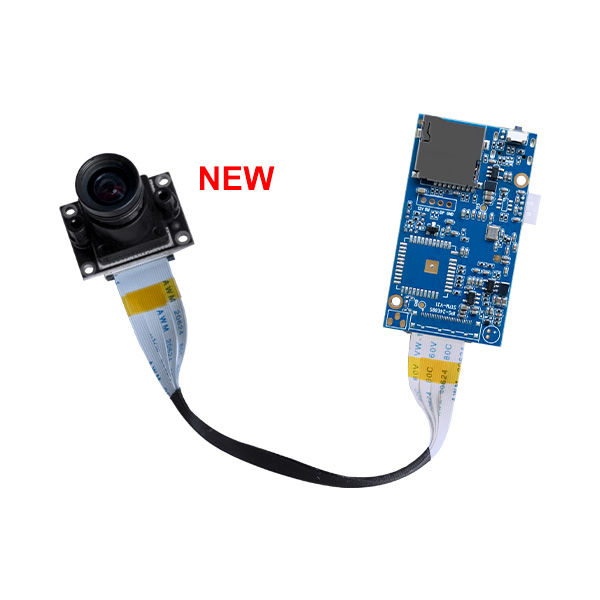

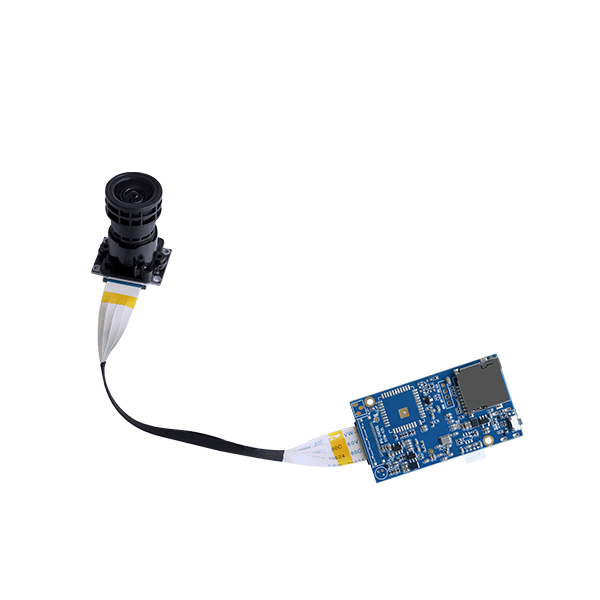

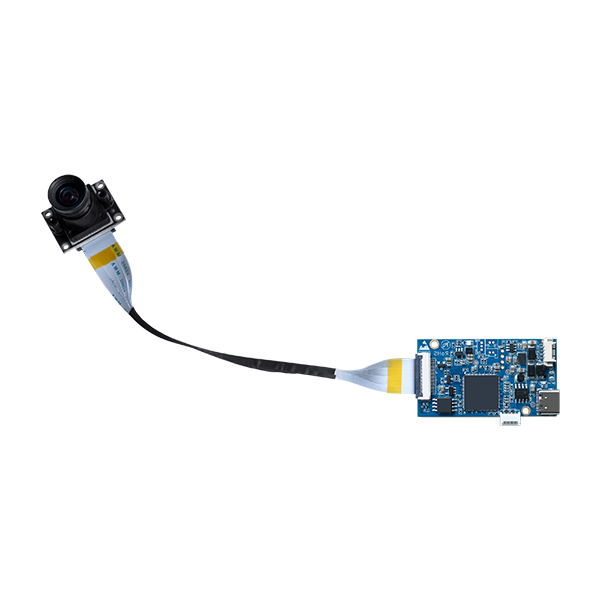

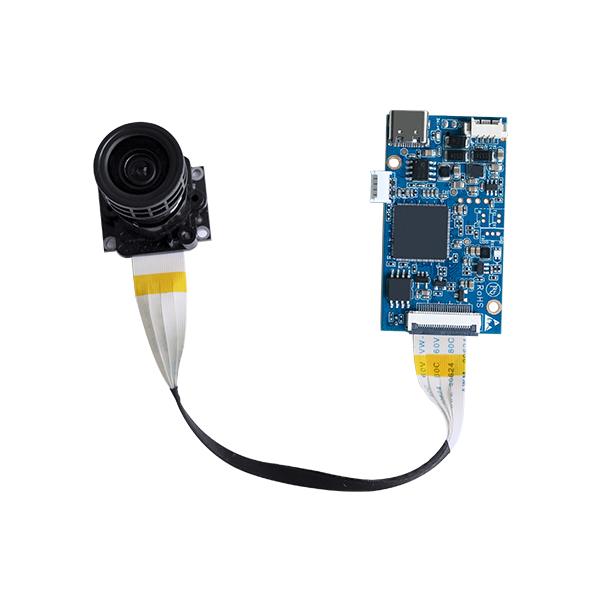

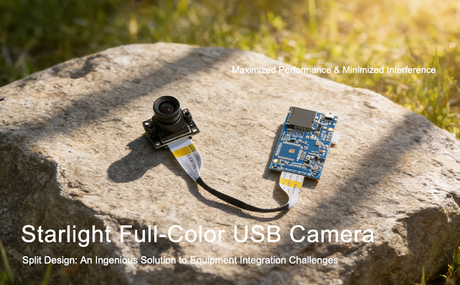

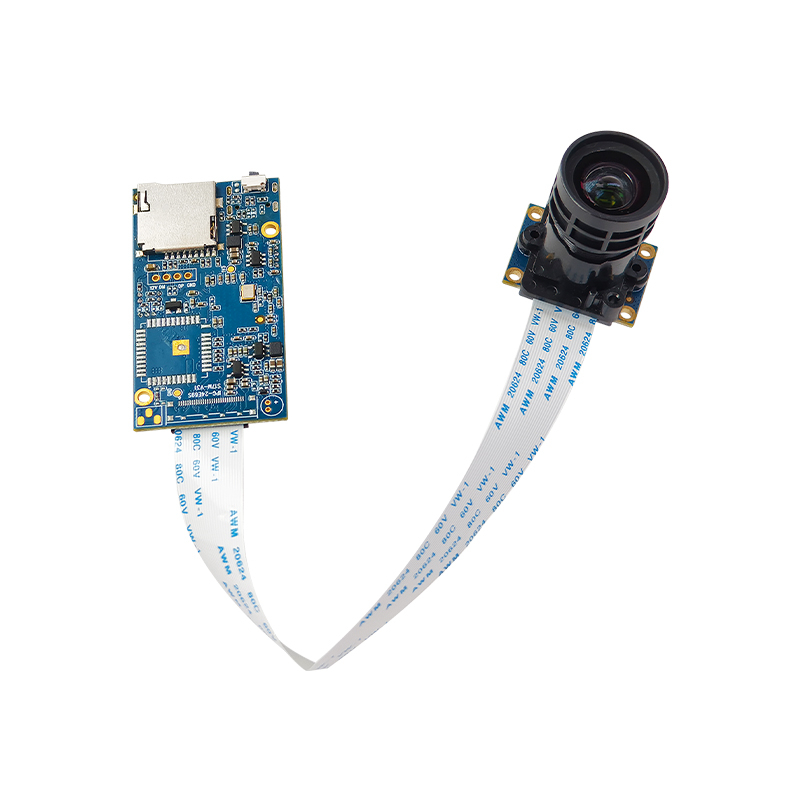

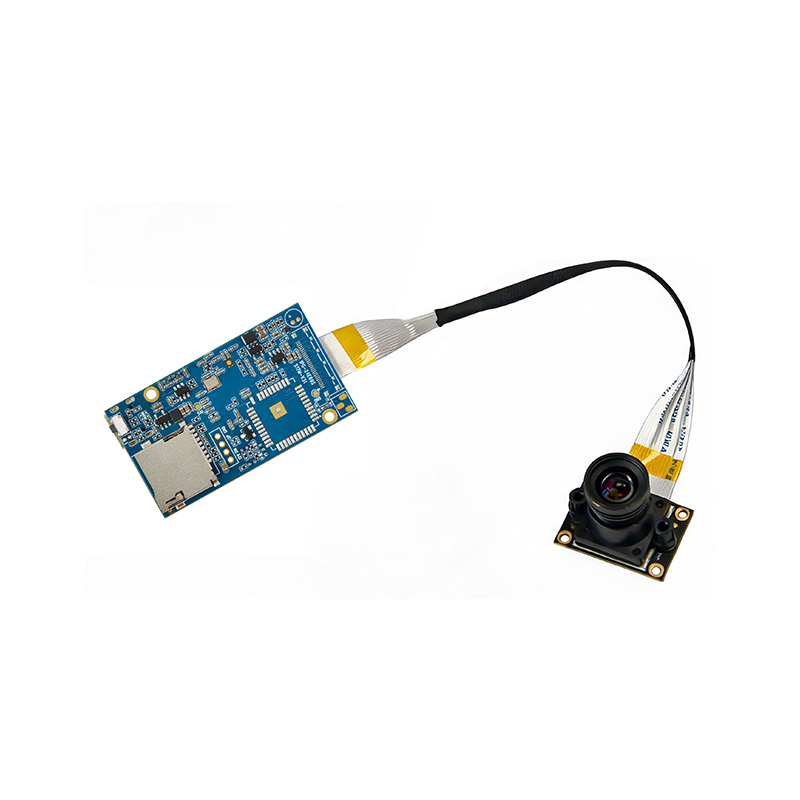

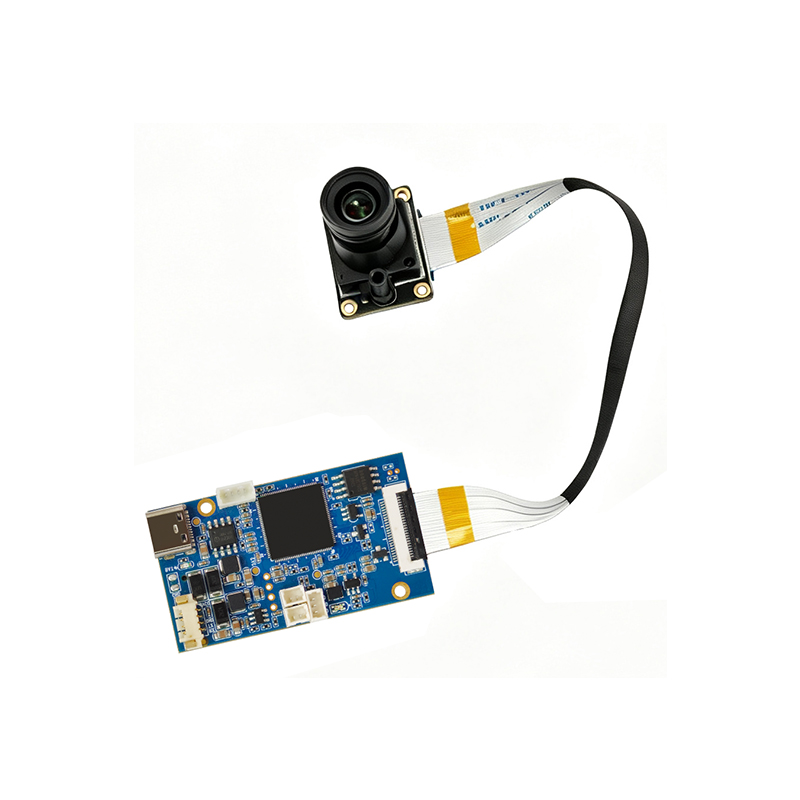

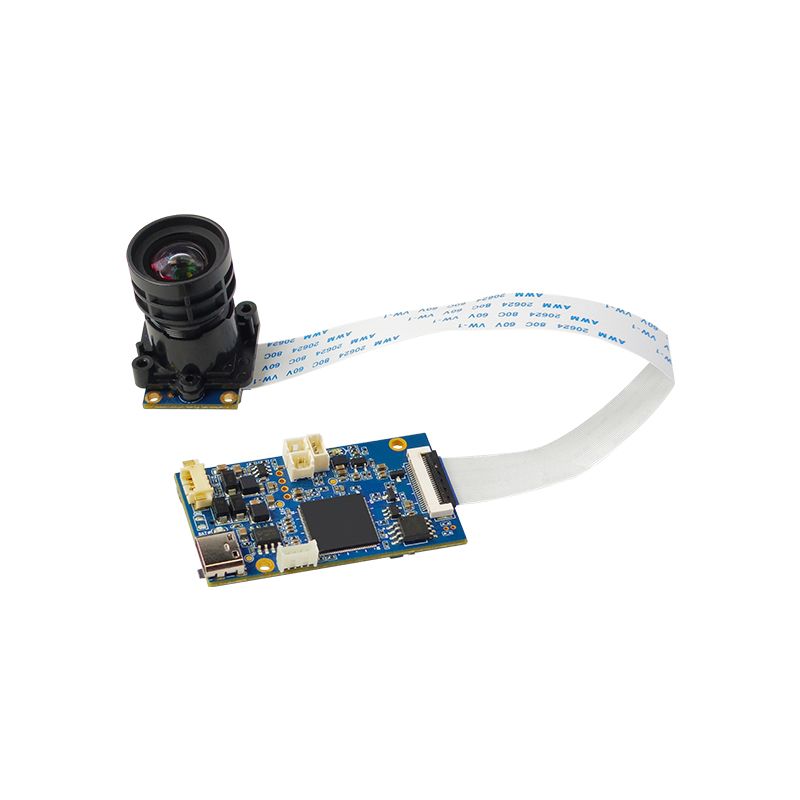

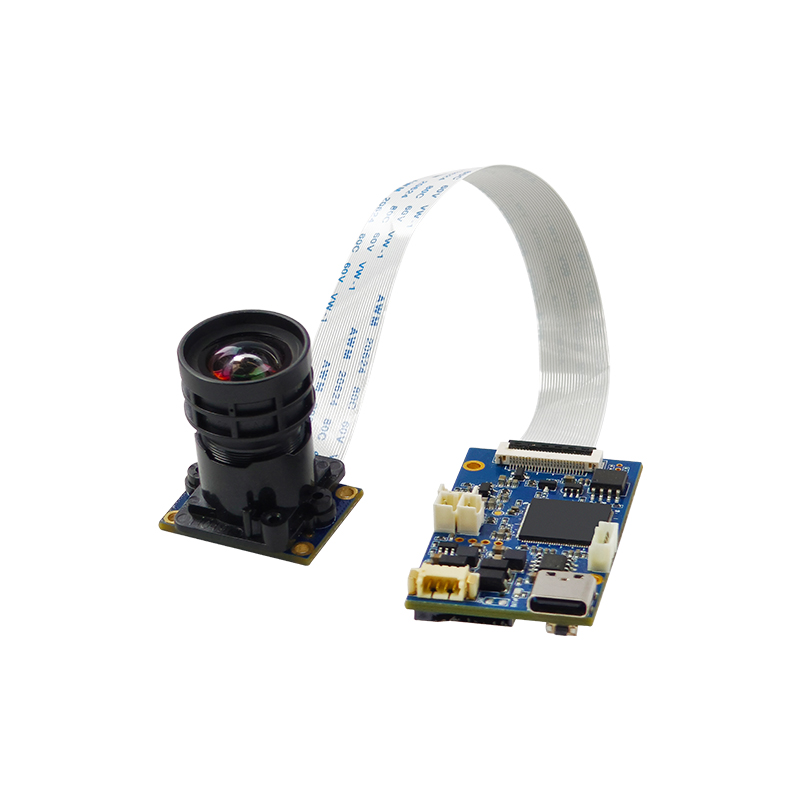

4MP/8MP Starlight Full-Color USB Camera Module Suitable for large-range, wide-angle, and large-field-of-view shooting scenarios, as well as night scenes with low light, it can present full-color high-definition and clear images. It is compatible with USB TYPE-C video output and can be used in smart terminals, face capture, smart robots, drones, FPV, unmanned vehicle shooting, night vision devices, and other equipment.
With a compact body, measuring only 50×28mm, it is easy to integrate into miniaturized products. It is equipped with multiple advanced image algorithms such as 2D/3D noise reduction and digital wide dynamic range, ensuring clear, delicate, and realistic imaging, excellent low-light performance, and low latency. The encoding format supports H.264/H.265 encoding, supports audio input, and can be customized and secondary-developed as needed.
Features
• Encoding Advantage: Supports H.264/H.265 encoding, achieving a perfect balance between ultra-low bit rate and high-definition image quality, effectively reducing data transmission bandwidth and storage space requirements.
• Excellent Image Quality: Up to 8 mega pixels, supports a resolution of 3840×2160, and the frame rate can reach 25 frames per second, presenting users withrealistic and delicate visual images.
• Powerful Computing Power: Built-in 0.8T computing power, laying a solid foundation for intelligent analysis, enabling target detection, behavior recognition,
etc., and adapting to diverse intelligent monitoring.
• Interface Standard: Supports standard UVC protocol and standard USB TYPE-C interface output, with good universality and compatibility.
• Convenient Power Supply: Supports microphone input, is compatible with lithium battery charging and power supply, and has the ability to continuously operate while charging.
• Strong System Adaptability: Compatible with various USB interfaces and multiple operating systems.

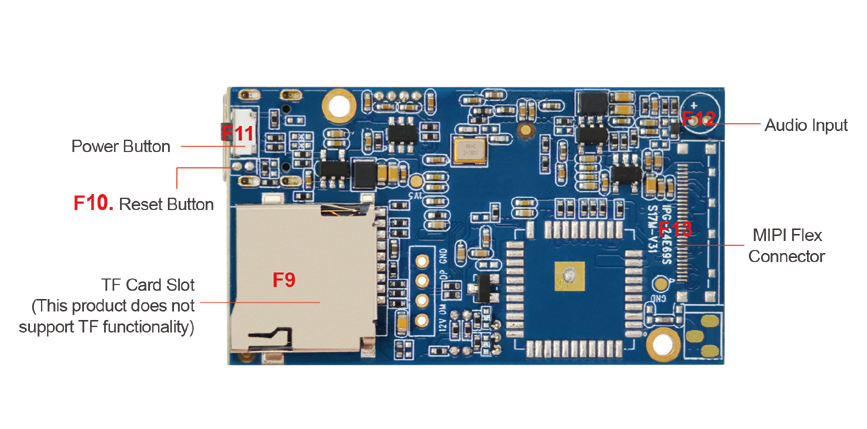

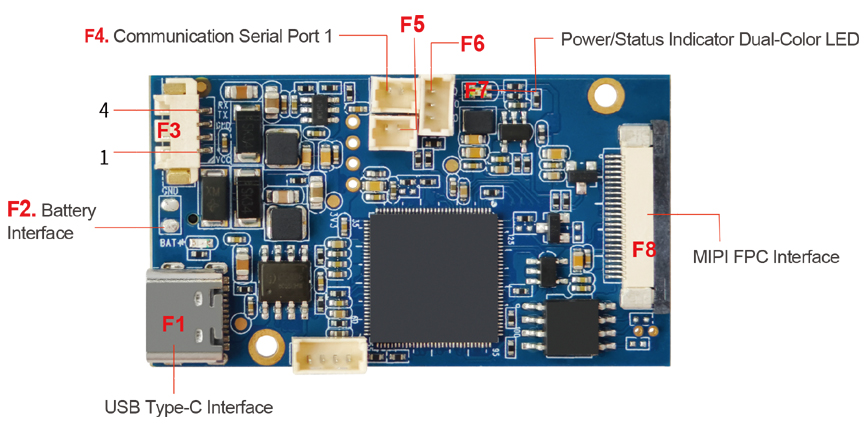

Interface Assignment
| No. | Type | Function | No. | Type | Function |
| F1 | USB Type-C Interface | Video Output | F8 | MIPI FPC Interface | Sensor board Interface(FPC cable) |
| F2 | Battery Interface | Interface Definition:
1. BATA: Battery Positive 2. GND: Ground | F9 | TF Card Slot | Maximum Support 512GB |
| F3 | Molex Connector,
Model: 532610471, Adopts 0.5mm Pitch 4Pin Connector | Power Input Interface/SIM Card Interface: Interface Definition for SIM Card: F3-1 | F10 | Reset Button | 2-Point Touch to Restore Factory Settings |
| F4 | Communication Serial Port 1 | Interface Definition: 1. TX1: Port Transmit 2. RX1: Port Receive | F11 | Power Button | Use When Powered On:
Power On: Short Press Twice Power Off: Long Press |
| F5 | Interface Definition: 1. TX1: Port Transmit 2. RX1: Port Receive | Interface Definition:1.Alarm Input 2.Alarm Output | F12 | Audio Input | Microphone;Supports external microphone connection |
| F6 | Communication Serial Port 0 | Interface Definition: 1. GND: Ground
2. RX0: Port Receive 3. TX0: Port Transmit | F13 | MIPI Flex Connector | LVDS coaxial connection to sensor board (1m max) |
| F7 | Power/Status Indicator Dual-Color LED |
| F14 |
|
|
| Table: F3-1 |
| 1 | VCC: Positive Power Supply (DC6-12V) |
| 2 | GND: Ground |
| 3 | TX: Communication Serial Port Transmit |
| 4 | RX: Communication Serial Port Receive |
Procurement Model
| Model No | Function |
| VRS-Q4-4F1/UT-D3 | 4MP Starlight Full-Color Night Vision Camera: Type 1 with USB TYPE-C + TF Card + M16 Lens |
| VRS-Q8-4F1/UT-D3 | 8MP Starlight Full-Color Night Vision Camera: Type 1 with USB TYPE-C + TF Card + M16 Lens |
Product Accessories
|
|
|
| 4MP Sensor + M12 Lens (Optional) | 8MP Sensor + M16 Lens (Optional) | (Standard) |
