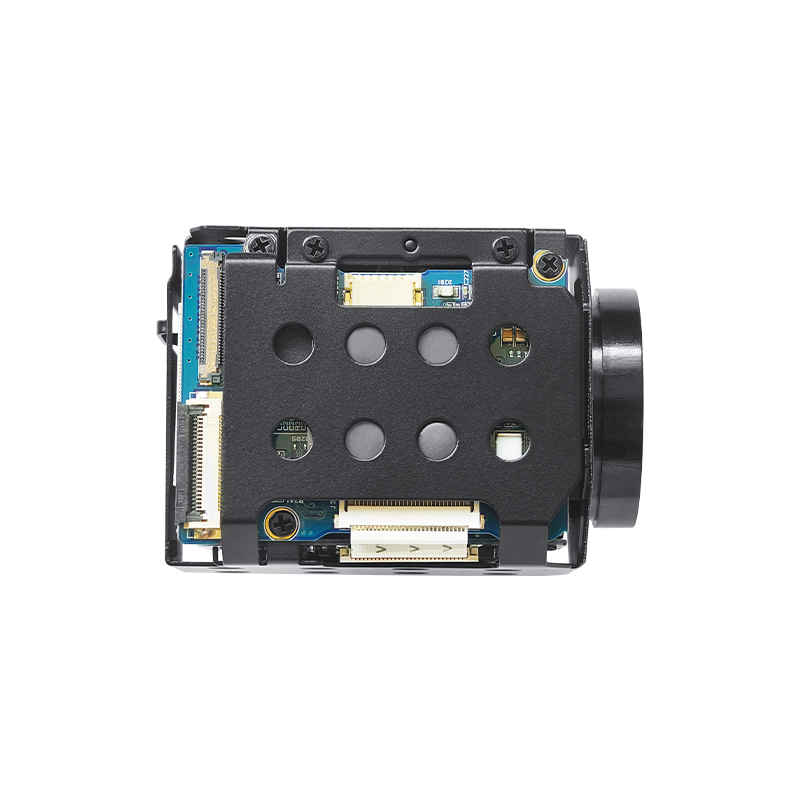

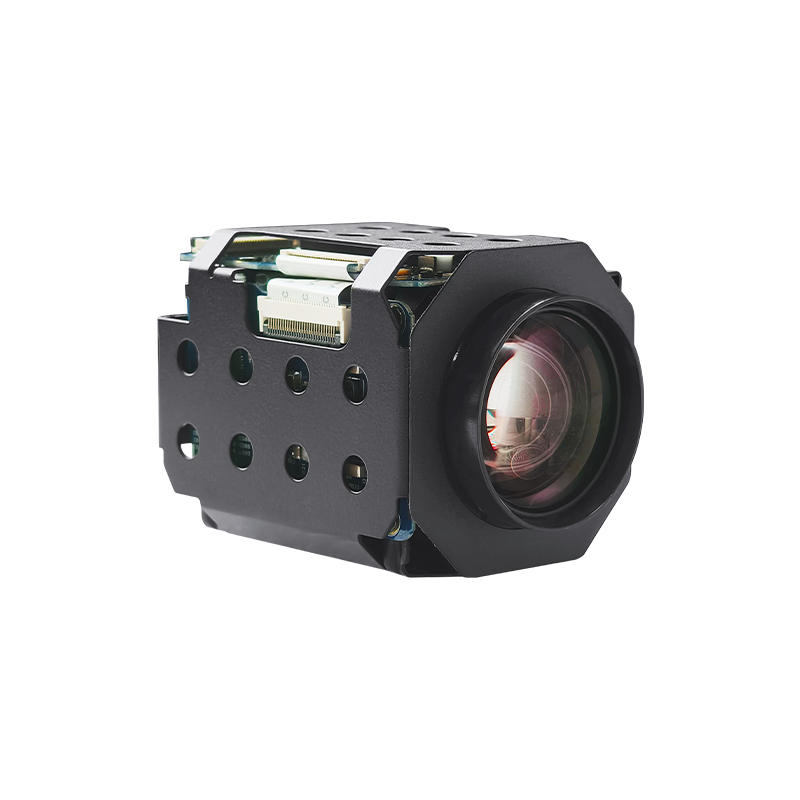

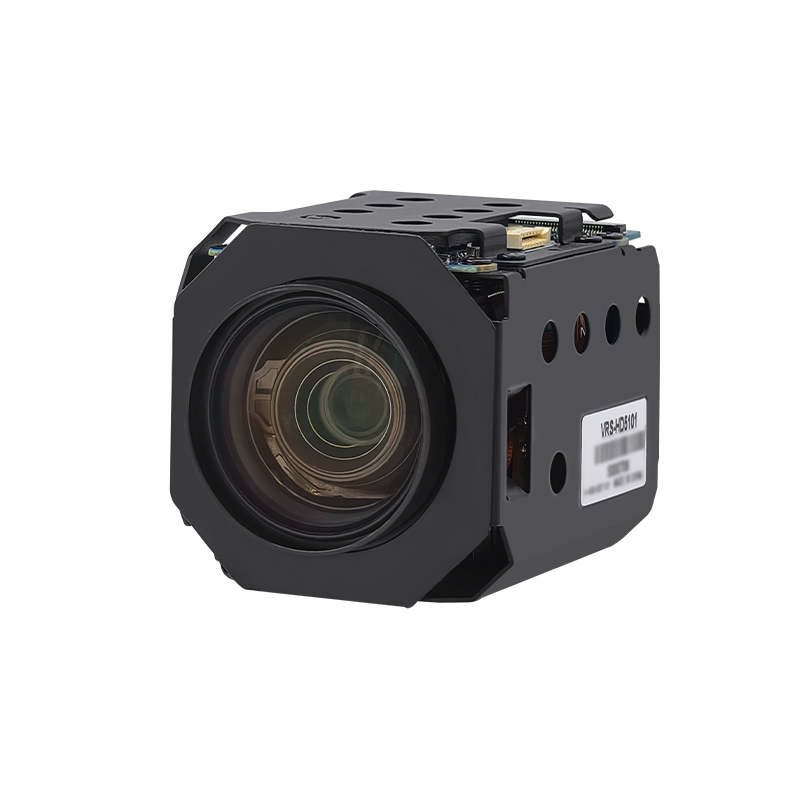

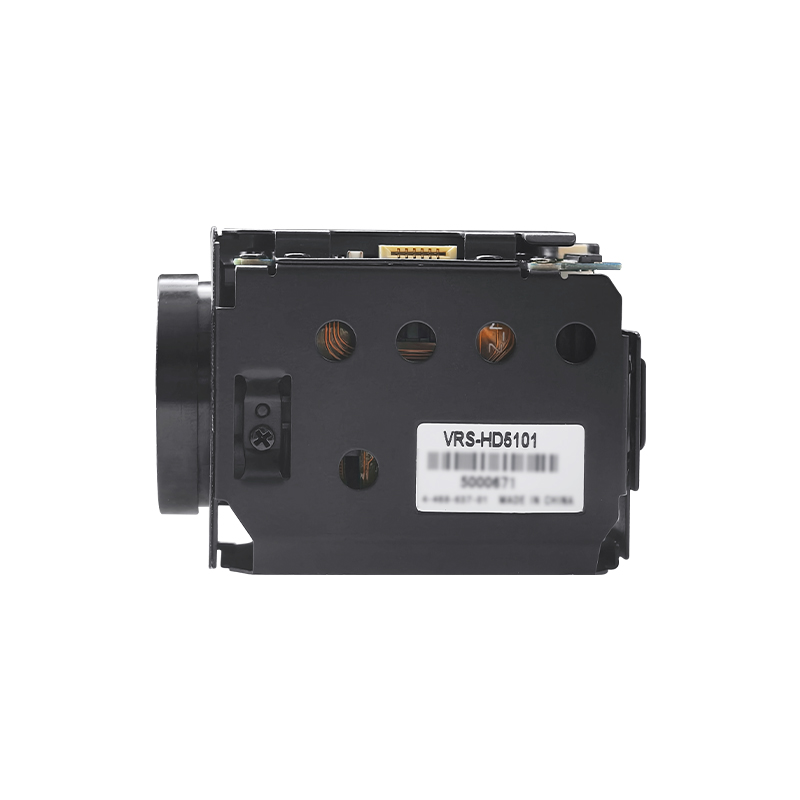

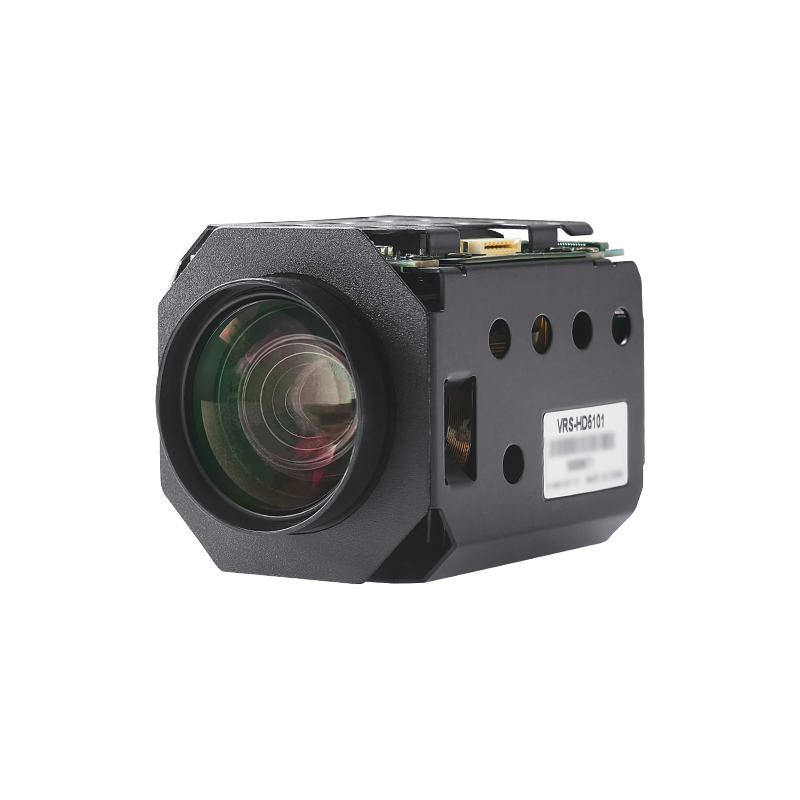

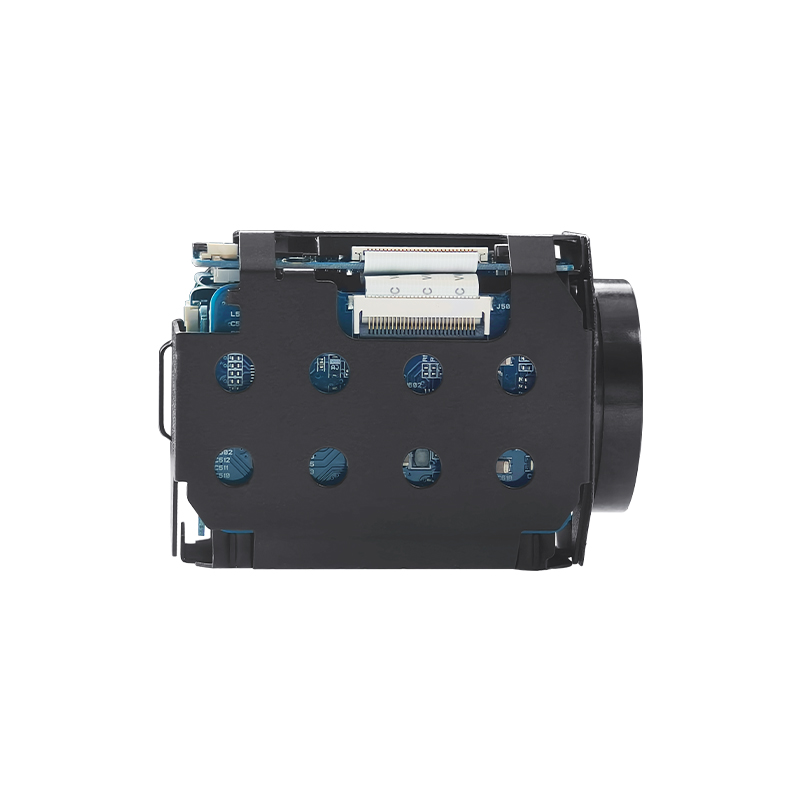

VRS-HD5101 Volers 10X Zoom Block Camera

• Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.13MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: 1080P/60/50/30/25, 720P/60/50/30/25
• Video output: LVDS, EX-SDI, CVBS(without WDR)
• Lens: f = 5.1mm - 51mm, F1.6 - 1.8
• Zoom: 10x Optical Zoom, 32x Digital Zoom

• Other functions: Day & Night(ICR), Privacy Mask Function, Defog Function, Intelligent Motion Detection
• Size: 43.0 x 44.0 x 61.0mm
• Weight: approx. 112g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

VRS-HD5101 Volers VRS-HD5101 Volers Block Camera Full HD Block Camera 1080P Camera Module 10x Zoom Camera Auto Focus Camera LVDS Block Camera Mini Camera Block Drone Camera Block

Overview

VRS-HD5101 is equipped with a 10x optical zoom lens,which includes auto focus,auto iris and auto day and night (D&N)functions for ease of use.

Features

WDR (Wide Dynamic Range)and DNR (Digital Noise Reduction)technology,including 2D and 3D noise reduction.It also includes privacy masking capabilities.

The camera offers digital and analog output options.Digital outputs are available in LVDS and EX-SDI formats, while analog outputs are available in NTSC and PAL composite formats (without WDR functionality).This enables versatile compatibility with a variety of devices and systems.

Basic Info.

Model NO.	VRS-HD5101	Brand	Volers
Sensor	1/2.8" Sony CMOS Sensor	effective pixels	approx.2.13MP
Output pixels	1945 x 1097 (FHD)	wide dynamic	Yes
Lens	10x Optical Zoom, 32x Digital Zoom	Video Output	HD : LVDS, EX-SDI Analog SD : CVBS(without WDR)
image stabilization	EIS	Horizontal field Angle	4.9°-54.0°
Image formats	Digital : 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps Analog : 700TVL
Minimum illumination	Color(1/30s, 60dB) : 0.003 lux, BW(1/30s, 60dB) : 0.0004 lux Color DSS(1/8s, 60dB) : 0.00075 lux , BW DSS(1/8s, 60dB) : 0.0001 lux
Other functions	Day & Night(ICR), Privacy Mask Function, Defog Function, Intelligent Motion Detection
Dimensions	43.0 (W) x 44.0(H) x 61.0(D) mm
Weight	Approx 112g

Application

Drone
Pipeline robot
Ship monitoring

Optimized Video Output Configuration

VRS-HD5101		Compatible Camera Interface Board		Customized Integrated Solutions

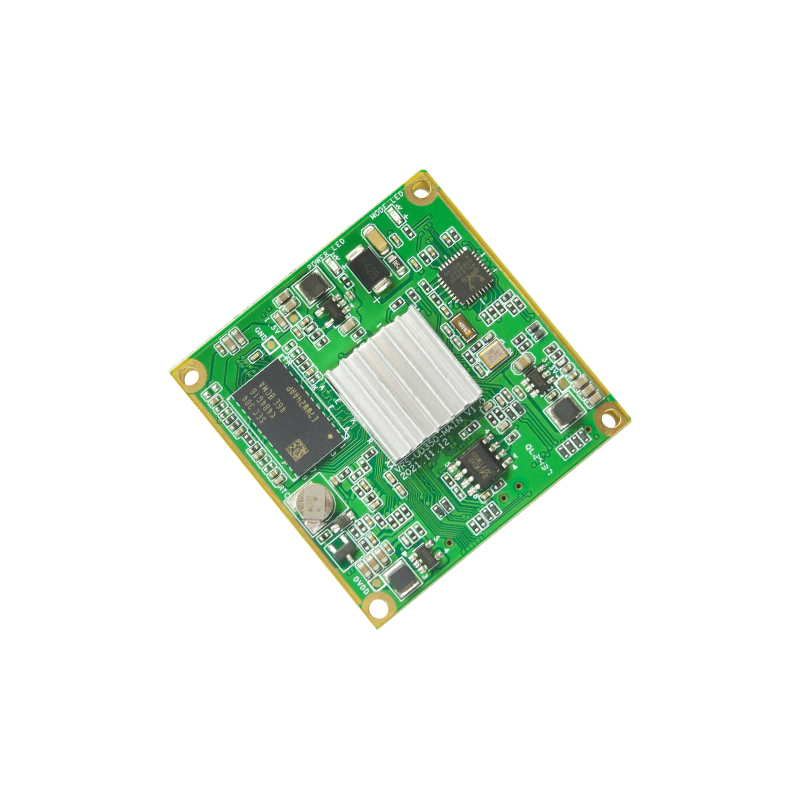

1/2.8" Sony CMOS Sensor Effective pixels: approx. 2.13MP	+	RJ45 Ethernet interface Network Video output	=	Volers VRS-HD5101 + MIPI or LVDS to IP camera Interface Board

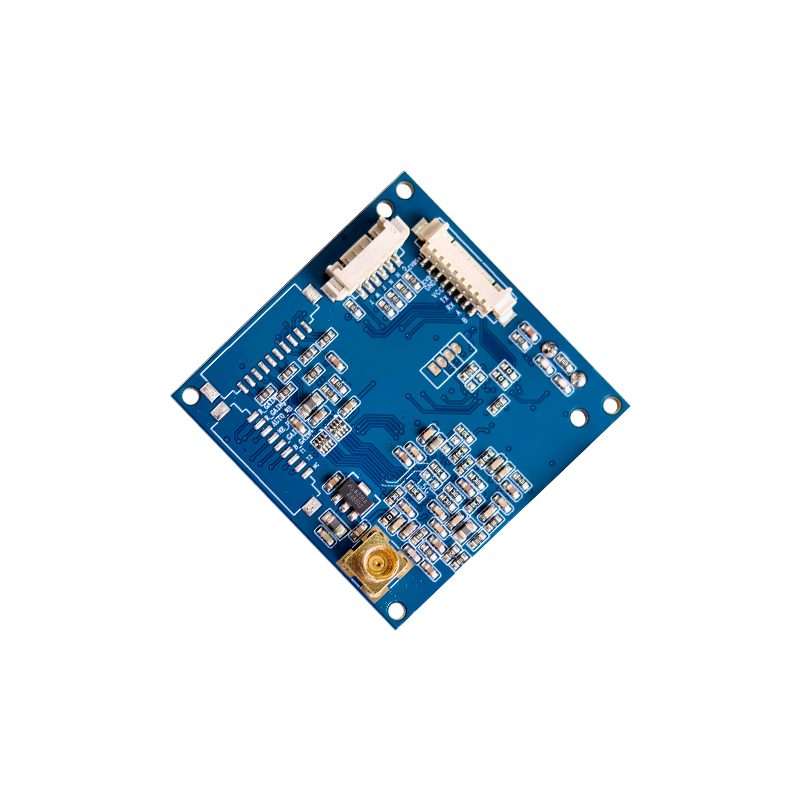

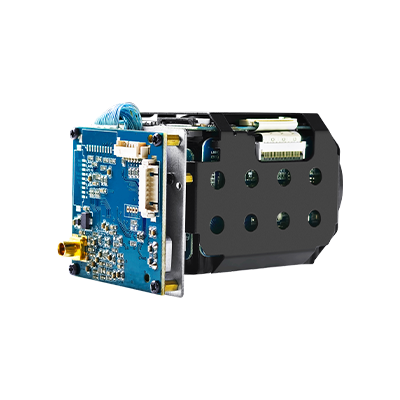

Lens: 10x Optical Zoom, 32x Digital Zoom	+	Mini MCX RF Interface Lvds to 3G-SDI Output	=	Volers VRS-HD5101 + 3G-SDII Interface Board

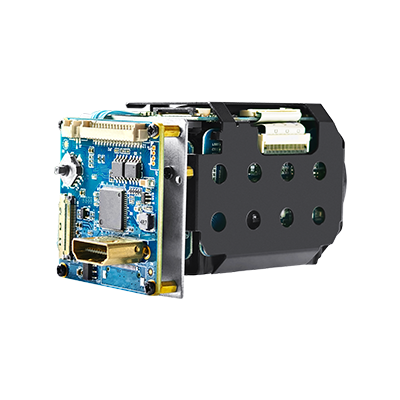

Video Output: LVDS, EX-SD and CVBS Output pixels (H × V): 1945 x 1097	+	HDMI-compatible Type A interface HD-HDMI video output	=	Volers VRS-HD5101 + HD-HDMI Compatible Interface Board

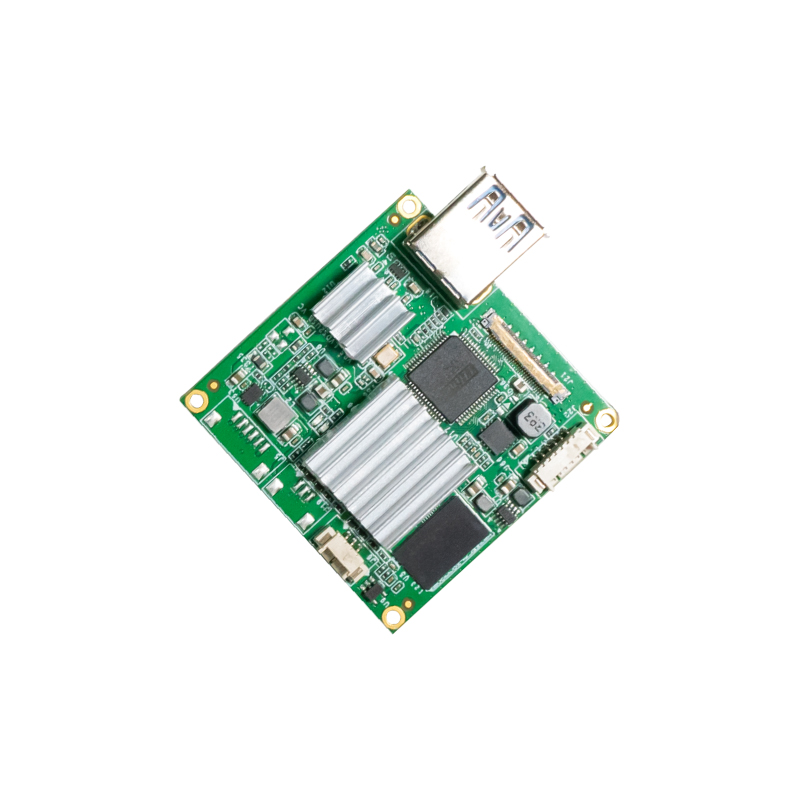

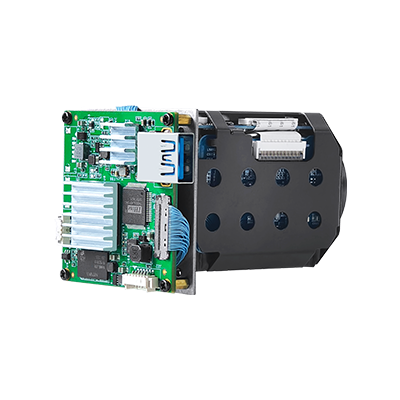

Minimum illumination: color image output under 0.003Lx low illuminations	+	USB3.0 Interface Lvds to USB3.0 video Output	=	Volers VRS-HD5101 + LVDS to USB3.0 Video Capture Interface Board

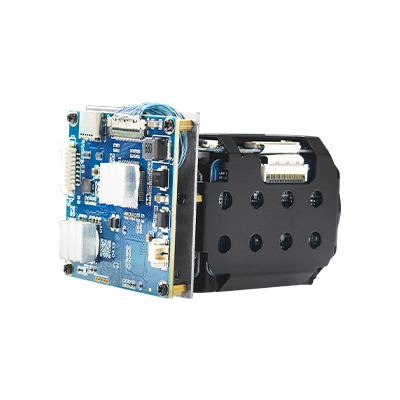

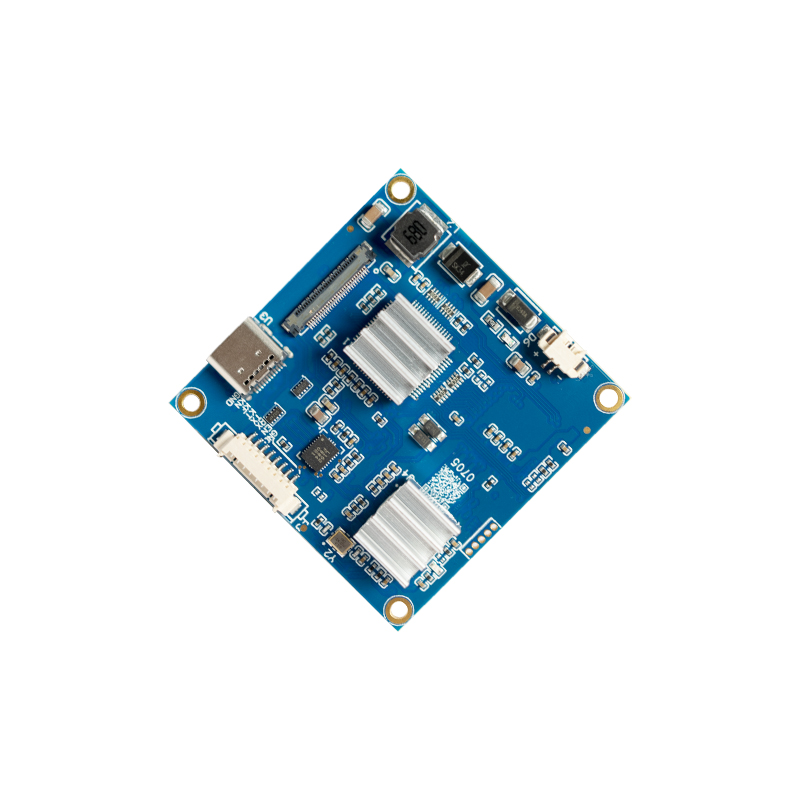

Wide dynamic, Electronic image stabilization	+	USB3.0 Type-C Interface Lvds to Type-C Output	=	Volers VRS-HD5101 + LVDS to USB3.0 Type-C Video Capture Interface Board

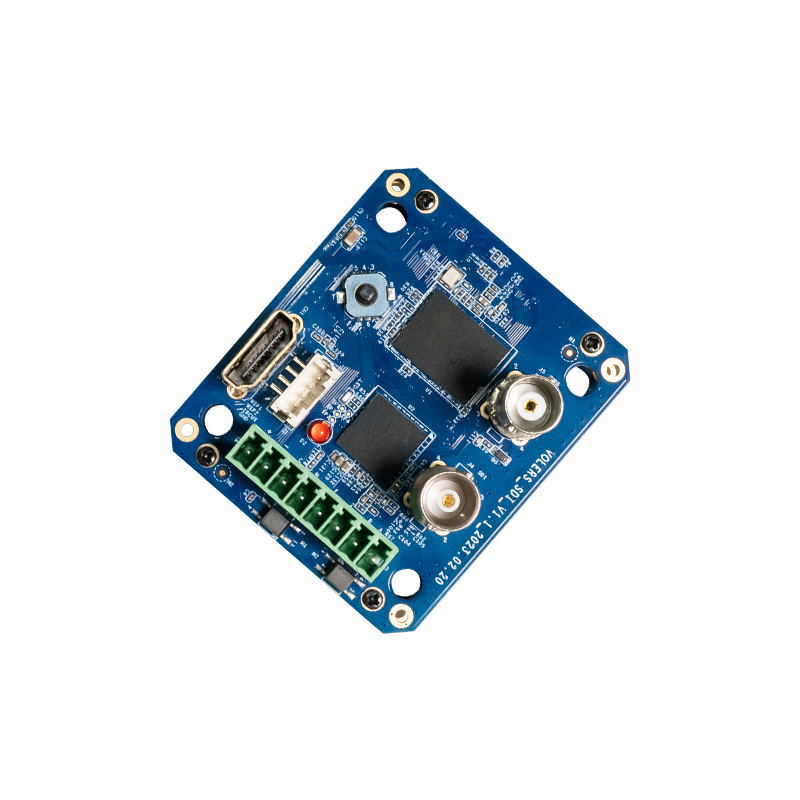

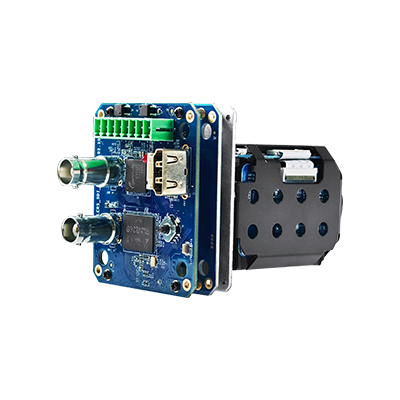

day and night switch Horizontal viewing angle: 54°(wide)～4.9°(tele)	+	Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Volers VRS-HD5101 + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board

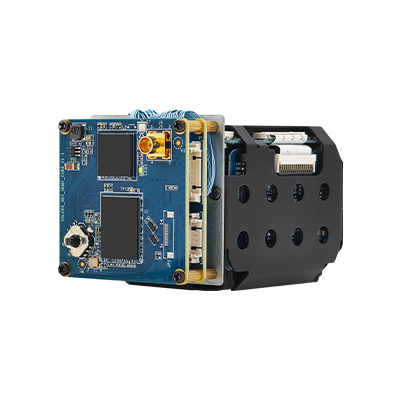

Compact and Lightweight Body Camera control: VISCA	+	LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Volers VRS-HD5101 + Mini SDI/CVBS/HDMI-Compatible Interface Board

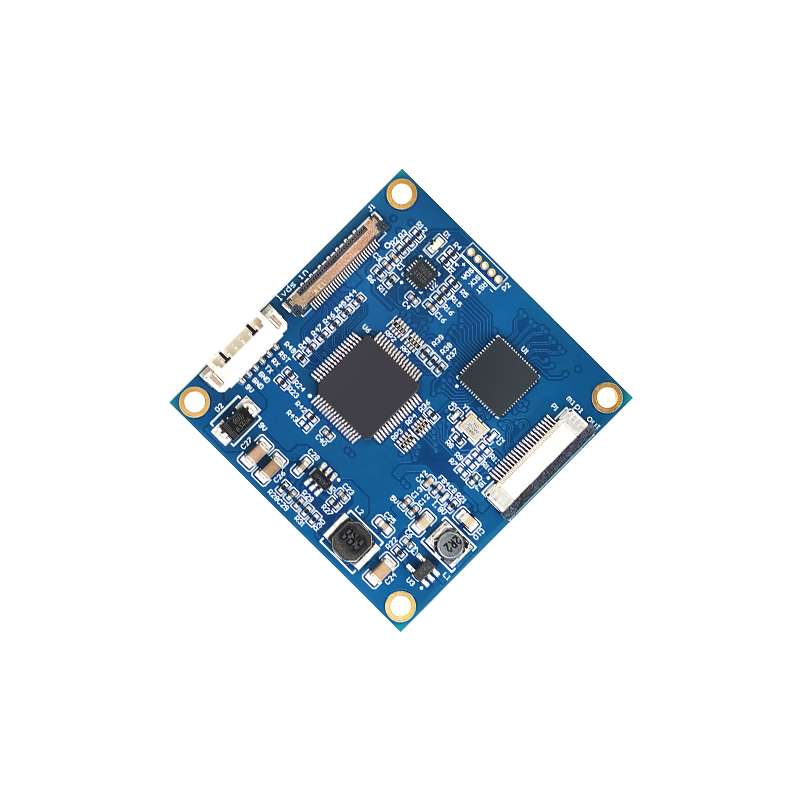

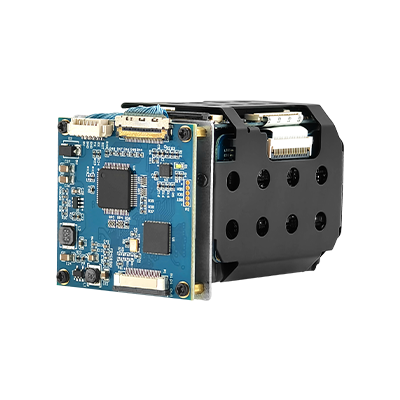

Size: 43.8 x 44.0 x 60.6mm Weight: Approx 118g	+	LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output	=	Volers VRS-HD5101 + LVDS to MIPI Interface Board

FAQ

Q1: Can you replace the discontinued Sony FCB-EV7100 with VRS-HD5101?

A1: VRS-HD5101 and Sony FCB-EV7100 are lightweight and compact camera modules with 10x optical zoom, and VRS-HD5101 has advantages over Sony FCB-EV7100 in terms of digital zoom, output interface, size and weight.

Comparison of main parameters

Model NO.	SONY FCB-EV7100	VRS-HD5101
Image Sensor	1/2.8” Exmor R CMOS	1/2.8" Sony CMOS Sensor
Min. illumination	0.35lx	0.003lx
Digital zoom	12X	32X
Output interface	LVDS	LVDS/EX-SDI/CVBS
Size	45.6×48.8×78.0 mm	43.8×44.0× 60.6mm
Weight	210g	118g

Q2: When performing an image comparison with two VRS-HD5101 cameras in the same environment, the left one shows abnormal faded colors while the right one presents normal deep colors. What could be the cause of this issue?

A2: Judging from the displayed results, there is indeed a noticeable color difference between the images output by the two cameras. If you have confirmed that both cameras are set with identical white balance parameters, the discrepancy may be caused by inconsistent angles of light entering the lenses, which leads to varied processing by the camera’s white balance algorithms.

Parameter

Model	VRS-HD5101
Image Sensor	1/2.8" Sony CMOS Sensor
Total Pixels	1,945 (H) x 1,109 (V) = 2.16M Pixels
Active pixels	1,945 (H) x 1,109 (V) = 2.16M Pixels
Scanning system	Progressive Scan
Sync. System	Internal
Resolution	Digital : 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps Analog : 700TVL
Min. illumination	Color(1/30s, 60dB) : 0.003 lux, BW(1/30s, 60dB) : 0.0004 lux Color DSS(1/8s, 60dB) : 0.00075 lux , BW DSS(1/8s, 60dB) : 0.0001 lux
Video Output	HD : LVDS, EX-SDI Analog SD : CVBS(without WDR)
S/N Ratio	more than 50dB (AGC off)
Lens
Lens type	10x Day & Night Zoom Lens
Zoom Ratio	Optical 10x, Digital 32x Zoom
Focal Length	f = 5.1mm ~ 51mm
Aperture Ratio	F1.6 (wide) ~ F1.8 (tele)
Angle of View (D, H, V)	Wide	64°	57°	34°
	Tele	7.1°	6.2°	3.5°
Function
AF Mode	Auto / One Push / Manual
Min. Distance	0.1 / 1.0 / 3.0 / 5.0 / 10.0 m
Lens Refresh	One Push / 1 ~ 10Day
Digital Zoom	Off / MAX x2 ~ x32
Exposure	Auto / Iris.P / Shut.P / Manual
Gain Control (AGC)	Off / On
Shutter Speed	1/30(25) ~ 1/30,000 sec
Iris	0 ~ 20 steps
Digital Slow Shutter (DSS)	Off / x2 / x4 (/ x8 : 60 or 50 fps mode only)
Brightness	0 ~ 20 steps
WDR/BLC	OFF / WDR / BLC
Day&Night	Auto / Day / Night / Ext-in
White Balance	Auto / One Push / Manual / Indoor / Outdoor
HLC	Off / On / Night Only
DNR	Auto / Off / Low / Middle / High
Mirror	Off / H / V / H&V
Sharpness	0 ~ 10 steps
ACE	Off / Low / Middle / High
Defog	Off / On(Auto / Manual)
Privacy Mask	Max. 24 Areas
Motion Detection	Max. 3 Areas
Defect Detection	Off / On
System	NTSC / PAL
Communication	Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update
Language	English / Simplified Chinese / Traditional Chinese / Japanese
Power Source	9V to 15V DC
Power Consumption	MAX 400mA
Operating Temperature	-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature	-10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension	43(W) x 44(H) x 61mm(D)
Weight	112g

Video

VRS-HD5101

Download

Volers VRS-HD5101 Technical Specification.pdf

RELATED ACCESSORIES

Image	Product Name

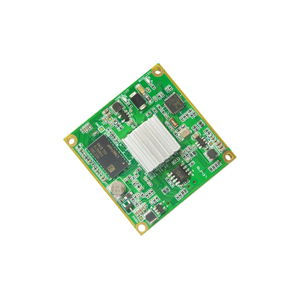

	VRS-UD350 MIPI or LVDS to IP Camera Interface Board
	PCB-HD014 3G-SDI Interface Board
	PCB-UD101 LVDS To USB3.0 Video Capture Interface Board

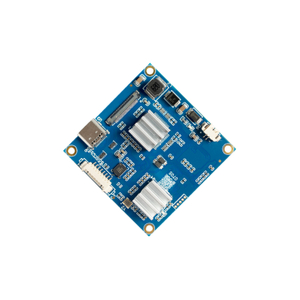

	PCB-UD102 LVDS to USB C Video Capture Interface Board

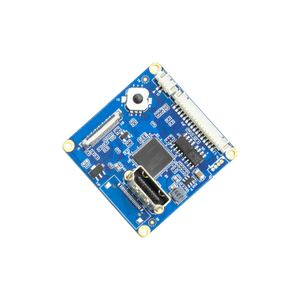

	PCB-HD111 HD-HDMI Compatible Interface Board

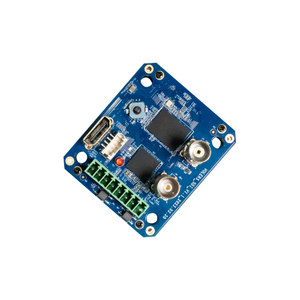

	PCB-HD201 SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board
