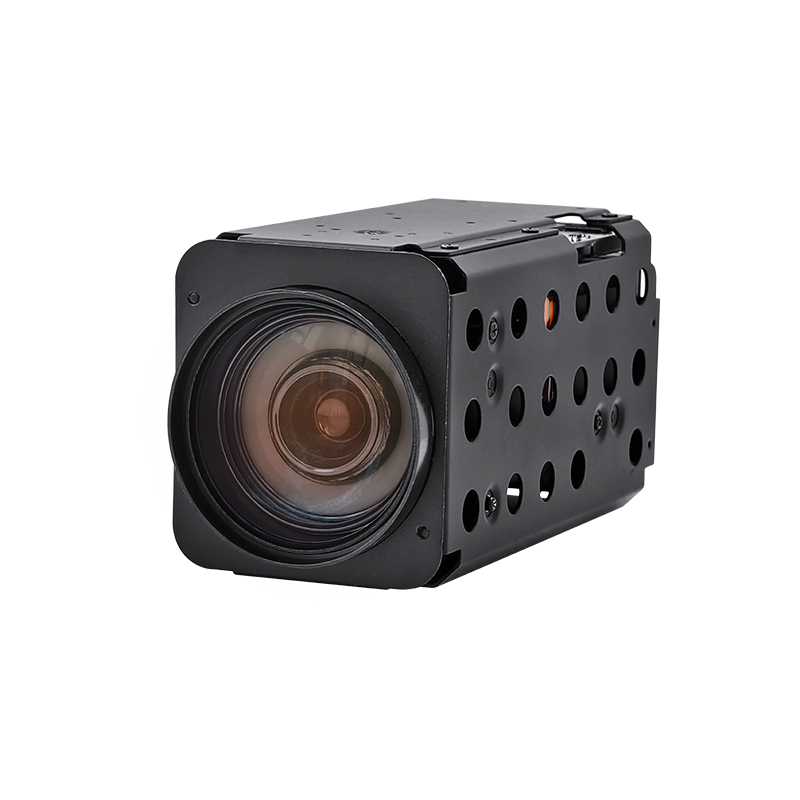

VRS-HD5365 Volers Global Shuttler 36X Zoom Block Camera

• Shutter: Global Shutter

• Sensor(Effective pixels): 1/2.3'' Sony Starvis CMOS(approx. 2.35MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: 1080P/60/50/30/25, 720P/60/50/30/25
• Video output: HD : LVDS, EX-SDI Analog SD : CVBS
• Lens: f = 6.0mm - 216.0mm, F1.5 - 4.8
• Zoom: 36x Optical Zoom, 32x Digital Zoom
• Other functions: Day & Night(ICR), Digital Noise Reduction(2D+3D), Digital Image Stabilization, Privacy Mask Function
• Size: 55.6 x 64.0 x 124.0mm
• Weight: approx. 416g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

VRS-HD5365 Volers VRS-HD5365 Global Shutter 36x Zoom Camera Traffic Monitoring Zoom Camera Block 2MP 60fps Global Shutter Camera 36x Motorized Zoom Camera A-f 36x Zoom Camera Sony VISCA Pelco Block Camera 1080p/60 Global Shutter Sensor Camera CCTV Security 36x Zoom Camera

Overview

The VRS-HD5365 is a high-definition camera module integrated with advanced global shutter technology. This technology captures the entire frame instantaneously, accurately and synchronously, effectively eliminating the rolling shutter effect (also known as the jello effect) and delivering sharp, true-to-life images.

Ideal for high-speed motion scenarios such as assembly line product capturing in industrial inspection or vehicle speed measurement in traffic surveillance, the VRS-HD5365’s global shutter completely prevents motion blur. Combined with 2D+3D DNR digital noise reduction technology, it produces low-noise, high signal-to-noise ratio (SNR) clear images even in low-light conditions, meeting the requirements for 24/7 accurate imaging.

Features

• 1/2.3" Sony Global shutter CMOS sensor

• 1080p 60fps/30fps, 720p 60fps/30fps

• 36x Optical Zoom(6mm ~ 216mm) & 32x Digital Zoom

• F1.5(wide) ~ F4.8(tele)

• Day & Night (ICR)

• Digital Noise Reduction (2D+3D)

• Privacy Mask Function

• Digital Image Stabilization

• Intelligent Motion Detection

• Defog Function

• Supports VISCA, Pelco-D/P Protocol

• Video Out : LVDS, EX-SDI, CVBS

Basic Info.

Model NO.	VRS-HD5365	Brand	Volers
Sensor	1/2.3" Sony CMOS Sensor	Output pixels	1,936 (H) x 1,216 (V) = 2.35M Pixels
Focal Length	36x Optical Zoom, 32x Digital Zoom	Focal Length	f= 6.0 mm- 216 mm, F1.5 – 4.8
Image formats	Digital : 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps,720p/30(25)fps Analog : 700TVL
Minimum illumination	Color(1/30s, 48dB) : 0.3 lux , BW(1/30s, 48dB) : 0.01 lux Color DSS(1/2s, 48dB) : 0.06 lux , BW DSS(1/2s, 48dB) : 0.002 lux
Video Output	HD : LVDS,EX-SDI Analog:CVBS
Other functions	Day & Night(ICR), Digital Noise Reduction(2D+3D), Digital Image Stabilization, Privacy Mask Function
Dimensions	55.6(W) x 64(H) x 124(D)mm
Weight	Approx 416g

Application

Assembly Line Product Capture in Industrial Inspection
Vehicle Speed Measurement in Traffic Surveillanc
Wildlife Monitoring in Ecological Environments

Optimized Video Output Configuration

VRS-HD5365		Compatible Camera Interface Board		Customized Integrated Solutions

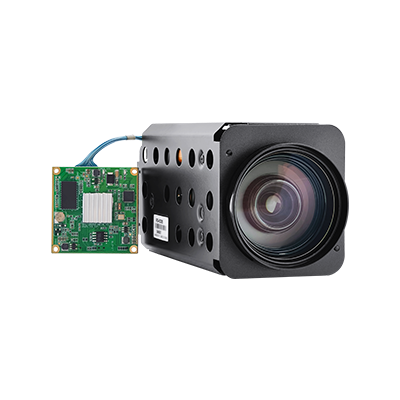

1/2.8" Sony CMOS Sensor Effective pixels: approx. 2.12MP	+	RJ45 Ethernet interface Network Video output	=	Volers VRS-HD5365 + MIPI or LVDS to IP camera Interface Board

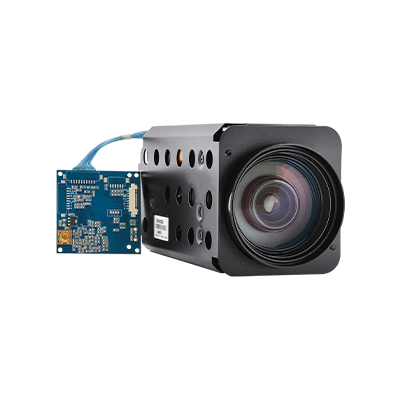

Lens: 20x Optical Zoom, 32x Digital Zoom	+	Mini MCX RF Interface Lvds to 3G-SDI Output	=	Volers VRS-HD5365 + 3G-SDII Interface Board

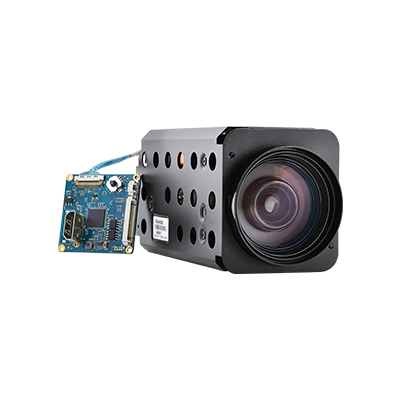

Video Output: LVDS, EX-SD and CVBS Output pixels (H × V): 1937 x 1097	+	HDMI-compatible Type A interface HD-HDMI video output	=	Volers VRS-HD5365 + HD-HDMI Compatible Interface Board

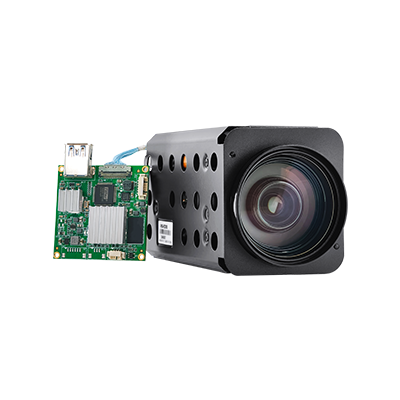

Minimum illumination: color image output under 0.01Lx low illuminations	+	USB3.0 Interface Lvds to USB3.0 video Output	=	Volers VRS-HD5365 + LVDS to USB3.0 Video Capture Interface Board

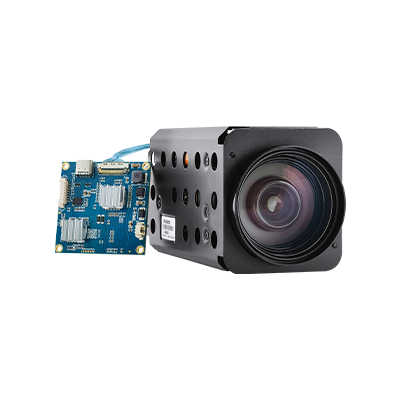

Wide dynamic, Electronic image stabilization	+	USB3.0 Type-C Interface Lvds to Type-C Output	=	Volers VRS-HD5365 + LVDS to USB3.0 Type-C Video Capture Interface Board

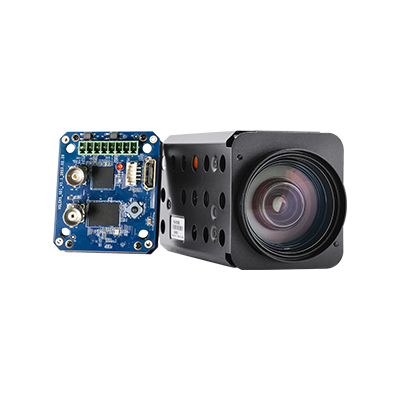

Day and night switch Privacy Mask Function	+	Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Volers VRS-HD5365 + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board

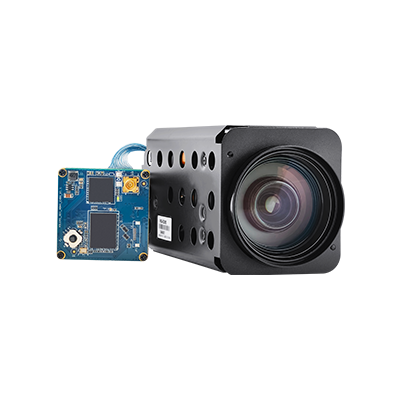

Compact and Lightweight Body Camera control: VISCA, Pelco-D/P	+	LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Volers VRS-HD5365 + Mini SDI/CVBS/HDMI-Compatible Interface Board

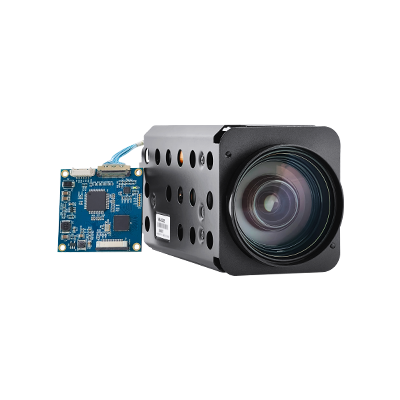

Size: 50(W) x 60(H) x 97(D)mm Weight: Approx 232g	+	LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output	=	Volers VRS-HD5365 + LVDS to MIPI Interface Board

FAQ

Q1: What are the differences between Volers VRS-HD5363 and Volers VRS-HD5365

A1: Volers VRS-HD5363 and VRS-HD5365 are 36x optical zoom block camera, and what are the main differences between them?

Comparison of main parameters

Model NO.	VRS-HD5363	VRS-HD5365
Image Sensor	1/2.0” STARVIS CMOS	1/2.3" Sony CMOS Sensor
Min. illumination(50%,1/30S)	0.0002lx	0.002lx
Optical zoom	36X	36X
Video Output	LVDS, EX-SDI,CVBS	LVDS, EX-SDI,CVBS
Image Stabilization	EIS	EIS
Day & Night(ICR)	Yes	Yes
Exposure mode	Rolling shutter	Global Shuttler
Size	55.6(W) x 64(H) x 124(D)mm	55.6(W) x 64(H) x 124(D)mm
Weight	Approx 400g	Approx 416g

Q: What Are the Core Advantages of the VRS-HD5365?

A: The VRS-HD5365 global shutter camera boasts the core advantage of simultaneous exposure across the entire frame, completely eliminating the "rolling shutter effect" that plagues rolling shutter cameras. Below are the detailed benefits:

1. No Rolling Shutter Effect

Unlike rolling shutter cameras that expose and scan the frame line by line, the VRS-HD5365 global shutter camera enables all sensor pixels to complete exposure and signal readout in a single instant.Whether capturing high-speed moving objects (such as speeding cars, rotating mechanical parts) or when the camera itself is in rapid motion, the VRS-HD5365 delivers distortion-free images with no stretching, warping, or tilting.

2. High Synchronization & Precise Triggering

The VRS-HD5365 global shutter camera supports accurate external signal triggering for exposure, achieving near-perfect synchronization with assembly lines, robotic arms, and other industrial equipment. It excels at capturing the instantaneous state of moving targets with ultra-high time stamp precision.

3. Strong Anti-Motion Blur Performance

The exposure time of the VRS-HD5365 can be flexibly adjusted to extremely short durations, freezing the clear details of fast-moving objects. It is particularly ideal for capturing tiny, high-speed targets—such as components on industrial production lines and flying drones.

Parameter

Model	VRS-HD5365
Image Sensor	1/2.3" Sony Starvis CMOS Sensor
Total Pixels	1,936 (H) x 1,226 (V) = 2.37M Pixels
Active pixels	1,936 (H) x 1,216 (V) = 2.35M Pixels
Scanning system	Progressive Scan
Sync. System	Internal
Resolution	Digital : 1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25 Analog : 700TVL
Min. illumination	Color(1/30s, 48dB) : 0.3 lux, BW(1/30s, 48dB) : 0.01 lux Color DSS(1/2s, 48dB) : 0.06 lux , BW DSS(1/2s, 48dB) : 0.002 lux
Video Output	HD : LVDS, EX-SDI Analog SD : CVBS(without WDR)
S/N Ratio	more than 50dB (AGC off)
Lens
Lens type	36x Day & Night Zoom Lens
Zoom Ratio	Optical 36x, Digital 32x Zoom
Focal Length	f = 6.0mm ~ 216mm
Aperture Ratio	F1.5 (wide) ~ F4.8 (tele)
Angle of View (D, H, V)	Wide	59.13°	52.62°	31.08°
	Tele	2.24°	1.95°	1.10°
Function
Trigger Polarity	Active Low / Active High
Trigger Delay	Trigger Delay
Strobe Polarity	Active Low / Active High
Strobe Delay	Ext-Trigger : 0 ~ 255.9ms / Free run : 0 ~ (1V period – Width)ms
Strobe Width	Ext-Trigger : 0 ~ 255.9ms / Free run : 0 ~ (1V period – Delay)ms
Shutter Speed(Ext-trigger)	1/30(25) ~ 1/20,000 sec
AGC(Ext-trigger)	0 ~ 10 steps
Iris(Ext-trigger)	Close ~ F1.5
Day&Night(Ext-trigger)	Day / Night
AF Mode	Auto / One Push / Manual
Min. Distance	0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh	One Push / 1 ~ 10Day
Digital Zoom	Off / MAX 2x ~ 32x
Exposure	Auto / Iris.P / Shut.P / Manual
Digital Slow Shutter (DSS)	Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only)
Brightness	0 ~ 14 steps
BACK LIGHT	Off / BLC / HLC
Night Function Set	Off / On
White Balance	Auto / One Push / Manual / Indoor / Outdoor
DNR	Auto / Off / Low / Middle / High
Mirror	Off / H / V / H&V
Sharpness	0 ~ 10 steps
Defog	Off / On(Auto / Manual)
Privacy Mask	Off / On (8 points)
Motion Detection	Off / On (3 points)
Defect Detection	Off / On
System	NTSC / PAL
Communication	Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update
Language	English / Simplified Chinese / Traditional Chinese / Japanese
Power Source	9V to 15V DC
Power Consumption	500mA
Operating Temperature	-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature	-10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension	55.6(W) x 64.0(H) x 124(D)
Weight	Approx 416g
