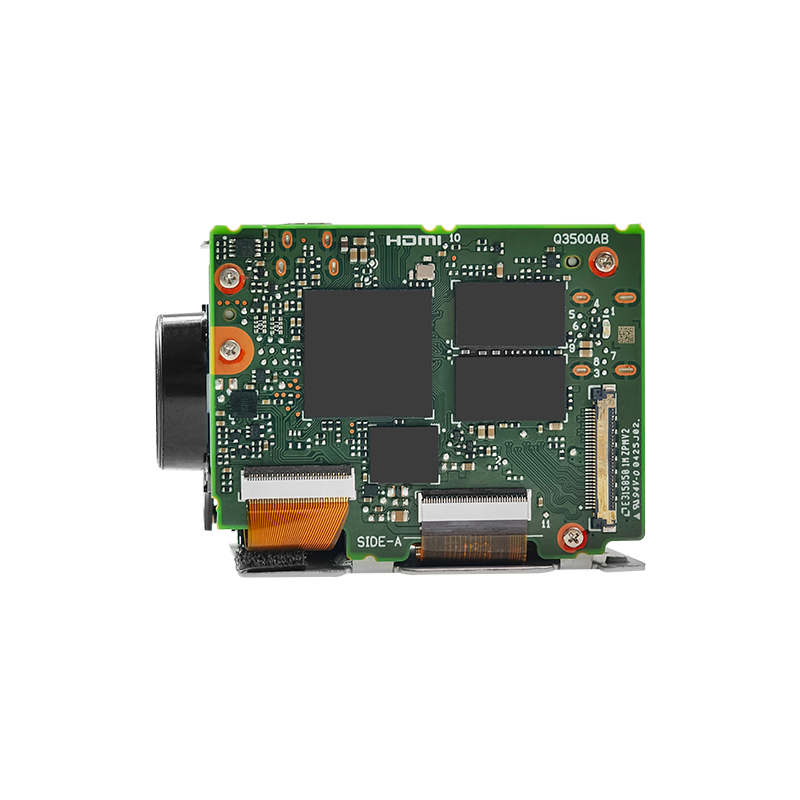

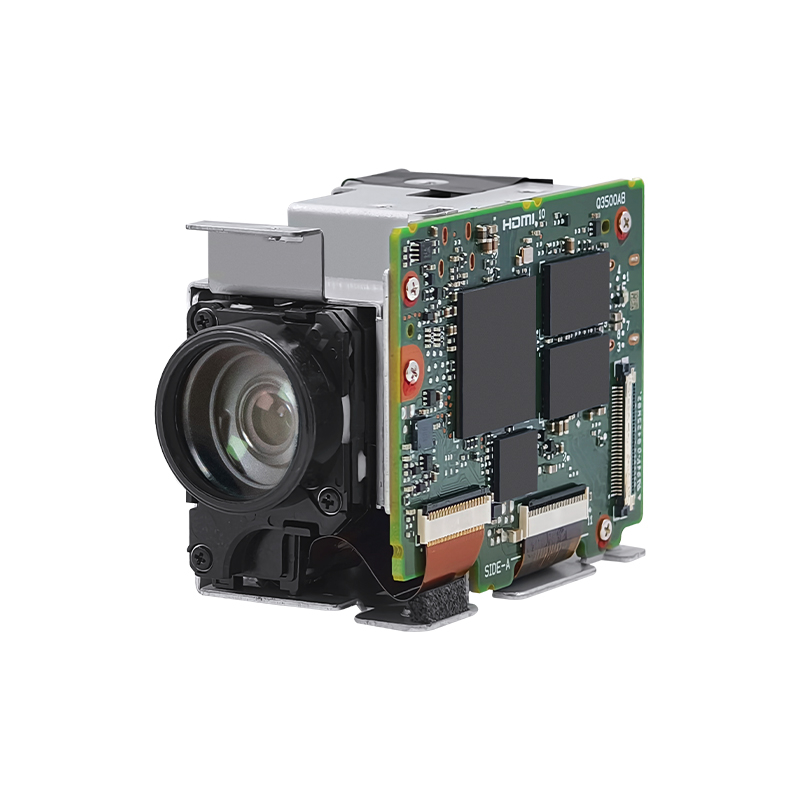

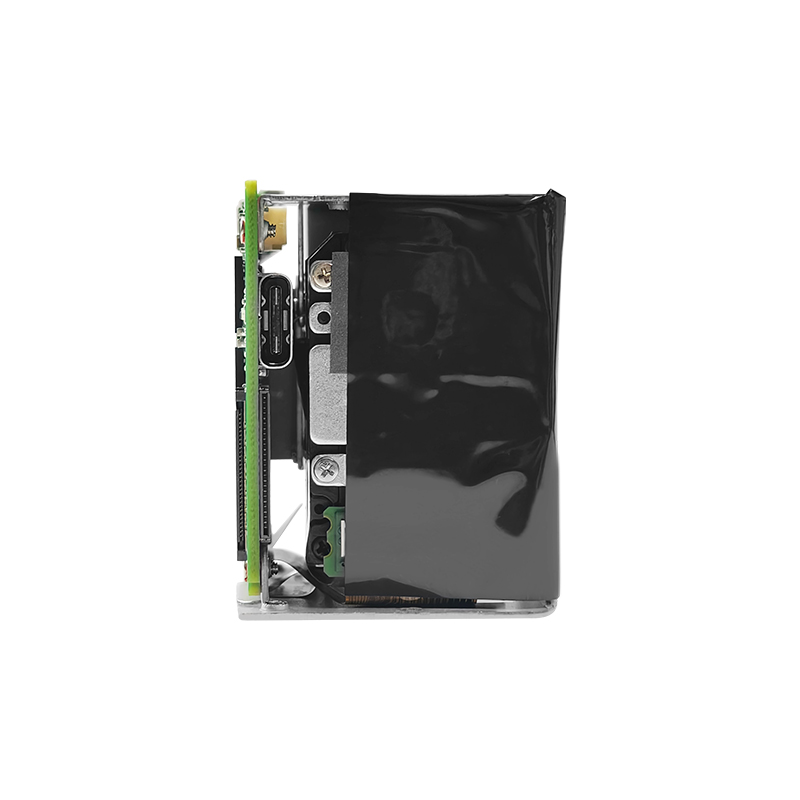

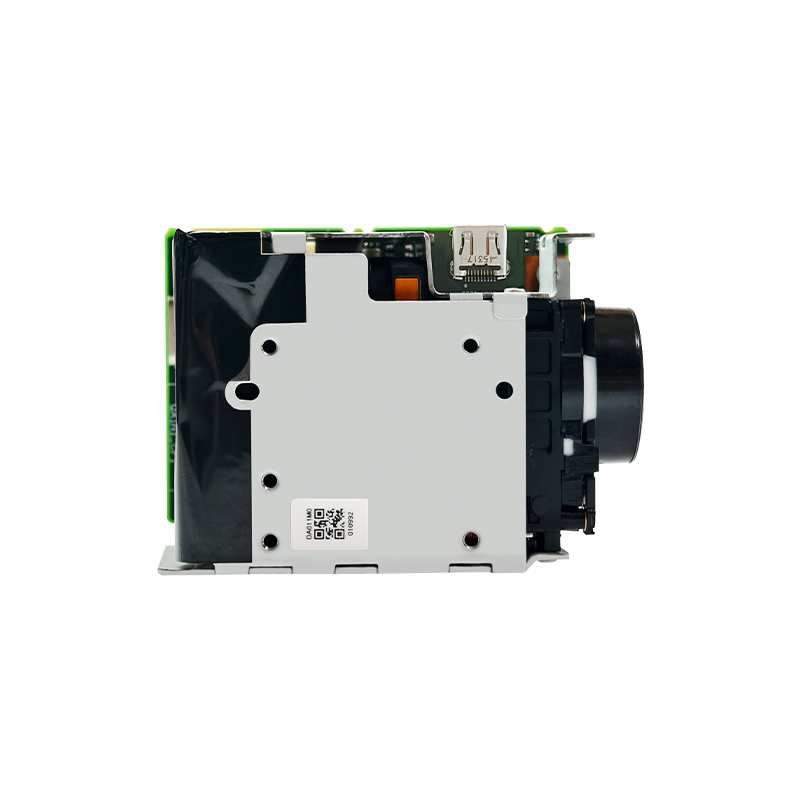

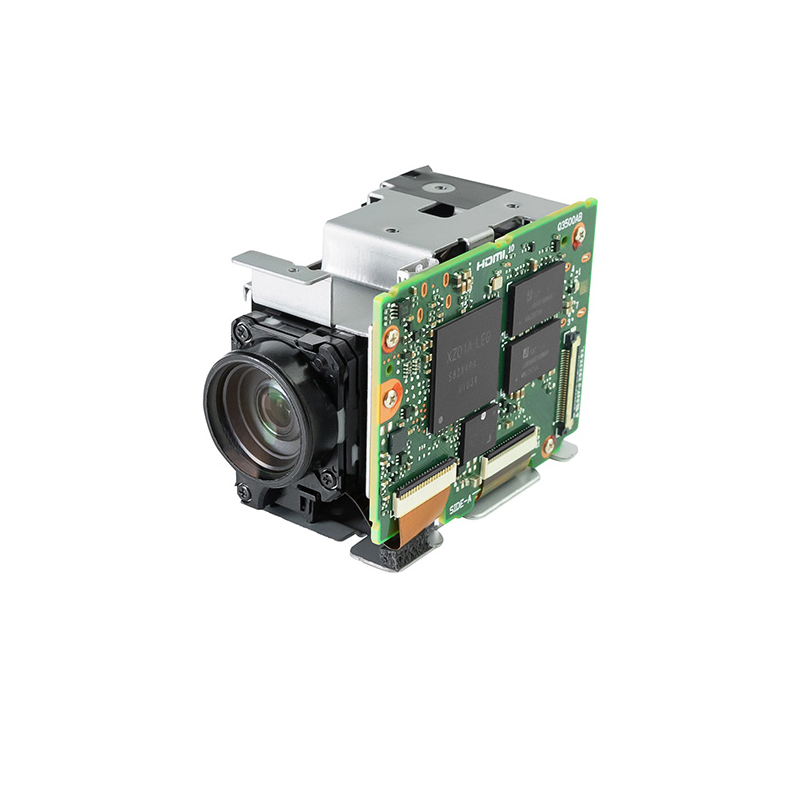

MP3010M-EV Tamron 10X Zoom Block Camera

• Sensor(Effective pixels): 1/2.8'' Sony STARVIS CMOS(approx. 2.0MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: 1080P/60/59.94/50/30/29.97/25, 720P/60/59.94/50/30/29.97/25
• Video output: LVDS, HDMI, CVBS(without WDR)
• Lens: f = 3.3mm - 33mm, F1.8 - 3.4
• Zoom: 10x Optical Zoom, 16x Digital Zoom
• Other functions: Day & Night(ICR), Privacy Mask Function, Defog Function, Intelligent Motion Detection
• Size: 33.0 x 43.0 x 59.0mm
• Weight: approx. 70.0g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

MP3010M-EV Tamron MP3010M-EV Tamron Zoom Block Camera Full HD Block Camera 1080P Camera Module 10x Zoom Camera Auto Focus Camera LVDS Block Camera Mini Camera Block Tamron Camera

Overview

Tamron's electronic vibration compensation in the MP3010M-EV suppresses the effects of vibration and ensures unparalleled clear image quality, especially at high frequencies.

Ultimate small size and weight (59mm total length, 70g weight) with integrated powerful 10x optical zoom; unique advantage in reusing existing housings or installing in limited spaces.

High-quality camera module with video output compatible with 1080/60p Full HD and other video formats; powerful solution for countless applications.

Fully upgraded and compatible with models prior to MP1010/MP1110 series
Equipped with industry-leading compact 10x zoom lens
New features for various applications (high sensitivity, day/night function, multiple interfaces, etc.)

Basic Info.

Model NO.	MP3010M-EV	Brand	Tamron
Sensor	1/2.8 inch Sony STARVIS CMOS Sensor	effective pixels	approx.2.00MP
Output pixels (H × V)	1920x1080 or 1280x720	wide dynamic	Yes
Lens	10x Optical Zoom, 16x Digital Zoom	Focal Length	f=3.3mm-33mm, F1.8-F3.4
image stabilization	EIS	Video Output	LVDS, USB, HDMI, CVBS
Image formats	1080p/60,1080p/59.94,1080p/50,1080p/30,1080p/29.97,1080p/25, 720p/60,720p/59.94,720p/50,720p/30,720p/29.97,720p/25
Minimum illumination	0.1 lx (1/30sec,F/1.8,50%,Color,Typical ) 0.025 lx (1/30sec,F/1.8,50%,B&W,Typical )
Operating Temperature	-5～+60°C
Dimensions	33(W) x 43(H) X59(D) mm
Weight	Approx 70 g

Application

Traffic surveillance
Drone aerial photography
Medical Devices
Pipeline robot

Optimized Video Output Configuration

MP3010M-EV		Compatible Camera Interface Board		Customized Integrated Solutions

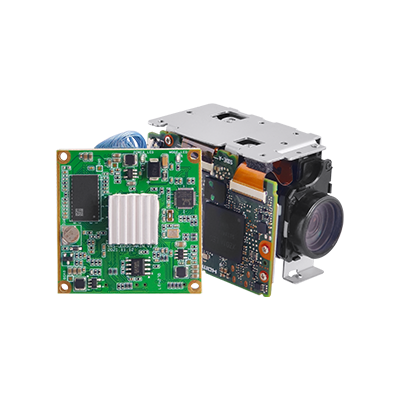

1/2.8 inch Sony STARVIS CMOS Sensor Effective pixels: approx. 2.00MP	+	RJ45 Ethernet interface Network Video output	=	Tamron MP3010M-EV + MIPI or LVDS to IP camera Interface Board

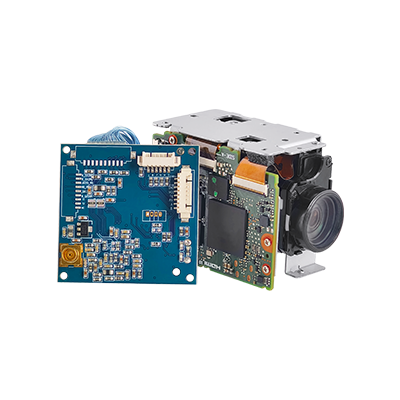

Lens: 10x Optical Zoom, 16x Digital Zoom	+	Mini MCX RF Interface Lvds to 3G-SDI Output	=	Tamron MP3010M-EV + 3G-SDII Interface Board

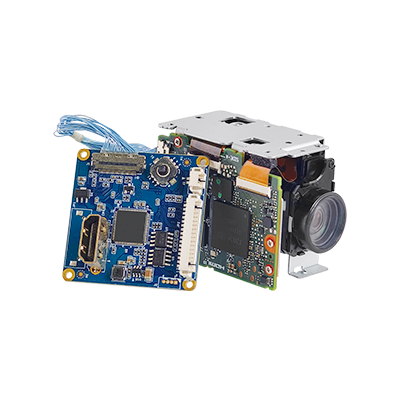

Video Output: LVDS, USB, HDMI, CVBS Output pixels (H × V): 1920 × 1080, 1280 × 720	+	HDMI-compatible Type A interface HD-HDMI video output	=	Tamron MP3010M-EV + HD-HDMI Compatible Interface Board

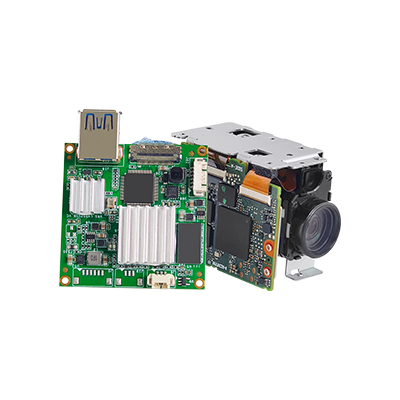

Minimum illumination: color image output under 0.1 Lx	+	USB3.0 Interface Lvds to USB3.0 video Output	=	Tamron MP3010M-EV + LVDS to USB3.0 Video Capture Interface Board

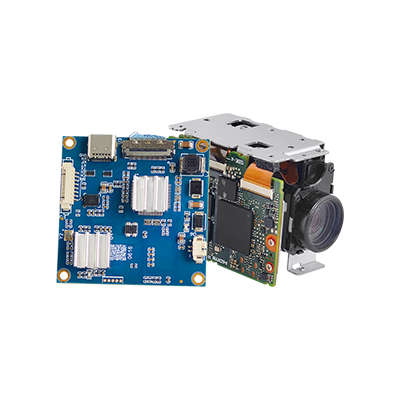

wide dynamic, Electronic image stabilization	+	USB3.0 Type-C Interface Lvds to Type-C Output	=	Tamron MP3010M-EV + LVDS to USB3.0 Type-C Video Capture Interface Board

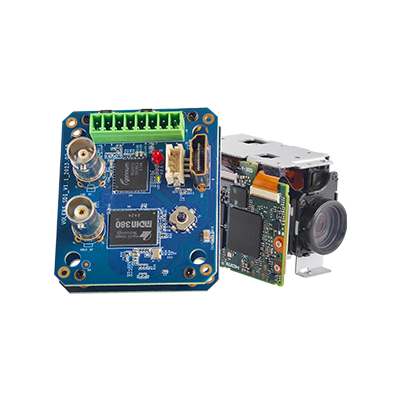

Day and night switch Horizontal viewing angle: 59.2°(wide)～6.7°(tele)	+	Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Tamron MP3010M-EV + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board

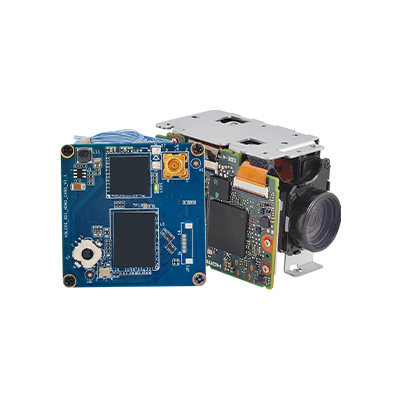

Compact and Lightweight Body Camera control: VISCA	+	LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Tamron MP3010M-EV + Mini SDI/CVBS/HDMI-Compatible Interface Board

Size: 33(W) x 43(H) X59(D) mm Weight: Approx 70g	+	LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output	=	Tamron MP3010M-EV + LVDS to MIPI Interface Board

FAQ

Q: What is the difference between Tamron MP3010M-EV and Sony FCB-EV7100?

A: Tamron MP3010M-EV and Sony FCB-EV7100 both use SONY CMOS sensors, but the MP3010M-EV uses the newer STARVIS CMOS, so it has a lower low illumination than the FCB-EV7100. Up to 0.025 lx (1/30sec,F/1.8,50%,B&W,Typical).

In addition, the MP3010M-EV has a lighter body than the FCB-EV7100, a larger digital zoom and more output interfaces.

Comparison of main parameters

Model NO.	SONY FCB-EV7100	Tamron MP3010M-EV
Sensor	1/2.8” Exmor R CMOS	1/2.8" STARVIS CMOS
Min. illumination	0.35lx	0.025lx
Digital zoom	12X	16X
Output interface	LVDS	LVDS/HDMI/CVBS
Size	45.6×48.8×78.0 mm	33.0×43.0×59mm
Weight	210g	70g

Parameter

Image Sensor	Sony's CMOS image sensor with STARVIS™ technology
Pixel output (H x V)	1920x1080 or 1280x720
Signal System (HD)	1080p/60, 1080p/59.94,1080p/50, 1080p/30,1080p/29.97, 1080p/25,720p/60, 720p/59.94,720p/50, 720p/30,720p/29.97, 720p/25
Signal system(SD)	NTSC/PAL
Minimum illumination	0.1 lx (1/30sec,F/1.8,50%,Color,Typical ) 0.025 lx (1/30sec,F/1.8,50%,B&W,Typical )
S/N Ratio	More than 50dB
Gain	Auto/Manual
Shutter Speed	1/1 to 1/10,000 sec
Sync System	Internal
Backlight compensation	ON/OFF
White balance	ATW1(Narrow), ATW2(Wide),INDOOR, OUTDOOR,One push, Manual
Lens	10x optical zoom f=3.3～33mm F1.8～F3.4
Aperture Control	16 steps
White Balance	ATW1 (Narrow), ATW2 (Wide), One Push, Manual (B, R)
AE (Auto exposure mode)	Auto, Manual, Priority mode (shutter/iris)
Digital Zoom	Up to 16x
Focusing system	Auto, Manual, One push,AF sensitivity
Minimum object distance (wide to tele)	Visible light: 10mm(wide)～800mm(tele) 850nm: 10mm(wide)～1200mm(tele)
Horizontal viewing angle (wide to tele)	59.2°(wide)～6.7°(tele)
Day/Night	ON/OFF (ICR switching)
EIS	OFF/ON
Horizontal resolution	Center : 800TV lines (Typical)
Video Output	LVDS: digital Y/Pb/Pr 4:2:2 HDMI: digital Y/Pb/Pr 4:2:2 (HDMI Type D)
Video output (SD)	CVBS 1.0V(p-p,75Ω)
Camera control	VISCA
Power requirement	DC 8～12±10%
Power consumption	Approx.2.5W(Approx4.4W in the zoom and focus operation)
Operating temperature	-5～+60°C
Storage temperature	-40～+60°C
Operating humidity	20%～80% (no condensation)
Storage humidity	20%～90% (no condensation)
Dimensions (W x H x D)	33 x 43 x 59 mm
Weight	Approx. 70g
