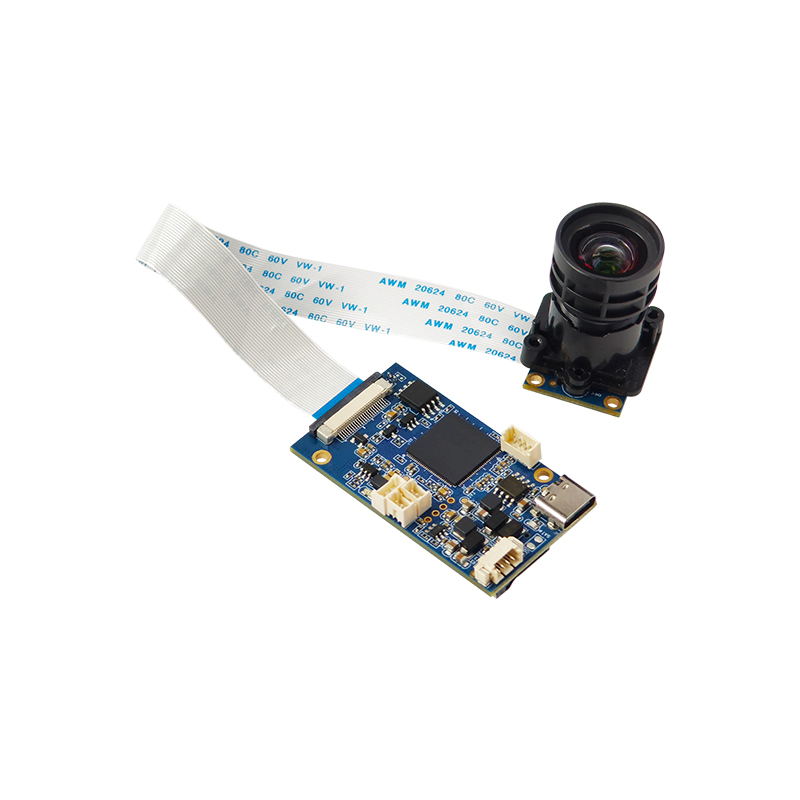

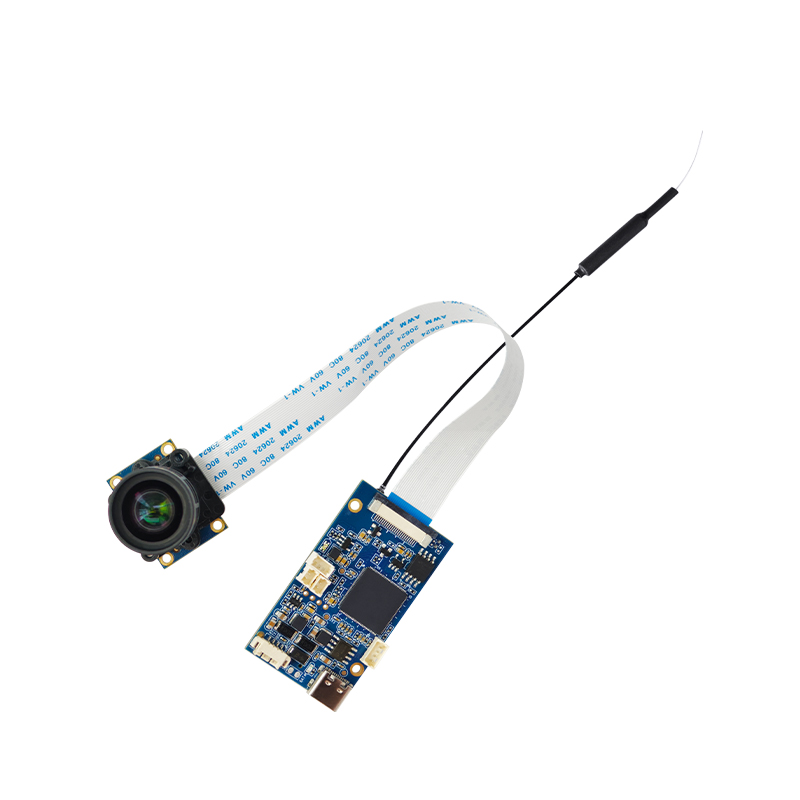

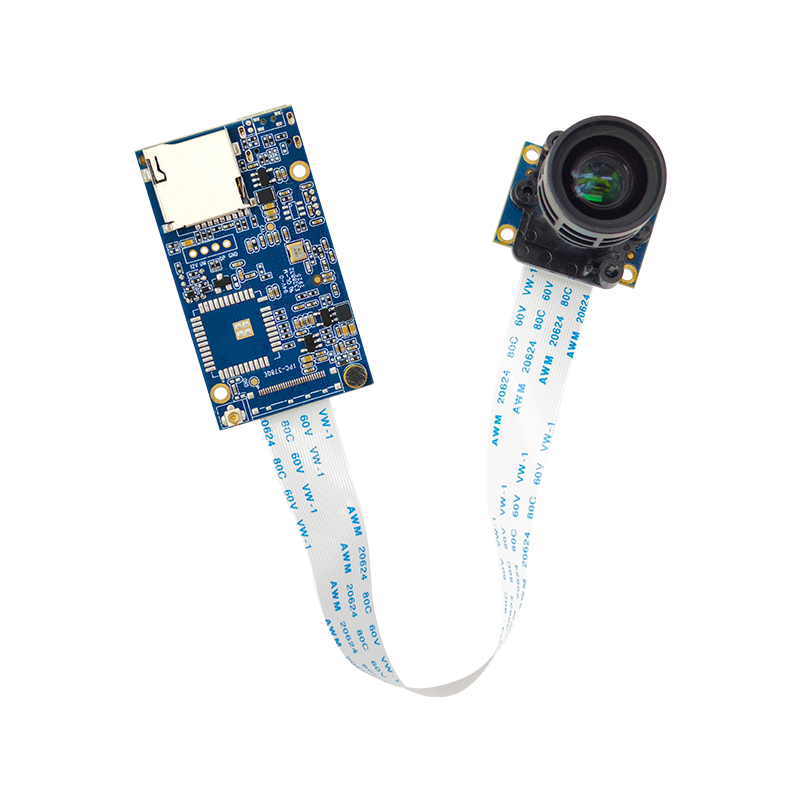

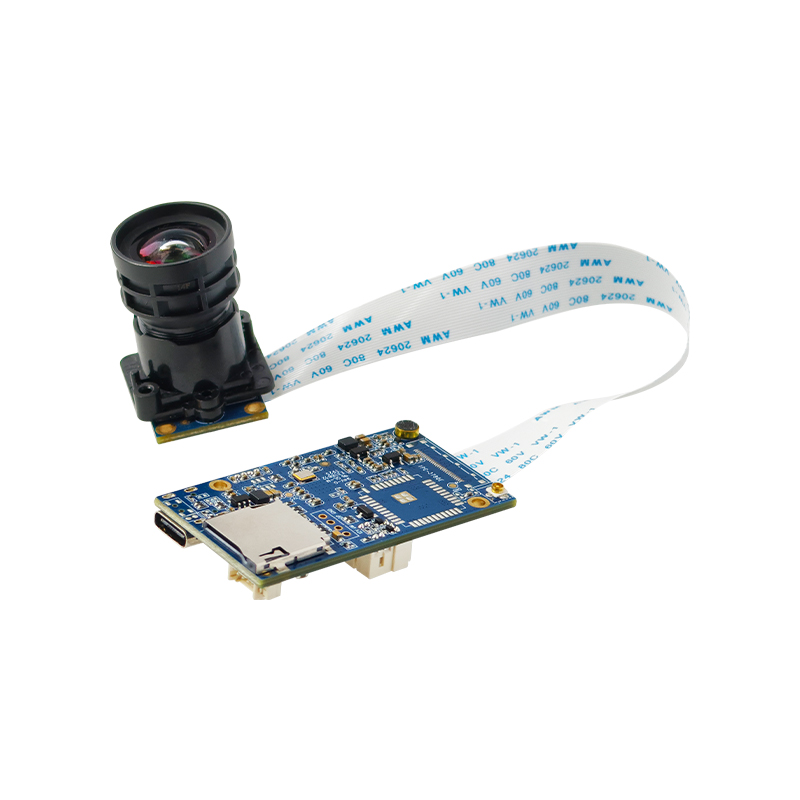

5MP/8MP Starlight Full-Color Network Camera For FPV

This 5MP/8MP HD starlight full-color network camera supports low-latency image transmission via

4G and Wi-Fi for aerial applications. Boasting superior starlight full-color imaging performance, it delivers

sharp, highly detailed footage even in low-light or nighttime conditions, ideal for wide-area, wide-angle and

broad-field-of-view surveillance.

Suitable for handheld and wearable devices, as well as scenarios requiring wireless shooting where

wired connectivity is impractical, it enables high-definition real-time local and remote viewing & monitoring.

Meanwhile, it serves as an optimal solution for UAV aerial photography, unmanned vehicles, law-enforcement

equipment, video recording & snapshot for wearables, and temporary deployment for human

intrusion detection.

With a compact footprint of only 50×28 mm, the camera features easy installation and is well-suited

for compact product integration. Equipped with 2D/3D noise reduction, digital wide dynamic range

(D-WDR), and multiple image enhancement & correction algorithms, it ensures crisp, true-to-life visuals.

Additionally, it offers advantages including ultra-low-light sensitivity, low latency and low power

consumption, and supports customization and secondary development.

Features

• Excellent Encoding Performance: Supports H.265+, H.265, and H.264 encoding standards, delivering high-definition video quality at ultra-low bitrates.

• Ultra-Clear Image Output: Supports up to 8 megapixels and ultra-high-definition output at 2880×1620@30fps, ensuring smoother capture of dynamic scenes.

• Wide Protocol Compatibility: Compatible with mainstream protocols including ONVIF 2.4, GB28181, JT1078, JT808, and RTMP, enabling seamless integration with third-party backends and platforms.

• Convenient Remote Management: Supports remote monitoring via mobile phones and PCs, with built-in cloud storage capabilities, allowing real-time access to surveillance situations anytime, anywhere.

• Diverse Network Connectivity: Wi-Fi supports two modes (Hotspot and STA LAN); 4G network is compatible with China Mobile, China Telecom, and China Unicom, meeting the requirements of various application scenarios.

• Precise Positioning Extension: Supports GPS/Beidou dual-satellite positioning systems, enabling more accurate location tracking.

• Data Transmission Support: Equipped with serial port communication and data transparent transmission functions, facilitating efficient data interaction.

• Transmission Interface Adaptation: Can be connected to LVDS coaxial cables, with a maximum transmission distance of 1 meter, suitable for diverse data transmission scenarios.

• Flexible Power Supply Methods: Supports POE power supply, lithium battery power supply, and charging, flexibly adapting to both fixed deployments and mobile operations.

• Powerful Computing Capability: Built-in 0.8T computing power provides a solid foundation for intelligent analysis, enabling target detection and behavior recognition to meet diverse intelligent surveillance needs.

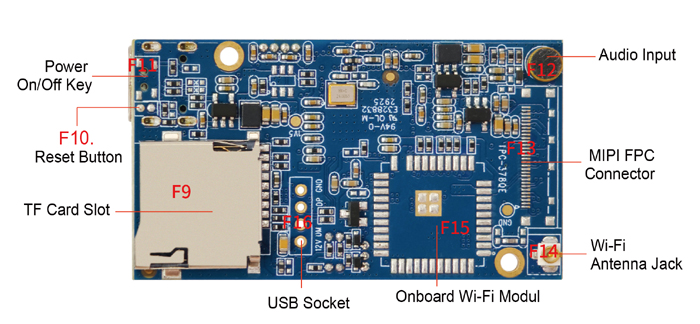

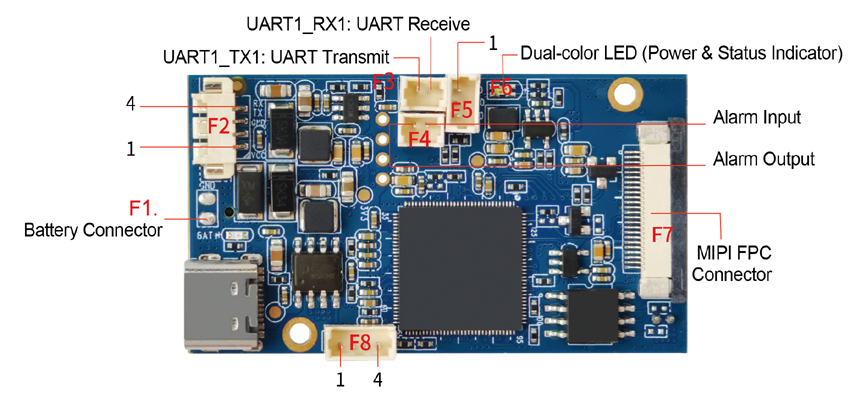

Interface Assignment

Front Side of the product	Rear of the product

Procurement Model

Product Accessories

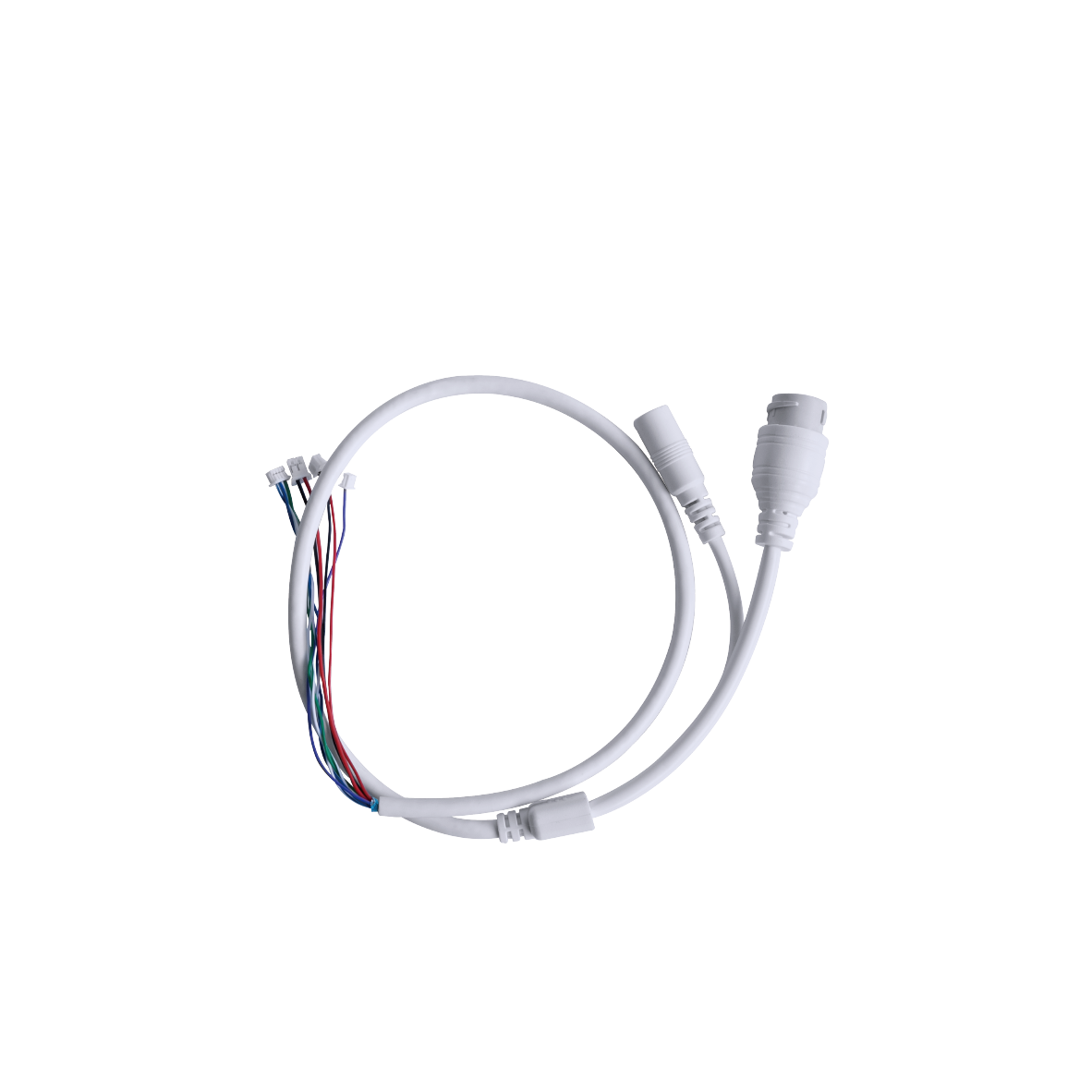

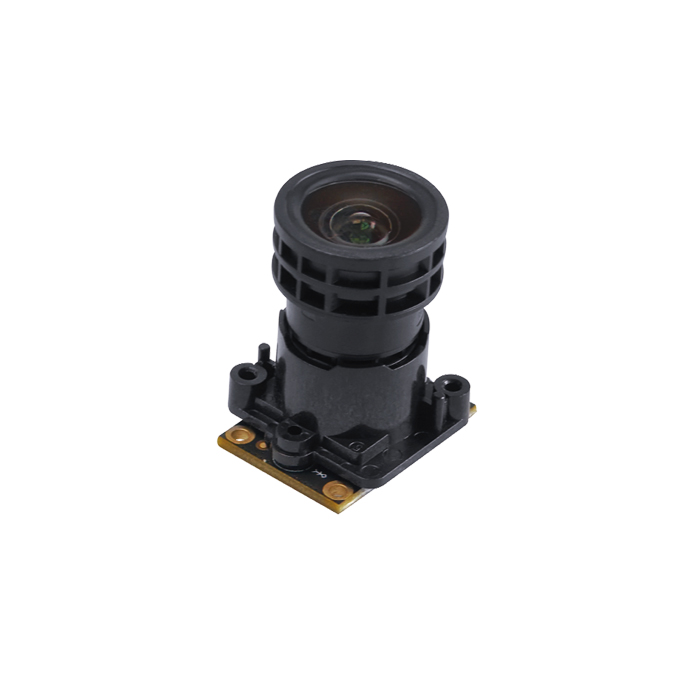

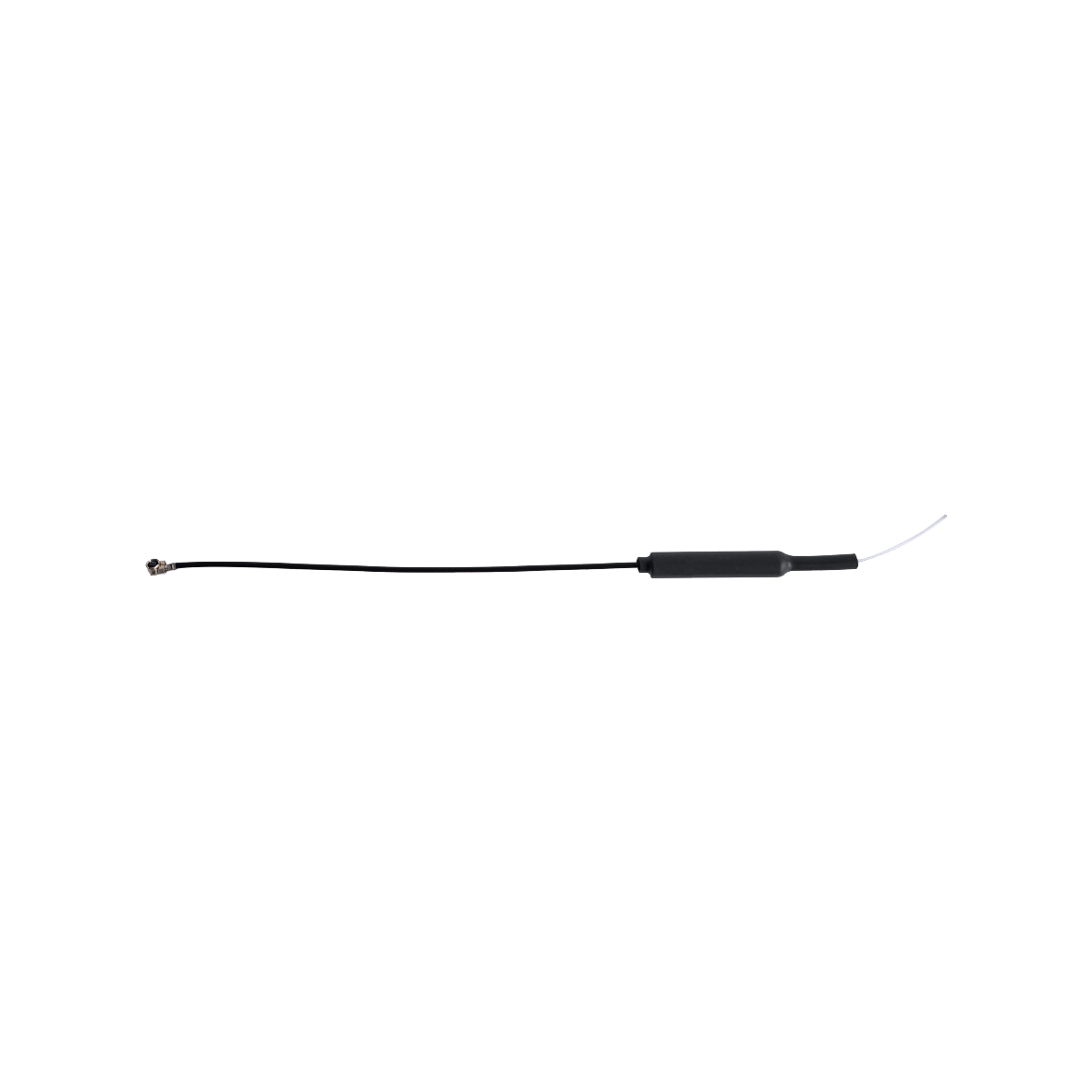

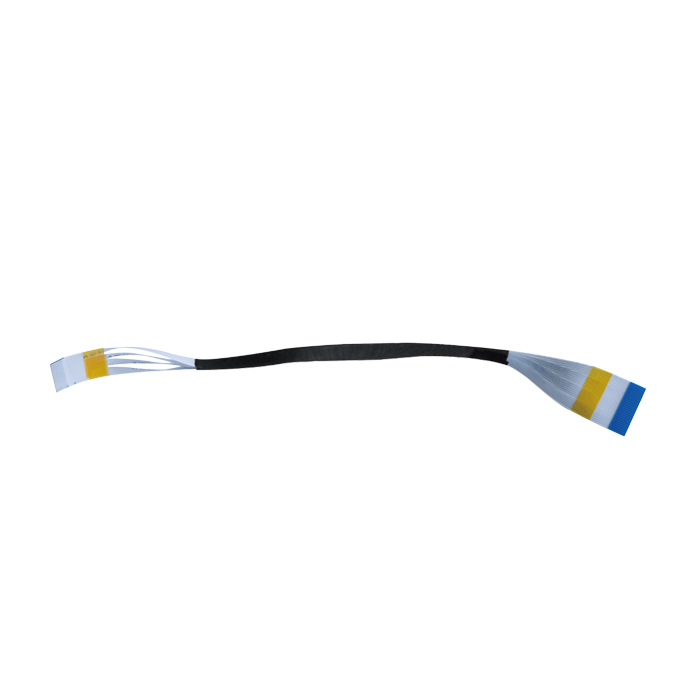

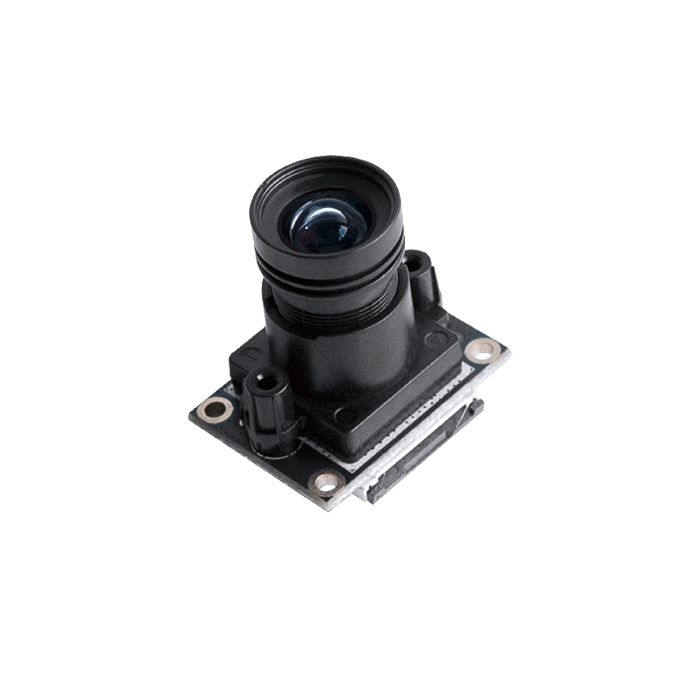

4MP Sensor + M12 Lens  (Optional)	8MP Sensor + M16 Lens (Optional)	FPC cable (Standard)	Wi-Fi Antenna (Optional	Power & Ethernet Cable (Optional)

Installation Steps

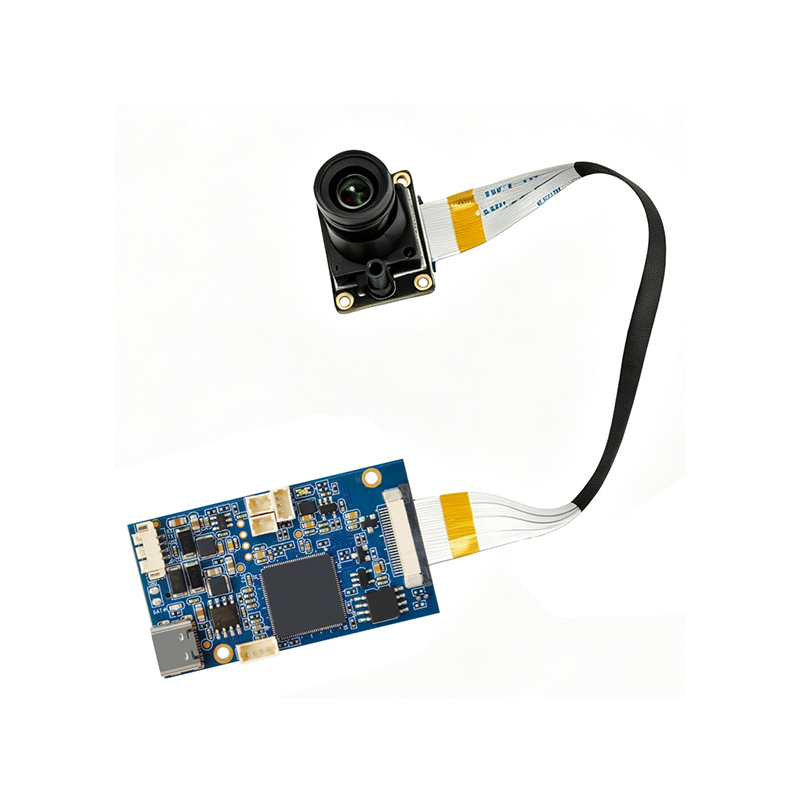

Assembly Example (5MP with Wi-Fi Version)

				——
4MP Sensor + M12 Lens  (Optional)	Power & Ethernet Cable (Optional)	FPC cable (Standard)	Wi-Fi Antenna (Optional	——

Connection Steps Physical Assembly Steps Only (No Electrical Work) Notes:

The steps demonstrate physical connection only-electrical connection is excluded. No image output at this stage. For electrical connection assistance, contact technical support

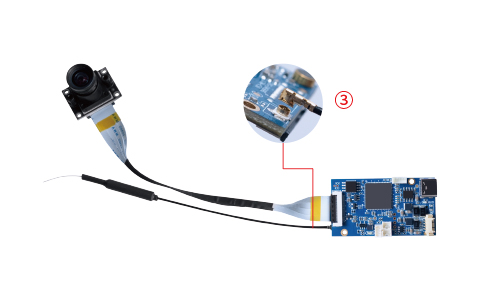

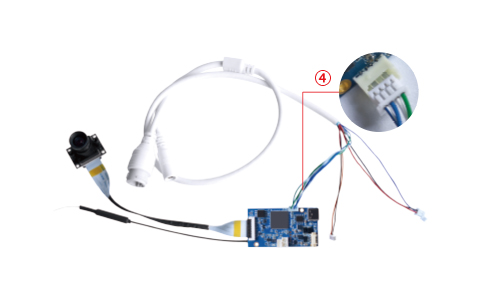

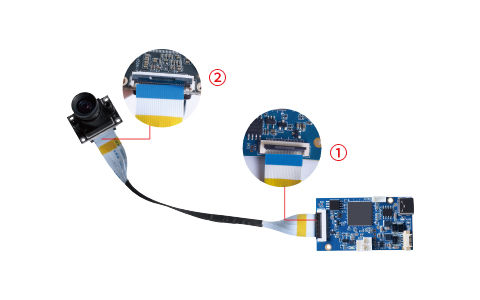

Step Ⅰ: 1. Insert the FPC cable straight into the main board connector (Mark ① on drawing). 2. Insert the FPC cable straight into the 5MP Sensor board connector (Mark ② on drawing). Note: Lift the connector latch up; ensure the blue side of the FPC cable is facing up.	Step Ⅱ: 3. Connect the Wi-Fi antenna to the main board (Mark ③ as shown above). Note: This antenna is only included with motherboards that have Wi-Fi capability.	Step Ⅲ: 4. Connect the 4-Pin power & LAN cable to the main board (Mark ④ as shown above).

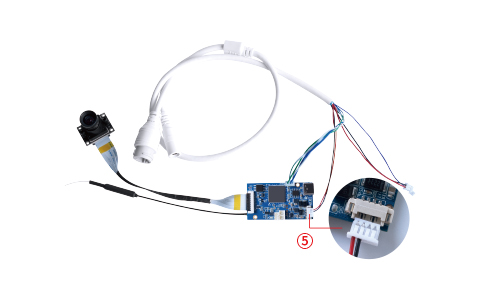

Step Ⅳ: 5. Connect the power cable to the mainboard (Mark ⑤ as shown above).

*Thank you very much for purchasing our company's products. If you have any questions, please feel free to contact us.

The photos and actual objects depicted in this Manual are provided solely for reference and guidance to users.

We do not guarantee that they are completely identical to the actual products. Please refer to the actual products.

Design, features and specifications are subject to change without notice.
