The 11th Shenzhen International UAV EXPO: How to Choose Between Sony FCB-ER9500 and FCB-EV9500L

Among Sony's FCB camera module family, the FCB-ER9500 and FCB-EV9500L are two sisters with similar appearances but distinct cores. Although they have almost the same body size (56×64×125 mm), their positioning is vastly different: the FCB-ER9500 is a 4K60P flagship model that pursues 4K high-resolution image quality, while the FCB-EV9500L is a 1080P main force that emphasizes high cost performance.

Our company, an official authorized dealer of Sony (China), will provide you with an in-depth analysis of the differences between the two, helping you make a more accurate choice in projects such as medical care, drones, security, and industrial inspection.

The FCB-ER9500 and FCB-EV9500L will also make their appearance at the International Low Altitude Economy and UAS Expo 2026 & the 11th Shenzhen International UAV Expo (referred to as: UASE) from May 21st to 23rd, 2026. We welcome you to visit and experience the comparison.

I. Core Parameters Overview: Positioning Determines Performance Ceiling

II. Scenario-based Selection: Which Device is Your Perfect Match?

Scenario 1: Medical Operating Room & Electronic Hysteroscope System

Top Choice: FCB-ER9500 (Highly Recommended)

In the medical field, precise capture is paramount. The 4K/60fps capability of the FCB-ER9500 makes it the ideal choice for operating rooms:

Detail restoration: 4K resolution can clearly present micron-level details such as vascular anastomosis and nerve bundles, which is beyond the reach of 1080P.

The 60fps high frame rate effectively eliminates the trailing effect when the surgical electrosurgical knife moves rapidly, ensuring smooth and natural motion recording.

Color fidelity: The HDMI output supports RGB 4:4:4 uncompressed format, ensuring that the colors of the organization are accurately reproduced and avoiding misjudgment.

Low-light advantage: The STARVIS 2 sensor has better noise control than the FCB-EV9500L in the dim light environment of minimally invasive surgery.

Conclusion: The FCB-EV9500L is only suitable for monitoring in ordinary hospital wards where the requirements for picture quality are not high.

Scene 2: Drone Inspection & Vehicle-Mounted Monitoring

Top Choice: FCB-EV9500L (Best Value Option)

For drone and mobile vehicle-mounted scenarios, the FCB-EV9500L stands out for its "interface adaptability" and "function-specificity":

Interface advantages: The Sony FCB-EV9500L adopts a standard LVDS interface design. Combined with the Interface board independently developed by Xuanzhan Technology, it can be flexibly converted into various signals such as SDI, HDMI, USB, IP, MIPI and CVBS, featuring strong compatibility and convenient expansion.

Zoom capability: The 30x enhanced optical zoom of the FCB-EV9500L enables it to see farther in security and power inspection applications.

Environmental Adaptation: Equipped with built-in strong light suppression, low-light imaging, and wide dynamic range functions, it can handle complex outdoor environments and output stable and clear images.

Conclusion: The Sony FCB-EV9500L offers better value for money. If a higher 4K ultra-high-definition resolution is required, the FCB-ER9500 can be chosen instead.

Scene 3: Industrial Precision Inspection

When it comes to measuring dimensions and identifying micro-defects, choose FCB-ER9500. Its 4K resolution ensures the accuracy of the inspection.

Just monitor the process and identify the general status: choose FCB-EV9500L, which is lower in cost and fully sufficient.

III. In-depth Comparison of Technical Details

1. Sensor Generation Gap: STARVIS 2 vs STARVIS

The FCB-ER9500 is equipped with Sony's second-generation back-illuminated sensor technology, STARVIS 2, which offers significant improvements in signal-to-noise ratio and dynamic range compared to the first-generation STARVIS in the FCB-EV9500L. This means that in backlit or extremely low-light conditions, the FCB-ER9500 provides a notably cleaner image.

2. Output Interface: HDMI vs. LVDS

FCB-ER9500 (HDMI): Oriented towards "display". It is suitable for direct connection to 4K displays and recording devices, serving as the "eyes" of the system terminal.

FCB-EV9500L (LVDS): Oriented towards "integration". Suitable for embedding into motherboards or encoding boards, it serves as the "sensor" in the middle layer of the system.

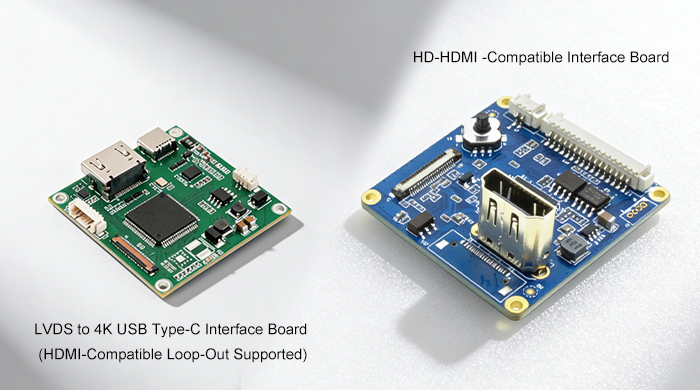

IV. Supporting Solutions

As an official authorized distributor of Sony (China) and a provider of secondary development solutions for high-definition video, Xuanzhan Technology offers different supporting solutions for these two modules:

Conclusion

There is no distinction of superiority or inferiority between the FCB-ER9500 and the FCB-EV9500L; they are only suitable for different scenarios.

If your project involves life and health, precise measurement, or high-end teaching, the 4K ultra-high-definition picture quality of the FCB-ER9500 is a must-have.

If your project involves mobile inspection, cost control, and system integration, the FCB-EV9500L is the proven king of cost performance.

Ⅴ. Information on the Shenzhen International UAV Expo:

Exhibition Time: May 21st-23rd, 2026

Exhibition Venue: Shenzhen Convention and Exhibition Center (Futian)

Xuanzhan Booth: 1C379, Hall 1
