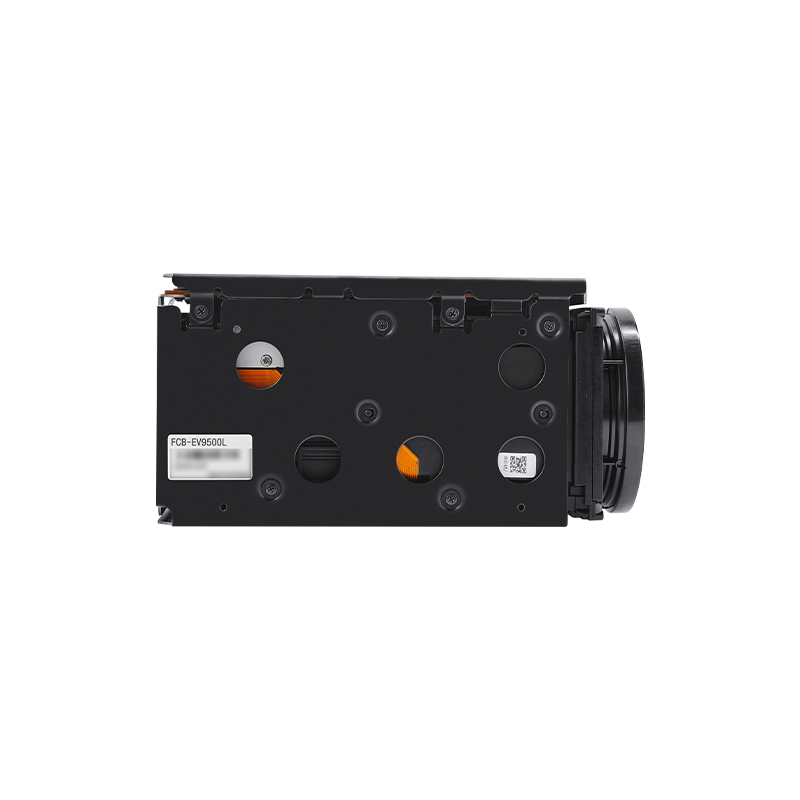

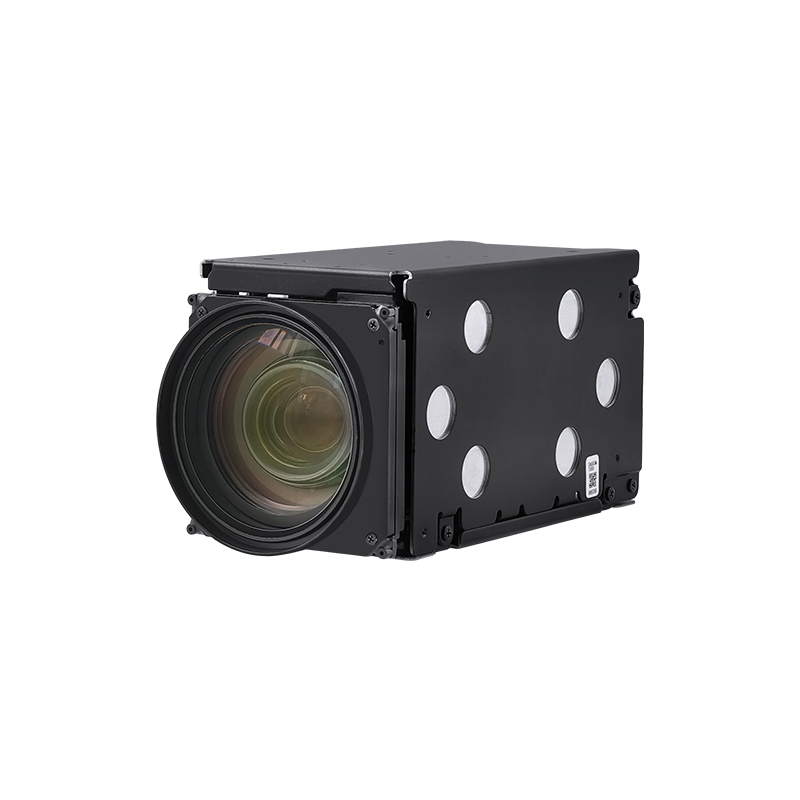

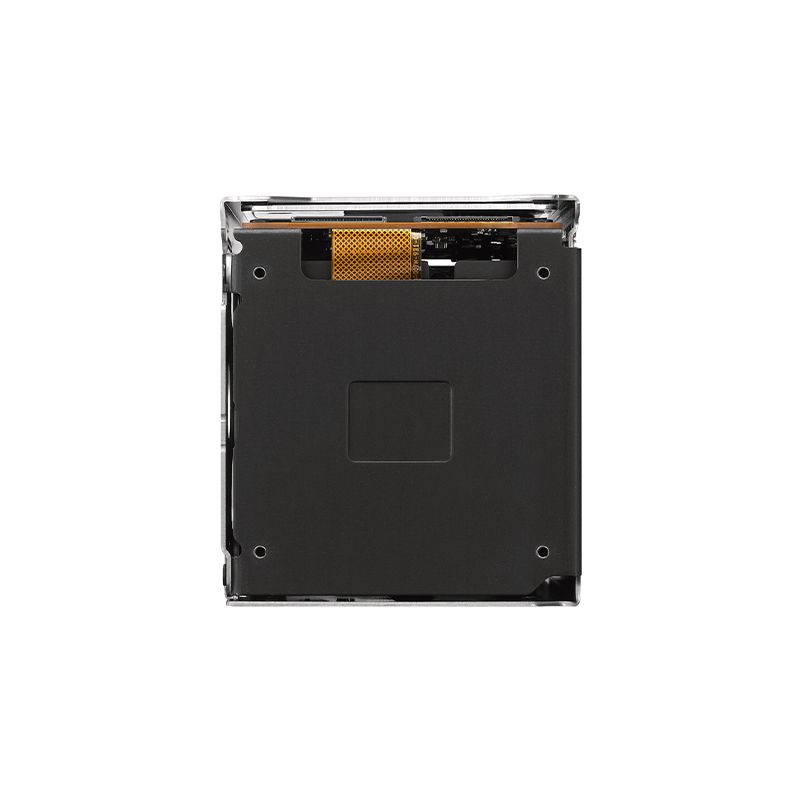

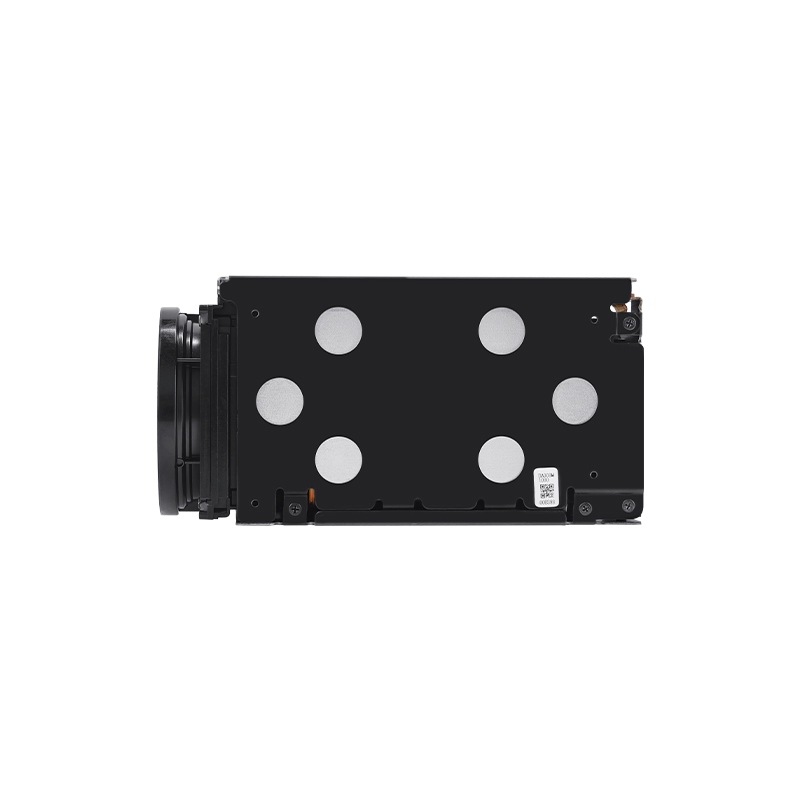

FCB-EV9500L Sony LVDS 30x Zoom Block Camera

• Sensor(Effective pixels): 1/1.8'' RSTARVIS CMOS(approx. 4.17MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: Up to 1080p/60
• Video output: LVDS
• Lens: f = 6.5mm - 162.5mm, F1.6 - 4.8
• Zoom: 30x Enhanced Optical Zoom, 12x Digital Zoom
• Other functions: Spot Focus/AE/AWB, Wide Dynamic Range, Image Stabilization (Super/Super+) etc.
• Size: 56.0 x 64.0 x 125.0mm
• Weight: approx. 439g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

FCB-EV9500L Sony FCB-EV9500L Sony LVDS Block Camera Full HD LVDS Output Camera 1080P/60 Zoom Camera 30x Zoom Camera 30x fast auto-focus camera Surveillance 30x A-f Camera CCTV 30X Zoom Block Zoom Sony 30X LVDS Camera

Overview

The Sony FCB-EV9500L is a full HD camera module engineered for professional industrial scenarios. Leveraging Sony’s core imaging technologies, it delivers dual advantages of high-performance imaging and stable transmission.

Equipped with a 1/1.8-inch STARVIS™ CMOS sensor and boasting approximately 4.17 mega effective pixels, the FCB-EV9500L stably outputs 1080P/60fps high-definition video. Combined with a 30x enhanced optical zoom lens, it accurately captures long-distance details while satisfying both wide-angle coverage and telephoto focusing requirements.

The core advantage of the Sony FCB-EV9500L lies in its low-latency LVDS interface design. It enables integrated transmission of video, VISCA control signals, and power supply via a single 30-core ultra-fine coaxial cable. Meanwhile, it features dual-mode Super/Super+ electronic image stabilization, which significantly suppresses vibration-induced blurring. Coupled with functions including wide dynamic range, fog penetration, noise reduction, ICR ON COLOR, and automatic day-night switching, the module ensures clear imaging even in harsh environments such as strong light, low light, and haze conditions.

Basic Info.

Model NO.	VRS-HD5201	Brand	Volers
Sensor	1/2.8" Sony Starvis CMOS Sensor	Output pixels	1937 x 1097 (FHD)= 2.12M pixels
Focal Length	20x Optical Zoom, 32x Digital Zoom	Focal Length	f= 5.2 mm- 104 mm, F1.5 - 3.5
Image formats	Digital : 1080p/60(50)fps, 1080p/30(25)fps, 1080i/60(50)fps,720p/60(50)fps,720p/30(25)fps Analog : 700TVL
Minimum illumination	Color(1/30s, 78dB): 0.01 lux , BW(1/30s, 78dB): 0.0011ux Color DSS(1/1s, 78dB): 0.001 lux , BW DSS(1/1s, 78dB): 0.0001 lux
Video Output	HD : LVDS, EX-SDI,Analog SD : CVBS
Other functions	Digital Image Stabilization, Intelligent Motion Detection, Defog Function, High Light Compensation
Dimensions	50(W) x 60(H) x 97(D)mm
Weight	Approx 232g

Application

The Sony FCB-EV9500L is widely compatible with diverse professional scenarios, including intelligent transportation, UAV inspection, medical teaching, and security speed domes. It serves as a reliable core component for professional visual solutions across various industries.

Optimized Video Output Configuration

FCB-EV9500L		Compatible Camera Interface Board		Customized Integrated Solutions

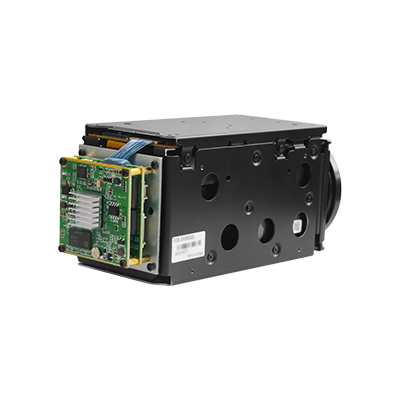

1/1.8inch STARVIS CMOS Sensor Effective pixels: approx. 4.17MP	+	RJ45 Ethernet interface Network Video output	=	Sony FCB-EV9500L + MIPI or LVDS to IP camera Interface Board

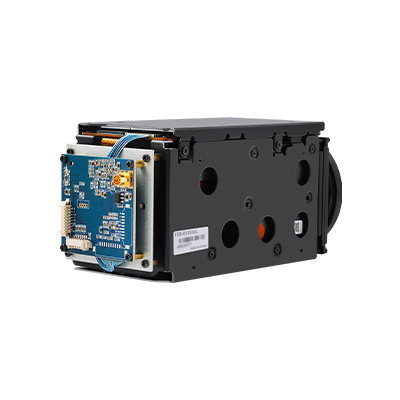

Lens: 30x Enhanced Optical Zoom, 12x Digital Zoom	+	Mini MCX RF Interface Lvds to 3G-SDI Output	=	Sony FCB-EV9500L + 3G-SDII Interface Board

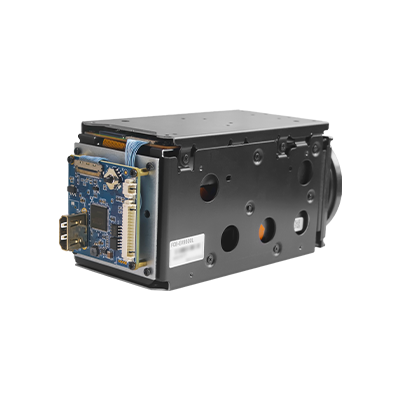

Video Output:LVDS Output pixels (H × V): 1920 × 1080, 1280 × 720	+	HDMI-compatible Type A interface HD-HDMI video output	=	Sony FCB-EV9500L + HD-HDMI Compatible Interface Board

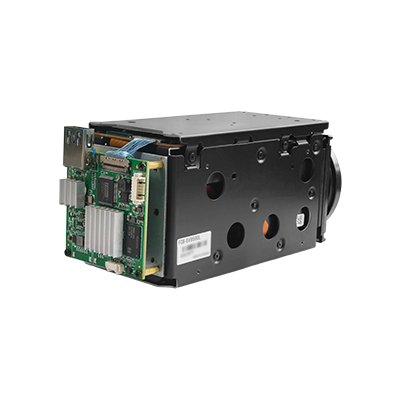

Starvis night vision: color image output under 0.009 Lx low illuminations	+	USB3.0 Interface Lvds to USB3.0 video Output	=	Sony FCB-EV9500L + LVDS to USB3.0 Video Capture Interface Board

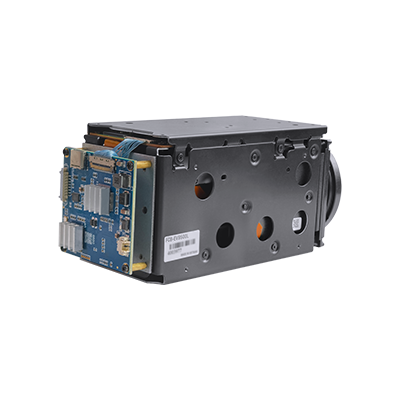

120DB wide dynamic, super image stabilization	+	USB3.0 Type-C Interface Lvds to Type-C Output	=	Sony FCB-EV9500L + LVDS to USB3.0 Type-C Video Capture Interface Board

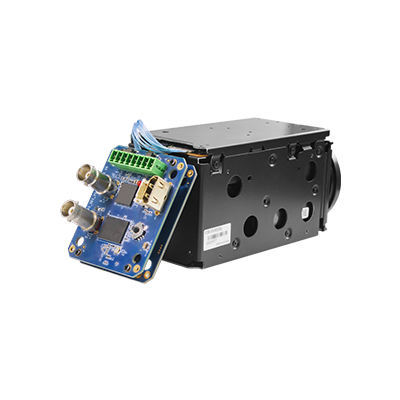

Day and night switch defog	+	Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Sony FCB-EV9500L + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board

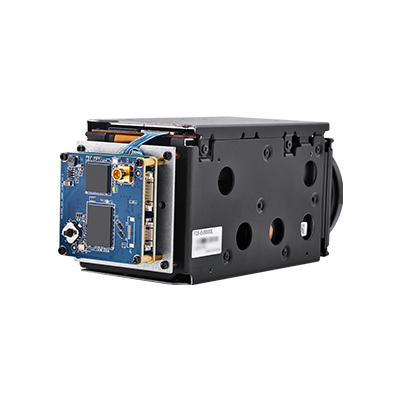

ICR ON COLOR Spot Focus, Spot AE,Spot AWB	+	LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Sony FCB-EV9500L + Mini SDI/CVBS/HDMI-Compatible Interface Board

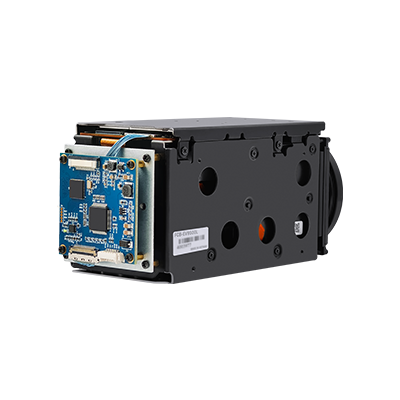

Size: 56.0 x 64.0 x 125mm Weight: Approx 439g	+	LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output	=	Sony FCB-EV9500L + LVDS to MIPI Interface Board

FAQ

Q1: As an officially authorized distributor of Sony China, does your company provide technical support for the secondary development of the FCB-EV9500L?

A1: As an officially authorized distributor of Sony China, our company distributes Sony’s FCB series HD and 4K UHD camera modules. In addition, our company is also a provider of HD video secondary development solutions, capable of delivering customized secondary development services and relevant technical support for the FCB-EV9500L to clients.

Q1: Can the heavy-duty Sony FCB-EV9500L be applied to drones?

A1: While the Sony FCB-EV9500L weighs 439g, which limits its use on small drones, its outstanding performance makes it fully compatible with medium-to-large professional drones. Equipped with a 1/1.8-inch CMOS sensor and featuring fast autofocus, this camera module integrates "Super" and "Super+" stabilization modes to capture stable, crystal-clear footage even during high-speed flights. Its low-light imaging capability and wide dynamic range function enable real-time transmission of high-quality video in scenarios like disaster relief and agricultural monitoring, delivering critical data for decision-making. The application scope of the FCB-EV9500L in the drone field can be further expanded by pairing it with a lightweight interface board or opting for the FCB-EV9500L lightweight version (310g).

Boasting 30x optical zoom and 12x digital zoom, drones fitted with the Sony FCB-EV9500L can complete tasks such as power and oil-gas pipeline inspections, emergency rescue situation assessments, and agricultural monitoring without the need for close-range flights.

Q3: Why is the Sony FCB-EV9500L referred to as a starlight-level camera module?

A3: The Sony FCB-EV9500L earns the title of "starlight-level" camera module primarily due to its adoption of Sony’s leading STARVIS CMOS sensor and advanced image processing technology.

"Starlight-level" is a professional term that refers to a camera’s ability to produce clear, usable color images under extremely low illumination conditions (typically 0.001 to 0.1 lux, which is close to the light intensity of starlight). In contrast, ordinary cameras can only capture grainy black-and-white footage in such environments.

The Sony FCB-EV9500L achieves a minimum illumination of 0.009 lux (at a shutter speed of 1/30s) in ICR-On mode, allowing it to capture sharp color images even in pitch-dark environments without streetlights or deep tunnels.

Featuring a 1/1.8-inch sensor and a high-aperture lens (F1.6-4.8), the module effectively enhances light intake. It is also integrated with auto gain control and 2D/3D digital noise reduction technologies, which suppress image noise while restoring true colors and details.

Parameter

Image Sensor	1/1.8-type STARVIS CMOS Sensor (4.17M pixels)
Output Image Size (H x V)	1920 x 1080, 1280 x 720
Signal System	1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum Illumination (50%, High Sensitivity MOde ON)	ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%)
Minimum Illumination (50%, High Sensitivity MOde OFF)	ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination	100 lx - 100,000 lx
Gain	Auto/Manual (0 dB - 50.0 dB), 0 - 28 steps
Shutter Speed	1/1 - 1/10000 s, 22 steps
Sync System	Internal
Exposure Control	0 dB - +- 10.5 dB, 15 steps
Backlight Compensation	Yes
Gamma	Standar/Straight Gamma
Aperture Control	16 steps
White Balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
AE (Auto Exposure Mode)	Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE
Zoom	30x Enhanced Optical Zoom 36x Stable Zoom 12x Digital Zoom
Lens	f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 - 4.8
Zoom Mode	Standard Mode / Variable Mode / Direct Mode
Zoom Movement Speed	Wide end - Tele end - 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF) Wide end - Digital 12x tele - 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p) Digital wide - Digital 12x tele - 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p)
Focusing System	Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus
Focus Movement Time	∞-Near: 1.4 sec.
Horizontal Viewing Angle	58.1°-2.3°
Minimum Object Distance (wide end to tele end)	100 mm - 1200 mm
Auto ICR	Yes
Wide Dynamic Range (Wide-D)	Yes
Visibility Enhancer	Yes
Defog	Yes (low/mid/high)
Noise Reduction	Yes (3D + 2D / Independent setting (3D, 2D)
Progressive Scan Mode	Yes
Image Stabilization	Yes
Spot Light Avoidance	Yes
Motion Detection	Yes
Privacy Zone Masking	Yes
Alarm	Yes
Slow AE Response	Yes
Picture Effects	Black White (Monochrome Image)
Picture Freeze	Yes
Electronic-Flip (E-FLIP)	Yes
Mirror Image	Yes
Slow Shutter	Yes
Temperature Readout	Yes
Title Display	Yes (20 characters / line, max. 11 lines)
Camera Mode Display	Yes (English)
Video Output	Digital : Y/Pb/Pr 4:2:2 (LVDS)(Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock)(SMPTE274M/SMPTE296M)
Camera Control Interface	VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit
Power Requirements	7.0 V - 12.0 V DC
Power Consumption	6.1 W (When motor operates: 7.8W)
Operating Temperature	-5 °C - +60 °C
Storage Temperature	-20 °C - +60 °C
Operating Humidity	20% - 95% (Absolute humidity : 36 g/m3)
Storage Humidity	20% - 95% (Absolute humidity : 36 g/m3)
Dimensions (W x H x D)	56.0 x 64.0 x 125 mm
Weight	Approx. 439 g
