FCB-EV9500L Starlight Night Vision Camera: High-Definition & Non-Intrusive Solution for Nighttime Security

In the security surveillance field, image clarity in nighttime scenarios remains a core challenge for technological breakthroughs. Traditional cameras often suffer from blurred images, noise accumulation, or even total loss of critical details due to insufficient light without supplementary lighting.

With its starlight-level low-light performance and full-link image optimization technology, the Sony FCB-EV9500L can capture clear images in extremely low-light nighttime environments without external light sources, setting a new benchmark for nighttime security surveillance.

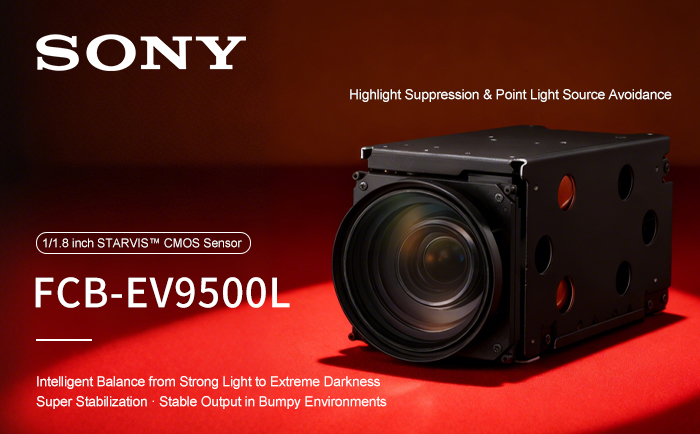

1. Starlight-Grade Sensor: 0.00008 Lux Ultra-Low Illumination, Breaking the Limit of Darkness

The FCB-EV9500L is equipped with a Sony 1/1.8-inch STARVIS CMOS sensor, featuring 4.17-megapixel resolution. Its core advantage lies in ultra-high light sensitivity. According to actual tests by Xuanzhan Technology, an official authorized distributor of Sony China, the sensor achieves a minimum illumination of 0.009 Lux (shutter speed 1/30s) in ICR-On mode (IR filter switching). This means even when ambient brightness is below the human visual limit (human eyes can only perceive blurred outlines at 0.01 Lux), the FCB-EV9500L still delivers clear, full-color, and blur-free images.

Technical Analysis

Large Sensor Design: Compared with traditional 1/2.8-inch models, the 1/1.8-inch sensor nearly doubles the single-pixel area, significantly improving light intake and effectively suppressing noise.

STARVIS Back-Illuminated Structure: By moving photodiodes to the back of the sensor, light refraction loss is reduced, further enhancing the signal-to-noise ratio (SNR) in low-light environments.

Intelligent Noise Reduction Algorithm: Combining 2D/3D digital noise reduction technologies, it suppresses noise while preserving image texture details, avoiding the "smearing effect".

2. Full-Scene Adaptability: Intelligent Balance from Strong Light to Extreme Darkness

Nighttime surveillance often faces the challenge of drastic light changes, such as direct street lamp light, car headlight glare, or sudden entry into dark areas. The FCB-EV9500L achieves dynamic balance through three core technologies:

Wide Dynamic Range (WDR): In backlight scenarios (e.g., windows, tunnel entrances), WDR technology can capture bright and dark area details simultaneously, avoiding overexposure or underexposure. For example, in parking lot surveillance, it can clearly display vehicle license plates while showing the movements of personnel inside the vehicles.

Highlight Suppression & Point Light Source Avoidance: Automatically detects and suppresses halos and glare caused by strong light sources (e.g., street lamps, car headlights), ensuring uniform brightness between the center and edges of the image.

Intelligent Exposure Control: Real-time adjusts shutter speed, aperture and gain according to ambient light. In extremely dark environments, it prioritizes image clarity over simply increasing brightness.

Meanwhile, a reference point for spot auto-exposure can be set in a specific area, so that the auto-exposure level of the captured image only changes according to the target area and is not affected by brightness changes outside the area.

3. Super Stabilization: Stable Output in Bumpy Environments

Night vision surveillance devices are often deployed on mobile carriers (e.g., vehicles, UAVs) or in vibrating scenarios (e.g., bridges, ships). Traditional cameras tend to produce blurry images due to shaking. The Super Image Stabilization Technology of FCB-EV9500L ensures stability through a three-fold mechanism:

Built-in Gyro Sensor: Real-time detection of multi-dimensional vibration data, including horizontal, vertical and rotational movements.

Electronic Stabilizer: Dynamically adjusts lens position based on vibration data to counteract shaking effects.

Ultra-Large Correction Area: Leverages redundant pixels of the 4MP sensor to expand anti-shake compensation range, maintaining sharp center images even under intense vibrations.

Mode Selection:

Super Mode: Ideal for general vibration scenarios (e.g., vehicle-mounted surveillance).

Super+ Mode: Delivers enhanced correction strength for extreme vibration environments (e.g., UAV aerial photography, ship navigation).

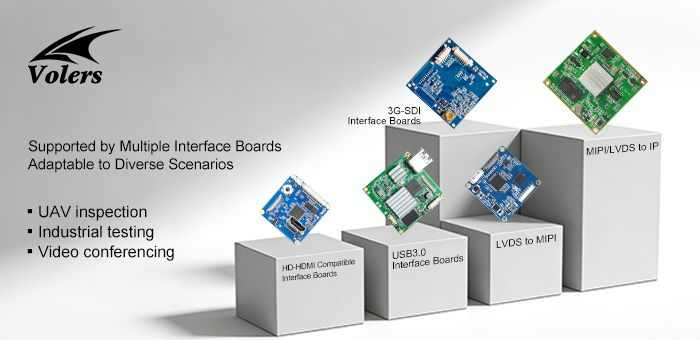

4. Supported by Multiple Interface Boards: Adaptable to Diverse Scenarios

The FCB-EV9500L HD camera module is equipped with LVDS output interface. By matching with various interface boards and acquisition modules independently developed by our company, a professional HD video secondary development solution provider-including 3G/HD-SDI, MIPI/LVDS to IP, HD-HDMI-Compatible, SDI/CVBS/HDMI-Compatible 3-in-1, Mini SDI/CVBS /HDMI-Compatible 3-in-1, LVDS to MIPI, USB3.0 and USB TYPE-C, etc.-its application scope is significantly expanded.

This flexible interface adaptation solution enables the FCB-EV9500L to seamlessly integrate into a variety of differentiated application scenarios, from traditional security monitoring to modern smart medical care, UAV inspection, industrial testing, video conferencing, underwater robots, etc. It meets the specific requirements for video transmission distance, signal format and integration method in different scenarios, successfully expanding the application scope of the Sony FCB-EV9500L.

Summary

With three core technologies—starlight-level low illumination, full-scenario adaptation and super stabilization—the Sony FCB-EV9500L redefines the clarity standard for night monitoring. Whether in no-light environments, strong light interference or severe vibration, it can provide stable and high-definition image output. Coupled with the matching of multiple interface control boards, it brings an "all-weather, full-coverage" monitoring solution to the security industry.
