Views: 0 Author: Site Editor Publish Time: 2026-08-05 Origin: Site
The core advantage of zoom cameras over fixed-focal cameras lies in their ability to capture clear details of distant targets without repositioning the camera unit.
When talking about zoom functions, most users first think of optical zoom and digital zoom, yet they often overlook an invaluable technology built into Sony’s FCB series integrated camera modules — Super Resolution Zoom (SRZ for short).

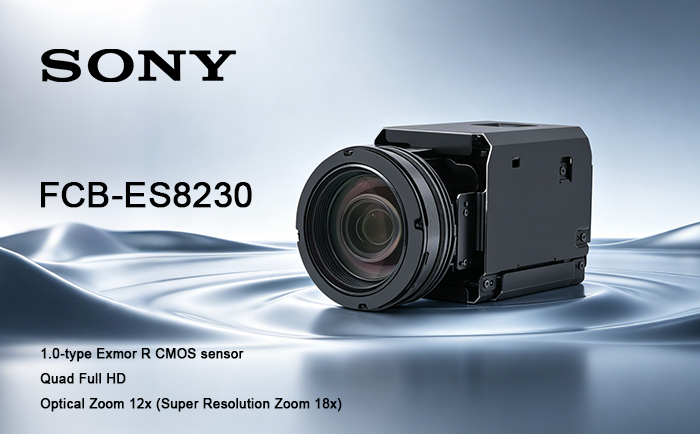

As an officially authorized distributor of Sony (China), Our company uses the Sony FCB-ES8230 as an example to clarify what Super Resolution Zoom is and its fundamental differences from traditional digital zoom.
Super Resolution Zoom (SRZ) equipped on the FCB-ES8230 is an image processing function developed by Sony based on its proprietary By Pixel Super Resolution technology. Beyond the maximum optical zoom range, it intelligently reconstructs missing pixel textures, restores edges, textures and contours while magnifying the frame, achieving lossless-quality enlargement. It is not a physical lens extension, but an algorithm-enhanced digital zoom solution.

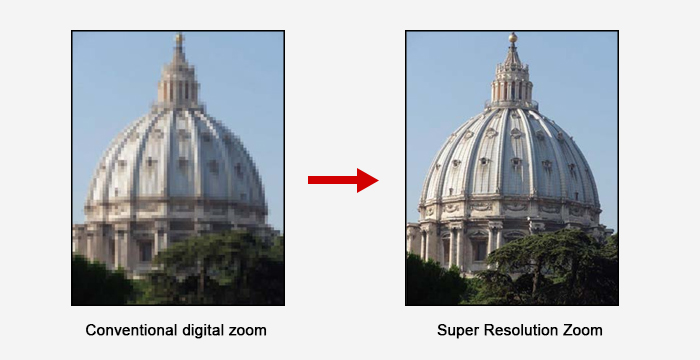

What fundamental differences separate it from conventional digital zoom?
Conventional digital zoom merely stretches and enlarges frames mechanically, forcibly stretching pixels and resulting in blurry, hazy images with lost fine details.
1. The lens reaches its maximum physical optical zoom magnification.
2. The image sensor outputs raw high-definition footage to the built-in ISP image signal processor.
3. Sony’s self-developed super-resolution AI model analyzes high-frequency details including leaf textures, metal grain, text and object outlines.
4. It performs intelligent interpolation, pixel filling, jaggedness suppression and noise reduction to reconstruct sharp fine details.
5. Clear magnified footage is output with real-time hardware computing and zero latency throughout the process.
| Comparison Dimension | Super Resolution Zoom (SRZ) | Traditional Digital Zoom |
|---|---|---|
| Operating Principle | Optical zoom + super-resolution pixel reconstruction (pattern recognition + interpolation) | Cropping the central sensor area followed by software stretching and enlargement |
| Image Quality Performance | Sharp edges, well-preserved fine details, no obvious pixelation | Blurriness, jagged edges, amplified noise, severe detail loss |
| Maximum Magnification | FCB-CS8230 features 12x optical zoom: • 1.5x SRZ for 4K resolution, equivalent to 18x total zoom • 2x SRZ for 1080P resolution, equivalent to 24x total zoom | Extremely high ratios (e.g., 144x), accompanied by drastic image degradation |
| Applicable Scenarios | Long-distance license plate/face capture, forensic detail recording | Emergency general contour viewing only; unsuitable for detailed analysis |
| Typical Limitations | Slightly reduced super-resolution performance under low-light conditions | Severe noise amplification in dim environments, barely usable |
1. 1-inch Exmor R CMOS Image Sensor
The Sony FCB-ES8230 adopt a 1-inch Exmor R CMOS sensor. Its photosensitive area is 3.5 times larger than that of a 1/2.8-inch sensor, delivering greater light intake and a signal-to-noise ratio above 50dB, which provides high-quality raw image data for the SRZ algorithm.
2. ISP Image Signal Processor
Optimized for industrial deployment, the ISP runs super-resolution reconstruction algorithms in real time. The FCB-ES8230 complete edge sharpening, texture enhancement and noise suppression within microseconds.
3. StableZoom™ Electronic Image Stabilization + 3D+2D Combined Noise Reduction
Even under camera vibration or target movement, the FCB-ES8230 continuously output sharp stabilized frames and eliminate motion-induced image blurriness.
FAQ
1. All are Sony 4K auto-focus camera modules — why does the FCB-ER9500 not support Super Resolution Zoom?
The FCB-ER9500 also features super-resolution zoom technology, though branded differently: the FCB-ES8230 series names this function Super Resolution Zoom, while the FCB-ER9500 labels it StableZoom, delivering up to 30x total zoom.
The FCB-9500 Series (FCB-EW9500H / FCB-EV9500M / FCB-EV9500L) offers StableZoom up to 36x total magnification.
