Views: 0 Author: Site Editor Publish Time: 2026-07-16 Origin: Site

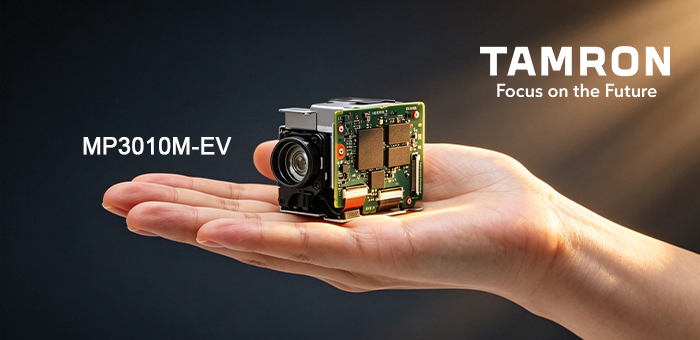

Both the Tamron MP3010M-EV and VRS-HD5101 deliver 10x optical zoom and support 1080p@60fps. However, if you are selecting camera modules for UAV pods or compact medical equipment, these two models offer completely different performance and applicability.
In the integrated camera module market, products with 10x optical zoom fall into the compact camera block category. This article breaks down the genuine gaps between the Tamron MP3010M-EV and VRS-HD5101.
| Comparison Item | Tamron MP3010M-EV | VRS VRS-HD5101 |
|---|---|---|
| Image Sensor | 1/2.8" Sony STARVIS CMOS | 1/2.8" Sony CMOS (approx. 2.13MP) |
| Resolution & Frame Rate | 1080p@60fps / 720p@60fps | 1080p@60fps / 720p@60fps |
| Optical Zoom | 10x (f=3.3–33mm, F1.8–F3.4) | 10x (f=5.1–51mm, F1.6–F1.8) |
| Digital Zoom | Up to 16x | Up to 32x |
| Video Output | LVDS + Type D HDMI + CVBS | LVDS + CVBS |
| Minimum Illumination | 0.1 lx (Color) / 0.025 lx (Monochrome) | Approx. 0.5 lx (Color) / Approx. 0.1 lx (Monochrome) |
| Image Stabilization | Electronic Image Stabilization (EIS) | Electronic Image Stabilization (EIS) |
| WDR & Noise Reduction | WDR + 2D & 3D Digital Noise Reduction | WDR + 2D & 3D Digital Noise Reduction |
| Dimension (mm) | 33(W) × 43(H) × 59(D) | 43(W) × 44(H) × 61(D) |
| Weight | Approx. 70g | Approx. 112g |
1. Ultra-Lightweight Design: MP3010M-EV Takes the Lead
The Tamron MP3010M-EV weighs merely around 70g, lighter than the VRS-HD5101 (approx. 112g).
It also features a more compact body size of 33×43×59 mm, making it ideal for scenarios with strict load and space constraints, such as micro-UAV gimbals, medical devices and pipeline robots.
For UAV applications, the lighter weight reduces payload burden and extends flight endurance.
2. Superior Low-Light Performance Powered by STARVIS Sensor
Equipped with Sony STARVIS CMOS sensor, the Tamron MP3010M-EV reaches a minimum illumination of 0.025 lx in monochrome mode, significantly outperforming the VRS-HD5101 in low-light environments.
It works perfectly for nighttime inspection and low-light endoscopic imaging.
3. Different Configurations of Output Interfaces
MP3010M-EV: Native Type-D HDMI output alongside LVDS and CVBS, facilitating on-site debugging and rapid prototype verification.
VRS-HD5101: LVDS output only, offering marginal advantages for long-distance coaxial cable transmission in security and traffic monitoring systems.
| Application Scenario | Recommended Model | Reason |
|---|---|---|
| Micro UAV / FPV Drone Pods | MP3010M-EV | 70g lightweight design, EIS, compact form factor compatible with 2–3 axis gimbals |
| Electronic Colposcope / Microscopic Teaching Equipment | MP3010M-EV | 70g ultra-light weight, 10mm minimum object distance, excellent STARVIS low-light sensitivity |
| Industrial Inspection / Pipeline Robots | MP3010M-EV | Compact size, strong close-range shooting capability, LVDS + HDMI direct output for easy debugging |
| Security PTZ Cameras / Traffic License Plate Capture (EX-SDI Required) | VRS-HD5101 | Supports long-distance EX-SDI transmission, compatible with legacy systems via Pelco protocol |
Though both modules adopt 10x optical zoom and 1080p@60fps output, the VRS-HD5101 is a cost-effective general-purpose zoom camera block. In contrast, the Tamron MP3010M-EV is a specialized module featuring 70g lightweight construction, STARVIS low-light imaging and native HDMI output. Its unmatched compact size and light weight make it irreplaceable for UAVs, medical equipment and miniature embedded devices.
