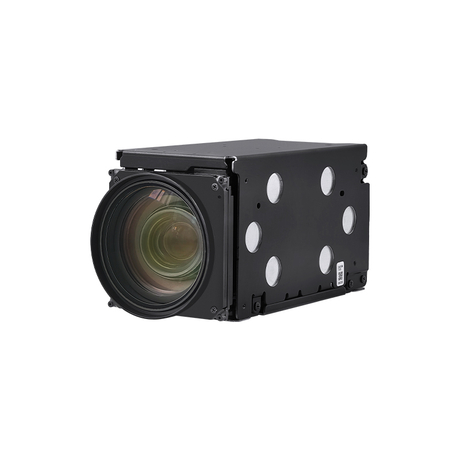

In addition to core highlights such as 4K 60fps video output, a 1/1.8-inch STARVIS 2 CMOS sensor, and 25x optical zoom, the Sony FCB-ER9500 has another lesser-known strength: it can also deliver 50x lossless imaging. In other words, its 25x optical zoom can be used as 50x. How is this possible? Our company, a Sony (China) officially authorized dealer and HD video secondary development solution provider, will unravel this mystery for you.
To understand the advantage of the FCB-ER9500’s 25x optical zoom, we must first distinguish two key concepts—optical zoom and digital zoom. This is also the core reason many people confuse “lossless” with “blurry.”
Simply put, optical zoom physically adjusts the position of lens groups to change the focal length and magnify the image. It is like using binoculars to view distant objects. Throughout the process, it does not crop the image or lose pixels, and it preserves image details to a great extent, resulting in clear and crisp image quality. This is the core foundation of “lossless imaging.”
Digital zoom, which is commonly seen, is essentially “software cropping and magnification.” It is like cropping part of the original image and stretching it. It does not change the actual focal length of the lens. The higher the magnification, the blurrier the image, the more noise there is, and the more severe the detail loss. This is also the key reason many camera modules have high zoom ratios but still cannot see clearly.
So how does the Sony FCB-ER9500, with only 25x optical zoom (lossless imaging), achieve a 50x lossless image effect?
The answer is: In 1080P video format, the Sony FCB-ER9500 can deliver a 50x lossless image effect.
Key 1: 25x Optical Zoom Lens Builds a Solid Foundation for Lossless Imaging
Optical zoom is the foundation of lossless imaging, and lens quality directly determines the upper limit of image quality after zooming. The FCB-ER9500 is equipped with a Sony high-quality optical zoom lens supporting 25x optical zoom (focal length range: 6.5mm–162.5mm). From close-range shooting to long-distance inspection, it can flexibly adjust focal length while maintaining lossless image quality throughout.
The FCB-ER9500 lens uses multilayer low-reflection coating technology, which not only reduces glare and ghosting caused by light reflection, but also increases light intake, keeping the zoomed image clear and transparent. It also features a 7-blade iris aperture design that automatically adjusts the aperture size according to ambient light. Even in long-distance zoom and low-light scenes, it avoids an overly dark image and increased noise, further ensuring the stability of lossless imaging.
Key 2: Sony Image Processing Engine Safeguards the Lossless Baseline
The advanced image processing engine built into the FCB-ER9500 is a safeguard for maintaining the lossless baseline.
The FCB-ER9500’s image processing engine is equipped with Sony 2D/3D digital noise reduction algorithms and visibility enhancement algorithms. It can optimize zoomed images in real time—accurately filtering image noise to avoid noise buildup caused by magnification, while enhancing edge details so that distant objects have clearer contours and finer textures.
More notably, the Sony FCB-ER9500 image processing engine responds relatively quickly. Image transitions during zooming are smooth, without stuttering or smearing. It can stably present high-definition images and meet the needs of real-time monitoring and dynamic capture.
Key 3: From 4K to 1080P, Achieving Double Lossless Imaging
The commonly mentioned 1080P resolution has 1920x1080 pixels, while 4K resolution has 3840x2160 pixels. Both the horizontal and vertical pixel counts are twice those of 1080P.
In 1080P video format, after the Sony FCB-ER9500 reaches 25x optical zoom, it uses digital zoom to magnify another 2x, achieving a total of 50x zoom. Why can it still maintain a lossless effect?
As a 4K ultra-high-definition camera module, the Sony FCB-ER9500 has a resolution of up to 3840x2160. Although digital zoom magnifies the image by 2x, it only needs to output a 1080P image with a resolution of 1920x1080. Both the horizontal and vertical resolutions are 1/2 of 4K. Therefore, the resulting image remains lossless.
1. Transmission Tower Inspection
The FCB-ER9500 can clearly capture the details of slightly loose bolts. The 25x optical zoom provides sufficient coverage, while 4K resolution ensures that details are distinguishable.
2. High-rise Exterior Wall Inspection
Equipment can be safely operated from the ground, using the optical zoom function to inspect cracks or damage at height. In 1080P video format, the FCB-ER9500 can capture a 50x magnification effect, greatly improving inspection distance.
3. Drone Inspection
Combined with high-frame-rate 4K/60fps output, the FCB-ER9500 can clearly capture high-speed moving targets, avoiding smearing and blur.
Users can choose, according to their needs, independently developed products from Our company, an HD video secondary development solution provider: the 4K P60 HDMI encoding control board, 4K HDMI encoding control board, 4K P60 AI network control board, 12G-SDI encoding control board, and 4K USB Type-C encoding capture module, to achieve video capture, conversion, and transmission.
The FCB-ER9500’s 25x optical zoom can achieve a 50x magnification effect, not simply through digital magnification, but through the combined effect of optical quality, sensor performance, digital zoom, and reduced resolution.
In the field of HD video, the final imaging effect is far more important than the numbers on a specification sheet. The FCB-ER9500 is an outstanding representative of this philosophy. It proves through real-world performance that true technological breakthroughs come from a deeper understanding of user needs and full-chain technological innovation.
