Sony FCB Block Cameras: Why Their Contrast AF Outperforms Standard Phase Detection Autofocus (PDAF)

Anyone working in security surveillance and machine vision knows the frustration of slow autofocus performance. The moment a target moves within the frame, the lens starts focus hunting — pulsing repeatedly between blurry and sharp. By the time it finally locks focus, the subject has already moved out of view.

You might be wondering: It’s already 2026. Can’t autofocus run much faster? Absolutely. But first, you need to understand the core underlying differences between Contrast Autofocus (C-AF) and Phase Detection Autofocus (PDAF).

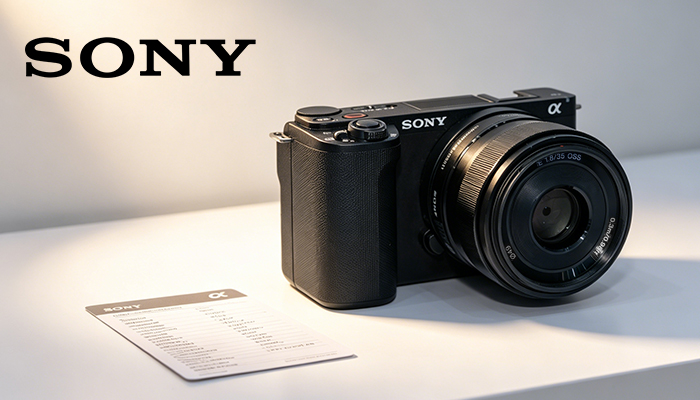

I. Contrast Detection AF (CDAF) vs Phase Detection AF (PDAF)

1. Contrast Detection AF (CDAF)

Also known as contrast AF, it is the most widely adopted autofocus solution for embedded cameras, block camera modules, and live view mode on mirrorless cameras.

1.1 Working Principle

The lens motor drives the lens group back and forth. The ISP analyzes the edge contrast (luminance gradient) of the selected focus area frame by frame. A sharper image features crisper edges and higher contrast. The system confirms successful focus lock once the peak contrast value is detected.

1.2 Advantages

No dedicated phase-detection pixels or standalone AF module required, delivering low hardware costs

Judgement is based directly on data from the image sensor, delivering theoretically high accuracy with no front/back focus shift

Focus windows can be placed freely at any position within the frame

1.3 Limitations

Unable to determine whether the focal point sits forward or backward in the initial stage, resulting in repetitive trial scanning and backtracking, commonly referred to as focus hunting Prone to failure in low-contrast or solid-color scenes; overall focusing speed is slower than PDAF.

2. Phase Detection AF (PDAF)

Commonly equipped on DSLR cameras and CMOS sensors for certain smartphones.

2.1 Working Principle

Paired masked phase-detection pixels on the sensor capture incident light from both sides of the lens separately. The system calculates the phase difference between the two sets of signals to directly determine the exact direction and distance the lens needs to travel, driving it to the focused position in a single movement.

2.2 Advantages

Ultra-fast focusing performance ideal for tracking moving subjects, with nearly zero focus hunting.

2.3 Disadvantages

Dedicated phase-detection pixels occupy partial imaging area Accuracy degrades under low light or low-contrast conditions Larger module size and higher cost make it unsuitable for compact industrial camera blocks.

To put it simply: Contrast Detection AF (CDAF) is comparable to someone climbing a mountain blindfolded. They can only rely on foot feel to tell if they have reached the peak. Even after arriving at the summit, there is no way to confirm it immediately. They have to take an extra step downhill before turning back to find the highest point.

Phase Detection AF (PDAF), by contrast, is like a hiker equipped with GPS. It calculates precisely and tells you directly: "Proceed forward 37 meters", locking focus accurately in one single move.

Category	Contrast Detection AF (CDAF)	Phase Detection AF (PDAF)
Detection Method	Peak contrast searching of frame images	Direct calculation via phase difference
Hardware Requirements	Standard CMOS sensor + ISP algorithm	Requires phase-detection pixels or dedicated AF modules
Autofocus Speed	Relatively slow (iterative scanning required)	Ultra-fast (completed with a single calculation)
Focus Accuracy	High, zero focus shift	Good accuracy, requires fine adjustment based on contrast
Camera Module Compatibility	Perfect for compact & low-cost modules	Larger physical size with higher production costs

This is precisely why Contrast Detection AF (CDAF) serves as the industry standard for security and industrial block cameras, including the Sony FCB series and mainstream locally manufactured modules. Its compact architecture removes the requirement for dedicated phase-detection hardware. Additionally, it features no masked pixels that would degrade image quality, making it ideally suited for rigorous OEM integration requirements.

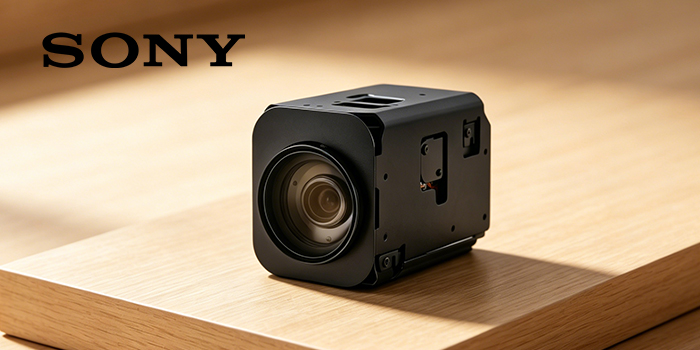

II. Why Are Sony FCB Block Camera Faster at Contrast-Based Autofocus?

The speed bottlenecks of contrast-detect autofocus (CDAF) lie in the lens scanning steps, the frame rate for contrast evaluation, and the search algorithm strategy.

Sony FCB Block Camera (e.g., FCB-ER9500, FCB-EV9520L) outperform peer CDAF solutions mainly due to the following four core advantages:

1. Proprietary High-Speed AF Search Algorithm

Sony embeds intelligently optimized algorithms within the built-in DSP of FCB camera modules. The system can predict the approximate focusing range based on zoom magnification, aperture value and the changing trend of preview contrast, skipping invalid scanning travel and drastically cutting unnecessary hunting back-and-forth steps during autofocus.

2. High-Frame-Rate ISP with Low-Latency Feedback

Sony FCB block camera adopt exclusive Sony ISP chips paired with STARVIS™ CMOS image sensors, delivering two core strengths:

Superior Signal-to-Noise Ratio (SNR): It produces cleaner footage under identical lighting conditions, enabling highly accurate contrast calculation for autofocus.

Ultra-fast data readout: Frame data is output rapidly to shorten the iteration cycle of AF algorithms.

Compared with conventional camera modules that adopt low sampling rates or software polling mechanisms, this hardware setup enables far timelier focus confirmation.

3. Precision Stepper Motor & Optimized Lens Matching

Sony pairs premium zoom lenses from Japanese manufacturers with fully fine-tuned motor drive circuits to deliver responsive control with ultra-fine stepping resolution. The actuator brakes instantly upon receiving the stop command from the algorithm without overshooting the contrast peak, cutting the time spent on backward readjustment. This competitive advantage cannot be replicated by simply upgrading the image sensor alone.

4. Intelligent Scene Adaptation & Zone AF Function

Sony FCB block camera support configurable AF windows with a 6x8 grid multi-zone layout. The system automatically prioritizes focusing on human faces and high-contrast areas, drastically lowering the risk of focus loss and repeated re-scanning for dynamic scenarios such as traffic surveillance and drone vision applications.

While contrast autofocus on generic camera modules works via slow trial-and-error scanning, Sony FCB series adopts intelligent jump scanning logic. The remarkable AF speed edge is achieved through seamless integration of optics, hardware and proprietary algorithms.

In summary, the superior autofocus performance of Sony FCB block camera does not rely on upgraded focusing technology, but on full-stack technical accumulation covering proprietary algorithms, optimized hardware circuits, precision mechanical structures, and professional optical tuning. Delivering faster AF response, smoother zoom tracking, and more stable focusing performance in complex scenarios, Sony FCB camera modules stand out as the ideal solution for high-end surveillance, drone gimbal systems, and professional high-definition video acquisition projects.
