Professionals in low-altitude UAV inspection often hold a conventional mindset: onboard cameras for drone payloads must be compact and lightweight, while still delivering high resolution.
Because of this, many people initially raise doubts when they see the Sony FCB-ER9500. Compared to countless mini camera modules on the market, it features a larger footprint and heavier weight. So, why is the Sony FCB-ER9500 seeing growing adoption in high-end UAV inspection projects across power grid patrol, photovoltaic asset inspection coastal defense surveillance, and emergency mapping?
The answer lies in the difference in priorities. While novice users often focus strictly on dimensions and weight, industry specialists prioritize true imaging resolution, autofocus speed, and field operation efficiency.
Today, our team will fully unpack this industry truth: for low-altitude drone inspection missions, when should engineers move beyond lightweight compact modules and opt for the seemingly bulkier Sony FCB-ER9500?
Undoubtedly, compact mini camera modules deliver obvious strengths: small dimensions, light weight, low payload requirements for UAV platforms, and straightforward onboard installation.
Nevertheless, these lightweight modules are inherently restricted in their imaging performance. Under ideal weather conditions with sufficient ambient light and during short-distance patrols, the footage difference is barely noticeable. However, high-end professional low-altitude inspection demands precise identification rather than superficial observation, and must cope with a full spectrum of complex working scenarios: harsh midday backlighting, alternating brightness from cloud cover, dim dusk conditions, and low-light nighttime operations.
Under such demanding circumstances, the critical drawbacks of compact modules become fully exposed:
Severe Low-Light Noise: Tiny image sensors generate heavy digital noise in low-light environments, resulting in blurry, indistinct details that obscure critical anomalies.
Insufficient Dynamic Range: Inability to handle high-contrast backlighting leads to crushed shadows or blown-out highlights, making it impossible to distinguish fine equipment features.
Limited Optical Zoom Capability: Relying on digital magnification causes a severe loss of optical resolution, rendering tiny but critical faults—such as micro-cracks and corona discharge—completely undetectable.
This perfectly explains the widespread feedback from UAV low-altitude inspection practitioners: while compact payloads enable effortless flight, they often result in low project pass rates and frequent rework due to missed defects.

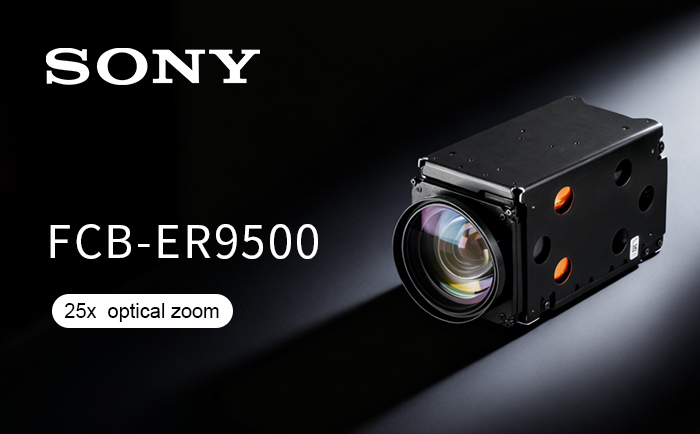

The larger and heavier form factor of the Sony FCB-ER9500 stems directly from its high-grade, large-format image sensor. Equipped with Sony’s latest 1/1.8-inch STARVIS 2 CMOS, the FCB-ER9500 delivers a drastically larger photosensitive area compared to conventional mini camera modules that typically adopt 1/2.8-inch or 1/3.0-inch sensors.
This substantial upgrade in sensor size multiplies light intake, low-light sensitivity, and Wide Dynamic Range (WDR), creating an entirely different level of imaging performance. Such fundamental hardware advantages cannot be compensated for or replicated by ISP tuning or post-processing algorithms. Instead, they constitute the core, non-negotiable capabilities required for professional-grade UAV inspection.
1. Core Requirement for Low-Altitude Inspection: Crisp Imaging in Complex Conditions Numerous inspection accidents and missed defects occur during dim twilight, low-light evenings, foggy or overcast weather. Under such challenging conditions, conventional compact camera modules are forced to switch to infrared mode, outputting only monochrome footage and stripping all color information from the scene.
Without valid color data, operators cannot identify discolored power lines, equipment burn marks, foreign object hues, or subtle fire and smoke tones — effectively rendering traditional low-light inspections ineffective.
Leveraging its ultra-high photosensitivity, the Sony FCB-ER9500 delivers full-color, high-definition footage at an ultra-low illuminance of 0.028 Lux. It performs reliably without infrared auxiliary lighting, supporting precise color differentiation and detailed visual recognition throughout nighttime, dim-light, and foggy scenarios. This fundamentally solves the long-standing industry pain point of color information loss in complex low-altitude inspection missions.
2. 25× Optical Zoom: Safe Long-Distance Inspection Without Close-Risk Approach
UAV missions for power grid patrol, photovoltaic inspection, and coastal surveillance face major operational risks when flying close to high-risk equipment, including wire strikes and mid-air collisions. Most lightweight mini camera modules lack sufficient zoom capability, forcing drones to operate dangerously near infrastructure to capture detailed visuals.
Equipped with 25× true optical zoom, the Sony FCB-ER9500 provides lossless long-distance magnification and delivers sharp, clear imagery from elevated, safe altitudes. Running in 1080/60P high-frame-rate mode, the module achieves an effective visual magnification equivalent to 50× lossless zoom, greatly enhancing its long-range detection capability.
This allows inspectors to identify subtle defects without flying in close proximity to hazardous assets. It significantly improves flight safety while drastically boosting inspection accuracy — a key performance advantage that lightweight compact camera modules simply cannot match.
3. High Frame Rate Dynamic Capture to Eliminate Motion Blur & Missed Defects The Sony FCB-ER9500 supports 4K@60fps high-definition video output, doubling dynamic image fluidity compared with conventional 30fps camera modules. When the drone conducts mobile patrols and rapid power line scanning, footage remains smooth with zero motion blur or stuttering. It enables precise capture of fine details even during high-speed movement, effectively preventing missed inspections caused by dynamic motion.
4. Optimized Lightweight Variant:

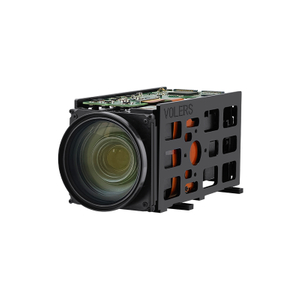

Uncompromised Performance To satisfy the stringent payload constraints of low-altitude UAV inspection operations, Our company has engineered a customized FCB-ER9500 Weight Reduced Version for the Sony FCB-ER9500. Weight is trimmed from the original 464g to just 310g, which efficiently cuts down payload load for drones while maintaining the module’s full, uncompromised imaging capabilities.
Weight is far from the only concern for low-altitude inspection operators; full system compatibility is equally critical. Procuring the Sony FCB-ER9500 as a standalone module often presents significant integration obstacles, including complex debugging, difficult protocol adaptation, and the absence of comprehensive supporting solutions.
As a professional provider of high-definition video secondary development solutions, our team eliminates all these adaptation challenges in advance. We deliver fully mature, ready-to-deploy turnkey solutions tailored for UAV inspection projects, with the following core advantages:

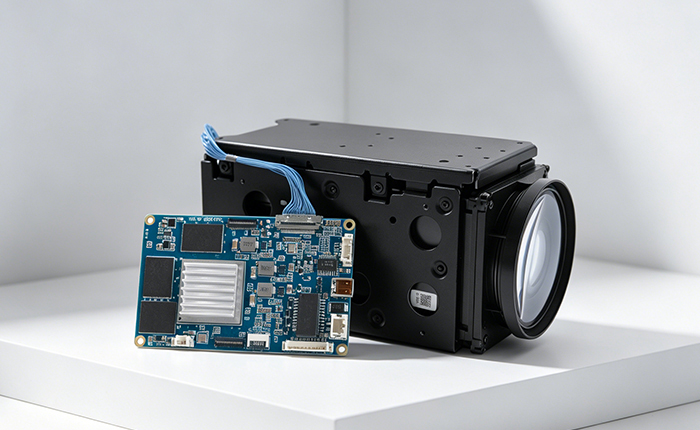

1. Self-Developed Encoding & interface Boards: Exclusively engineered for Sony FCB camera modules, the boards fit most application scenarios and completely eliminate the need for tedious secondary development.
2. Native VISCA Protocol Support: Built-in compatibility with the standard Sony VISCA protocol ensures seamless integration with nearly all mainstream UAV flight controllers, video transmission systems, and ground station terminals.
3. Diversified Multi-Interface Coverage: Multiple mainstream interface options including SDI, HDMI, USB, IP, and MIPI fully meet customized integration requirements for diverse operating scenarios.
4. Full-Cycle Professional Technical Support: We provide end-to-end technical consultation and after-sales services covering pre-sales, in-sales, and post-sales stages, enabling fast, stable, and reliable on-site deployment of inspection projects.
Purpose-Built for Professional Low-Altitude Inspection In conclusion, rather than simply bulky in appearance, the Sony FCB-ER9500 is purpose-built premium 4K/60p ultra-HD camera module engineered exclusively for rigorous low-altitude UAV inspection missions.
Powered by robust imaging strengths — outstanding resolution, high frame rate performance, and industry-leading low-light sensitivity — paired with our complete mature turnkey supporting solutions, it effectively resolves key industry pain points. Ultimately, the FCB-ER9500 consistently outputs precise, actionable visual data to guarantee accurate outcomes for professional drone inspection operations.
