Views: 0 Author: Site Editor Publish Time: 2026-07-28 Origin: Site
Within imaging systems, sensor size serves as the physical foundation that determines image data acquisition capability. Unlike algorithms, which can be “optimized” via software, the advantages delivered by a larger sensor stem from inherent optical and semiconductor physics limitations. Such superiority cannot be compensated for in post-processing by smaller-format sensors.

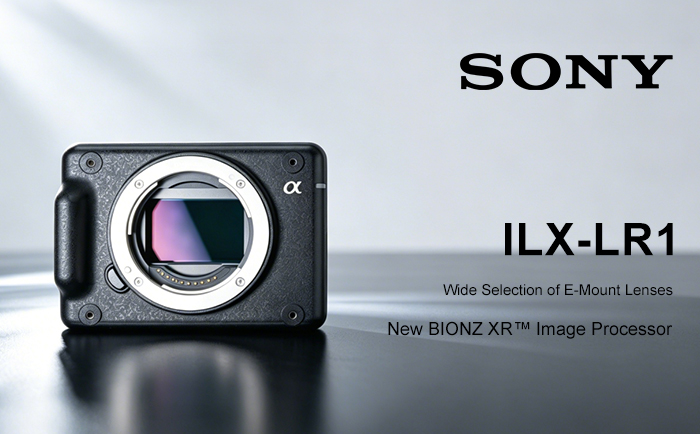

The Sony ILX-LR1 is equipped with a 35mm full-frame back-illuminated Exmor R™ CMOS sensor (approx. 61 million effective pixels, dimensions: 35.7 × 23.8 mm). Compared with widely adopted industrial devices such as 1/1.8-inch and 1-inch FCB autofocus camera modules, or APS-C mirrorless cameras, its core strengths can be clearly demonstrated starting from sensor dimensions.
A full-frame sensor measures 35.7 mm × 23.8 mm, with an area of roughly 850 mm² — matching the frame size of standard 35mm film.
What does this figure mean? See the comparison table below:
| Sensor Type | Dimensions | Area | Area Ratio vs Full Frame |
|---|---|---|---|
| Full Frame (ILX-LR1) | 36×24 mm | ~850 mm² | 1× (Reference) |
| APS-C | 22.2×14.8 mm | ~329 mm² | ~1/2.6 |
| 1-inch | 13.2×8.8 mm | ~116 mm² | ~1/7.4 |
| 1/2.8-inch (Common for Surveillance) | 5.6×4.2 mm | ~23 mm² | ~1/37 |
The light-sensitive area of a full-frame sensor is 7.4 times that of a 1-inch sensor and 37 times that of a 1/2.8-inch sensor.
This is not merely a spec contest; it follows physical laws. Larger sensor area translates to greater light intake and superior image quality.
1. 61 Million Pixels — All True Physical Pixels

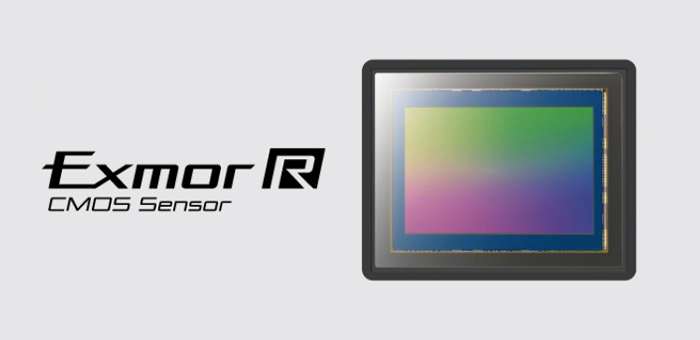

The Sony ILX-LR1 features a 35mm full-frame back-illuminated Exmor R™ CMOS sensor with approximately 61 million effective pixels.
The term “back-illuminated” is critical: light enters from the rear side of the sensor, no longer obstructed by circuit layers, greatly boosting light collection efficiency. Paired with the new-generation BIONZ XR™ image processor (processing performance improved by roughly 8× over the previous generation), every captured frame delivers sharpness, low noise and accurate color reproduction.
61 million pixels enable clear visualization of 0.1mm microcracks when zooming in on wind turbine blades captured from an altitude of 200 meters.
A single photograph taken by the Sony ILX-LR1 can replace three shots captured by conventional low-resolution cameras. This is no exaggeration; it represents a decisive physical advantage in pixel density.
2. Wide Dynamic Range: Capture Details in Harsh Midday Sun and Dim Night Conditions
Full-frame sensors feature larger individual photodiodes, capable of recording richer detail across highlights and shadows simultaneously.
Dynamic range performance of the ILX-LR1:
- Bright daylight (~100,000 lux): Highlights remain free from overexposure, with visible texture retained on metallic reflections.
- Low-light nighttime shooting (ISO 32000): Shadow noise is well-controlled for clean imagery.
For power grid inspection, this means clearly capturing both sunlit bolts on transmission towers and shaded weld seams within a single frame.
3. Low-Light Superiority: Clean Output Even at ISO 32000
The larger the sensor, the more photons each pixel receives, yielding a higher signal-to-noise ratio (SNR).
This explains why full-frame cameras maintain clean imagery at ISO 6400 or even ISO 12800, while 1-inch sensors suffer severe noise degradation starting at ISO 3200.
The ILX-LR1 supports an ISO range of 100–32000, covering operational scenarios from bright midday to twilight low-light environments.
4. Shallower Depth of Field for Enhanced Subject Isolation
At identical aperture settings, full-frame sensors achieve shallower depth of field than APS-C sensors.
For surveying and inspection applications, this delivers crisp, sharp subjects with naturally blurred backgrounds. Visual targeting becomes more intuitive, and the accuracy of subsequent AI recognition is improved.
Sony Camera Remote SDK transforms the Sony ILX-LR1 into a programmable intelligent imaging terminal. When paired with the camera network control board independently developed by Xuanzhan Technology, the following capabilities are unlocked:
| Function | Capabilities |
|---|---|
| Remote Parameter Adjustment | Remotely modify ISO, shutter speed, aperture and focus area via ground control station |
| Live View | Zero-latency image streaming; what you see is what you capture |
| Triggered Auto Capture | Trigger via analog signal, GPS linkage, automatic shooting at designated waypoints |
| Data Association | Embed drone position and attitude data into every captured image |
| Inverse Focus Calculation | Automatically compute focus distance according to flight altitude |
The ILX-LR1 is compatible with Sony’s full lineup of E-mount lenses, with over 70 lens options available:
| Focal Length Range | Typical Applications |
|---|---|
| 12–24mm Ultra-Wide-Angle | Large-area surveying, real-world 3D reconstruction |
| 24–70mm Standard Zoom | Power grid inspection, bridge condition monitoring |
| 70–200mm Medium Telephoto | Detailed inspection of wind turbine blades |
| 200–600mm Super Telephoto | Identify rust on fasteners from 200 meters altitude |
Switching lenses enables the camera to undertake completely different tasks — this is the true value of an expandable imaging system.
The advantages of a full-frame sensor extend far beyond the simple description of “better image quality”.
It delivers reliable low-light performance enabled by larger light-sensitive area, precise detail control from elevated pixel density, balanced exposure control via broad dynamic range, professional visual quality through flexible depth-of-field management, and empowers inspection operations across every corner of cities with its 61 million full-frame pixels.
