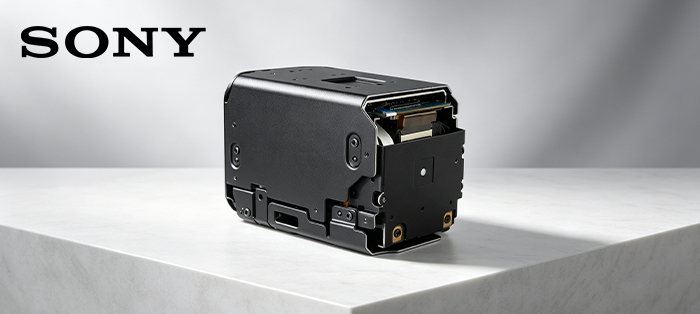

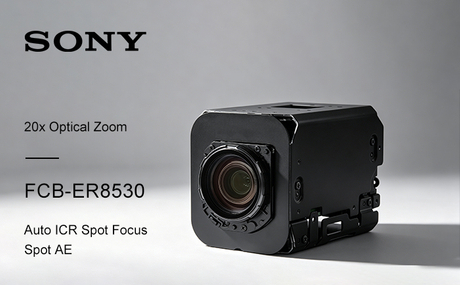

The Sony FCB-ER8530, equipped with a 1/2.5-inch Exmor R CMOS sensor, combines 4K ultra-high-definition resolution, 20x optical zoom, fast auto-focus, high-fidelity color reproduction, and a compact body design. With its robust performance, it has long been recognized as an industry benchmark 4K UHD camera block module, widely used in applications such as drones, medical equipment, underwater robots, industrial inspection, video conferencing, smart transportation, and professional security.
The accompanying technical manual is the key to fully activating the potential of this camera block and achieving precise control of all functions. Today, Our company [1], will provide a comprehensive guide, breaking down the core capabilities of this technical manual and practical implementation points, helping developers significantly reduce adaptation barriers and accelerate secondary development deployment.
The FCB-ER8530 uses Sony's standard VISCA/RS-232C control protocol for external device communication. It is a mature industrial-grade communication solution with strong industry compatibility:
1. Communication Base Parameters: Supports multiple adjustable baud rates of 9.6kbps/19.2kbps/38.4kbps/115.2kbps, 8 data bits, 1 stop bit, no parity, and does not support XON/XOFF or RTS/CTS flow control. Standard serial ports are sufficient for connection.
2. Bus Scalability: A single controller can serially connect up to 7 FCB series cameras via RS-232C. Each camera is assigned a unique address (1-7) through address setting commands, enabling unified management of multiple cameras and significantly reducing wiring costs in multi-device scenarios.
3. Packet Structure: Standard VISCA packets begin with 8X, where X corresponds to the camera address, and end with FF as a terminator. The camera's responses include three types: ACK (acknowledgment) indicating the command has been received; Completion indicating the command has been executed; and Error packets that clearly return fault codes such as syntax errors, command buffer full, or command not executable in the current mode, allowing developers to quickly locate and debug issues.
This technical manual covers almost 100% of the FCB-ER8530's hardware functions. Developers do not need additional hardware peripherals; they can achieve all refined controls—from basic zoom/exposure to advanced image enhancement—using only serial commands:
1. Comprehensive Lens and Focus Control
1) Zoom System: The FCB-ER8530 features a built-in 20x optical zoom + 12x digital zoom, achieving a combined 240x zoom ratio. The protocol supports standard step zoom, variable-speed zoom (8 levels), and Direct mode for rapid positioning to a specified zoom position. It also allows switching between optical and digital zoom linkage modes and supports Sony's Super Resolution technology, enabling zoom up to 30x in 4K mode and up to 40x in FHD mode, maximizing image detail retention while enlarging the image.
2) Focus System: The FCB-ER8530's focus system covers auto focus, manual focus, and one-push trigger focus modes. Standard AF mode supports interval focus and zoom-trigger focus as special operation logic. Users can also customize focus sensitivity and set the minimum focus distance. The focus range extends to infinity, with a minimum focus distance of just 4.4mm at the wide-angle end and 88.0mm at the telephoto end, fully meeting the needs of both close-up detail capture and long-distance surveillance scenarios.
2. Precise Customization of White Balance and Exposure
1) White Balance Modes: In addition to standard auto white balance, the protocol supports Auto Tracking White Balance, Indoor 3200K mode, Outdoor 5800K mode, One-Push White Balance, Sodium Lamp white balance mode, and manual R/B gain adjustment with 16-step fine tuning—a total of 8 modes. Whether dealing with complex mixed light sources, low-temperature warm lighting, or high-pressure sodium lamps, accurate color output is ensured.
2) Full Auto Exposure Modes: Offers multiple AE modes including Full Auto, Shutter Priority, Iris Priority, Gain Priority, and Brightness Priority. Shutter speeds range from 1 second to 1/10000 second across 28 steps. Iris is adjustable from F2.0 to fully closed across 22 steps. Gain can reach up to 0-48dB. Advanced features include customizable gain limits, exposure compensation, backlight compensation, slow shutter, and slow AE response, preventing overexposure and detail loss even in strong-light interference scenarios such as headlights suddenly entering the frame.
3. Advanced Image Enhancement Functions
The FCB-ER8530 technical manual includes control commands for all advanced image optimization capabilities:
Defog: Four levels adjustable, improving image clarity in foggy, low-contrast outdoor scenes.
HLC (High Light Compensation): Automatically adjusts exposure upon detecting high-light points and applies masking to highlighted areas, enabling clear recognition of license plates and vehicle information in nighttime parking lots and road surveillance scenarios.
Visibility Enhancer (VE): Automatically brightens shadow details while preserving highlight gradation, producing high-latitude images without needing external wide dynamic range devices.
Multi-level Noise Reduction (NR), High Sensitivity Mode, Gamma Curve Customization: A full range of image quality adjustment functions that effectively reduce noise in low-light environments.
Beyond basic image quality control, the FCB-ER8530 technical manual opens up a large number of industry-specific features, providing high flexibility for secondary development:
1. Privacy Zone Masking

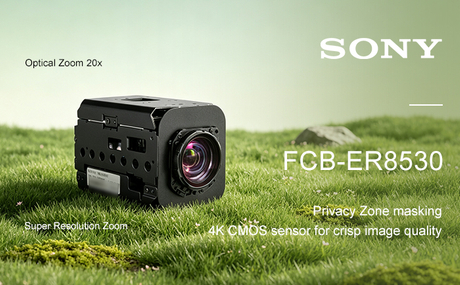

The technical manual supports setting up to 24 independent privacy masking areas, with up to 8 masks displayed simultaneously on a single screen. Users can customize mask positions, sizes, and colors, and configure linkage with zoom and PTZ movements. For surveillance scenarios requiring protection of residential windows, passageways, and other privacy-sensitive areas, this can be configured directly via commands without additional software processing.
2. Position Presets and Custom Startup Configuration
Supports 16 custom shooting position presets, which can save the current zoom position, focus parameters, exposure settings, white balance, image enhancement, and all other camera states. These can be recalled via a single command, eliminating the need to adjust parameters one by one. It also supports Custom Preset startup configuration, where all user-configured parameters are saved in the camera's non-volatile memory and automatically loaded upon the next power-on, without requiring the host computer to re-send configurations.
3. Electronic Pan/Tilt and On-Screen Functions
In 4K mode, the protocol supports electronic PTZ (e-PTZ) functionality, which can crop a designated area of the 4K image to 1080P HD output, allowing partial magnification and movement without mechanical motion. It also supports up to 11 lines of custom on-screen title overlay, with customizable text position, color, and blinking status for each line, allowing direct overlay of scene names, shooting times, and other custom information into the video stream.
Our company offers dedicated all-interface encoding control boards (including SDI, IP, HDMI, USB, and MIPI interface boards) paired with the FCB-ER8530. These boards have already completed low-level adaptation for the technical manual, allowing direct invocation of encapsulated control interfaces without needing to parse the protocol from scratch—dramatically boosting project development efficiency.
Q: Can the FCB-ER8530's VISCA protocol be called directly on Linux systems?
A: Absolutely. The technical manual is based on standard serial communication. On Linux systems, control can be achieved simply by sending standard command frames via the serial port driver, with no additional drivers required. It is compatible with the vast majority of embedded Linux development boards.
Q: Will using an encoding control board with the FCB-ER8530 cause feature loss?
A: This depends on the combined capabilities of both the FCB-ER8530 and the encoding control board.
Our company's self-developed 4K USB Type-C encoding acquisition module can interface with the Sony FCB-ER8530. The FCB-ER8530 supports 1080i/59.94 and 1080i/50 video output; however, this 4K USB Type-C encoding acquisition module is not compatible with interlaced scanning signal input. Therefore, the complete bundled solution does not support interlaced scan output formats such as 1080i/59.94 and 1080i/50.
