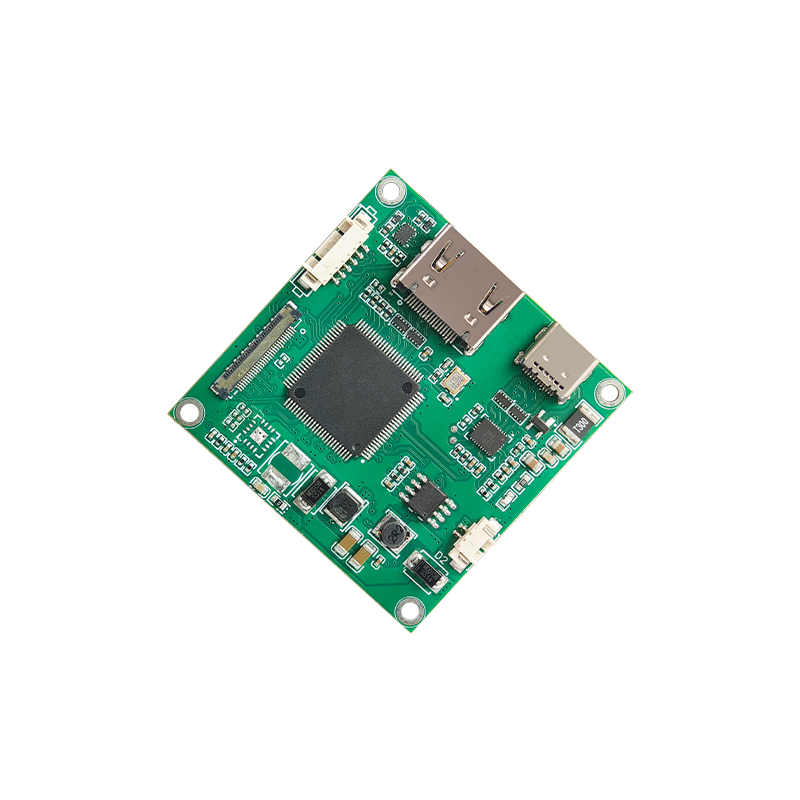

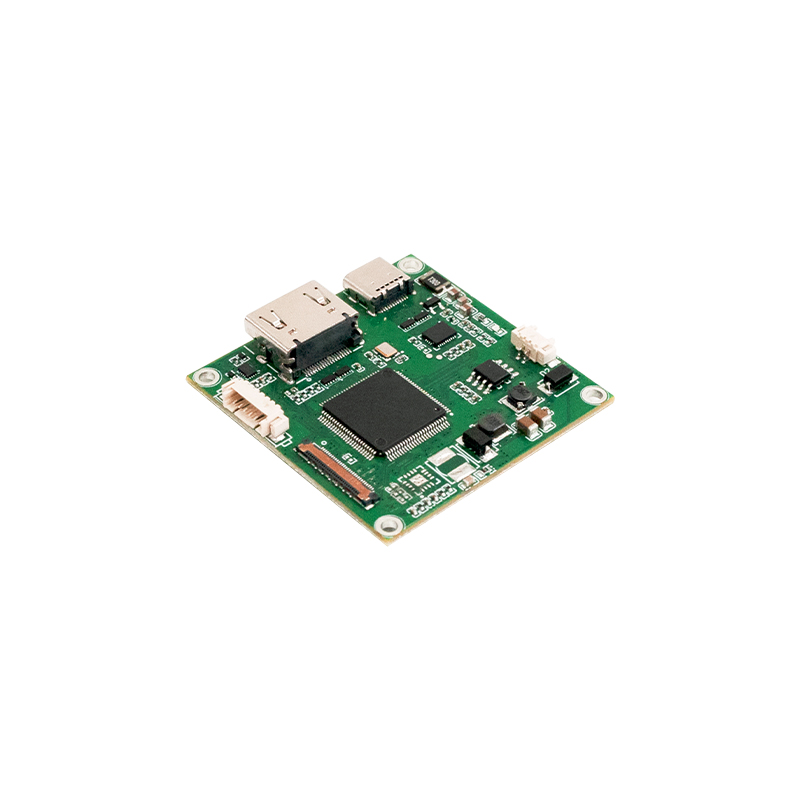

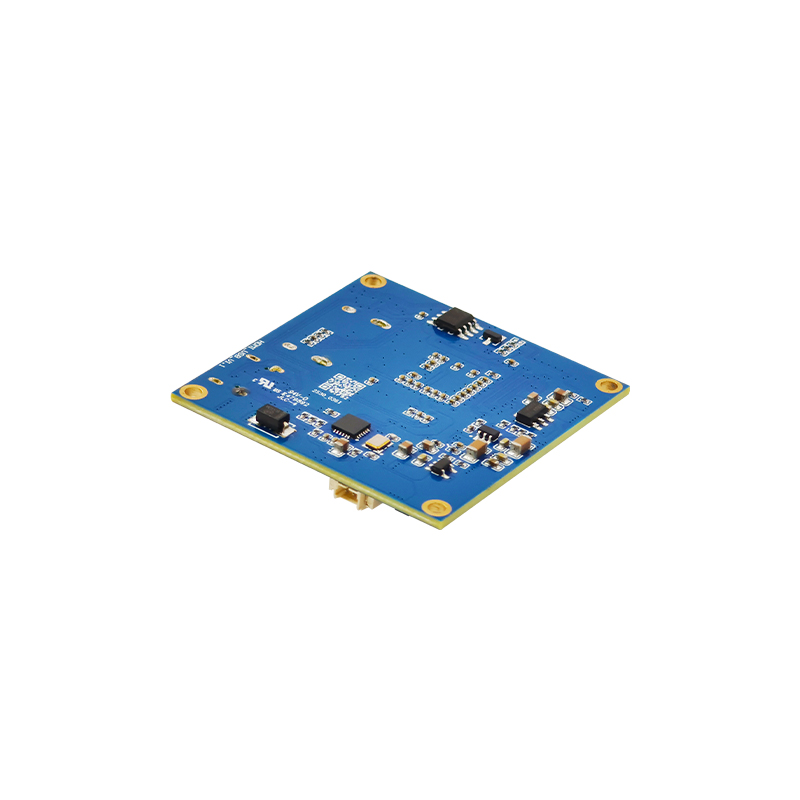

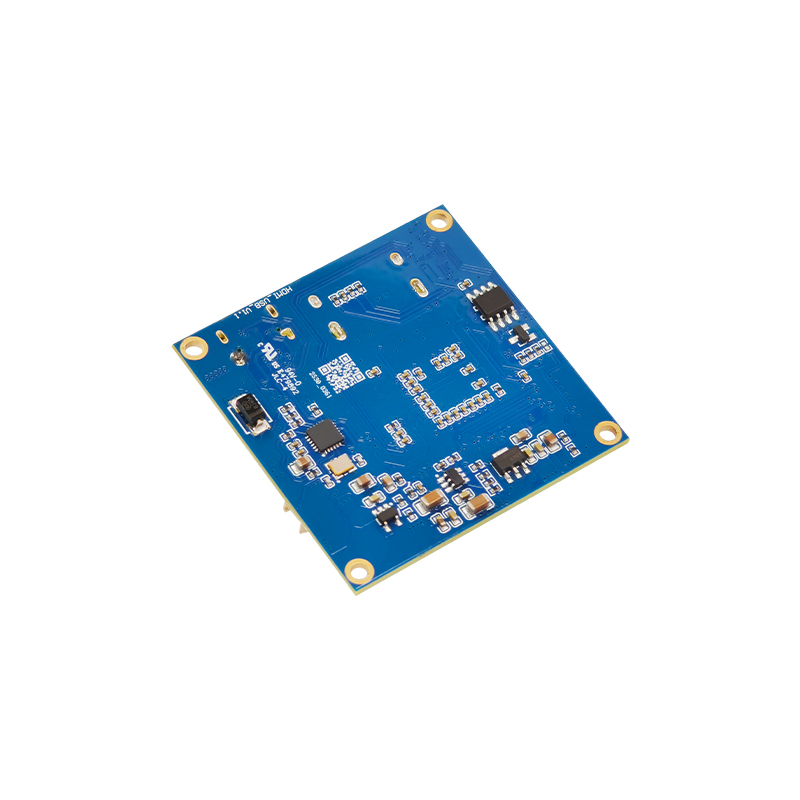

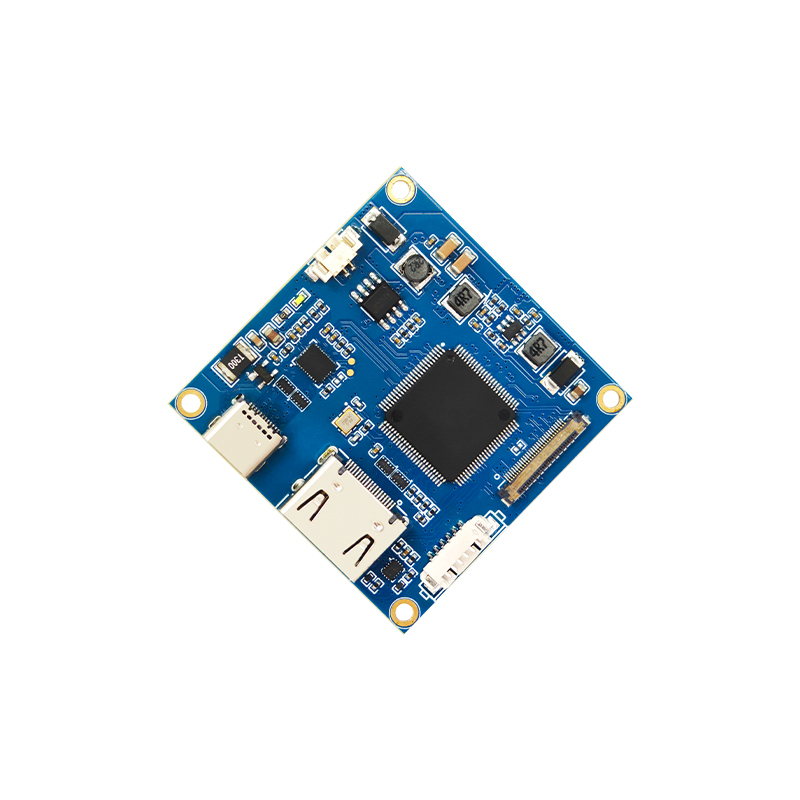

PCB-UD111 LVDS to 4K USB Type-C Interface Board

• Special functions: HDMI Compatible Loop-Out Supported

• Compatible Camera: Sony FCB 4K ultra HD block cameras and block cameras with the same interface specifications.
• Video Output Format: 2160P, 1080P, 1200P, 1024P, 960P, 720P
• Video Output Interface: 4K USB TYPE-C, HDMI-Compatible Output Port
• Communication Interface Control: TTL-232(standard)
• Operating Temperature: -5 to 60℃ (23-140°F)
• Power SupplyL: DC12V 1A
• Product Net Weight: Approx 13.3g
• Product Dimensions: Appox 42*42*5mm

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

PCB-UD111 LVDS to 4K USB Type-C Interface Board 4K USB Type-C Interface Board PCB-UD111 4K Ultra HD Video Capture Board 4K USB Type-c Video Output Board 4K TYPE-C Video Capture Board Sony 4K FCB Camera Modules Interface Board 4K USB TYPE-C Ultra-HD Video Capture Board 800MP Zoom Camera Video Capture Board LVDS to 4K USB Interface Board

Overview

LVDS to 4K USB Type-C Interface Board is specifically designed for Sony FCB 4K series ultra-high-definition camera modules,and is compatible with most third-party's 4K camera modules that match the FCB series' mechanical interfacespecifications.

LVDS to 4K USB Type-C Interface Board Equipped with USB Type-C + HDMI-Compatible dual 4K 60fps high-performance USB3.0 high-speed transmission interfaces, it supports UVC driver-free plug-and-play functionality and features a 4K 60fps HDMI-Compatible loop-out interface.

This design provides a flexible and convenient signal output solution, greatly enhancing the compatibility

and practicality of the device across different application scenarios.

Features

• Intelligent Adaptation, Seamless Connection:Connect directly to the camera via the LVDS interface, which automatically recognizes ultra-high-definition video formats for plug-and-play functionality. Compatible with Sony FCB 4K ultra-high-definition camera modules, ensuring strong adaptability.

• Versatile Control, Effortless Interaction:Supports both PC camera control and MCU communication functions. equipped with serial communication(RS-command); camera module free drive design reduces entry barriers and enhances operational efficiency.

• Comprehensive Compatibility, High-Quality Output:Supports mainstream resolutions including 2160P,1080P and other 10 other formats to meet diverse scenario requirements. The 4K USB Type-C port supports up to 3840×2160P15 ultra-high-definition output, while the HDMI-Compatible loop-out port supports 3840×2160P30—delivering clear, smooth image quality to provide solid guarantees for professional imaging applications.

Supported Camera Modules And Video Formats

Brand	Model	4K USB TYPE-C	4K HDMI-Compatible Loop-Out	Video Formats: 3840x2160P15 1920x1080P60/50/30/25/20/10; 1600x1200P60/50/30/25/20/10; 1360x768P60/50/30/25/20/10; 1280x1024P60/50/30/25/20/10; 1280x960P60/50/30/25/20/10; 1280x720P60/50/30/25/20/10; 1024x768P60/50/30/25/20/10; 800X600P60/50/30/25/20/10; 720x576P60/50/30/25/20/10; 720x480P60/50/30/25/20/10; 640x480P60/50/30/25/20/10 (Note: Compatible with various live streaming programs, as well as instant messaging software such as Micriosoft Teams and Zoom.)
Sony	FCB-ER9500	2160P15 1080P60,1080P59.94, 1080P50, 1080P30， 1080P25 720P60，720P50， 720P30，720P25	2160P30, 2160P25 1080P60,1080P59.94, 1080P50, 1080P30， 1080P25 720P60，720P50， 720P30，720P25
	FCB-EW9500H
	FCB-CR8530
	FCB-ER8530
	FCB-CR8550
	FCB-ER8550
	FCB-CS8230
	FCB-ES8230
	FCB-CR8300
	FCB-ER8300

Note: Compatible with 4K block cameras of other brands that share Sony Visca command.

Specifications

Compatible Camera Module	Sony FCB Ultra HD Series	Video Output Format	2160P,1080P,1200P,1024P,960P,720P,etc.
Driver	Camera is plug-and-play, but 4K USB TYPE-C, HDMI-Compatible Output Port self-debugging is required	Video Output Interfaces	4K USB TYPE-C, HDMI-Compatible Output Port
Communication Interface Control	TTL-232	USB Power Supply for Camera	Not Supported
Operating Temperature	-5 to 60℃ (23-140°F)	Power Supply	DC12V 1A
Product Net Weight	Approx 13.3g	Product Dimensions	Approx 48485mm (excluding USB interface and heat sink dimensions)

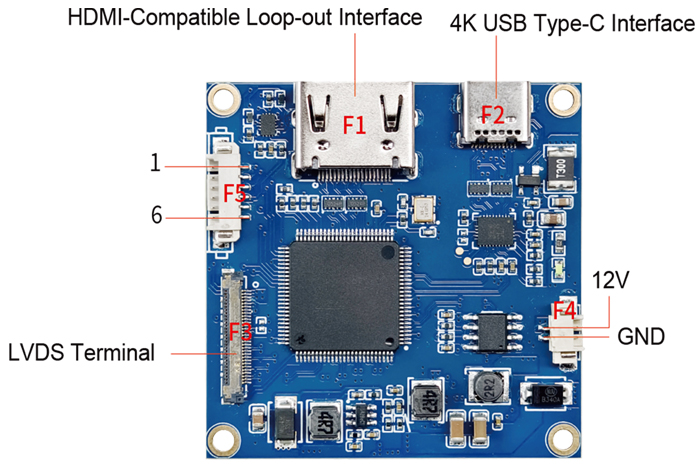

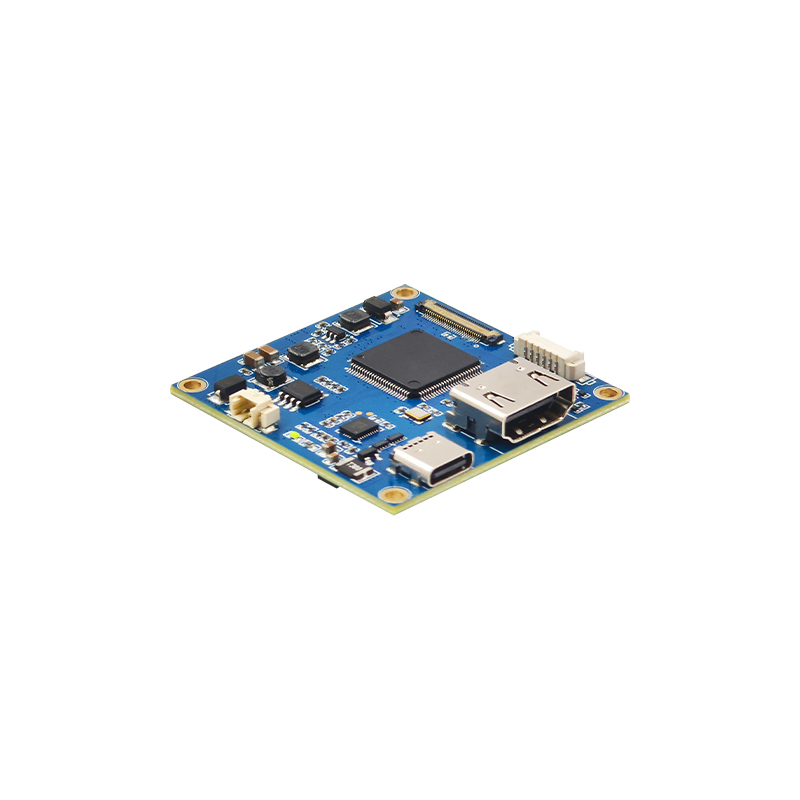

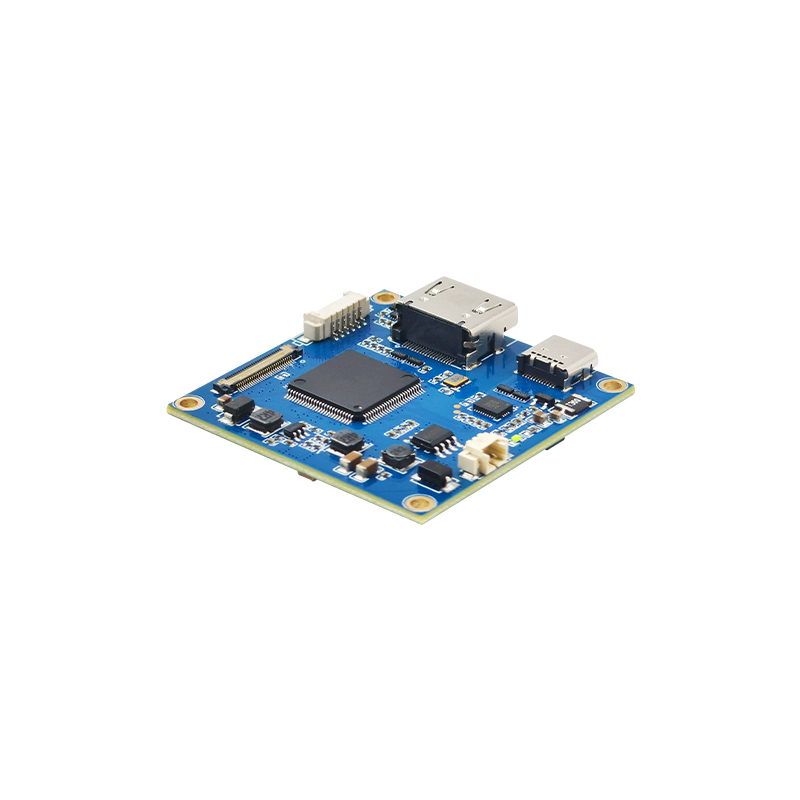

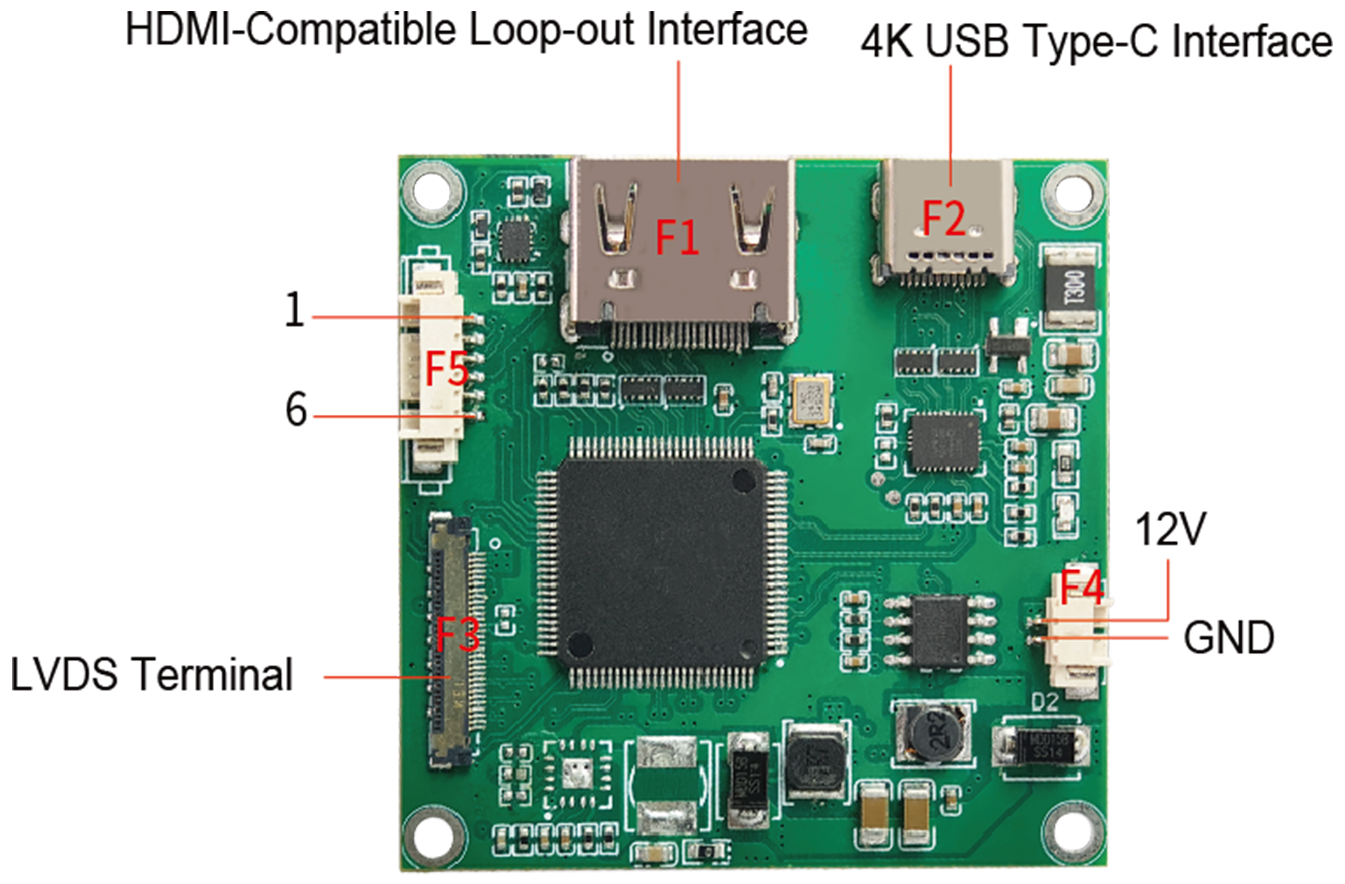

Interface Assignment

Number	Type	Function
F1	High-performance HDMI-Compatible Output Interface
F2	4K USB TYPE-C Interface
F3	LVDS Terminal	4K HDMI-Compatible Input
F4	Moles Connector : Model 532610271,Using 2Pin connector with 1.25MM pitch	DC12V & GND: External power terminals: DC9～12V（1.0A）
F5	Moles Connector : Model 532610671,Using 6Pin connector with 1.25MM pitch	TTL & GND: TTL-232 communication interface (3.3V), for core interface communication，shown in the table: F5-1

Table: F5-1				Front Side of the product
1	GND	4	MUX_SEL
2	TX-TTL Transmit	5	GND
3	RX-TTL Receive	6	GND

Procurement Model

Model No.	Communication Method
PCB-UD111	With TTL-232 control

Product Accessories

6芯端子

LVDS Coaxial Cable (80mm), Customizable Length (Optional)

6-Pin Terminal Wire (150mm) (Standard)

2-Pin Terminal Wire (150mm) (Standard)

Screw/Copper pillar: M2*5 (Optional)

Iron Plate(50*50mm) (Optional)

Interface Board on the Cameras

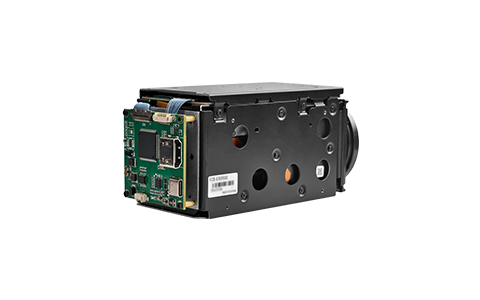

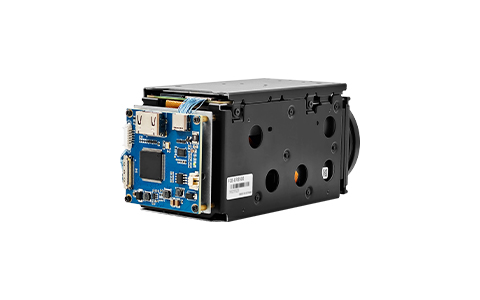

a. Interface board assembled with

Sony Block camera FCB-ER9500

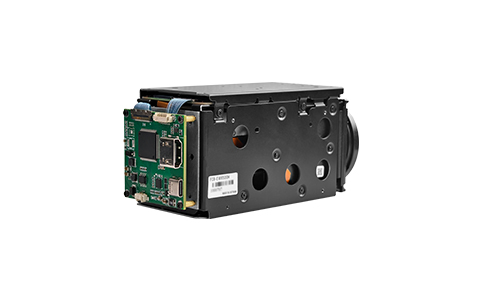

b. Interface board assembled with

Sony Block camera FCB-EW9500H

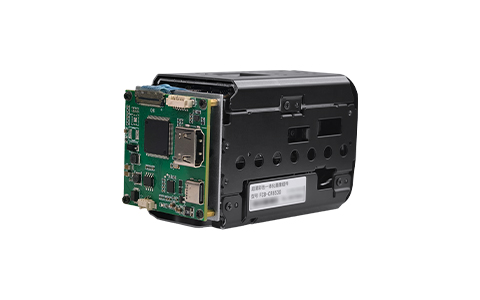

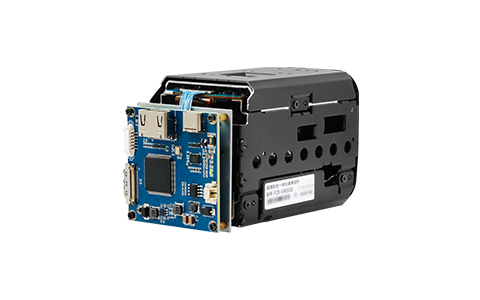

C. Interface board assembled with

Sony Block camera FCB-ER8530

*Note: The product supports individual purchase or "block camera+interface board" package purchase. The whole set comes without pre-installation by default. Specify installation needs when ordering.

Installation Steps

Preparation

6芯端子

Feference model：FCB-ER9500

30Pin LVDS Coaxial Cable

6Pin Terminal Wire

2Pin Terminal Wire

Screw/Copper pillars

Iron Plate

Connection Steps

Physical Assembly Steps Only (No Electrical Work)

Notes: The steps demonstrate physical connection only-electrical connection is excluded. No image output at this stage. For electrical connection assistance, contact technical support.

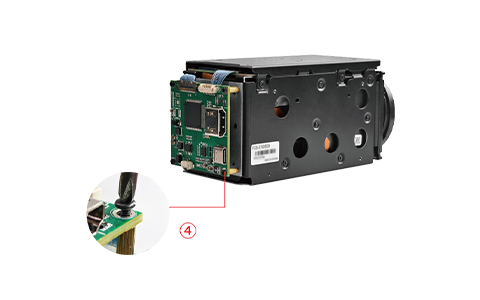

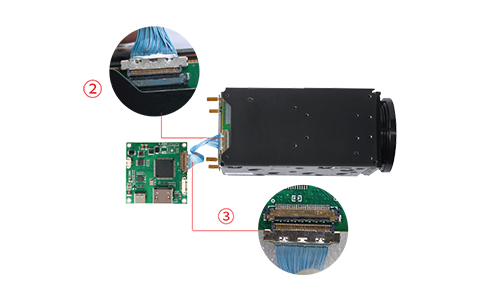

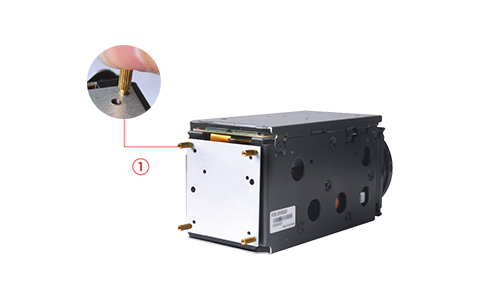

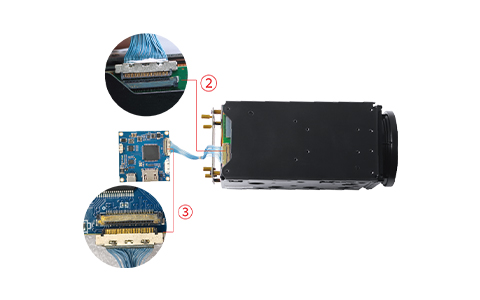

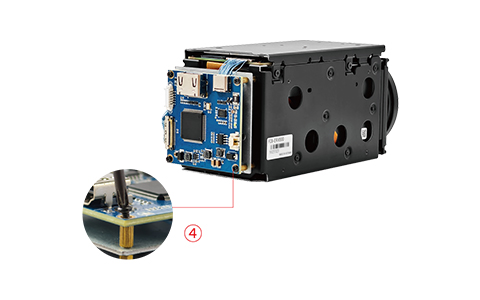

Step Ⅰ: 1. Install the iron plate on the rear of the camera, then manually tighten the copper pillar clockwise. (as shown in Figure ① above).	Step Ⅱ: 2. Connect the LVDS coaxial cable to the ultra HD camera module in parallel (as shown in Figure ② above). 3. Connect the LVDS coaxial cable to the 4K USB TYPE-C board in parallel. (as shown in Figure ③). Warning: Gold pins facing up \| No reverse insertion (risk of device damage)	Step Ⅲ: 4. Install the 4K USB TYPE-C interface board to the rear of the camera, and tighten the screws (as shown in Figure ④ above).

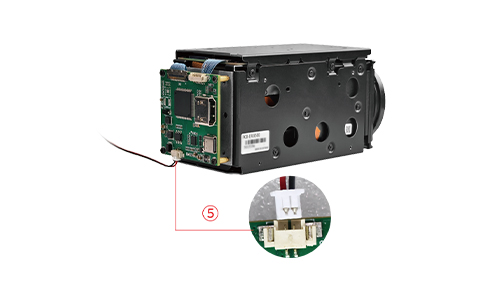

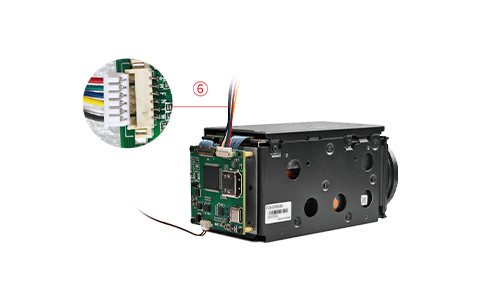

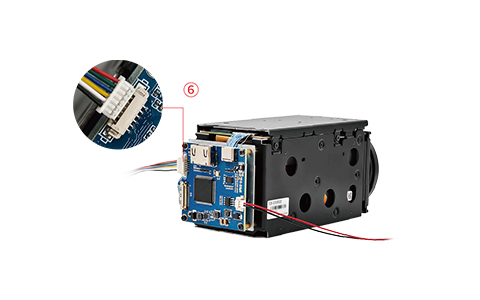

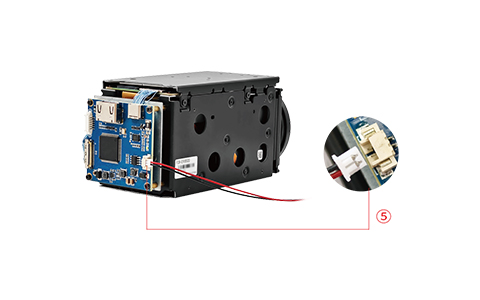

Step Ⅳ: 5. Physically connect the power cable to the 4K USB TYPE-C interface board (as shown in Figure ⑤ above).	Step Ⅴ: 6. Physically connect 6-pin terminal cable to 4K USB Type-C interface board (as shown in Figure ⑥ above).

Thank you very much for purchasing our company's products. If you have any questions, please feel free to contact us.

The photos and actual objects depicted in this Manual are provided solely for reference and guidance to users.

We do not guarantee that they are completely identical to the actual products. Please refer to the actual products.

Design, features and specifications are subject to change without notice.
