Views: 0 Author: Site Editor Publish Time: 2026-05-07 Origin: Site
Amid the wave of Industry 4.0, electronics manufacturing is accelerating its transformation toward refinement, automation and unmanned operation. From semiconductor packaging and PCB production to component inspection and equipment patrol inspection, the precision and efficiency of every link directly determine an enterprise’s core competitiveness. As the core intelligent vision of smart manufacturing, visual inspection’s imaging capability, environmental adaptability and intelligence level are pivotal to resolving pain points in traditional production.
Equipped with Sony’s STARVIS™ 2 core technology, the Sony FCB-ER9500 4K Ultra HD Integrated Camera Module acts as a quality guardian for the electronics manufacturing industry, featuring ultra-high-definition imaging, powerful scenario adaptability and intelligent, user-friendly operation. It fundamentally solves the inefficiency and missing inspection of manual visual checks, as well as the low precision and poor environmental adaptability of traditional equipment. The module empowers the entire electronics manufacturing workflow and drives dual improvements in production efficiency and product yield rate.

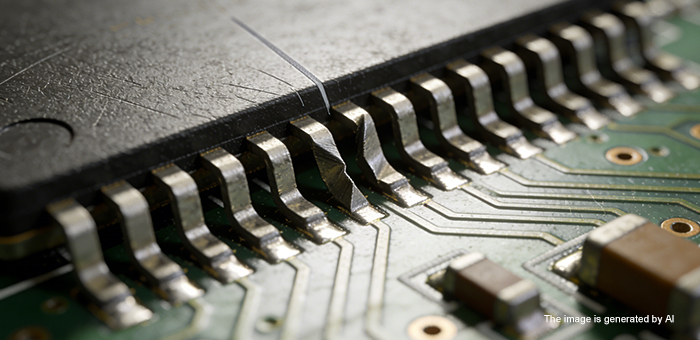

One of the core pain points in electronics manufacturing is the detection of tiny defects—subtle scratches on PCBs, slight deformation of chip pins, and micro stains on component surfaces. These barely visible flaws often lead to product failures and compromise end-user experience. The 4K ultra-high-definition imaging capability of the Sony FCB-ER9500 perfectly addresses this challenge.

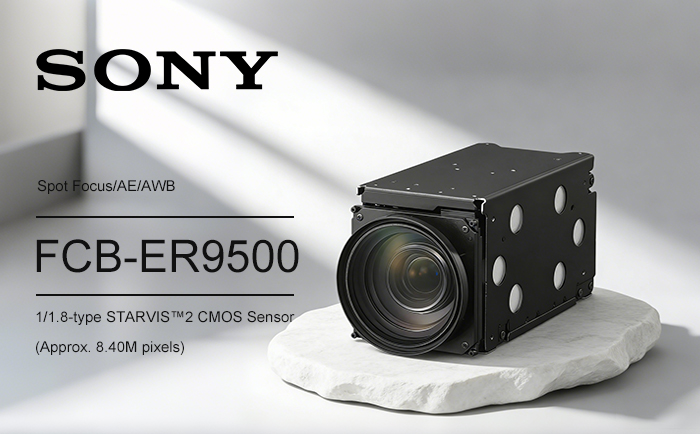

The Sony FCB-ER9500 adopts a 1/1.8-inch STARVIS™ 2 CMOS sensor with approximately 8.4 million effective pixels, steadily delivering 4K Ultra HD footage at a resolution of 3840×2160. Paired with 60fps high-speed output, it clearly presents every detail of electronic components and accurately captures dynamic features of products on high-speed conveyor belts, eliminating motion blur and blurry details caused by insufficient frame rates. It enables precise capture in scenarios such as pin pitch detection during semiconductor packaging and flaw identification of printed circuits on PCBs, minimizing the missing inspection rate.
Highly recognized by Our company, official authorized distributor of Sony (China), the Sony FCB-ER9500 is fitted with a 25x optical zoom lens, enabling seamless switching between wide-angle panoramic scanning and telephoto close-up detail capture. It supports overall positioning and partial fine inspection of products of different sizes without equipment movement. For instance, when inspecting large electronic equipment assemblies, the wide-angle mode quickly locks the inspection area, while switching to telephoto allows detailed examination of critical parts such as interface solder joints and circuit layouts, greatly boosting inspection efficiency and accuracy. Meanwhile, the 30x StableZoom hybrid zoom technology magnifies details without image quality degradation, further expanding inspection capabilities.
Electronics manufacturing workshops feature complex and variable conditions, including backlighting, strong reflections, low light and equipment vibration, setting stringent requirements for camera module stability and adaptability. Powered by multiple cutting-edge technologies, the Sony FCB-ER9500 effortlessly handles diverse complex scenarios and delivers reliable stability for inspection tasks.
Equipped with Wide Dynamic Range (WDR) technology for high-contrast scenarios common in workshops such as backlighting and strong reflections, the module adjusts brightness by zones to retain details in both bright and dark areas, preventing missed defects caused by overexposure or underexposure. When inspecting solder joint quality, it clearly displays weld pool morphology and surrounding material conditions, leaving welding flaws fully exposed. In PCB inspection, it effectively suppresses strong reflection interference from solder and accurately identifies insufficient soldering, cold solder joints and other defects.
In low-light environments, the FCB-ER9500 delivers exceptional low-light imaging performance. With the ICR mode enabled, it achieves ultra-low illumination sensitivity down to 0.00016 lx. It outputs pure, noise-free clear footage even in dimly lit scenarios such as night workshops and equipment interiors. Supported by automatic day/night switching, it enables 24/7 uninterrupted inspection and reduces enterprise operational costs.
Additionally, the Sony FCB-ER9500 integrates a built-in gyroscope sensor and electronic image stabilizer, supporting two anti-shake modes: Super and Super +. It maintains stable footage even in robot patrol inspection and vibrating equipment environments, avoiding misjudgment caused by image shake and meeting diversified inspection demands of electronics manufacturing workshops.
The Sony FCB-ER9500 features independent regional 3A functions (Regional Auto Focus, Auto Exposure, Auto White Balance), allowing parameter optimization for customized areas within the frame. When inspecting complex assemblies, it adjusts focus and brightness for target components while ignoring background interference to further enhance inspection accuracy. Spot focus and spot auto exposure modes precisely lock tiny defect areas, providing high-contrast images for subsequent analysis and improving defect identification efficiency.

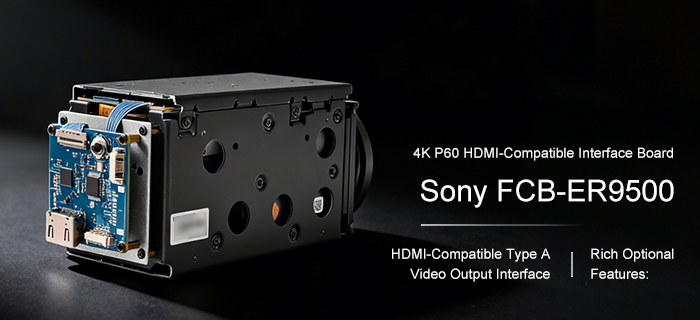

The HDMI-Compatible interface of the Sony FCB-ER9500 greatly simplifies industrial integration. When paired with the self-developed 12G-SDI interface board or 4KP60 HDMI-Compatible Interface Board from Our company—a professional provider of high-definition video secondary development solutions—it seamlessly connects to backend devices such as industrial monitoring systems and quality analysis software. It realizes full-process image processing including collection, transmission and conversion, significantly improving production efficiency.
The Sony FCB-ER9500 is widely applied across diverse electronics manufacturing scenarios, covering core component inspection, production equipment patrol inspection, workshop security monitoring and product quality traceability, comprehensively helping enterprises improve quality, increase efficiency, cut costs and reduce consumption.
✅ Component Inspection: Accurately detects surface flaws, dimensional deviations and pin deformation of chips, resistors, capacitors and other components to ensure qualified component quality.
✅ PCB Inspection: Identifies circuit scratches, short circuits, cold solder joints and missing solder on PCBs to improve PCB yield rate.
✅ Semiconductor Packaging Inspection: Thoroughly detects packaging defects and pin pitch deviations during semiconductor packaging to guarantee the performance of semiconductor products.
✅ Equipment Patrol Inspection: Mounted on robots or drones for remote inspection of key parts of production equipment, timely detecting equipment wear and potential faults to avoid downtime losses.
✅ Workshop Security: 24/7 uninterrupted real-time monitoring to identify potential safety hazards and ensure production safety.
As electronics manufacturing advances toward intelligence and refinement, precise control of every detail and continuous improvement in efficiency have become key for enterprises to capture market share. Boasting core strengths of ultra-high-definition imaging, powerful scenario adaptability and intelligent integrated design, the Sony FCB-ER9500 breaks the limitations of traditional inspection and enables intelligent manufacturing for the electronics manufacturing industry.

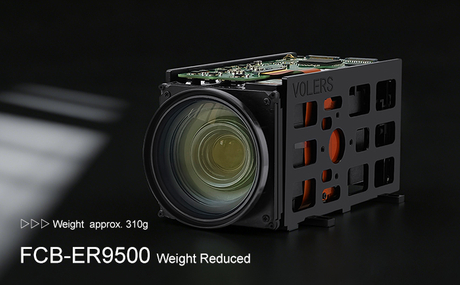

The International Low Altitude Economy and UAS Expo 2026 and the 11th Shenzhen International UAV Expo is grandly approaching. The Sony FCB-ER9500, its lightweight version, and the multi-interface board solution will make a stunning debut at the event. This is not only a showcase of cutting-edge technology, but also the beginning of a new era for UAV applications. Let us look forward to witnessing the charm of this innovative solution at the exhibition and exploring more possibilities for UAV application scenarios!
Booth Information
Exhibition Date: May 21–23, 2026
Venue: Shenzhen Convention and Exhibition Center (Futian)
Booth No.: Hall 1, 1C379
