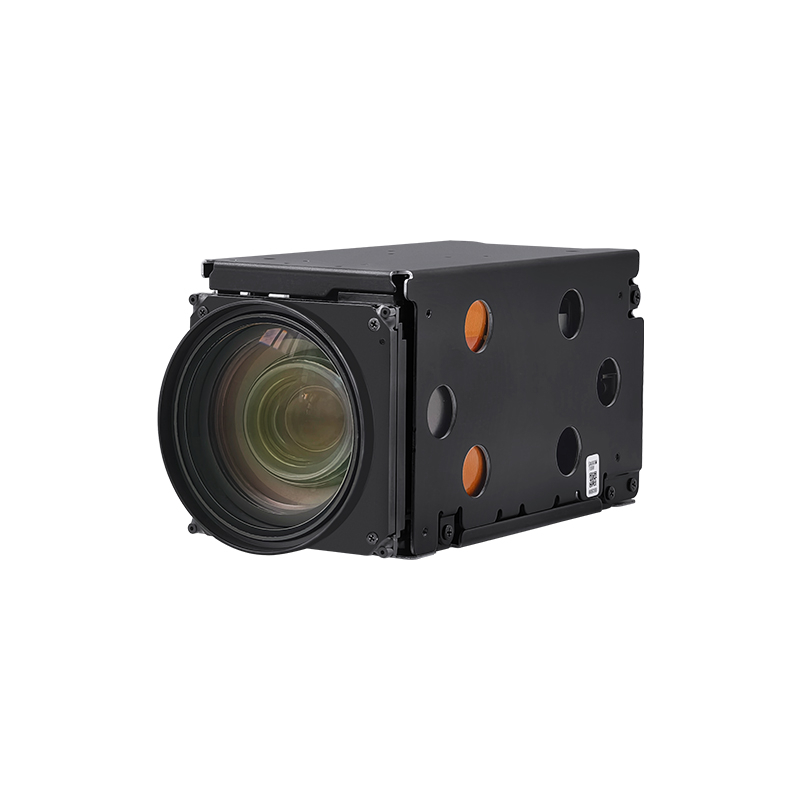

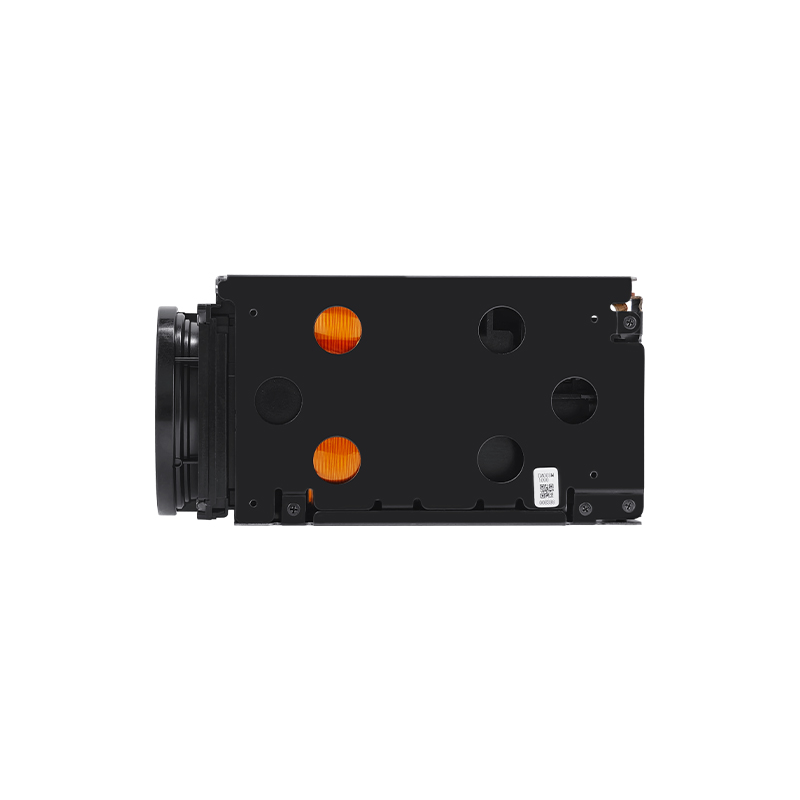

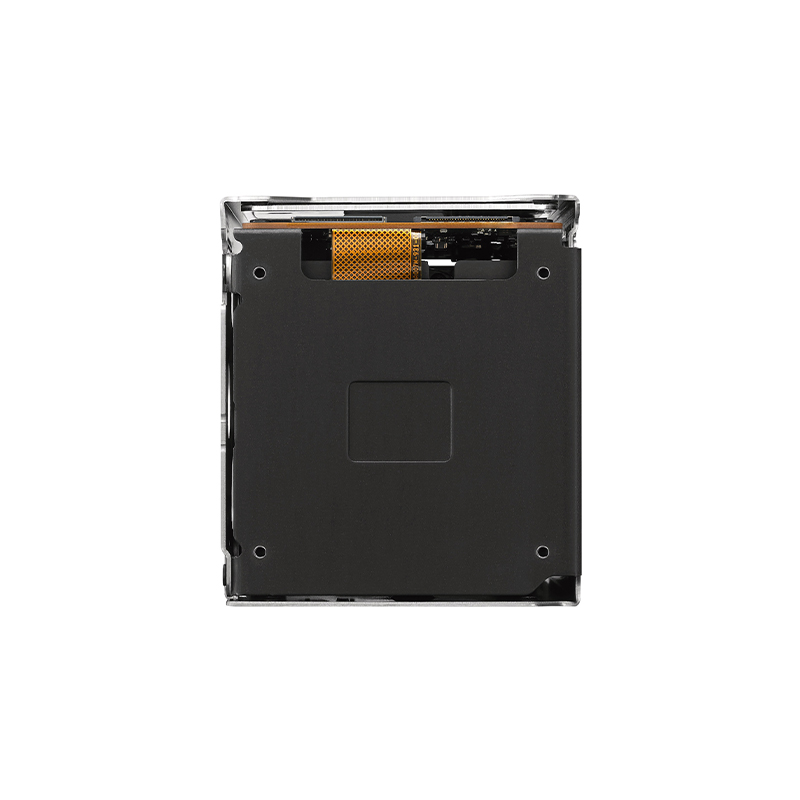

The FCB-EV9500M delivers superior visibility by adopting a new lens, image sensor, and ISP developed by a Japanese manufacturer. Experience 30x enhanced optical zoom in a compact form factor - even with the larger 1/1.8-inch sensor. This camera is suitable for a wide range of scenarios, including harsh environments. In particular, its new super image stabilizer provides significantly improved blur suppression compared to conventional models.
Choose from three models in the lineup:

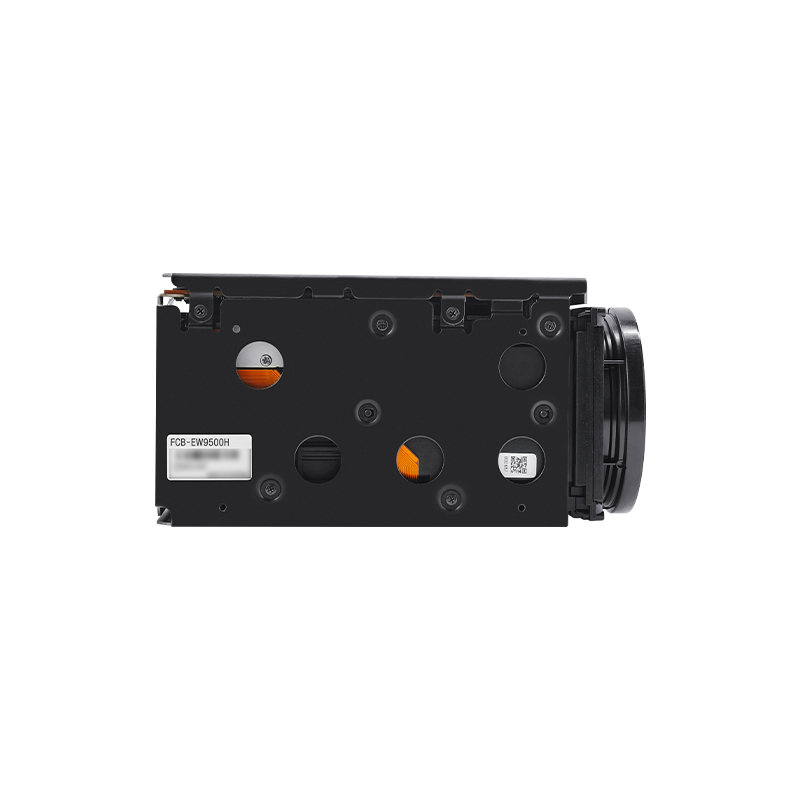

FCB-EW9500H: 4MP (HDMI output)
FCB-EV9500M: Full HD (MIPI output)
FCB-EV9500L: Full HD (LVDS output)
Model NO. | FCB-EV9500M | Brand | Sony |
Image sensor (Effective pixels) | 1/1.8 inch STARVIS™ CMOS Sensor (Approx 4.17MP) | Lens | 30x Enhanced Optical Zoom，12x Digital Zoom |
Output pixels (H × V) | 1920x1080,1280x720 | Video Output Focal Length | f = 6.5 mm - 162.5 mm, F1.6 - 4.8 |
Synchronization mode | Inner synchronization | Video Output | MIPI |
image formats | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 | ||
Main Features | Super Image Stabilization (Super / Super+), Auto Day-Night Switching, Wide Dynamic Range, Point Light Source Avoidance, etc. | ||
Size | 56.0 x 64.0 x 125 mm | ||
Weight | Approx 439 g | ||
The Sony FCB-EV9500M MIPI Block Camera is ideally engineered for smart devices requiring in-depth embedded integration. When paired with our VRS-UD350 Interface Board, it seamlessly integrates into IP systems, unlocking extensive applications across security surveillance, video conferencing, and machine vision inspection. It delivers an end-to-end solution that covers the entire work-flow from image capture and intelligent processing to remote transmission.
FCB-EV9500M | Compatible Camera Interface Board | Customized Integrated Solutions | ||
Size: 56 x 64 x 125mm Net Weight: appr. 439g | + |
RJ45 Ethernet interface Network Video output | = |

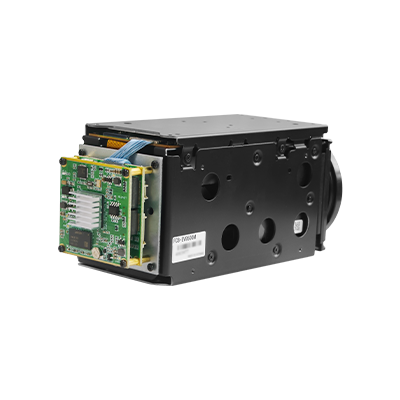

Sony FCB-EV9500M + MIPI or LVDS to IP camera Interface Board |
Q1: Why does the FCB-EV9500M feature approximately 4.17 mega effective pixels while only outputting around 2 mega pixels?
A1: The discrepancy between the FCB-EV9500M’s effective pixels (≈4.17 mega) and output pixels (≈2.07 mega, corresponding to 1080P resolution) stems from pixel binning and cropping processes tailored to match the output specifications. Equipped with a 1/1.8-inch STARVIS™ CMOS sensor boasting 4.17 mega native effective pixels, the module captures light across a broader photosensitive area. However, as the FCB-EV9500M natively outputs 1080P (1920×1080) high-definition signals, it leverages pixel binning technology to integrate signals from adjacent pixels. This not only enhances signal-to-noise ratio (SNR) and image quality in low-light conditions but also involves moderate cropping of the native photosensitive area to fit the 16:9 output aspect ratio. Additionally, this design reduces transmission bandwidth load on the MIPI interface, meets the data processing efficiency requirements of embedded systems, and achieves an optimal balance between imaging performance and operational stability for professional industrial scenarios.
Q2: Can the SONY FCB-EV9500M output network or SDI signals?
A2:The SONY FCB-EV9500M is originally designed with a MIPI interface that outputs MIPI video signals. To achieve network video signal output, you can pair it with our MIPI to IP Camera Interface Board: VRS-UD350.
As a module camera featuring MIPI interface for video signal output, the SONY FCB-EV9500M can be integrated with our self-developed MIPI/LVDS to IP Camera Interface Board to convert signals to network video streams. This board enables efficient video encoding and network transmission, facilitating seamless integration into IP surveillance, video conferencing, or streaming media systems.
If your project requires SDI or HDMI video signal output, FCB-EV9500L or FCB-EW9500H would be ideal alternatives, as their interface designs are better optimized to meet such output requirements.
| Image | Product Name |
|---|---|

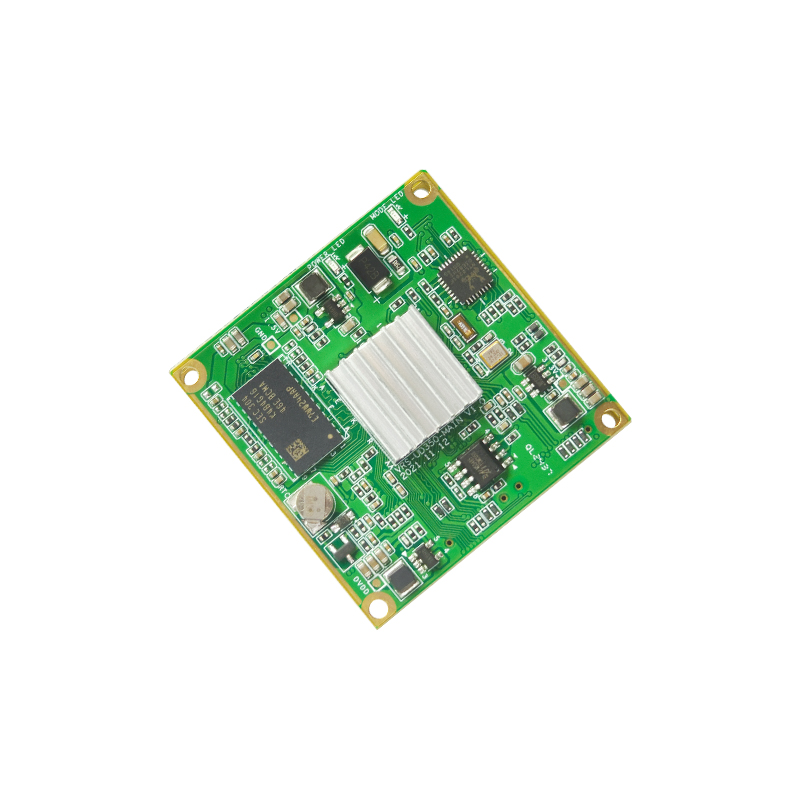

 | VRS-UD350 MIPI or LVDS to IP Camera Interface Board |
