8K High-Speed Micro-Coaxial Gimbal Harness for HDMI-Compatible Interfaces

8K aerial photography dedicated HDMI-Compatible gimbal harness features ultra-fine coaxial cable, offering lightweight and high-flexibility properties with strong anti-interference capability, ensuring stable transmission of high-definition signals.

Constructed from PVC material, it can withstand high-frequency bending and continuous mechanical stress. Specially designed for scenarios such as robot and UAV mounting, it guarantees long-lasting durability of the cable.

Equipped with a diverse range of connector models, it meets the requirements of various scenarios and is widely used in professional audio-visual engineering, industrial and medical equipment, UAVs, robots, and other fields.

The invention patent has been accepted by the China National Intellectual Property Administration (CNIPA) (Application No.: PA202427318CN).

Features

• Coaxial Architecture:

The cable features a single center copper conductor, surrounded by an insulating layer, metal shielding layer, and outer jacket. This design effectively reduces signal crosstalk and enhances anti-interference capability.

• Multi-layer Shielding:

Equipped with dual-layer shielding (aluminum foil + tinned copper mesh), it efficiently isolates Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), making it ideal for industrial environments or high-interference areas.

• Transmission Performance:

This high-quality coaxial HDMI-Compatible cable supports HDMI-Compatible 2.0/2.1 standards, with a maximum transmission bandwidth of 48Gbps. It is compatible with high-resolution formats such as 4K@120Hz and 8K@60Hz.

• High Interference Resistance & Stability:

Superior Anti-interference: The shielding coverage rate reaches up to 95%, ensuring stable performance in complex electromagnetic environments such as factories, medical equipment, and UAVs.

Impedance Matching: Designed with a precise impedance (in compliance with video transmission standards), ensuring complete signal integrity with minimal reflections and distortion.

• Physical Durability:

Bending & Wear Resistance: The outer PVC material resists frequent bending and continuous mechanical stress, making it suitable for mobile devices (e.g., robotics, UAV gimbal mounting).

Temperature & Corrosion Resistance: Operates stably in a wide temperature range of -20°C to 80°C, adapting to harsh working conditions.

• Oxidation Resistance:

The terminals are nickel-plated as a base layer, followed by tin-plating or gold-plating treatments. This enhances environmental resilience, prevents quality issues caused by oxidation, and significantly extends the service life of the electronic product.

Multiple HDMI-Compatible connector variants

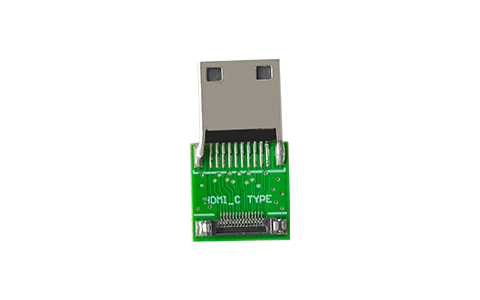

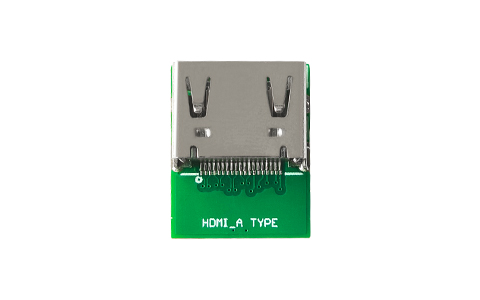

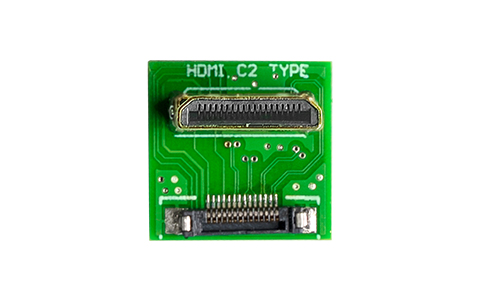

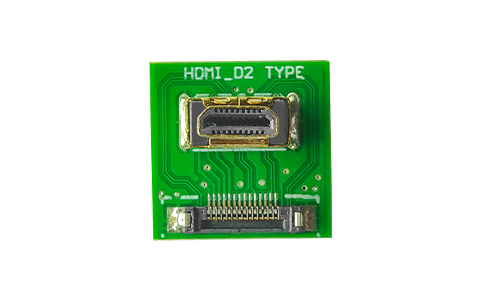

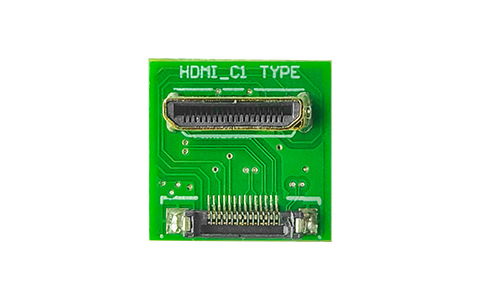

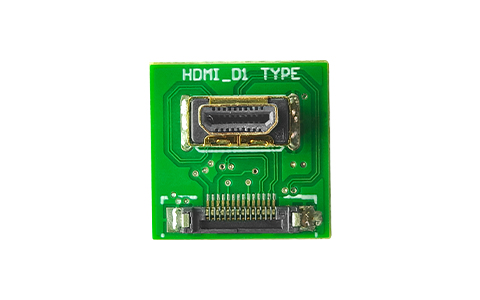

HDMI-Compatible-D1 Male Type:  14(L) × 14(W) × 13(H)mm	HDMI-Compatible-D2 Male Type:  14(L) × 14(W) × 13(H)mm	HDMI-Compatible-C1 Male Type:  14(L) × 14(W) × 12(H)mm	HDMI-Compatible-C2 Male Type:  14(L) × 14(W) × 12(H)mm	HDMI-Compatible-A Female Type: 20(L) × 16(W) × 8(H)mm
			Under Development	Under Development

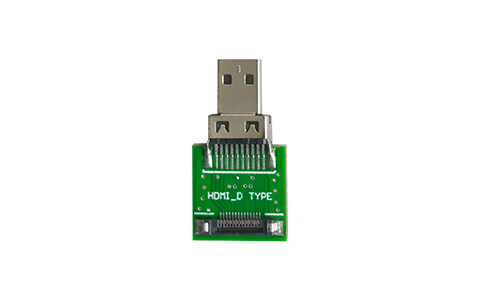

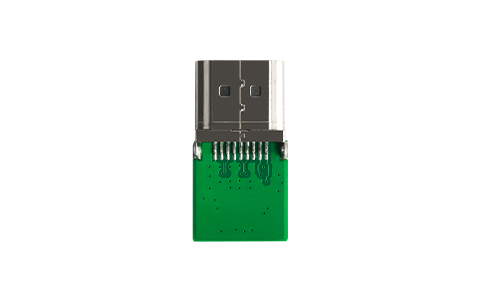

HDMI-Compatible-D Male Type:  24(L) × 12.5(W) × 4(H)mm	HDMI-Compatible-C Male Type:  23(L) × 12.5(W) × 2.5(H)mm	HDMI-Compatible-A Male Type:  28.5(L) × 15(W) × 4.5(H)mm

Note:Verify the connector models at both ends prior to ordering.

Specifications

HDMI and its logo are trademarks of HDMI Licensing Administrator, Inc. This product is not certified by HDMI Licensing Administrator, Inc.
