Ultra-HD & HD/3G-SDI Video Coaxial Cable Assembly specially designed for lossless transmission of ultra-high definition video signals. Supports 2160P&1080p resolution and realizes real-time transmission without compression and without delay; it provides reliable guarantee for application scenarios that pursue ultra-high fidelity picture quality and low-delay video transmission.
Ultra-HD & HD/3G-SDI Video Coaxial Cable Assembly has a compact structure and ensures high transmission stability; it is equipped with anti-interference performance to effectively reduce interference and fully complies with safety requirements.
• High-Performance Ultra-HD & HD/3G-SDI Silver-Plated Video Cable
Manufactured with imported high-temperature resistant raw materials, this product is designed for harsh environments, featuring excellent cold resistance, weatherability and high-temperature resistance, and can stably adapt to various demanding working scenarios.
• Precise Structure, Excellent Transmission Performance
Conductor & Shielding Layer: Adopts 7-strand pure copper silver-plated conductor + pure copper silver-plated shielding layer, ensuring stable signal transmission, low attenuation, excellent VSWR (Voltage Standing Wave Ratio), and efficient shielding performance.
Insulation & Jacket: PTFE (Polytetrafluoroethylene) insulation layer + FEP (Fluorinated Ethylene Propylene) outer jacket, endowing the cable with lightweight, high flexibility, moisture resistance and corrosion resistance.
• Wide Application
Suitable for 75Ω short-distance high-frequency signal transmission, widely used in electronic equipment, broadcasting systems, ultra-HD/HD video, automation equipment, and other fields.
|
|
|
|

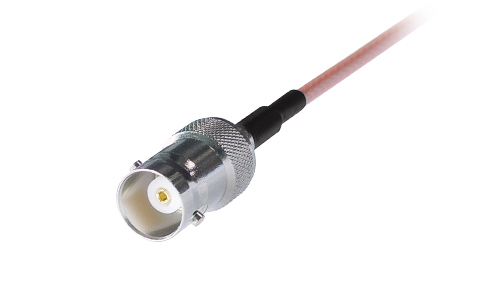

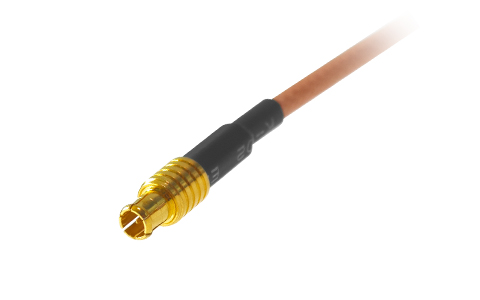

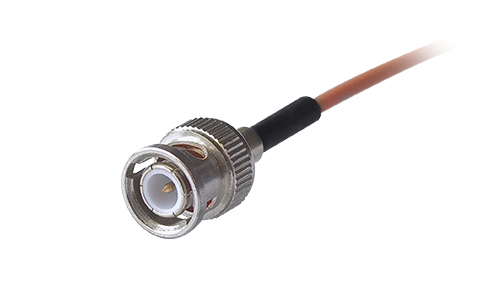

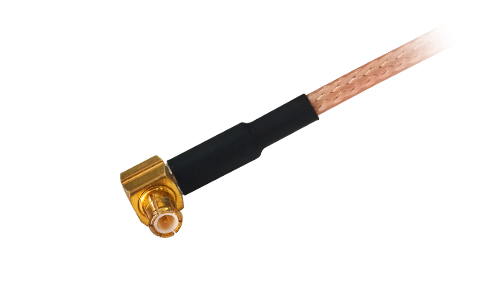

BNC Male Straight | BNC Female Straight | MCX Male Right-Angle | MCX Male Straight |
 |  |  |  |

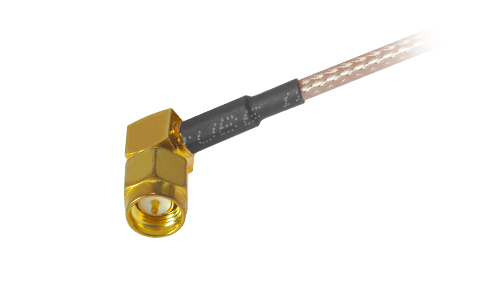

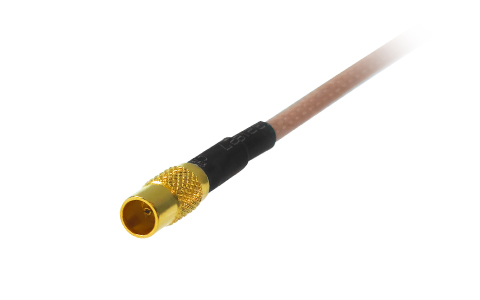

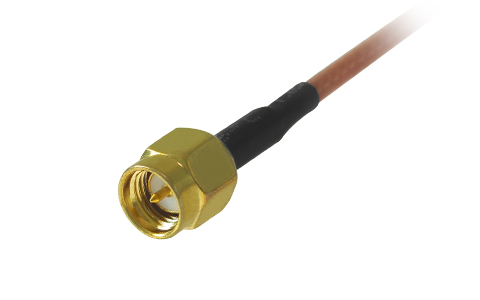

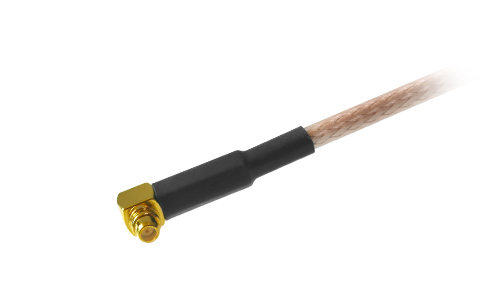

MCX Female Straight | MMCX Male Right-Angle | SMA Male Right-Angle | SMA Male Straigh |
Material | Pure copper silver-plated & FEP | Insulated Diameter | 1.5±0.02mm |
Standard Insulation Thickness | 0.61mm | Insulation Color | White |
Impedance | 75Ω | Wire Gauge | 30AWG OD0.25mm |
Operating Temperature | -40~100℃ (-40~212℉) | Core Shielding Material | Pure copper silver-plated |
Frequency Range | 0-6Ghz | Shielded Outer Diameter (OD) | 1.98±0.05mm |
| Cable Length | 210-2000mm | White Insulation | Polytetrafluoroethylene (PTFE) (high temperature resistant) |
Note: The above parameters are for reference only, please refer to the actual product for details.
