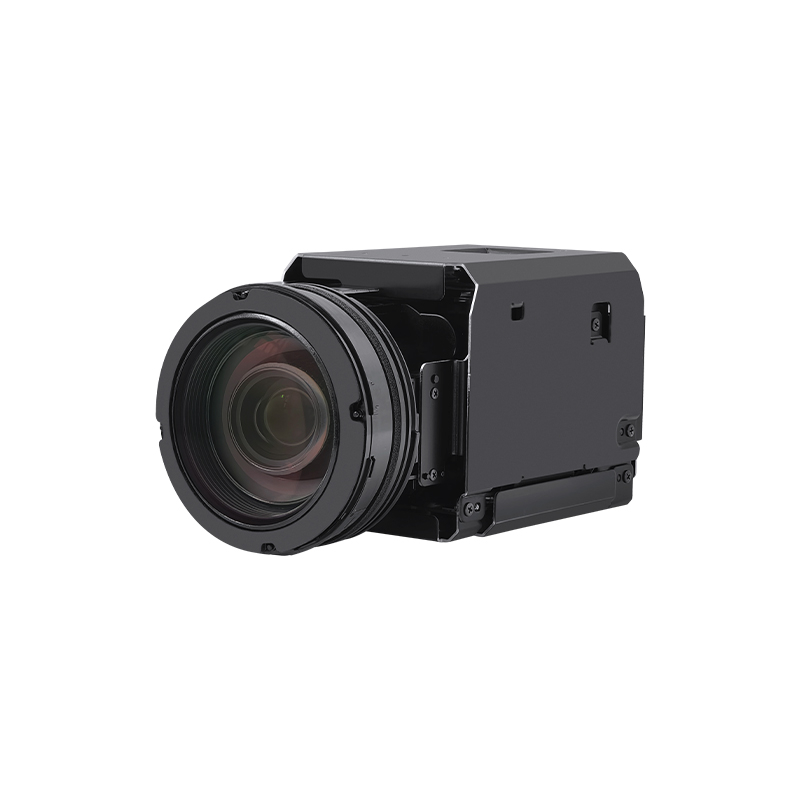

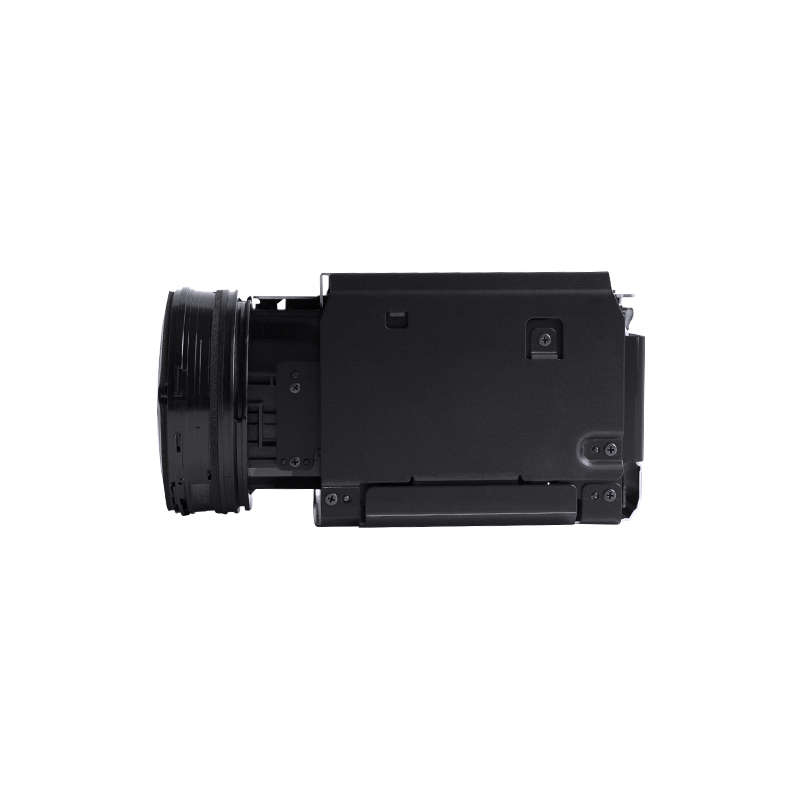

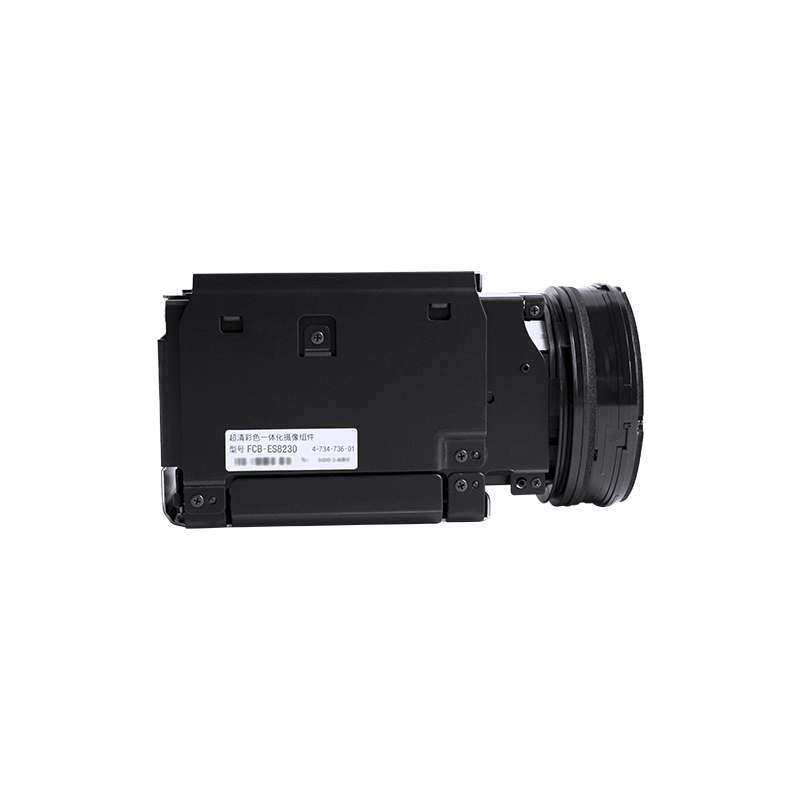

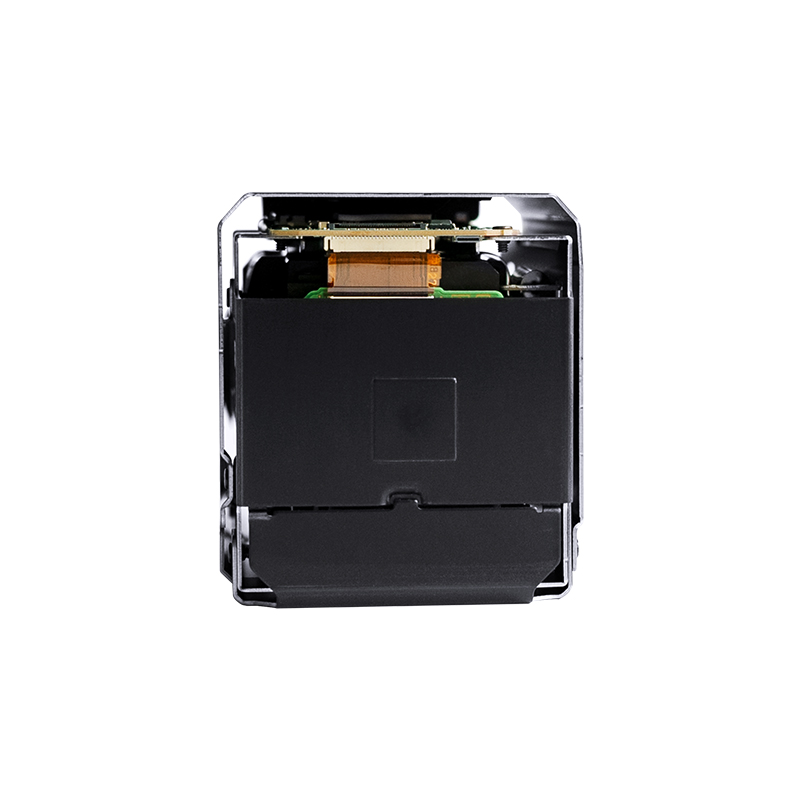

FCB-ES8230 Sony 4K HDMI Ultra HD 12X Zoom Block Camera

• Sensor(Effective pixels): 1/1'' Exmor CMOS(approx. 20.50MP)
• Output pixel(HxV): 3840*2160, 1920x1080, 1280x720
• Video format: 2160P/29.97/25/23.98, 1080P/59.94/50/29.97/25/23.98, 1080I/59.94/50, 720P/59.94/50
• Video output: 4K Output Compliant with HDMI-Compatible Protocol
• Lens: f = 3.9mm - 46.8mm, F1.8 - 2.0
• Zoom: 12x Optical Zoom, 12x Digital Zoom
• Other functions: Day/night switching, defog, motion detection, Spherical Privacy Zone Masking
• Size: 65.0 x 70.0 x 135.0mm
• Weight: approx. 510g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

FCB-ES8230 SONY FCB-ES8230 Sony FCB Block Camera Live Broadcast 4K Block Camera 4K HDMI output Camera Module 12x Zoom Camera Auto Focus Camera 1 Inch CMOS Camera Block High-end Video Conference 2160P Block Camera Sony Camera

Overview

FCB-ES8230 is Sony's new-generation large-format 4K ultra-high-definition integrated camera modules. It is equipped with advanced electronic fog penetration function and wide dynamic range performance with high dynamic range, capable of coping with complex external environments with ease. The modules adopt a 1-inch CMOS sensor with a large light-sensitive area and feature high-light suppression function. In low-light indoor environments, they can achieve lower noise control, present more vivid colors and more layered images, and can output 4K broadcast-level image quality. With excellent performance, FCB-ES8230/FCB-CS8230 have become the first choice for industries such as high-end conference cameras and medical equipment that require 4K ultra-high-definition cameras.

Basic Info.

Model NO.	FCB-ES8230	Brand	Sony
Image sensor (Effective pixels)	1/1" Exmor R CMOS Sensor（Approx 20.50MP）	effective pixels	approx. 20.50mega
Lens	12x Optical Zoom，12x Digital Zoom	Focal Length	f= 3.9 mm - 46.8 mm, F1.8 - F2.0
Super Resolution	4K 1.5 Times 1080P 2.0 Times	Video Output	HDMI
Output pixels	3840x2160 (QFHD), 1920x1080 (Full HD), 1280x720 (HD), 720x480/576 (SD)
Image formats	2160p/29.97, 2160p/25, 2160p/23.98, 1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080p/23.98, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 480p/59.94, 576p/50
Regional functions	Day/night switching, defog, motion detection,Spherical Privacy Zone Masking
Picture effects	E-flip,black and white switching, image freeze
Size	65.0 x 70.0 x 135.0mm
Weight	Approx. 510g

Application

Security & Surveillance

Intelligent Transportation Systems (ITS)

High-end Conference Cameras

Medical Devices / Medical Equipment

Optimized Video Output Configuration

FCB-ES8230		Compatible Camera Interface Board		Customized Integrated Solutions

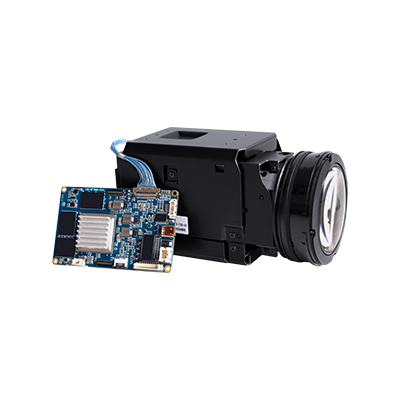

Size: 50.0 x 60.0 x 93.3mm Net Weight: Approx 275 g	+	HDMI Type-D, IP and USB3.0 Interface HDMI, IP and USB3.0 Sync-output	=	Sony FCB-ES8230 + 4KP60 AI Network Interface Board

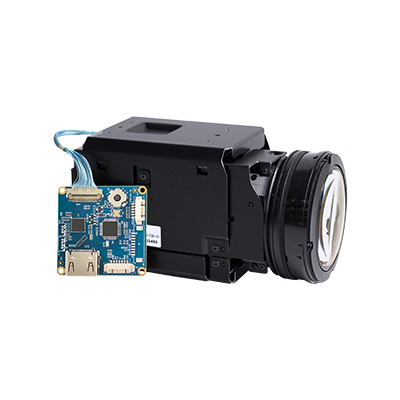

Auto ICR Spot Focus, Spot AE	+	HDMI Type-A Interface Lvds to 4K HDMI Output	=	Sony FCB-ES8230 + 4KP60 HDMI Interface Board

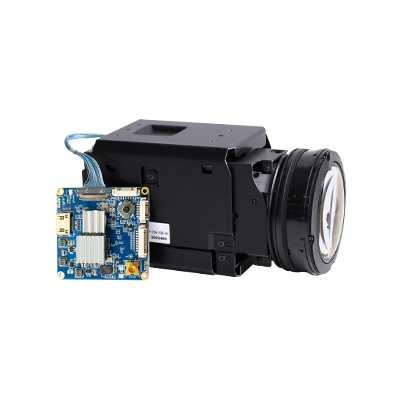

1/2.5-type Exmor R CMOS Sensor Effective pixels: approx. 8.51MP	+	Mini MCX RF and HDMI Type-C Interface 6G-SDI and 4K HDMI Sync-output	=	Sony FCB-FCB-ES8230 + 12G-SDI Interface Board

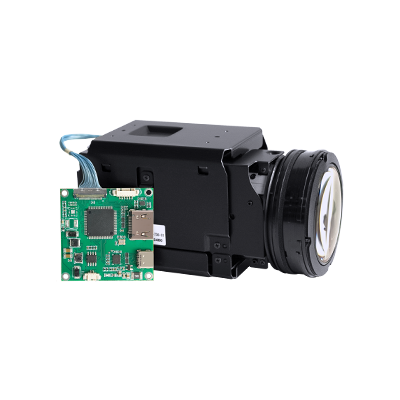

Support 4KP30 Video Output 20x Optical Zoom	+	USB3.0 TYPE-C and HDMI Interface USB3.0 TYPE-C and 4K HDMI loop Output	=	Sony FCB-ES8230 + 4K USB3.0 TYPE-C Interface Board

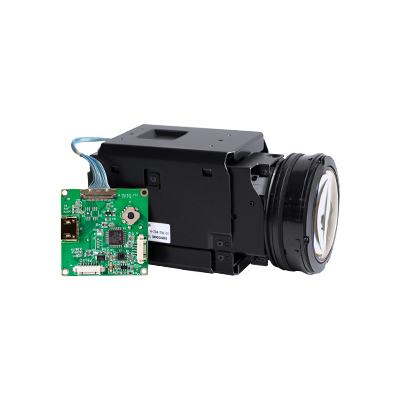

High Sensitivity Super-Resolution Zoom	+	HDMI Type-C Interface Lvds to 4K HDMI Output	=	Sony FCB-ES8230 + 4K-HDMI Interface Board

FAQ

Q: Given the large sensor size of the SONY FCB-ES8230, what industries can it be applied to?

A: The 1/1-inch large sensor of the SONY FCB-ES8230 can significantly increase the light-receiving area, reduce noise, and improve image purity.

It possesses unparalleled advantages in industries such as security surveillance, intelligent transportation, industrial inspection, medical imaging, film production, high-end conferences, and scientific research observation.

Parameter

Model No.	FCB-ES8230
Image Sensor	1/1 Exmor R COMS
Image sensor (effective number of pixels)	20.50 mega pixels
signal system	2106P29.97 2160P25 2160P23.98 1080P59.94 1080P50 1080I59.94 1080I50 1080P29.97 1080P25 1080P23.98 720P59.94 720P50
Lens	12x optical zoom
Digital zoom	12 times (360 times after using optical zoom)
Super resolution zoom	4K 1.67 1080P2.0 times
lens parameters	f=3.9mm—46.8mm F1.8-2.0
Minimum object distance	10mm—2100mm
Synchronization system	Built in
Signal to noise ratio	More than 50dB
video output(HD)	HDMI
Camera component control interface	VISCA,baud rate: 9600/19200/38400bps/115200bps
Shutter speed	1/1 second to 1/10,000 second, 22 steps
ATW	Automatic/Manual/indoor/outdoor/outdoor automatic/One-click trigger/sodium lamp mode
Gain	Auto/Manual (0 steps to 28 steps, +2 steps / total 15 steps) Maximum gain limit (6 steps to 28 steps, +2 steps / total 12 steps)
Exposure control	Auto, Manual, Priority Mode (Shutter Priority & Aperture Priority), Brightness, EV Compensation, Slow AE
system focuses	one-click automatic/manual
BLC	Have
Aperture control16 levels	16 levels
Wide-D	Have
Image stabilizer	Have
Defog Mode	Have
Automatic IRC	Have
zone shadowing	Have
Noise reduction	On/Off（1-5）step
High bright spot suppression	Have
Slow shutter	Have
Image effects	Have,Electronic flip, negative, black and white, mirroring
Image freeze	Have
Slow shutter	Have
Temperature reading	Have
ColorBoost	Have
Storage temperature	-20 ° C to 60 ° C
Storage humidity	20%----95%
Operating temperature	-5°C to 60°C
Operating humidity	20%---80%
Power requirement	6.0V---12.0VDC
Power consumption	Power consumption 3.2 W (zoom/focus does not start) 4.0 W (zoom/focus start)
weight	510g
