Surgical Video Camera Regular Version 3G-SDI Full HD or 4K HDMI Compatible Ultra HD

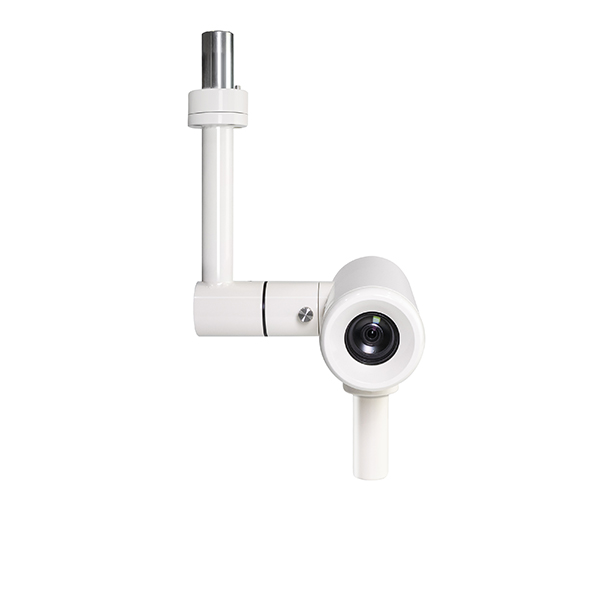

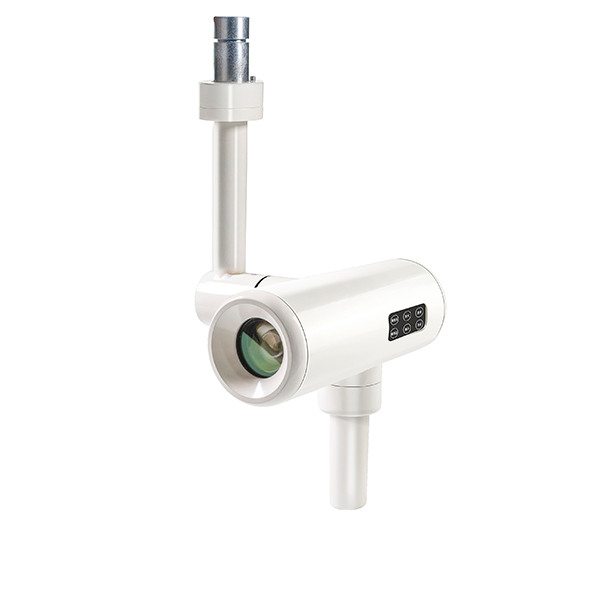

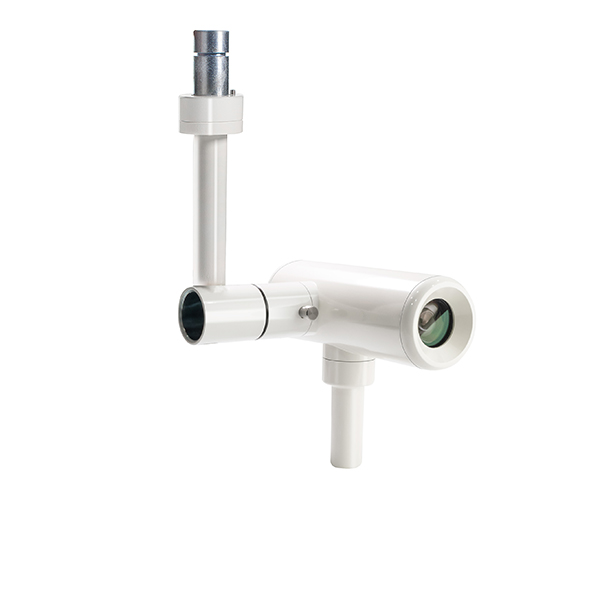

Surgical Video Camera Full HD or 4K Ultra HD Regular Version

• Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.12MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: 1080P/60/50/30/25, 1080i/60/50, 720P/60/50/30/25
• Video output: LVDS, EX-SDI, CVBS(without WDR)
• Lens: f = 5.2mm - 104mm, F1.5 - F3.5
• Zoom: 20x Optical Zoom, 32x Digital Zoom
• Other functions: Day & Night (ICR), Real-time True WDR, Digital Image Stabilization, High Light Compensation
• Size: 50.0 x 60.0 x 97.0mm
• Weight: approx. 232g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

Surgical video camera 3G-SDI Output Surgical Video Camera Full HD Surgical Video Camera 4K HDMI Compatible Surgical Video Camera 4K Ultra HD Surgical Video Camera Sony FCB Zoom Surgical Video Camera Sony FCB-EV9520L Surgical Video Camera Sony FCB-ER8530 Surgical Video Camera VRS-HD5201 Surgical Video Camera 30x Zoom Surgical Video Camera

Overview

The surgical video camera Regular Version for medical field developed by our company. It can choose the Sony FCB-EV9520L or Volers VRS-HD5201 with the 3G-SDI interface board output HD-SDI and 3G-SDI video signal.

It can also choose the Sony FCB-ER8530 with the 4KP30 HDMI-Compatible Interface Board output 4KP30 HDMI-Compatible video signal.

The surgical video camera Regular Version Equipped with autofocus functionthe camera operation is easier and more convenient. The camera adopts ergonomic design. By using VOLERS HD video recording system, the surgical video camera can achieve real-time video recording and realize the whole process of video recording through the operation. In addition, we have a number of patent Copyrights to ensure the uniqueness and innovation of the product.

Features

● Integrated design, in line with ergonomics, no dust, easy to clean. Standard ONDAL. spring arm docking bracket makes the instalation easy

● VOLERS HD video recording system supports external pickup and sound box to realize real-time audio intercom between operating room and demonstration room; It also supports real-time audio and video recording.

● Simple operation interface, multi-functional touch key panel with high zero sensitivity.Convenient and fast debugging, scene switching, focusing, zoom and other functions.

● Automatic focus lock function, when the obstruction moves out of the lens field of view, the surgical field is immediately clear

● RS485 control, PELCO control protocol.

Application

Widely used in clinical medical operating room, remote teaching, clinical skills training, dentistry,teaching,

pet surgery scene video recording,scientific research and clinical assistance in hospitals or medical schools

such as medical aesthetics.

FAQ

Parameter

Total Pixels	1,945 (H) x 1,109 (V) = 2.16M Pixels
Active pixels	1,945 (H) x 1,109 (V) = 2.16M Pixels
Scanning system	Progressive Scan
Sync. System	Internal
Resolution	Digital : 1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25 Analog : 700TVL
Min. illumination	Color(1/30s, 78dB) : 0.01 lux, BW(1/30s, 78dB) : 0.001 lux Color DSS(1/1s, 78dB) : 0.001 lux , BW DSS(1/1s, 78dB) : 0.0001 lux
Video Output	HD : LVDS, EX-SDI Analog SD : CVBS(without WDR)
S/N Ratio	more than 50dB (AGC off)
Lens
Lens type	20x Day & Night Zoom Lens
Zoom Ratio	Optical 20x, Digital 32x Zoom
Focal Length	f = 5.2mm ~ 104mm
Aperture Ratio	F1.5 (wide) ~ F3.5 (tele)
Angle of View (D, H, V)	Wide	63.2°	56.4°	33.5°
	Tele	3.5°	3.1°	1.7°
Function
AF Mode	Auto / One Push / Manual
Min. Distance	0.5 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh	One Push / 1 ~ 10Day
Digital Zoom	Off / MAX x2 ~ x32
Exposure	Auto / Iris.P / Shut.P / Manual
Gain Control (AGC)	Off / On
Shutter Speed	1/30(25) ~ 1/60,000 sec
Iris	0 ~ 20 steps
Digital Slow Shutter (DSS)	Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only)
Brightness	0 ~ 20 steps
WDR/BLC	OFF / WDR / BLC
Day&Night	Auto / Day / Night / Ext-in
White Balance	Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
HLC	Off / On / Night Only
DNR	Auto / Off / Low / Middle / High
Mirror	Off / H / V / H&V
Sharpness	0 ~ 10 steps
ACE	Off / Low / Middle / High
Defog	Off / On(Auto / Manual)
Privacy Mask	Max. 24 Areas
Motion Detection	Max. 3 Areas
Defect Detection	Off / On
System	NTSC / PAL
Communication	Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update
Language	English / Simplified Chinese / Traditional Chinese / Japanese
Power Source	9V to 15V DC
Power Consumption	500mA
Operating Temperature	-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature	-10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension	50(W) x 60(H) x 97(D)
Weight	232g
