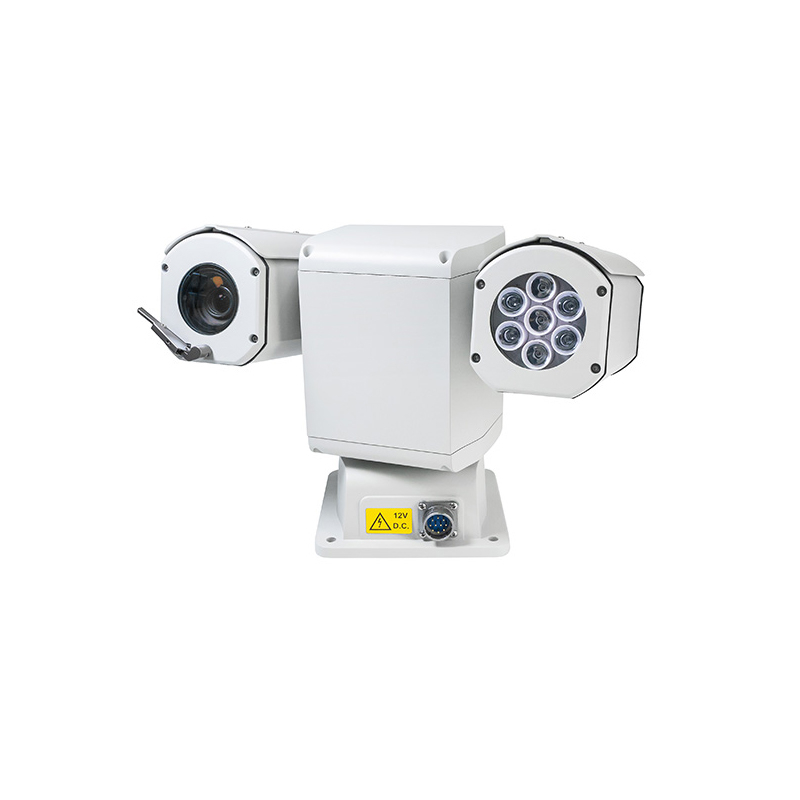

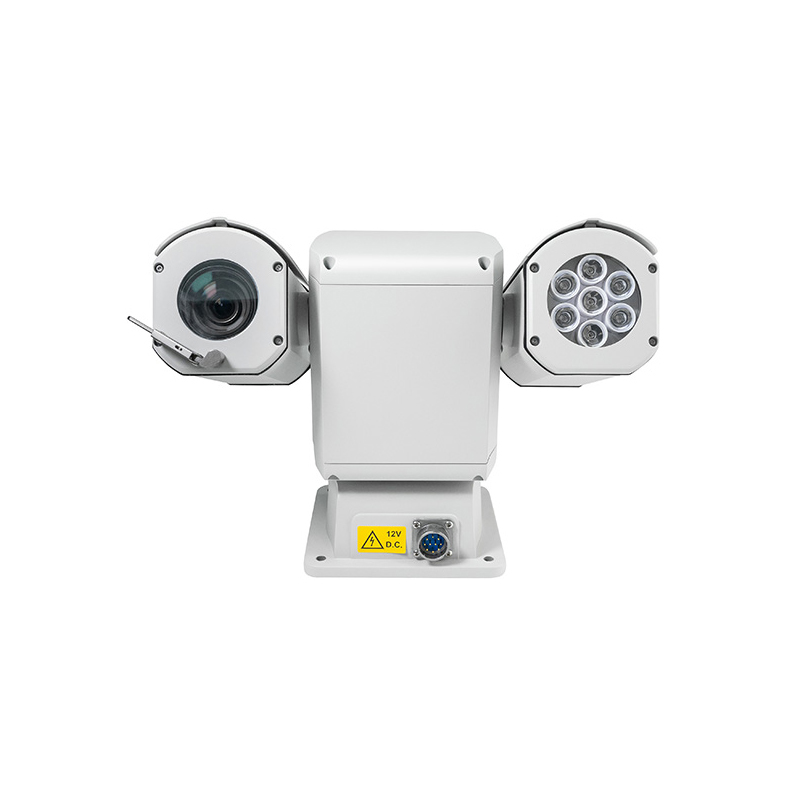

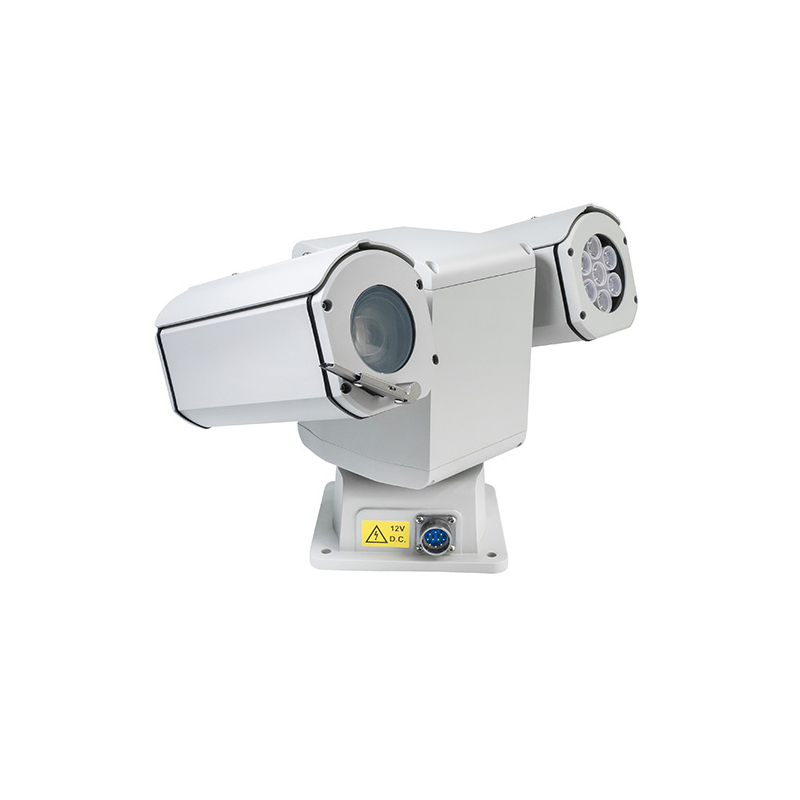

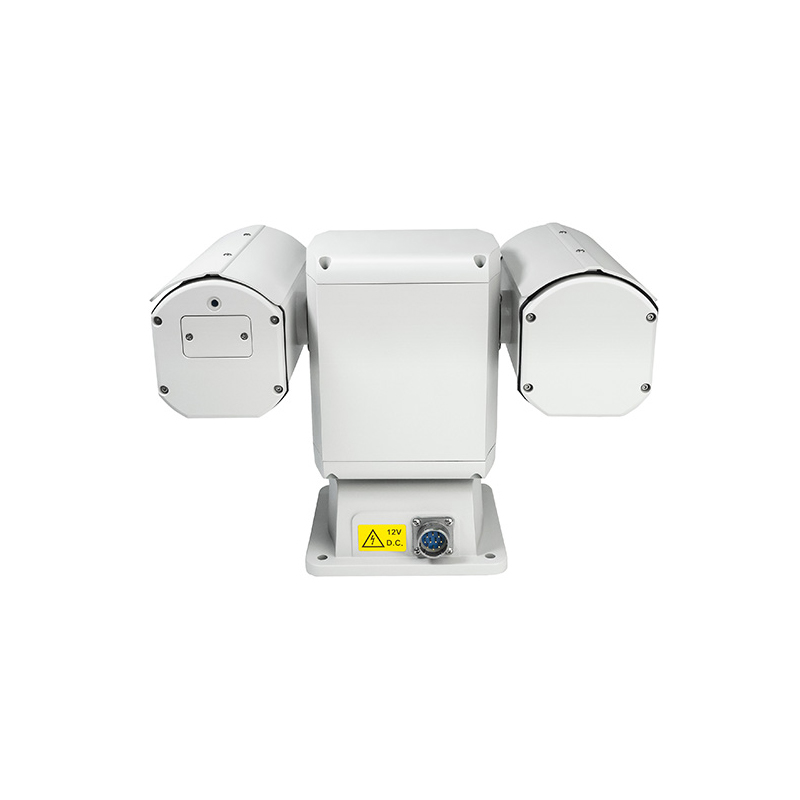

VRS-806 Long-Range IR PTZ Camera

• Optional Configurations: Network, SDI, Network + SDI Dual Output
• Optional Lighting Modes: Infrared, White Light, Laser

• Pan fastest speed: 120°/S
• Tilt fastest speed: 100°/S
• Pan manual speed control: 0°—100°/S
• Tilt manual speed control: 0°—80°/S
• Preset: 256 positions
• Fill light IR：>100M
• Protection level: IP66
• Working temperature: -40°C — +65°C
• Power range: AC24V ±10% 45W Max/ DC12V OPTIONAL
• weight: 6kg

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

VRS-806 PTZ Camera Long Range IR PTZ Camera Pan tilt zoom camera IP PTZ Camera 3G-SDI PTZ Camera Full HD PTZ Camera 4K Ultra HD PTZ Camera CCTV Camera Surveillance Camera

Overview

Optional Configurations: Network, SDI, Network + SDI Dual Output

Optional Lighting Modes: Infrared, White Light, Laser

Features

• Camera enclosure glass with auto-defog function, effectively solving repeated fogging and condensation caused by temperature differences in the camera compartment.

• 3D frame selection function for convenient monitoring operations.

• With wiper function, the material has good weather resistance and is easy to replace.

• Infrared Fill Light Design for more flexible and rational night-time fill light. White light option available.

• Voltage Stabilizing Module with wide power supply adaptability.

• Die-Cast Aluminum Alloy Housing with IP66 protection rating.

• Thermal Imaging Expandable for optional configuration.

• Optional On-Board Shock Absorber

• RS485 Online Upgrade for easy PTZ program customization, upgrading & updating

Infrared: Imported array infrared lamps with multi-group angle coordination. Service life up to 30,000 hours; night vision range 100-120 meters.

White Light: High-intensity dot-matrix white light chips adopted. Night vision range 80–100 meters.

Laser: Imported 808nm laser for synchronous zooming. Angle manually adjustable or auto-adjustable based on camera magnification. Laser spot angle: 1°-50°; laser power customizable.

Thermal Imaging: Thermal imaging modules available for customization.

Application

security surveillance
intelligent transportation
Forest monitoring

Parameter

Product applications:

Widely applicable to vehicle mobile law enforcement, substations, iron towers, inspection robots and other scenarios

PTZ
Pan fastest speed	120°/S
Tilt fastest speed	100°/S
Pan manual speed control	0°—100°/S
Tilt manual speed control	0°—80°/S
Pan angle	360°endless rotation
Tilt angle	-90°— +90°
Preset	256 positions
Wiper	support
Fill light	IR：>100M
Relative humidity	<90%
Protection level	IP66
Working temperature	-40°C — +65°C
Power range	AC24V ±10% 45W Max/ DC12V OPTIONAL
weight	6kg

Camera Parameters: PTZ Zoom Camera Module (Optional)

sensor	1/1.8” STARVIS CMOS
Zoom	30x optical zoom
Zoom	12x digital zoom
Focal length	f=4.3mm-129mm
Effective Pixels	2MP 1080P
SNR	≥50dB
Minimum illumination	0.009Lux (color)
Minimum illumination	0.00008Lux (B/W)
BLC	ON/OFF
White balance, aperture, focus	automatic / manual
Color/black and white automatic conversion	automatic
Electronic shutter	1/1～1/10,000s
Electronic fog penetration	SUPPORT
Electronic image stabilization	SUPPORT

Video

Long-Range IR PTZ Camera
