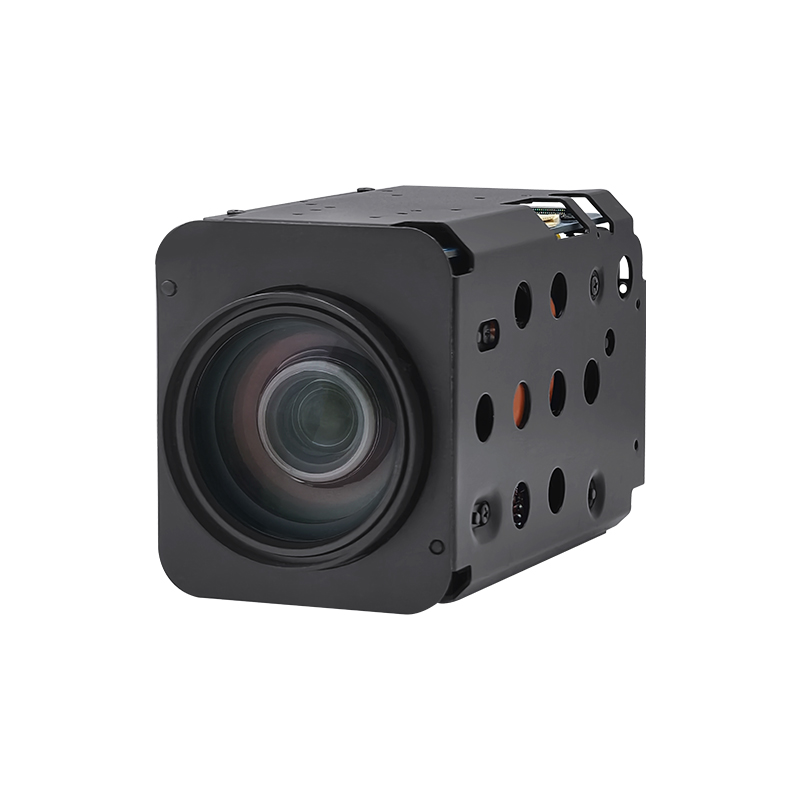

VRS-HD5401 Volers 40X Zoom Block Camera LVDS Output

• Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.16MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: 1080P/60/50/30/25, 720P/60/50/30/25
• Video output: LVDS, CVBS(without WDR)
• Lens: f = 4.25mm - 170mm, F1.6 - 4.95
• Zoom: 40x Optical Zoom, 32x Digital Zoom
• Other functions: Day & Night(ICR), Digital Noise Reduction(2D+3D), Digital Image Stabilization, Privacy Mask Function
• Size: 54.0 x 64.0 x 101.0mm
• Weight: approx. 355g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

VRS-HD5401 Volers VRS-HD5401 LVDS Output Zoom Camera PTZ Dome Camera Block Surveillance 40x Zoom Camera 40x Motorized Zoom Camera 40x Af Zoom Camera Sony VISCA Pelco Block Camera 40x Color Autofocus Zoom Block 2MP High Sensitivity 40x Zoom Module

Overview

The VRS-HD5401 is equipped with a 40x high-power optical zoom system that captures fine details of targets hundreds of meters away with zero image quality loss. Whether it’s facial recognition in long-range surveillance, animal behavior recording in nature observation, or activity detail tracking in large venues, this device delivers a stable and smooth zoom experience.

Integrated with advanced digital stabilization technology, it maintains steady footage even at maximum telephoto magnification, eliminating blurriness and jitter to ensure every detail is reproduced with true-to-life clarity.

Features

• 1/2.8" 2MP Sony CMOS sensor

• 1080p 60fps/30fps, 720p 60fps/30fps

• 40x Optical Zoom(4.25mm ~ 170mm) & 32x Digital Zoom

• Day & Night (ICR)

• Wide Dynamic Range

• Digital Noise Reduction (2D+3D)

• Privacy Mask Function

• Digital Image Stabilization

• High Light Compensation

• Intelligent Motion Detection

• Defog Function

• Supports VISCA, Pelco-D/P Protocol

• Video Out : LVDS, CVBS

Basic Info.

Model NO.	VRS-HD5401	Brand	Volers
Sensor	1/2.8" Sony CMOS Sensor	Output pixels	1,945 (H) x 1,109 (V) = 2.16M Pixels
Focal Length	40x Optical Zoom, 32x Digital Zoom	Focal Length	f= 4.25 mm ~ 170 mm, F1.6 - 4.95
Image formats	Digital : 1080p/60(50)fps, 1080p/30(25)fps, 720p/60(50)fps,720p/30(25)fps Analog SD: CVBS
Minimum illumination	Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux
Video Output	HD : LVDS, Analog SD:CVBS
Other functions	Day & Night(ICR), Digital Noise Reduction(2D+3D), Digital Image Stabilization, Privacy Mask Function
Dimensions	54(W) x 64(H) x 101(D)mm
Weight	Approx 355g

Application

Port wharf
Drone aerial photograph
Intelligent high-speed dome

Optimized Video Output Configuration

VRS-HD5401		Compatible Camera Interface Board		Customized Integrated Solutions

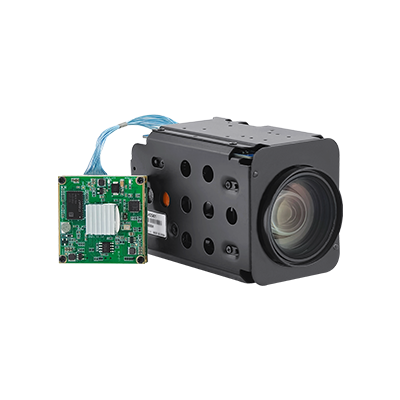

1/2.8" Sony CMOS Sensor Effective pixels: approx. 2.12MP	+	RJ45 Ethernet interface Network Video output	=	Volers VRS-HD5401 + MIPI or LVDS to IP camera Interface Board

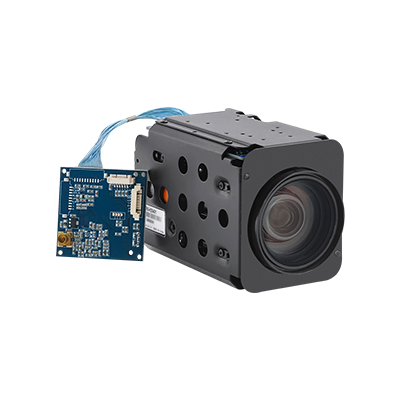

Lens: 40x Optical Zoom, 32x Digital Zoom	+	Mini MCX RF Interface Lvds to 3G-SDI Output	=	Volers VRS-HD5401 + 3G-SDII Interface Board

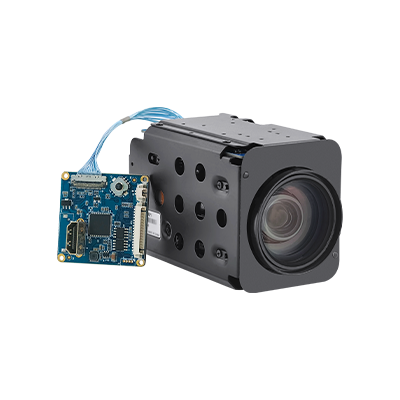

Video Output: LVDS and CVBS Output pixels (H × V): 1,945x 1,109	+	HDMI-compatible Type A interface HD-HDMI video output	=	Volers VRS-HD5401 + HD-HDMI Compatible Interface Board

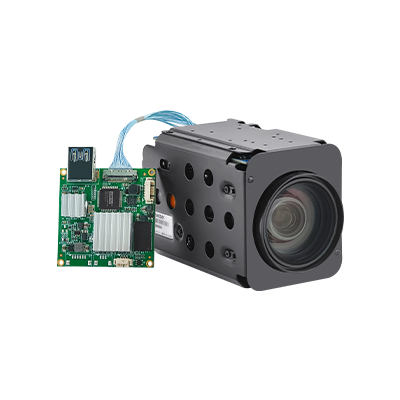

Minimum illumination: color image output under 0.01Lx low illuminations	+	USB3.0 Interface Lvds to USB3.0 video Output	=	Volers VRS-HD5401 + LVDS to USB3.0 Video Capture Interface Board

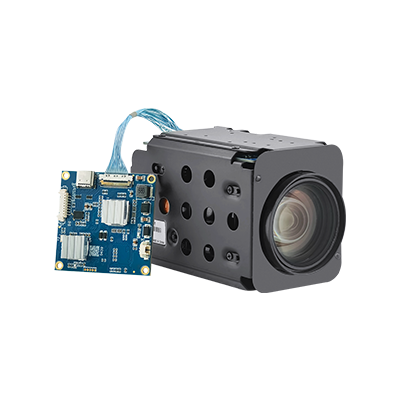

Wide dynamic, Electronic image stabilization	+	USB3.0 Type-C Interface Lvds to Type-C Output	=	Volers VRS-HD5401 + LVDS to USB3.0 Type-C Video Capture Interface Board


Day and night switch Privacy Mask Function	+	Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Volers VRS-HD5401 + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board

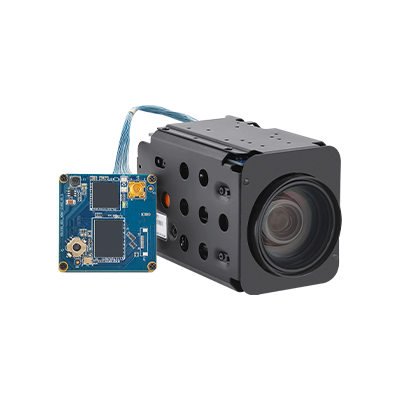

Digital Noise Reduction(2D+3D), Camera control: VISCA, Pelco-D/P	+	LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Volers VRS-HD5401 + Mini SDI/CVBS/HDMI-Compatible Interface Board

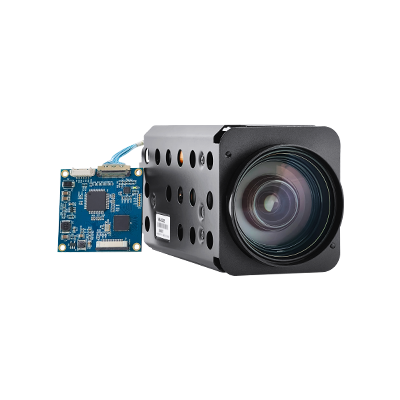

Size: 54(W) x 64(H) x 101(D)mm Weight: Approx 355g	+	LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output	=	Volers VRS-HD5401 + LVDS to MIPI Interface Board

FAQ

Q1: At 40x full focal length, even minor shakes are greatly amplified on the VRS-HD5401. Does it have anti-shake functionality?

A1: The VRS-HD5401 is equipped with Digital Image Stabilization (DIS) to address the issue of amplified shakes at 40x full focal length. Its digital image stabilization analyzes offset in image sequences via specialized algorithms, providing real-time shake compensation and vibration suppression. This minimizes the impact of shakes during high-magnification zoom, delivering sharp, stable footage.

Digital Image Stabilization (abbreviated as DIS/EIS) is a software-algorithm-based stabilization technology. It eliminates the need for additional optical anti-shake hardware, resulting in lower costs and broader compatibility.

Its core working principle is as follows:

The camera sensor captures consecutive image frames.

Algorithms compare pixel positions across adjacent frames to calculate the direction and amplitude of shake-induced offsets.

After identifying the shake trajectory, the system automatically performs pixel cropping and displacement compensation on subsequent frames, realigning the offset image back to a stable area, and ultimately outputting smooth, shake-free videos or images.

Some advanced digital stabilization technologies further integrate gyroscope data to predict shake trajectories in advance, thereby enhancing compensation precision.

The key advantages of digital image stabilization are its compact size and cost-effectiveness, making it ideal for integration into small camera modules, smartphone cameras, and similar devices.

Q2: What are the differences between Sony FCB-EV9500L and Volers VRS-HD5401

A2:

Comparison of main parameters

Model NO.	SONY FCB-EV9500L	VRS-HD5401
Image Sensor	1/1.8” STARVIS CMOS	1/2.8" Sony CMOS Sensor
Min. illumination(50%,1/30S)	0.00008lx	0.0002lx
Optical zoom	30X Enhanced	40X
Video Output	LVDS	LVDS,CVBS
Image Stabilization	Super lmage Stabilizer (Super/Super+)	EIS
Optical Axis Gap Compensation Function	Yes	No
Spot Forcus/AE/AWE	Yes	No
ICR ON COLOR	Yes	No
Size	56.0 x 64.0 x 125 mm	54(W) x 64(H) x 101(D)mm
Weight	439g	355g

Parameter

Model	VRS-HD5401
Image Sensor	1/2.8" Sony Starvis CMOS Sensor
Total Pixels	1,945 (H) x 1,109 (V) = 2.16M Pixels
Active pixels	1,937 (H) x 1,097 (V) = 2.12M Pixels
Scanning system	Progressive Scan
Sync. System	Internal
Resolution	Digital : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 Analog : CVBS
Min. illumination	Color(1/30s, 79.5dB) : 0.01 lux, BW(1/30s, 79.5dB) : 0.002 lux Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux
Video Output	Digital : LVDS Analog: CVBS(without WDR)
S/N Ratio	more than 50dB (AGC off)
Lens
Lens type	40x Day & Night Zoom Lens
Zoom Ratio	Optical 40x, Digital 32x Zoom
Focal Length	f = 4.25mm ~ 170mm
Aperture Ratio	F1.6 (wide) ~ F4.95 (tele)
Angle of View (D, H, V)	Wide	73.80°	66.35°	39.98°
	Tele	2.16°	1.90°	1.11°
Function
AF Mode	Auto / One Push / Manual
Min. Distance	0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh	One Push / 1 ~ 10Day
Digital Zoom	Off / MAX x2 ~ x32
Exposure	Auto / Iris.P / Shut.P / Manual
Gain Control (AGC)	0 ~ 10 steps
Shutter Speed	1/1 ~ 1/30,000 sec
Iris	Close ~ F1.6
Digital Slow Shutter (DSS)	Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only)
Flickerless	Off / On / Auto
Brightness	0 ~ 14 steps
Back Light	Off / BLC / HLC / WDR
Day&Night	Auto / Day / Night / Ext-in
White Balance	Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
DNR	2D/3D, 2D+3D
Mirror	Off / H / V / H&V
Sharpness	0 ~ 15 steps
DWDR	Off / Manual / Auto
Defog	Off / On(Auto / Manual)
Privacy Mask	Off / On (8 points)
Motion Detection	Off / On (4 points)
Defect Detection	Off / On
System	NTSC / PAL
Communication	Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P
Power Source	9V to 15V DC
Power Consumption	Max 530mA
Operating Temperature	-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature	-10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension	54(W) x 64(H) x 101(D)
Weight	355g
