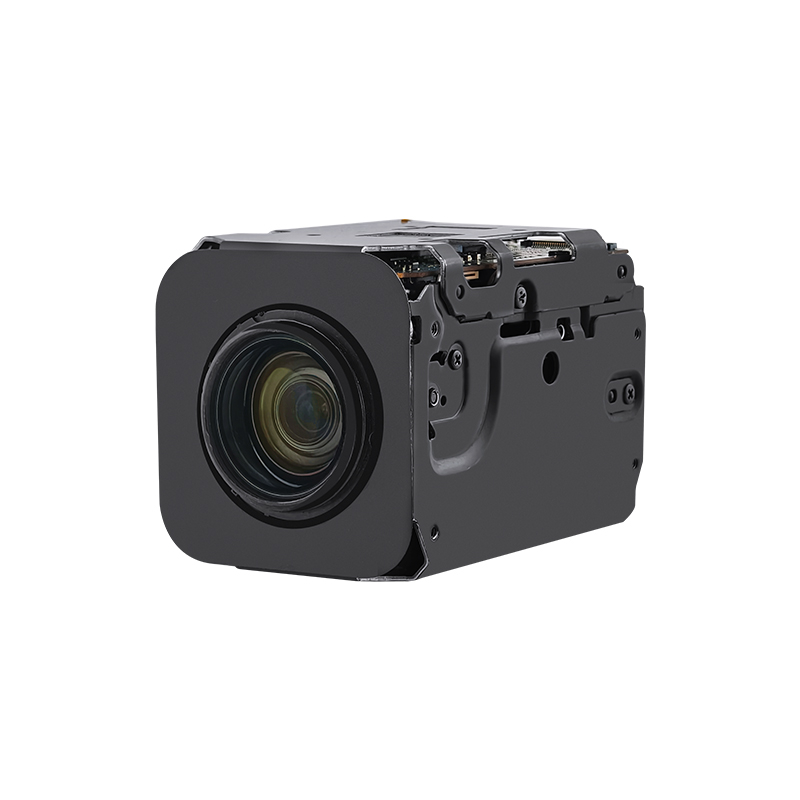

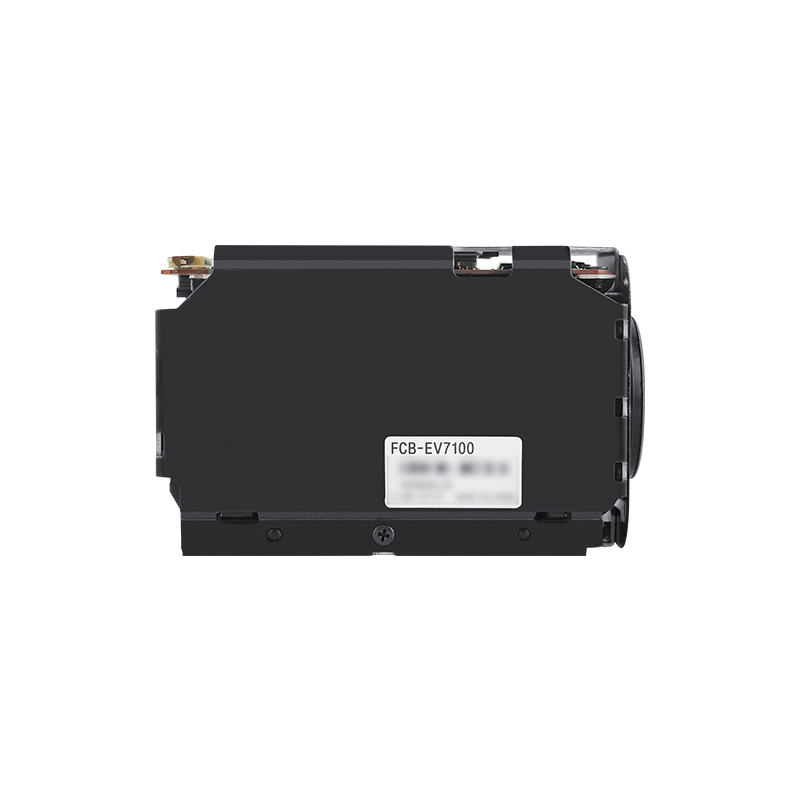

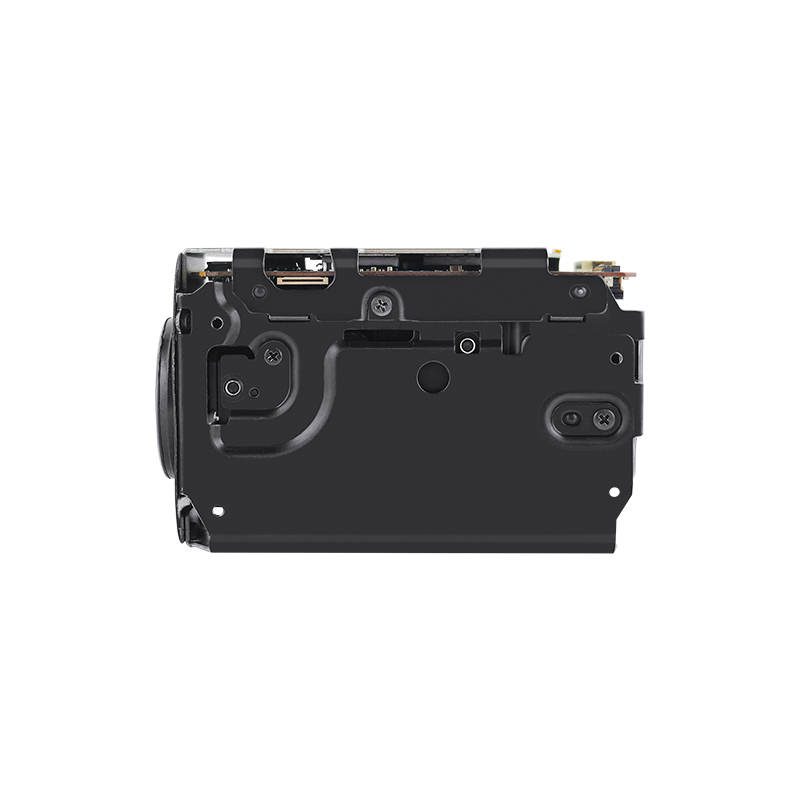

FCB-EV7100 Sony Full HD 10x Zoom Block Camera

• Sensor(Effective pixels): 1/2.8'' Exmor CMOS(approx. 2.38MP)
• Output pixel(HxV): 1920x1080, 1280x720
• Video format: 1080P/60/59.94/29.97/25, 1080I/59.94/50, 720P/59.94/50/29.97/25
• Video output: LVDS
• Lens: f = 3.8 mm - 38 mm, F1.8 - 3.4
• Zoom: 10x Optical Zoom
• Size: 45.6 x 48.8 x 78.0mm
• Weight: approx. 210g

Image Sensor:
1/2.3-inch CMOS
Output Image Size (H x V):
1/2.3-inch CMOS
Signal System:
1/2.3-inch CMOS
Zoom:
1/2.3-inch CMOS
Lens:
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde ON):
1/2.3-inch CMOS
Minimum Illumination (50%, High Sensitivity MOde OFF):
1/2.3-inch CMOS
Horizontal Viewing Angle:
1/2.3-inch CMOS
Auto ICR:
1/2.3-inch CMOS
Wide Dynamic Range (Wide-D):
1/2.3-inch CMOS
Visibility Enhancer:
1/2.3-inch CMOS
Defog:
1/2.3-inch CMOS
Noise Reduction:
1/2.3-inch CMOS
Image Stabilization:
1/2.3-inch CMOS
Spot Light Avoidance:
1/2.3-inch CMOS
Dimensions (W x H x D):
1/2.3-inch CMOS
Mass:
1/2.3-inch CMOS


Availability:



Inquire Add to Basket

FCB-EV7100 Sony FCB-EV7100 Sony 10x Zoom Mini Camera 2MP 10x Zoom Block Camera 1080P/60 10x Camera Module 10x Zoom Camera Block Drone 10x compact Camera LVDS 10x Zoom Camera Pipeline Robot 10x A-f Camera Sony Medical Devices 10x Zoom Camera

Overview

Equipped with a 1/2.8-inch Exmor CMOS image sensor, the Sony FCB-EV7100 delivers smooth Full HD 1080p/60fps video output.

The core advantage of the FCB-EV7100 lies in its 10x optical zoom lens, which facilitates capturing distant details with ease. Boasting a lightweight and ultra-compact design, it measures only 45.6 x 48.8 x 78.0 mm and weighs approximately 210 grams, making it ideal for applications with strict space and weight constraints.

The FCB-EV7100 inherits a host of practical features from Sony’s FCB series, including Wide Dynamic Range (WDR) that ensures balanced detail reproduction in high-contrast environments. Its defog function and 2D/3D noise reduction technology effectively enhance image clarity and usability in harsh weather or low-light conditions. Additionally, it supports useful features such as auto day/night mode switching and privacy masking.

The Sony FCB-EV7100 has been discontinued. You may opt for alternative camera modules with 10x zoom capability.

Basic Info.

Model NO.	FCB-EV7100	Brand	Sony
Sensor	1/2.8" Exmor CMOS Sensor	Output pixels	approx. 2.38M pixels
Zoom Ratio	10x Optical Zoom, 12x Digital Zoom	Focal Length	f=3.8 mm-38 mm, F1.8 - 3.4
Image formats	Digital : 1080p/59.94(50)fps, 1080p/29.97(25)fps, 1080i/59.94(50)fps,720p/59.94(50)fps,720p/29.97(25)fps NTSC1, PAL1
Minimum illumination	0.35lx(1/30sec,50%,High Sensitivity mode ON) 1.4lx(1/30sec,50%,High Sensitivity mode OFF)
Video Output	LVDS
Other functions	Digital Image Stabilization, Intelligent Motion Detection, Defog Function, High Light Compensation
Dimensions	50(W) x 60(H) x 97(D)mm
Weight	Approx 232g

Application

Drone,
Security Monitoring,
Robot,
Medical devices
Video Conference,
Industrial Testing.

Optimized Video Output Configuration

FCB-EV7100		Compatible Camera Interface Board		Customized Integrated Solutions

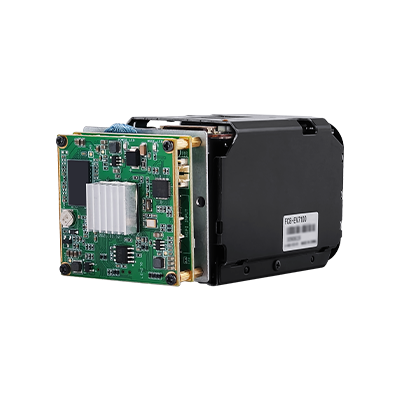

1/2.8 inch Exmor R CMOS Effective pixels: approx. 2.38MP	+	RJ45 Ethernet interface Network Video output	=	Sony FCB-EV7100 + MIPI or LVDS to IP camera Interface Board

Lens: 10x Optical Zoom, 12x Digital Zoom	+	Mini MCX RF Interface Lvds to 3G-SDI Output	=	Sony FCB-EV7100 + 3G-SDII Interface Board

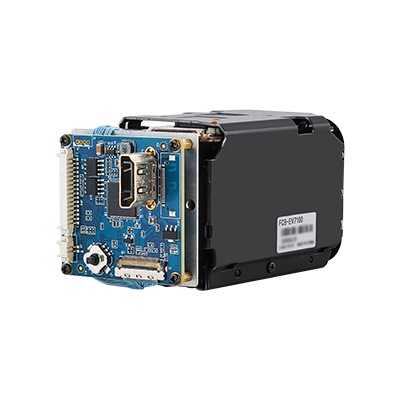

Video Output: LVDS Output pixels (H × V): 1920 × 1080, 1280 × 720	+	HDMI-compatible Type A interface HD-HDMI video output	=	Sony FCB-EV7100 + HD-HDMI Compatible Interface Board

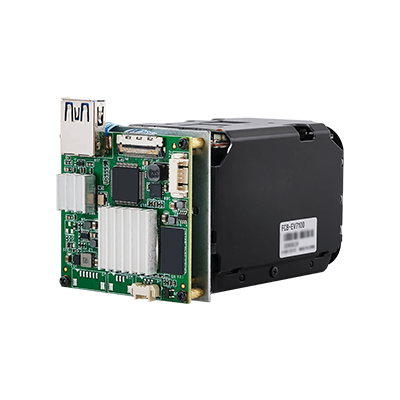

Noise reduction picture freeze	+	USB3.0 Interface Lvds to USB3.0 video Output	=	Sony FCB-EV7100 + LVDS to USB3.0 Video Capture Interface Board

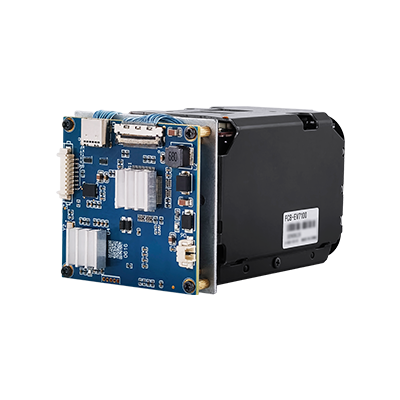

Wide dynamic, image stabilization	+	USB3.0 Type-C Interface Lvds to Type-C Output	=	Sony FCB-EV7100 + LVDS to USB3.0 Type-C Video Capture Interface Board

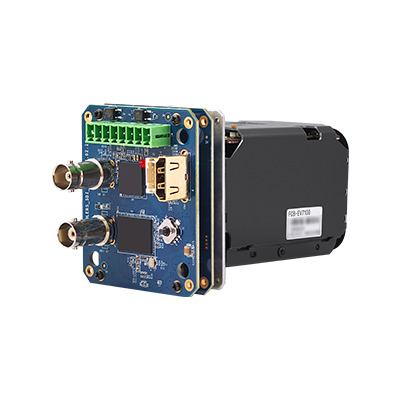

Day and night switch defog	+	Two BNC Female and HDMI Compatible Type-A Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Sony FCB-EV7100 + SDI/CVBS/HDMI-Compatible 3-in-1 Multi-functional Interface Board

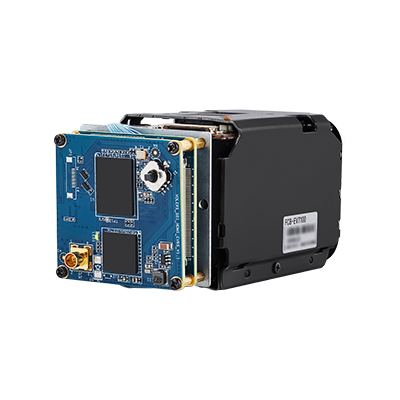

Motion Detection Spherical Privacy Zone Masking	+	LVDS socket and MCX female Interface 3G-SDI, CVBS and HDMI-Compatible Sync-output	=	Sony FCB-EV7100 + Mini SDI/CVBS/HDMI-Compatible Interface Board

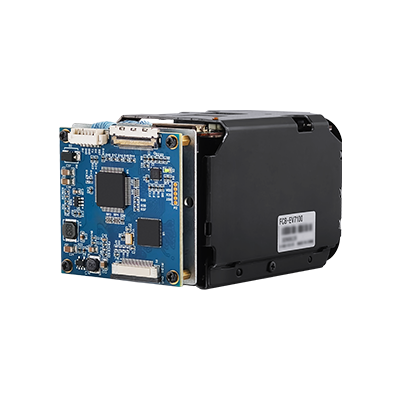

Size: 45.6 x 48.8 x 78.0mm Weight: Approx 210g	+	LVDS Socket and FPC Interface MIPI CSI-2 Version 1.00 output	=	Sony FCB-EV7100 + LVDS to MIPI Interface Board

FAQ

Q: What camera modules can replace the discontinued FCB-EV7100?

A: With the discontinuation of Sony’s FCB-EV7100, users in space-and weight-sensitive applications such as unmanned aerial vehicles (UAVs), pipeline robots, and industrial inspection are in urgent need of high-performance alternatives. Currently, the Tamron MP3010M-EV (weighing approximately 70 grams) and VRS-HD5101 (weighing approximately 112 grams) stand out as two high-performance modules boasting 10x optical zoom. They provide flexible, high-efficiency upgrade options that are tailored to users' priorities for weight, size, and specific functionalities.

Main Specifications Comparison

Option	Sony FCB-EV7100	Tamron MP3010M-EV	VRS-HD5101
Image Sensor	1/2.8” Exmor R CMOS	1/2.8" STARVIS CMOS	1/2.8" Sony CMOS
optical zoom	10X	10X	10X
Wide Dynamic	Yes	Yes	Yes
Video Output	LVDS	LVDS,USB,HDMI,CVBS	LVDS, EX-SDI,CVBS
Day&Night	Yes	Yes	Yes
Privacy Mask	Yes	Yes	Yes
Dimensions	45.6×48.8×78.0 mm	33.0×43.0×59mm	43.0x44.0x 61.0mm
Weight	210g	70g	118g

Parameter

Image Sensor	1/2.8-type Exmor R CMOS
Number of Effective Pixels	Approx.2.38 Megapixels
Signal System	1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, 720p/29.97, 720p/25,NTSC,PAL
Minimum illumination (50%)
High Sensitivity Mode	Color : 0.35 lx (F1.8, automatic gain control on , 1/30 second )
Normal Mode	Color : 1.4 lx (F1.8, automatic gain control on , 1/30 second )
S/N Ratio	More than 50 dB
Gain	Auto/Manual (0 steps to 28 steps, +2 steps/total 15 steps) Maximum gain limit (6 steps to28steps, +2steps/total12 steps)
Shutter Speed	1/1 s to 1/10,000 s, 22 steps
Sync System	Internal
Exposure Control	Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Backlight Compensation	Yes
Aperture Control	16 Steps
White Balance	Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Lens	10x optical zoom f = 3.8 mm (wide) to 38 mm (tele) F1.8 to F3.4
Digital Zoom	12x (120x with optical zoom)
Focusing System	Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
Horizontal Viewing Angle
1080p Mode	67.0° (wide end) to 7.6° (tele end)
720p Mode	67.0° (wide end) to 7.6° (tele end)
SD	50.3° (wide end) to 5.7° (tele end)
Minimum Object Distance	10 mm (wide end) to 800 mm (tele end) (Default: 320 mm)
Auto ICR	Yes
Wide-D	Yes
Visibility Enhancer	Yes
De-fog	Yes
HLC	Yes
Noise Reduction	Yes (6 steps)
Image Stabilization	No
StableZoom	No
Privacy Zone Masking	Yes (with Spherical Pan/tilt)
Motion Detection	Yes
Alarm	Yes
Slow AE Response	Yes
Picture Effects	E-Flip, Nega Art, Black & White, Mirror image, Colour enhancement
Slow Shutter	Yes
Temperature Readout	Yes
Title Display	20 characters/line, max. 11 lines
Camera Mode Display	Yes
Key Switch Control	No
Camera Operation Switch	No
Video Output
HD	HD: Analog Component (Y/Pb/Pr), Digital (Y/Cb/Cr 4:2:2) Dual/single LVDS SD: VBS
SD	VBS
Camera Control Interface	VISCA protocol (TTL/CMOS), 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps Stop bit 1/2 bit
Power Requirements	6.0 V to 12.0 V DC
Power Consumption	3.4 W (zoom/focus inactive) – 3.7 W (zoom/focus active)
Operating Temperature	-5°C to +60°C (23°F to 140°F)
Storage Temperature	-20°C to +60°C (-4°F to 140 °F)
Operating Humidity	20% to 80%, Absolute humidity: 36 g/m3
Dimensions (W x H x D)	45.6×48.8×78.0 mm
Mass	210 g

Video

Download

Tamron MP3010M-EV Technical Specifications.pdf

RELATED ACCESSORIES

Image	Product Name
	FCB-EW9500H Sony HDMI-Compatible CMOS 30x Zoom Block Camera
	FCB-EV7520 Sony Full HD 30x Zoom Block Camera

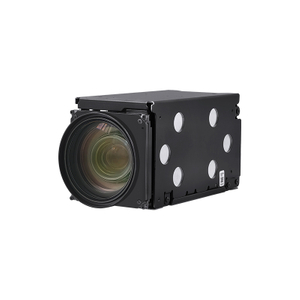

	FCB-EV9500L Sony LVDS 30x Zoom Block Camera
